A laboratory analogy for mixing by shallow cumulus convection

Abstract

Shallow cumuli are cloud towers that extend a few kilometres above the atmospheric boundary layer without significant precipitation. We present a novel laboratory experiment, boiling stratified flow, as an analogy to study turbulent mixing processes in the boundary layer by shallow cumulus convection. In the experimental beaker, a syrup layer (representing the atmospheric boundary layer) is placed below a freshwater layer (representing the free troposphere) and heated from below. The temperature is analogous to the water vapour mixing ratio in the atmosphere, while the freshwater concentration is analogous to the potential temperature. When the syrup layer starts boiling, bubbles and their accompanying vortex rings stir the two-layer interface and bring colder fresh water into the syrup layer. Two distinct regimes are identified: transient and steady boiling. If the syrup layer is initially sufficiently thin and diluted, then the vortex rings entrain more cold water than needed to quench superheating in the syrup layer, ending the boiling. If the syrup layer is initially deep and concentrated, then the boiling is steady since the entrainment is weak, causing the entrained colder water to continuously prevent superheating. A theory is derived to predict the entrainment rate and the transition between the two regimes, validated by experimental data. Finally, analogies and differences with the atmospheric processes are discussed.

1. Introduction

Shallow cumulus convection is a common form of moist convection that reaches a few kilometres above the convective mixed layer and dissipates without producing significant precipitation (e.g. Malkus 1954; Emanuel 1994; Zuidema et al. 2012). A shallow cumulus usually consists of localised buoyant air elements called ‘thermal bubbles’ (Scorer & Ludlam 1953; Yano 2014), which arise from convective structures in the mixed layer (Stull 1985). Water vapour condenses and releases latent heat as the ascending thermal bubble cools by adiabatic expansion, providing additional buoyancy, thus lifting it into the stably stratified troposphere (e.g. Wallace & Hobbs 2006). While ascending, the thermal bubble entrains dry air, mixes with the liquid droplets, and causes evaporative cooling (Stommel 1947; Paluch 1979; de Rooy et al. 2013). This evaporative cooling drives a downdraft surrounding the cloud (Blyth et al. 1988; Heus & Jonker 2008), which dries and cools the boundary layer through direct transport and turbulent mixing (Emanuel 1989; Thayer-Calder & Randall 2015; de Szoeke 2018).

Modelling the effects of these small-scale shallow cumuli is crucial for parametrizing the vertical transport of tracers and momentum in the lower troposphere (Bretherton et al. 2004). Higher humidity in the boundary layer fosters cumulus clouds. Thus the cloud may be seen as a ‘valve’ that releases the humidity accumulated by surface evaporation. However, shallow cumuli are not the only modulators of boundary layer humidity; convective cells in the boundary layer also entrain dry air from above (e.g. Lilly 1968; Deardorff et al. 1970; de Szoeke 2018). The relative contribution of cumulus versus boundary layer cells in mixing the lower troposphere remains an open question (Thayer-Calder & Randall 2015).

This paper introduces a novel laboratory experiment to make modelling progress on this question, focusing on mixing by shallow cumulus convection. While observations and numerical simulations have been the main tools for studying clouds, laboratory experiments can provide a unique complementary perspective (e.g. Bohren 2013; Yano 2014; Shaw et al. 2020). The main challenge is mimicking the water phase change in the laboratory, which includes the condensation heating that drives the updraft, and the evaporative cooling that drives the downdraft. Faithfully representing condensation heating would require a 1 km tall apparatus. To study cloud dynamics in the laboratory, analogies must therefore be found, with the awareness that no analogy is complete. Previous experiments simulated condensation-driven updrafts and evaporation-driven downdrafts separately. The updraft has been simulated with the heat released from a chemical reaction (Hadlock & Hess 1968), gas bubbles (Turner 1963; Turner & Lilly 1963), the selective radiative absorption of chemicals (Krishnamurti 1998), a heating coil (Narasimha et al. 2011), the radiation from a lamp (Zhao et al. 2001), and so on. The downdraft has been simulated with the release of saltwater or heavy particles into fresh water (Simpson & Britter 1980; Yao & Lundgren 1996; Kriaa et al. 2022). These methods are less suited to simulating shallow cumuli, which involves the interaction between boundary layer cells, cumulus updrafts and downdrafts.

To simulate shallow cumuli, we will rely on boiling, a vaporisation process that occurs when the water temperature exceeds the boiling point. Boiling is a threshold-dependent phenomenon that limits the water temperature around the boiling point by absorbing the heat of vaporisation and mixing the superheated water with the colder water above (Collier & Thome 1994; Oresta et al. 2009). Buoyancy is gained from the volume expansion during vaporisation, and lost from the subsequent condensation. Such a transient buoyancy gain and loss appear promising to simulate the updrafts and downdrafts in shallow cumuli. To improve the analogy, we must also reproduce the mostly stable stratification in the atmosphere, which traps moisture in the boundary layer, thus facilitating its accumulation. This is the idea behind our boiling stratified flow experiment, essentially coupling boiling with two-layer Rayleigh–Bénard convection (Turner 1965; Davaille 1999). Although some studies have investigated the boiling of two layers of immiscible fluids such as water and oil (e.g. Mori 1978, 1985; Greene et al. 1988; Takahashi et al. 2010; Filipczak et al. 2011; Onishi et al. 2013; Kawanami et al. 2020), the boiling of two separate layers of miscible fluids appears to receive little attention.

Our boiling stratified flow is set up with a freshwater layer mimicking the free troposphere above a thin layer of syrup mimicking the atmospheric boundary layer (figure 1). The water temperature is analogous to the atmospheric water vapour mixing ratio. The vapour plays a relatively minor role in the air buoyancy, but a sufficiently humid boundary layer is necessary to initiate cumulus convection. The freshwater concentration is analogous to the atmospheric potential temperature controlling buoyancy. We will show that boiling produces vapour bubbles that propel the surrounding syrup into vortex rings (a ‘flow with circular vortex lines’ according to Batchelor 1967). Although bubbles quench quickly upon formation, the vortex rings carry the syrup to travel a much longer distance, stir the syrup–water interface, and entrain and mix cold water into the syrup layer. This process competes with convective cells in the syrup layer for transferring heat. We argue that this competition is analogous to that between shallow cumuli and boundary layer cells for transporting water vapour in the troposphere.

The paper is organised as follows. Section 2 introduces the experimental set-up. Section 3 analyses the flow evolution of a reference experiment, which inspires the theory in § 4. Section 5 applies and verifies the theory to understand experiments across the parameter space. Section 6 extends the theory to study the transition between two types of boiling (transient and steady). Section 7 summarises the fluid dynamics findings and assesses the analogy with the atmosphere.

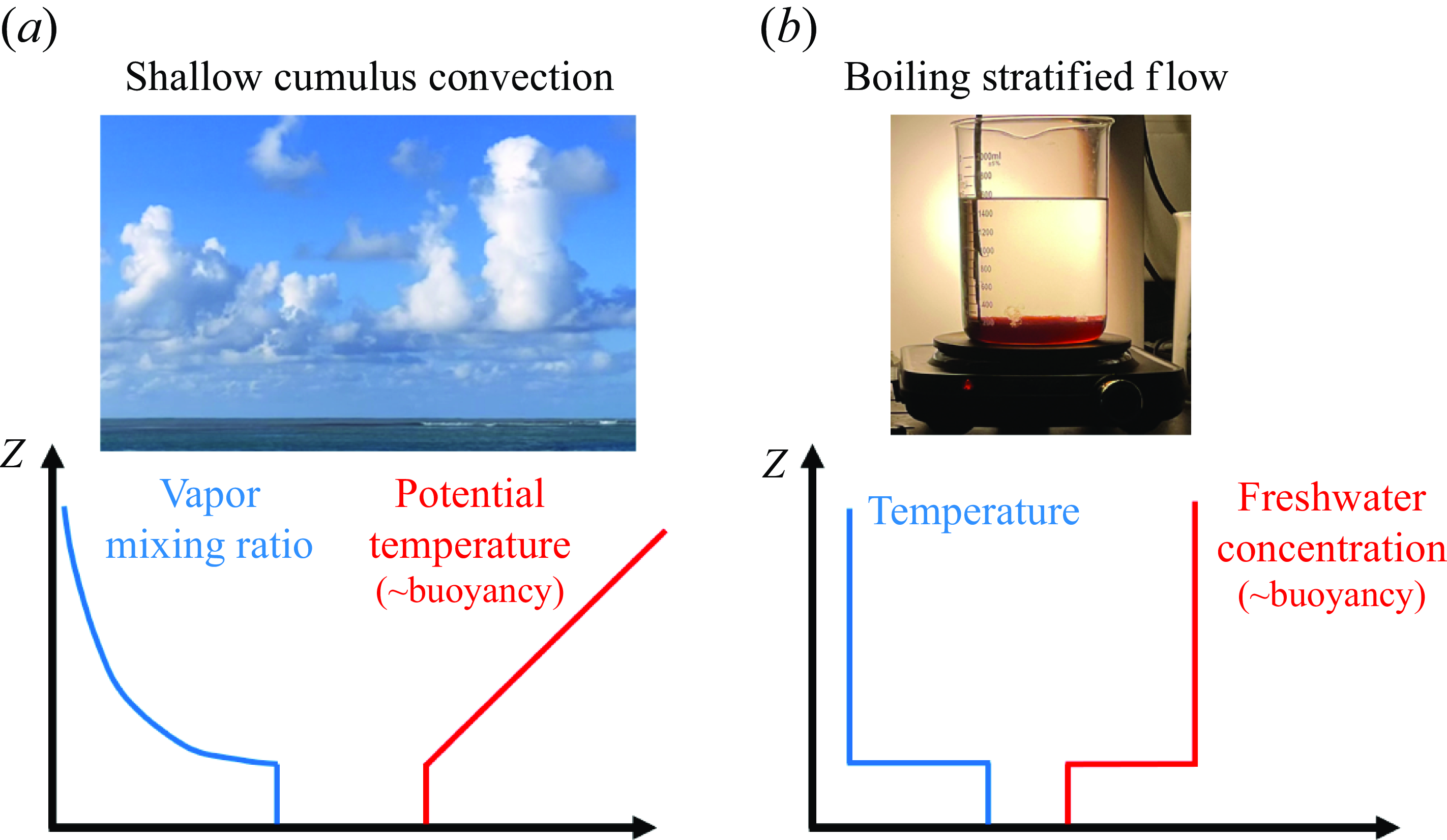

Figure 1. (a) Shallow cumulus convection and idealised profiles of the water vapour mixing ratio and potential temperature, and (b) the experimental set-up, and the corresponding idealised profiles of temperature and freshwater concentration. The buoyancy profile is dominated by the red line, i.e. the potential temperature in the atmosphere and freshwater concentration in most of our experiments.

2. The boiling stratified flow experiment

2.1. Experimental set-up

The experimental set-up is shown in figure 1. It consists of a 2000 ml beaker with diameter approximately 130 mm. The beaker is filled with a layer of dark corn syrup water solution underlying a thicker layer of tap fresh water. Here, $\rho _{s,max}\approx 1.4\times 10^3$ kg m $^{-3}$ is the density of the pure syrup, and $\rho _w \approx 1\times 10^3$ kg m $^{-3}$ is the density of the fresh water. The beaker is heated on an electric hot plate with adjustable heating power. More details on the set-up are given in Appendix A.1. When diluted, the density of the syrup solution $\rho _s$ obeys

(2.1) \begin{eqnarray} \rho _s = S \rho _{s,max} + ( 1 - S ) \rho _w, \quad \end{eqnarray}

where $0\leqslant S\leqslant 1$ is the dimensionless syrup concentration:

(2.2) \begin{eqnarray} S \equiv \frac {\rho _s-\rho _w}{\rho _{s,max}-\rho _w}. \end{eqnarray}

The system is required to be statically stable at the onset of boiling. The vertical gradient of syrup concentration stabilises the two-layer configuration against the destabilizing effect of the temperature gradient. The buoyancy $b$ (in m s $^{-2}$ ) is defined as

(2.3) \begin{eqnarray} b = g \left ( -\gamma _s S + \gamma _T T \right ), \end{eqnarray}

where $g=9.8$ m s $^{-2}$ is the gravitational acceleration, $\gamma _s \equiv (\rho _{s,max}-\rho _w)/\rho _w=0.4$ is the syrup concentration coefficient, and $\gamma _T\approx 6\times 10^{-4}$ K $^{-1}$ is the volumetric thermal expansion coefficient of the solution, taken as the value for 80 $^\circ$ C pure water (The Engineering ToolBox 2003). At the onset of boiling, the water layer temperature is $T_w \approx 30\,^\circ$ C (slightly above the 20 $^\circ$ C room temperature), while the syrup layer is at the boiling temperature $T_* \approx 100\,^\circ$ C. We let the characteristic temperature difference be $T_*-T_w = (100-30)\,^\circ \textrm{C}=70\,^\circ \textrm{C}$ . To make the system stable, $S$ must be above a minimum value $S_{min}$ :

(2.4) \begin{eqnarray} S_{min} \equiv \frac {\gamma _T \left ( T_*-T_w \right )}{\gamma _s} \approx 0.11. \end{eqnarray}

Since the initial concentration obeys $S_0 \gg S_{min}$ in most of our experiments, the buoyancy from the syrup is dominant. The freshwater concentration $(1-S)$ is analogous to the potential temperature in the atmosphere, and both increase with height. They produce a stable background buoyancy stratification. The temperature $T$ in the experiment is analogous to the water vapour mixing ratio in the atmosphere, and both decrease with height. They represent the potential for gaining extra buoyancy from boiling and condensation heating. In the experiment, the heat is transported by convective cells in the beaker, the water phase change, and the bubble-induced fluid motion.

We use syrup because it has higher density and viscosity than water, both of which suppress interfacial heat and mass transfer (Turner 1986). The high syrup viscosity is crucial in that it enables the lower layer to reach the boiling point before the two-layer stratification is eroded by turbulence. The high viscosity does not have a direct analogy to the atmosphere, but it might be thought of as an amplifier of the density stratification effect.

The flow is recorded with a camera from a side view, providing an integrated view of the syrup concentration. Temperature is measured with thermocouples located at $z=1$ , 3, 5 and 7 cm above the bottom of the beaker, though this paper discusses only the $z=1$ and 5 cm data.

2.2. List of experiments

Several parameters govern the system:

1. (i) the surface heating flux $F_s$ , which is analogous to the heating of the lower atmosphere from Earth’s surface and by radiation

2. (ii) the initial syrup layer thickness $h_0$ , which is analogous to the thickness of the atmospheric convective boundary layer

3. (iii) the initial syrup concentration $S_0$ , which is analogous to the strength of buoyancy stratification near the top of the boundary layer

4. (iv) the initial water layer thickness, which is analogous to the tropospheric depth.

We decided to leave the investigation of the effects of the water layer thickness for future work by keeping the initial freshwater thickness fixed to approximately 10 cm (corresponding to the 1400 ml scale on the beaker), much thicker than the convective penetration height.

We performed four groups of experiments, varying $F_s$ (F1–F5), $h_0$ (T1–T7), $S_0$ (S1–S7), and $S_0$ and $h_0$ together (ST1–ST4), as shown in table 1. Note that the pairs of labels (F3, S5), (T4, S6), (T6, ST1) and (T7, ST2) correspond to the same experiments. Experiment S3 (in bold) is the reference experiment that will be analysed in detail.

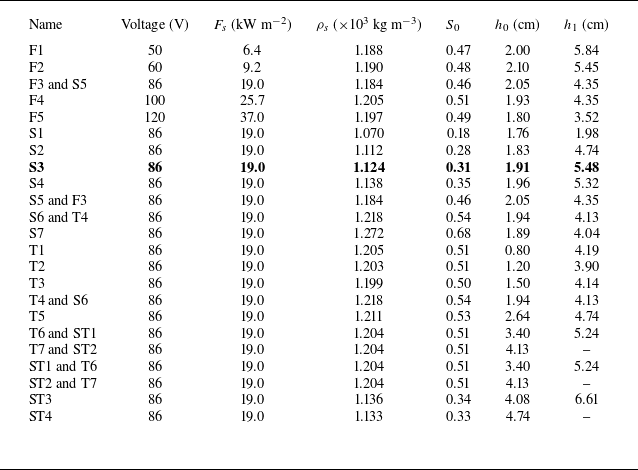

Table 1. Table of experimental parameters, which include heating voltage, surface heat flux $F_s$ , initial syrup density $\rho _s$ , initial syrup concentration $S_0$ , and initial syrup thickness $h_0$ . The post-boiling syrup thickness $h_1$ is shown in the rightmost column (the diagnostic procedure is detailed in § A.2). For experiments in the steady boiling regime (§ 5.3), their $h_1$ is denoted as a dash. Note that some experiments are shared by different groups. Bold indicates S3, the reference experiment.

We measured $S_0$ with a density meter, and $h_0$ with the video (using a pixel-to-length calibration). Note that the values of $S_0$ and $h_0$ reported in table 1 within an experimental group (e.g. $S_0=0.47$ , 0.48, 0.46, etc. for the F group) are not exactly equal due to small fluctuations introduced in preparing the two layers.

3. Basic physics and temporal evolution

Figures 2 and 3 illustrate the basic physics of the boiling stratified flow in the reference experiment S3. We highlight three stages: the initial two-layer stage (visualised in figure 2 a–c), the boiling stage (figure 2 d–f), and the post-boiling two-layer stage (figure 2 g–i).

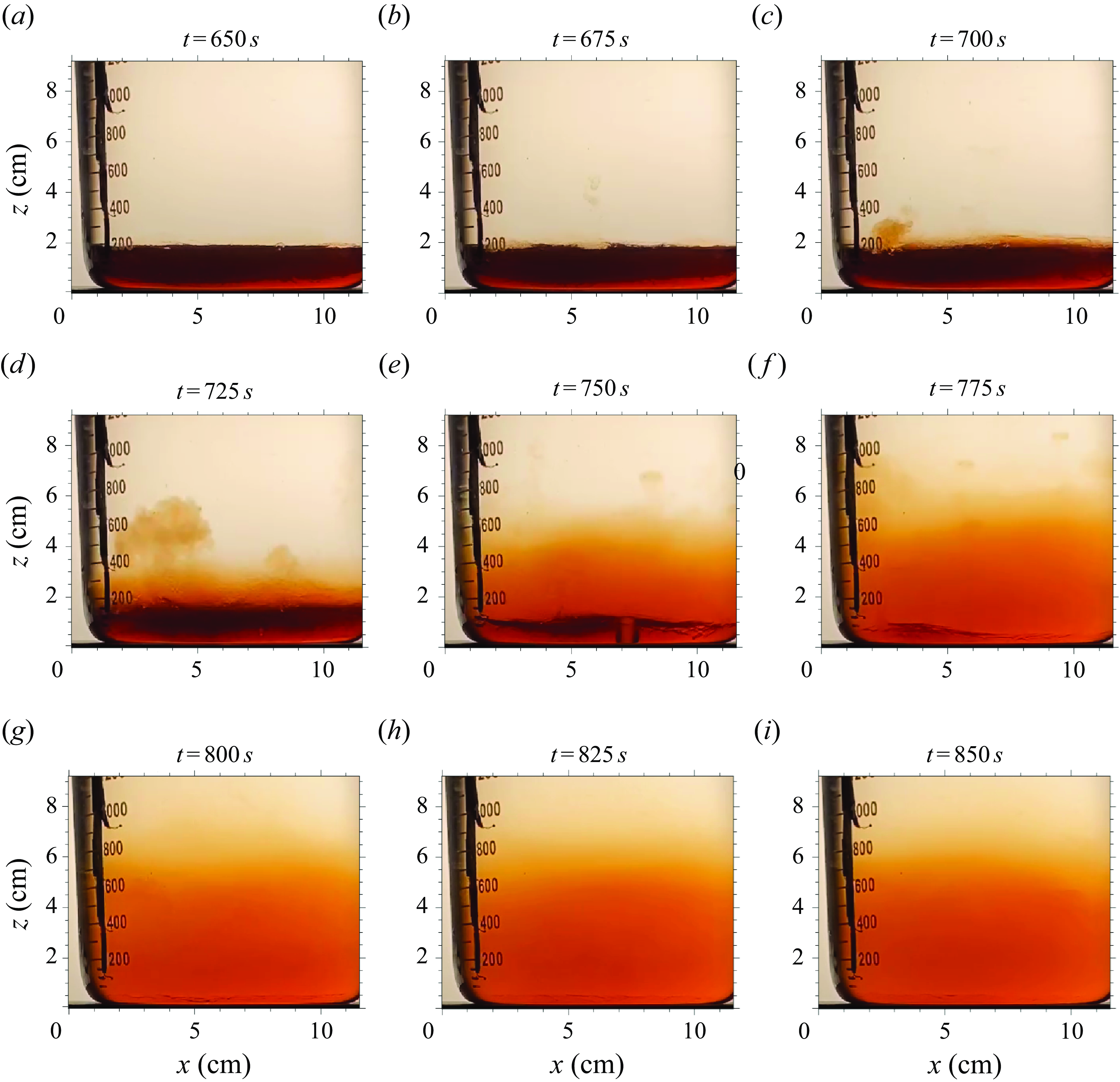

Figure 2. Reference experiment (S3): images at $t=650$ , 675, 700, 725, 750, 775, 800, 825 and 850 s showing (a–c) the initial two-layer stage, (d–f) the boiling stage, and (g–i) the post-boiling two-layer stage. The black columnar object near the beaker’s scale is the thermocouple array. A supplementary movie is available at https://doi.org/10.5281/zenodo.11222908.

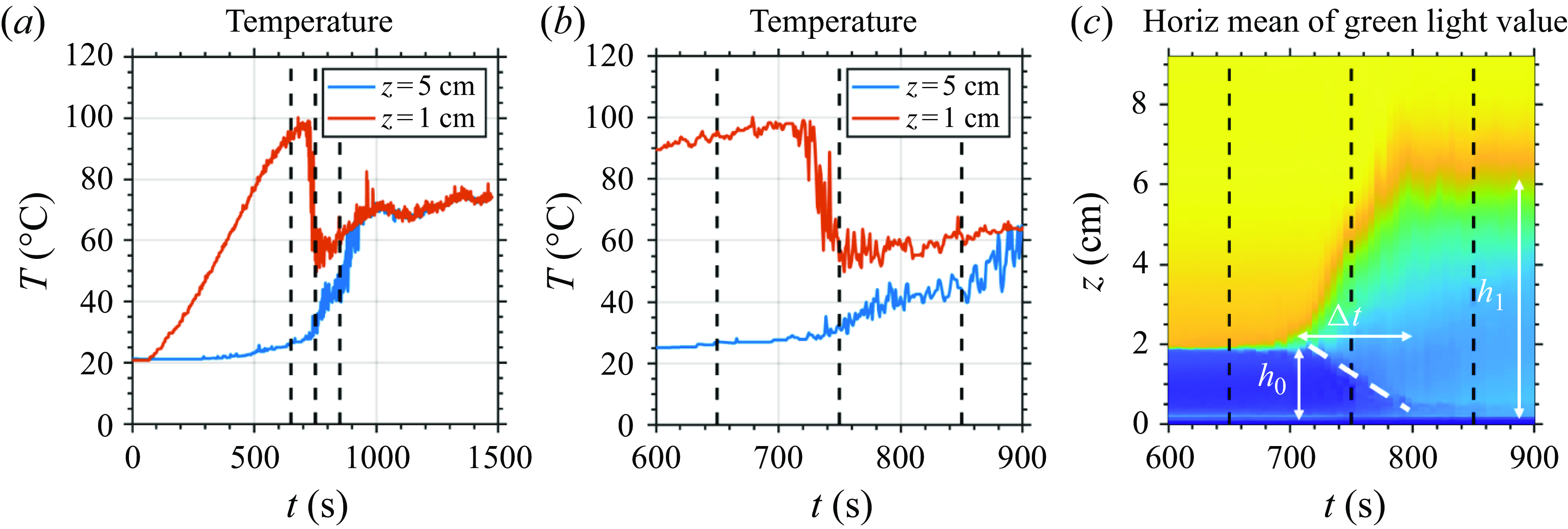

Figure 3. Quantitative measurements of the reference experiment S3. (a) The temperature time series at $z=5$ cm (blue line) and $z=1$ cm (red line). The dashed black lines denote $t=650$ , 750 and 850 s. Note that heating starts at $t=0$ . (b) Zoom into the boiling stage. (c) The zoom-in time evolution of the video’s horizontally averaged green light pixel intensity value. The dashed white line denotes the internal interface between the bottom syrup layer and the middle mixed layer.

Before boiling starts, we see from figure 3(a) that the syrup layer temperature (red curve) gradually rises, while the water layer temperature (blue curve) remains close to the initial temperature. This is because the density stratification suppresses ‘eddy mixing’ heat transfer (Turner 1965). Boiling begins at approximately $t=700$ s, by which time the syrup temperature reaches 100 $\,^\circ$ C (see zoomed-in time series in figure 3 b). Bubbles are formed near the beaker’s bottom and mostly quench before leaving the syrup layer (figure 2). This is because the upper part of the syrup is still below the boiling point. Although the bubble quenches, its momentum drives a vortex ring that rises into the freshwater layer and mixes with fresh water. Under the influence of buoyancy, the vortex ring sinks back to the interface, producing a ‘middle mixed layer’.

Boiling lasts only approximately 1 min, during which the $z=1$ cm temperature drops from 100 $^{\circ }$ C to approximately 60 $^{\circ }$ C, and the $z=5$ cm temperature rises slightly (figure 3 b). The boiling-induced mixing brings colder fresh water to the syrup layer and quenches boiling. In addition, we use the horizontally averaged video pixel intensity value to track the interface height, denoted as $h$ . The video records the pixel intensity values of red, green and blue light. We use the green light component because it captures the interface position most clearly. At $t = 850$ s, the system still has a two-layer stratification. However, figure 3(c) shows that boiling significantly lifts the interface from the initial value $h_0 \approx 2$ cm to a post-boiling value $h_1 \approx 6$ cm. The syrup layer becomes significantly diluted, and the interface is more diffuse than before boiling. Thus boiling can be viewed as a mixing event. In order to predict the net effect of mixing,

(3.1) \begin{eqnarray} h_1-h_0 \approx \Delta t\, \frac {{\textrm{d}}h}{{\textrm{d}}t}, \end{eqnarray}

a dynamical understanding of what controls the boiling duration time $\Delta t$ , and the rising rate of the interface ${\textrm{d}}h/{\textrm{d}}t$ , is necessary. A closer look at the green light pixel intensity value (figure 3 c) shows an internal interface between the bottom and middle syrup layers. This internal interface appears at the onset of boiling, and its height decreases from the initial interfacial height $h_0$ to zero at the end of boiling (dashed white line in figure 3 c). The vortex rings carry up syrup from the bottom syrup layer, mix it with the fresh water, and deposit the mixture in the middle mixed layer. Thus the bottom syrup layer gets thinner and finally disappears, letting the relatively cold middle mixed layer contact the bottom and quench the boiling. This suggests that $\Delta t$ is the time needed for vortex rings to remove the bottom syrup layer:

(3.2) \begin{eqnarray} \Delta t \approx \frac {h_0}{\overline {w_+}}, \end{eqnarray}

where $\overline {w_+}$ (in m s $^{-1}$ ) is the horizontally averaged syrup volume flux across the internal interface.

Finally, we note that bubbles are not produced homogeneously at the beaker’s bottom. They sometimes occur successively at one spot or another (presumably due to imperfections), which may enhance the interaction between vortex rings.

4. Theory for the final layer thickness

This section builds a theoretical framework to understand how the net effect of mixing, $h_1-h_0$ , depends on the control parameters $F_s$ , $h_0$ and $S_0$ . Modelling ${\textrm{d}}h/{\textrm{d}}t$ is equivalent to modelling the ensemble effect of vortex rings. Although mixing by individual vortex rings has been investigated by Olsthoorn & Dalziel (2015), the boiling stratified flow provides a unique set-up to study the nonlinear interaction of successive vortex rings in a turbulent environment.

4.1. Escaped versus trapped vortex rings

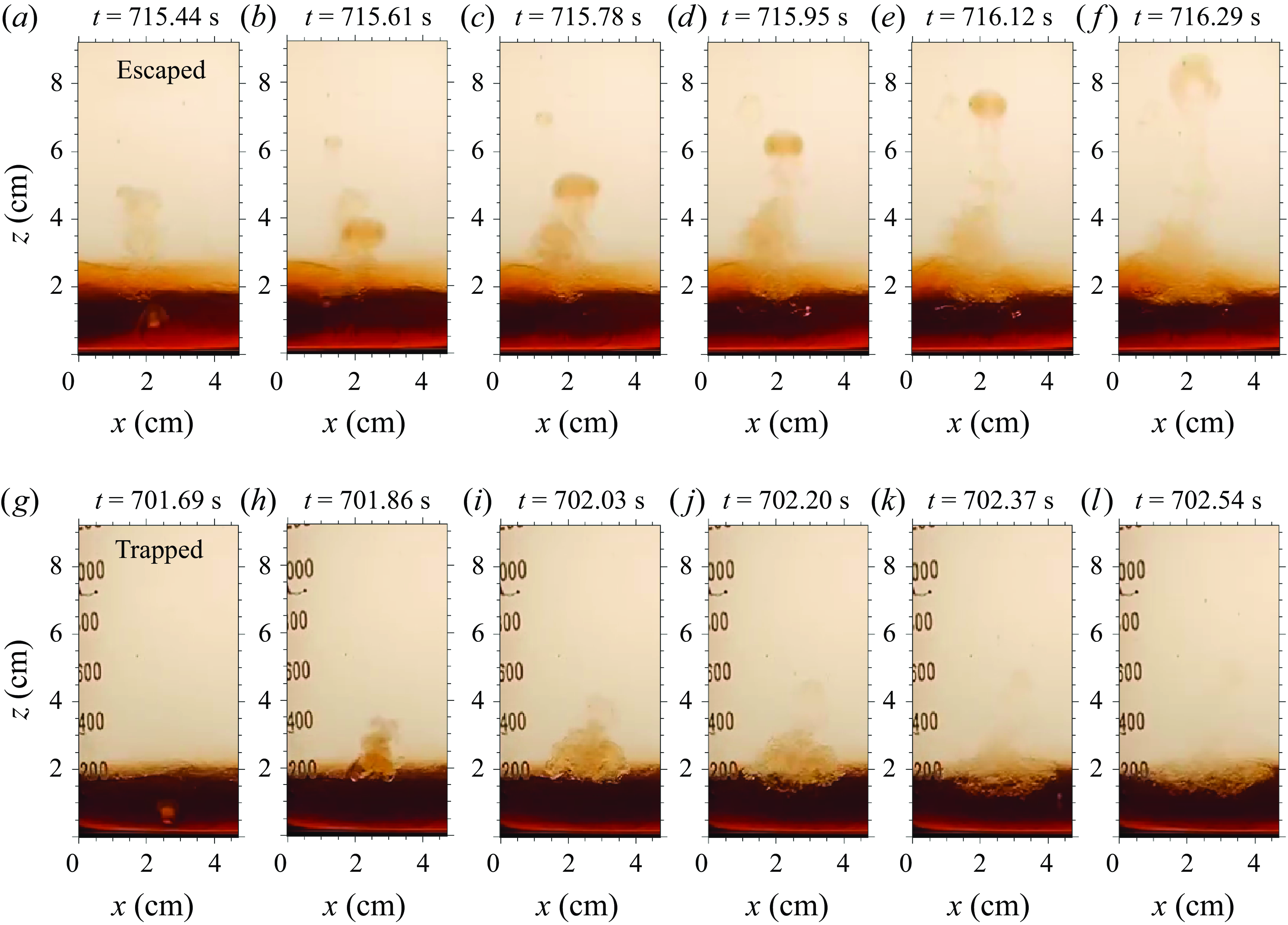

Figure 4. Examples of the two life paths of a vortex ring in the reference experiment S3. The first row shows an escaped vortex ring, and the second row shows a trapped vortex ring, both with time interval 0.17 s between snapshots.

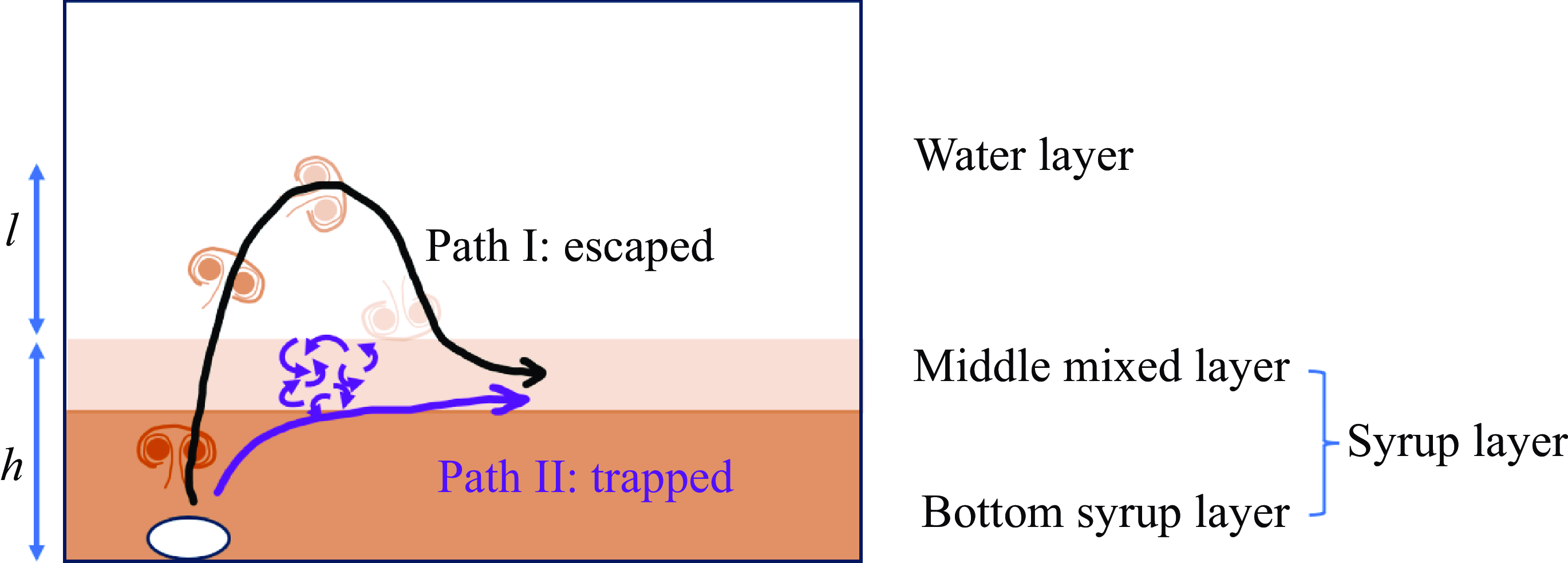

Figure 5. A schematic diagram of the two life paths of a vortex ring: escaped and trapped.

Figure 4 shows the two typical life paths of vortex rings: escaped and trapped. In the ‘escaped’ case, the bubble quenches in the syrup layer, leaving a vortex ring that rises into the water layer and sinks back to the interface. Note that some vortex rings completely dissipate in the freshwater layer. Their wake, consisting of syrup, can sink back to the interface. In the ‘trapped’ case, the initial bubble has a similar size to the escaped case, but the vortex ring crashes near the interface, producing a wide turbulent patch. The two paths are conceptualised in figure 5. The escaped case has a relatively long mixing length, characterised by the vortex ring’s penetration depth $l$ . By contrast, the trapped case has a shorter mixing length, with a limited ability to bring down the colder water. Thus we infer that the escaped vortex rings are primarily responsible for the thickening of the middle mixed layer.

We define the escape ratio $E$ to quantify the fraction of vortex rings that escape the middle mixed layer and rise into the water layer. We hypothesise that stratified turbulence along the path of a vortex ring causes trapping. The turbulence can be induced by the wake of ascending vortex rings (Maxworthy 1974) or the baroclinic vorticity generated at the interface (Olsthoorn & Dalziel 2018). Turbulence can tilt the direction of a vortex ring and make it propagate obliquely onto the interface. The experiments of Pinaud et al. (2021) showed that an oblique incidence could significantly tilt the vortex ring, even to a horizontal direction, due to the interaction between the vortex ring and the baroclinically generated vorticity at the interface.

Because a vortex ring of smaller radius $R$ is more easily tilted by turbulence, and a thicker syrup layer $h_0$ increases the chance of tilting, we heuristically parametrise $E$ as

(4.1) \begin{eqnarray} E \sim \exp \left ( -\frac {C_E h_0}{R} \right ), \end{eqnarray}

where $C_E$ is a non-dimensional escaping parameter depending on the turbulent kinetic energy in the syrup layer, and $R/C_E$ is a trapping length scale. The exponentially decaying function may be justified by analogy with radiative transfer: the escaping fraction of photons from an absorptive medium obeys an exponentially decaying function (the Beer–Bouguer–Lambert Law, e.g. Liou 2002). We have not obtained an exact expression for $C_E$ , so we can only estimate its magnitude. Because both escaped and trapped vortex rings are frequently seen in our experiments, we estimate the order of magnitude of $C_E h_0 / R$ to be unity. Using $R \sim 0.5$ cm and $h_0 \sim 2$ cm (figure 4), we obtain $C_E \sim R/h_0 \sim 0.25$ . We further hypothesise that $C_E$ is higher for a higher $F_s$ because stronger surface heating reduces the time interval between vortex rings. The turbulent wake of the current vortex ring could trap the next one. The trapping leads to vortex ring breaking, causing stronger turbulence and therefore a pile up of vortex rings. This hypothesis will be tested in § 5 where experiments with different $F_s$ are introduced.

4.2. The vortex ring penetration depth $l$

Figure 6 shows that the vortex ring evolution can be divided into three stages: initial acceleration, moving in the syrup layer, and moving in the water layer. In this subsection, we first estimate the Reynolds number of the vortex ring, ${Re}_v$ , then perform a force balance analysis at each stage to derive the vortex ring penetration depth $l$ .

Figure 6. A schematic diagram of the vortex ring initiation and development processes, with the forces included in our model. The syrup layer includes both the bottom and middle layers. The vortex ring is neutrally buoyant in the syrup layer, and negatively buoyant in the water layer.

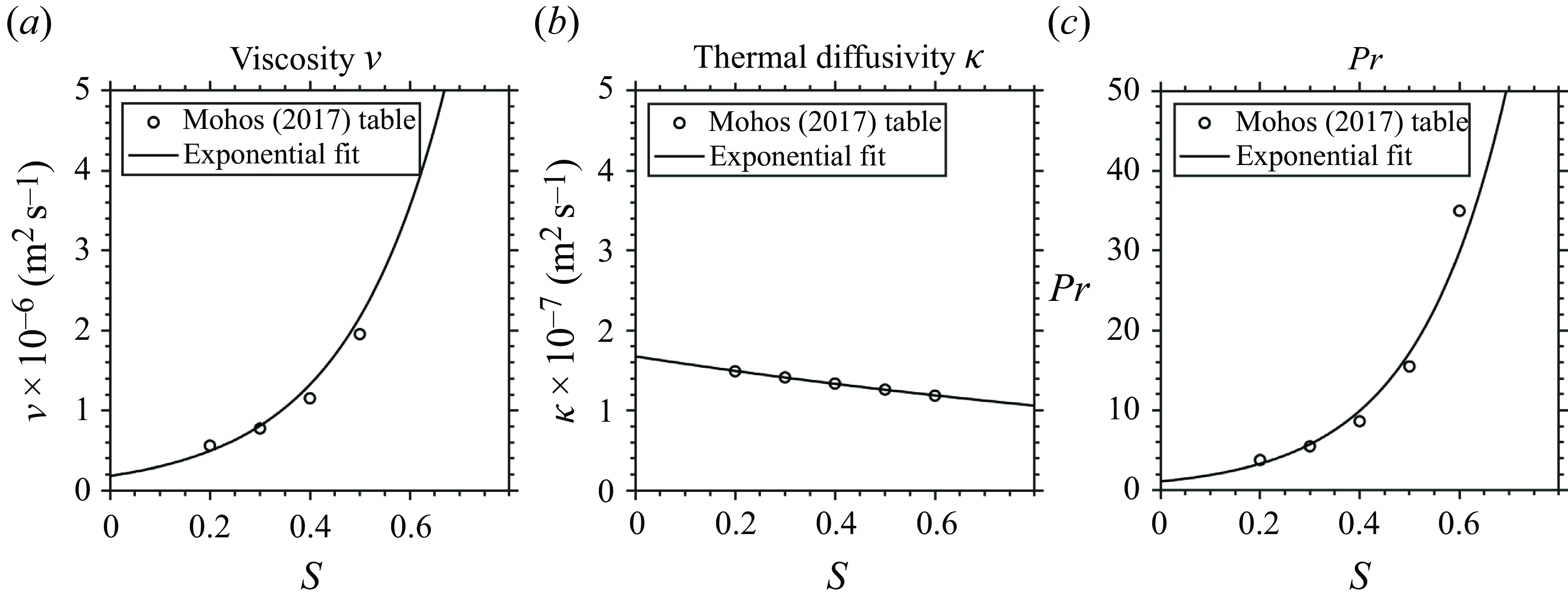

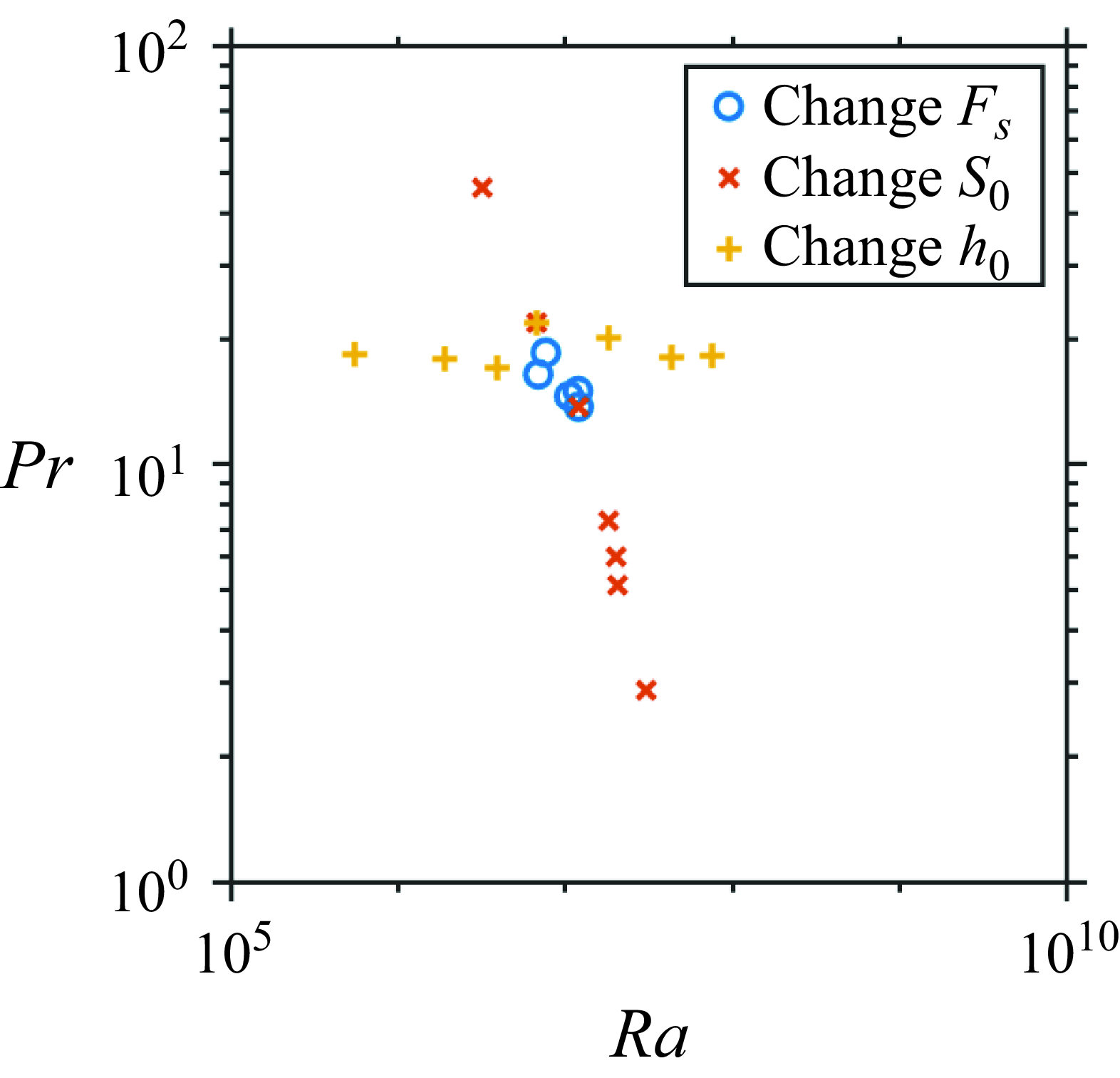

Most of our experiments use $S_0 \lesssim 0.6$ for the syrup layer, which has kinematic viscosity $10^{-6} \lesssim \nu \lesssim 10^{-5}$ m $^2$ s $^{-1}$ at 80 $^\circ$ C (see Appendix B). Using a vertical velocity scale $w \sim 0.1$ m s $^{-1}$ and vortex ring radius $R \sim 0.5$ cm, as estimated from the experimental result shown in figure 4, we find

(4.2) \begin{eqnarray} 100 \lesssim {Re}_v \equiv \frac {2 R w}{\nu } \lesssim 1000. \end{eqnarray}

Maxworthy (1972) showed that a neutrally buoyant vortex ring becomes unstable and transitions to turbulence only when ${Re}_v\gtrsim 10^3$ . Thus viscosity still plays a significant role in the vortex ring dynamics.

The initial stage features the acceleration of the bubble by its gaseous buoyancy. A hotter surface temperature generally increases the initial bubble radius $R$ after boiling (e.g. Barathula & Srinivasan 2022). A bubble is highly buoyant but quenches (condenses) quickly once it leaves the hot bottom. A hotter fluid interior makes the bubble condense more slowly, and yields a longer buoyancy acceleration path $h_*$ . Combining these arguments, we hypothesise that $h_*$ should increase with the bubble radius. For simplicity, we assume

(4.3) \begin{eqnarray} h_* \approx \beta R, \end{eqnarray}

where $\beta$ is a non-dimensional bubble acceleration coefficient. Although we are unaware of how to determine the exact value of $\beta$ , the experiments provide an empirical estimate. In the experiments, most bubbles quench in the syrup layer (e.g. figure 4), so $h_* \lesssim h_0 \approx 2$ cm. A careful observation of $h_*$ with a high-speed camera may be desirable in future work. Given typical bubble radius $R \sim 0.5$ cm (e.g. figure 4), we get $\beta \lesssim 4$ . The vertical velocity of the vapour bubble is governed by buoyancy, perturbation pressure gradient force and viscosity:

(4.4) \begin{eqnarray} \frac {{\textrm{d}}w}{{\textrm{d}}t} \approx 2g - \frac {C_D}{R}w^2 \approx 2g. \end{eqnarray}

Here, the $2g$ term represents the total effect of buoyancy and the buoyancy-contributed perturbation pressure. It is a classic potential flow result (e.g. Falkovich 2011, § 1.3): for a spherical bubble moving in an inviscid flow, the force implemented by the perturbation pressure on the bubble is proportional to the acceleration. The perturbation pressure originates from the inertia of the surrounding liquid forced to move with the bubble. Potential flow theory predicts that the volume of the surrounding moving fluid is half the bubble volume (figure 6), and it is therefore referred to as the ‘added mass’. Without the added mass effect, the bubble would travel much faster. The $-(C_D/R)w^2$ term represents the total effect of viscosity and the inertia-contributed perturbation pressure, with $C_D$ being the non-dimensional drag coefficient. The drag coefficient $C_D$ is a function of ${Re}_v$ : for a rigid sphere at ${Re}_v\lesssim 10$ , $C_D \sim 10\, {Re}_v^{-1}$ and it gradually drops to a relatively steady $C_D \sim 0.2$ at ${Re}_v\sim 10^3$ (Batchelor 1967). For simplicity, we assume $C_D \sim 0.2$ , aware that the viscous effect may not be depicted accurately. Using the observed $w_* \sim 0.1$ m s $^{-1}$ , $R\sim 0.5$ cm and $C_D\sim 0.2$ , we find that the drag is negligible at the initial acceleration stage. Substituting a coordinate transform ${\textrm{d}}z = w\, {\textrm{d}}t$ into (4.4) and integrating from $z=0$ to $z=h_*$ , we get the vertical velocity of the vortex ring $w_*$ as the bubble quenches:

(4.5) \begin{eqnarray} w_* \approx \left ( 4 g h_* \right )^{1/2}. \end{eqnarray}

After the bubble quenches, the surrounding moving liquid turns into a vortex ring with radius $R$ and vertical velocity $w_*$ .

In the syrup layer, the vortex ring has neutral buoyancy, influenced only by drag:

(4.6) \begin{eqnarray} \frac {{\textrm{d}}w}{{\textrm{d}}t} \approx - \frac {C_D}{R}w^2. \end{eqnarray}

Here, we use the same drag formulation as for the bubble. When the vortex ring crosses the interface, its vertical velocity $w_+$ is found by substituting ${\textrm{d}}z = w \, {\textrm{d}}t$ into (4.6), integrating from $z=0$ to $z=h_0$ , and using an initial condition $w=w_*$ (see (4.5)):

(4.7) \begin{eqnarray} w_+ = \left ( 4 g h_* \right )^{1/2} \exp \left ( -\frac {C_D h_0}{R} \right ). \end{eqnarray}

Here, the integration includes the range between $z=0$ and $z=h_*$ . This extended range not only simplifies the calculation but also compensates for the drag ignored in modelling the initial acceleration stage.

When the vortex ring enters the water layer, it is influenced by both drag and buoyancy. For simplicity, we consider only the buoyancy effect after the vortex ring has escaped the syrup layer. The neglect of drag in the freshwater layer is justified with a scale analysis. Using $C_D \sim 0.2$ , $R\sim 0.5$ cm, $w\sim 0.1$ m s $^{-1}$ , $\gamma _s=0.4$ and $S_0\sim 0.5$ , the ratio of the drag term $C_D w^2/R$ to the buoyancy term $g \gamma _s S_0$ is 0.2. A smaller $S_0$ makes the approximation less valid. Because most experiments have $S_0 \gg S_{min}$ , the buoyancy is assumed to be controlled by syrup concentration rather than temperature, as discussed in § 2.1:

(4.8) \begin{eqnarray} \frac {{\textrm{d}}w}{{\textrm{d}}t} \approx - g \gamma _s S_0. \end{eqnarray}

Substituting the initial velocity of the vortex ring entering the water layer $w_+$ from (4.7) into (4.8), we get an expression for the $w=0$ height of the vortex ring, which we define as the penetration depth $l$ :

(4.9) \begin{eqnarray} l = \frac {w_+^2}{2 g \gamma _s S_0} = \frac {2 h_*}{\gamma _s S_0} \exp \left (-\frac {2 C_D h_0}{R} \right ). \end{eqnarray}

The theory predicts that a more diluted syrup (smaller $S_0$ ) would make the vortex ring lighter and penetrate a longer distance, and that a thicker syrup layer (higher $h_0$ ) would increase the work done by drag and reduce $l$ .

The penetration depth $l$ can be used to calculate the dilution of syrup carried into the water layer by the vortex ring. As shown in figure 4, both the vortex ring and its wake carry syrup. We thus call the ring and its wake ‘syrup blob’, and denote the total blob volume as $V \approx ({4}/{3}){\unicode[Arial]{x03C0}} R^3$ , where $R$ is the effective radius of the syrup blob, assumed to take the same radius as the vortex ring. When the buoyancy is in the same direction as the motion of the vortex ring, the vortex ring expands due to the baroclinic torque, and vice versa (Turner 1957). Because the syrup blob experiences both updraft and downdraft stages where the buoyancy respectively decelerates and accelerates its motion, we omit the change of $R$ due to baroclinic torque, and consider only the expansion due to entrainment. Due to the complicated structure of the blob and the low Reynolds number, the entrainment law of the blob is unclear. For simplicity, we assume that the syrup blob entrains like a turbulent vortex ring with a self-similar shape (e.g. Maxworthy 1974; Turner 1986):

(4.10) \begin{eqnarray} \frac {{\textrm{d}}R}{{\textrm{d}}s} = \alpha , \end{eqnarray}

where $s$ is the syrup blob’s travel distance, and $\alpha$ is the entrainment coefficient. Although we have not devised a method to determine $\alpha$ from our experiments, studies on related subjects provide some references; $\alpha$ is approximately $O(0.01)$ for a non-buoyant vortex ring (Maxworthy 1974), $O(0.25)$ for a buoyant vortex ring – noting that it may be enlarged by the radius expansion due to baroclinic torque (Turner 1957) – and $O(0.1)$ for a buoyant plume (Morton et al. 1956). Thus we estimate $\alpha$ to be between $O(0.01)$ and $O(0.1)$ . Equation (4.10) readily shows that the expansion rate of $V$ obeys

(4.11) \begin{eqnarray} \frac {1}{V} \frac {{\textrm{d}}V}{{\textrm{d}}s} = \frac {3}{R} \frac {{\textrm{d}}R}{{\textrm{d}}s} = \frac {3 \alpha }{R}. \end{eqnarray}

Next, we calculate the volume of the syrup blob when it sinks back to the interface, using the volume of the vortex ring when it first crosses the interface $V_+$ . Neglecting the horizontal moving component and considering only the vertical moving component, the syrup blob’s total travel distance is $2l$ , which includes an updraft stage and a downdraft stage. Further, assuming that the syrup blob’s volume grows by only a small amount in the freshwater layer, we integrate (4.11) along the syrup blob’s trajectory to get

(4.12) \begin{eqnarray} V \approx V_+ \left ( 1 + 6 \alpha \frac {l}{R} \right ), \end{eqnarray}

where $R$ is understood as the vortex ring radius when it first crosses the interface. In the next subsection, we study the rising rate of the interface due to the collective effect of many vortex rings.

4.3. The post-boiling syrup layer thickness $h_1$

The rising rate ${\textrm{d}}h/{\textrm{d}}t$ , where $h$ is the syrup layer thickness, depends on detrainment and entrainment across the syrup–water interface. Detrainment denotes the mass leaving the syrup layer, and entrainment denotes the mass entering the syrup layer. Based on the discussion in § 4.1, we consider only the thickening of the syrup layer due to the re-entry of escaped vortex rings. The mixing due to the turbulence induced by the trapped vortex rings is judged less important due to its shorter penetration depth, and is therefore neglected for simplicity. An escaped vortex ring is detrained from the syrup layer first, and then entrained. The interface height $h$ obeys

(4.13) \begin{eqnarray} \frac {{\textrm{d}}h}{{\textrm{d}}t} = \underbrace { -E\, \overline {w_+} }_{\text{detrain}} + \underbrace { E\, \overline {w_+} \frac {V}{V_+} }_{\text{entrain}} \approx 6 \alpha \frac {l}{R} E\, \overline {w_+}, \end{eqnarray}

where $\overline {w_+}$ is the horizontally averaged volume flux of vortex rings from the bottom syrup layer to the middle mixed layer, and $E\,\overline {w_+}$ is the flux from the middle mixed layer to the freshwater layer, with $E$ representing the escape ratio of vortex rings. The ratio $V/V_+$ is calculated from (4.12).

Our model is consistent with the experimental result of Olsthoorn & Dalziel (2015), who studied successive vortex rings impinging onto a stratification interface. Their experiments showed that the ratio of net entrainment to detrainment, essentially the $6 \alpha l/R$ factor in our formulation, is proportional to ${Ri^{-1}}$ . Here, ${Ri}$ is the bulk Richardson number that obeys

(4.14) \begin{eqnarray} {Ri} \equiv g \frac {\rho _s - \rho _w}{\rho _w}\frac {R}{w^2_+} = g \gamma _s S_0 \frac {R}{w^2_+}, \end{eqnarray}

which shows ${Ri} \propto S_0$ . Substituting the expression for $l$ in (4.9) into (4.13), we get

(4.15) \begin{eqnarray} \frac {{\textrm{d}}h}{{\textrm{d}}t} \propto 6 \alpha \frac {l}{R} \propto {Ri}^{-1}, \end{eqnarray}

which is consistent with the ${Ri}^{-1}$ scaling of their measured entrainment rate. It is also worth noting that Wyant et al. (1997) proposed a similar ${Ri}^{-1}$ scaling for modelling the entrainment of air from the atmospheric inversion layer to the boundary layer by shallow cumuli, using the cloud depth as the length scale in calculating Ri.

Combining (3.1), (3.2), (4.1), (4.9) and (4.13), we obtain an expression for $h_1$ :

(4.16) \begin{eqnarray} h_1 = h_0 \left [ 1 + \frac {12 \alpha \beta }{\gamma _s S_0} \exp \left ( - \frac {2C_D + C_E}{R} h_0 \right ) \right ]. \end{eqnarray}

Note that the mean vertical volume flux of vortex rings $\overline {w_+}$ (see (3.2)) does not appear in the expression for $h_1$ . This expression has two unknown parameters:

1. (i) $\alpha \beta$ , the product of the syrup blob’s entrainment parameter $\alpha$ and the bubble acceleration parameter $\beta$

2. (ii) the effective drag coefficient $2C_D + C_E$ , which represents the bulk effect of the physical drag and the trapping by turbulence.

To close the theory for $ h_1$ , we still need to find an expression for the vortex ring radius $R$ , which is determined by the thermodynamics of boiling.

4.4. The bubble radius $R$

The bubble radius $R$ in this experiment depends on how superheated the syrup layer temperature is (Barathula & Srinivasan 2022). We let the syrup layer temperature be $T$ , and the boiling temperature be $T_* \approx 100\,^{\circ}$ C. When $T\ll T_*$ , there is no boiling, so $R=0$ . When $T\gtrsim T_*$ , the water is superheated, and Narayan et al. (2020) showed that $R$ has an upper bound with respect to $T-T_*$ , which we take as $R_m$ . There is still uncertainty in the bubble diameter–superheating relation. Chang & Ferng (2019) reported a steady increase in merged bubble diameter with the superheating temperature, though the diameter of isolated bubbles seems insensitive to superheating. For simplicity, we acknowledge the existence of the upper bound $R_m$ . Choosing $R= R_m\,\mathcal{H}(T-T_*)$ as a Heaviside function of $T$ is likely sensible for an individual bubble, but there should be a smoothing factor for a group of bubbles because the temperature in the syrup layer is inhomogeneous. We may view $R$ as the mean bubble radius, and $T$ as the mean temperature at the bottom of the syrup layer. Suppose that the temperature obeys a Gaussian distribution with standard deviation $\delta T_*/\sqrt{2}$ . The mean bubble radius $R$ should obey an error function of $T-T_*$ :

(4.17) \begin{eqnarray} R = R_m \, \frac {1}{2}\left [ 1 + \text{erf} \left ( \frac {T-T_*}{\delta T_*} \right ) \right ], \end{eqnarray}

as illustrated in figure 7. A careful investigation of the temperature distribution function and $\delta T_*$ is left for future work.

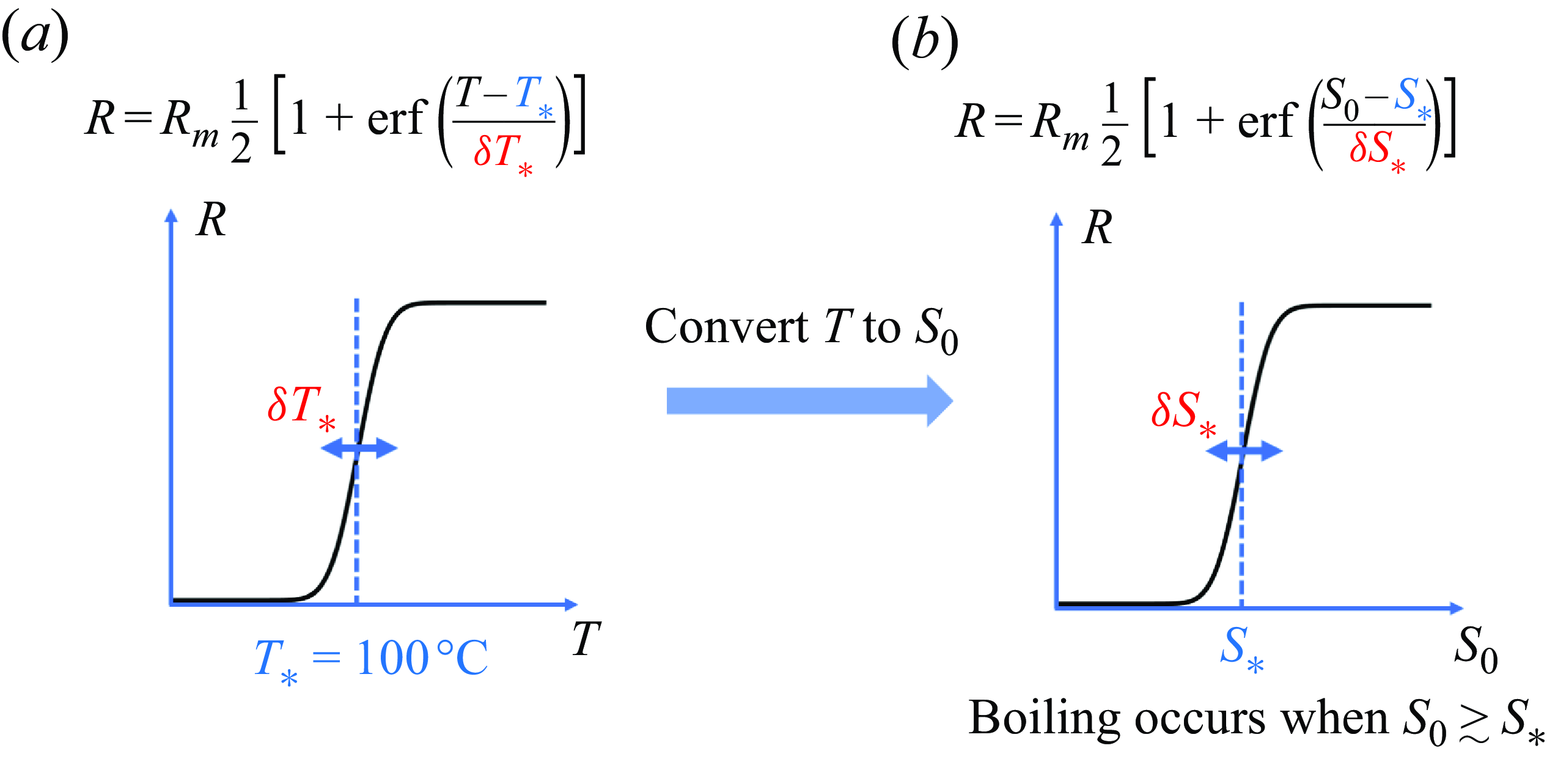

Figure 7. A schematic diagram that illustrates the parametrisation of the bubble radius $R$ as a function of $T$ , which is ultimately linked to the initial syrup concentration $S_0$ .

The superheating temperature $T-T_*$ is difficult to measure. However, by analysing the heat balance in the syrup layer, we can express $T-T_*$ as a function of the initial syrup concentration $S_0$ . This is because $S_0$ significantly influences the convective heat transfer rate in the syrup layer via its influence on viscosity and the density jump across the syrup–water interface. A higher $S_0$ increases the viscosity and density jump, suppressing the heat transfer. In Appendix C, we estimate the equilibrium temperature of the syrup layer by considering the balance between convective heat transfer and surface heating. The superheating temperature $T-T_*$ turns out to be a function of the syrup concentration $S_0$ , enabling us to rephrase (4.17) as

(4.18) \begin{eqnarray} R = R_m \ \frac {1}{2}\left [ 1 + \textrm{erf} \left ( \frac {S_0-S_*}{\delta S_*} \right ) \right ], \end{eqnarray}

where $S_*$ is the critical syrup concentration for boiling, and $\delta S_*$ is the range of syrup concentration in which the bubble radius is sensitive to $S_0$ (figure 7 b). Equation (4.18) indicates that a more concentrated syrup makes bubbles larger.

Substituting (4.18) into (4.16), we finally close our heuristic theoretical model for how the final $h_1$ depends on the initial $h_0$ and $S_0$ :

(4.19) \begin{eqnarray} h_1 = h_0 \left \{ 1 + \frac {12 \alpha \beta }{\gamma _s S_0} \exp \left [ - \frac {h_0}{h_{DE}}\,\frac {2}{ 1 + \textrm{erf} \left ( \dfrac {S_0-S_*}{\delta S_*} \right ) } \right ] \right \}. \end{eqnarray}

Here, $h_{DE}$ is the vortex ring dissipation length scale:

(4.20) \begin{eqnarray} h_{DE} \equiv \frac {R_m}{2C_D + C_E}, \end{eqnarray}

which represents the bulk effect of drag and trapping.

4.5. Summary of parameters

Our theory summarised in (4.19) has four unknown parameters: $\alpha \beta$ , $h_{DE}$ , $\delta S_*$ and $S_*$ . Their order-of-magnitude estimations are summarised in table 2. With slight tuning, we find the following set of values to match almost all experimental results: $\alpha \beta =0.08$ , $h_{DE}=1.35$ cm, $\delta S_*=0.05$ and $S_* = 0.25$ , as will be discussed in § 5.

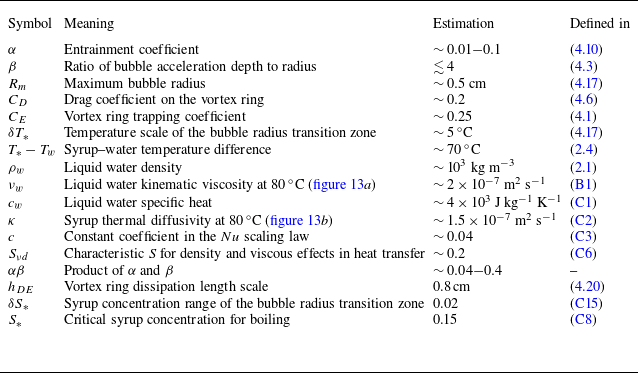

Table 2. A summary of parameters for estimating $\alpha \beta$ , $h_{DE}$ , $\delta S_*$ and $S_*$ in (4.19). The basic parameters used to derive them are shown in the upper part of the table, while the magnitudes of the four final parameters are shown in the lower part.

These four parameters may also be functions of the surface heat flux $F_s$ . A higher $F_s$ raises the syrup layer’s turbulent kinetic energy, traps more vortex rings, increases $C_E$ , and reduces $h_{DE}$ in (4.20). A higher $F_s$ makes boiling easier against the convective ventilation, and reduces the critical syrup concentration for boiling $S_*$ (see (C8)). We do not have sufficient evidence to infer how $\alpha$ and $\beta$ depend on $F_s$ . Given these uncertainties, we leave the quantitative modelling of how $h_1$ depends on $F_s$ for future work.

5. Experimental validation of the theory

To test our theoretical model for the post-boiling interface height $h_1$ in (4.19), this section analyses the $h_1$ data diagnosed from the horizontally averaged green light pixel value in experiments with varying $F_s$ , $S_0$ and $h_0$ . The diagnostic method for the interface height is detailed in Appendix A.2. Our results are shown in figures 8 and 9.

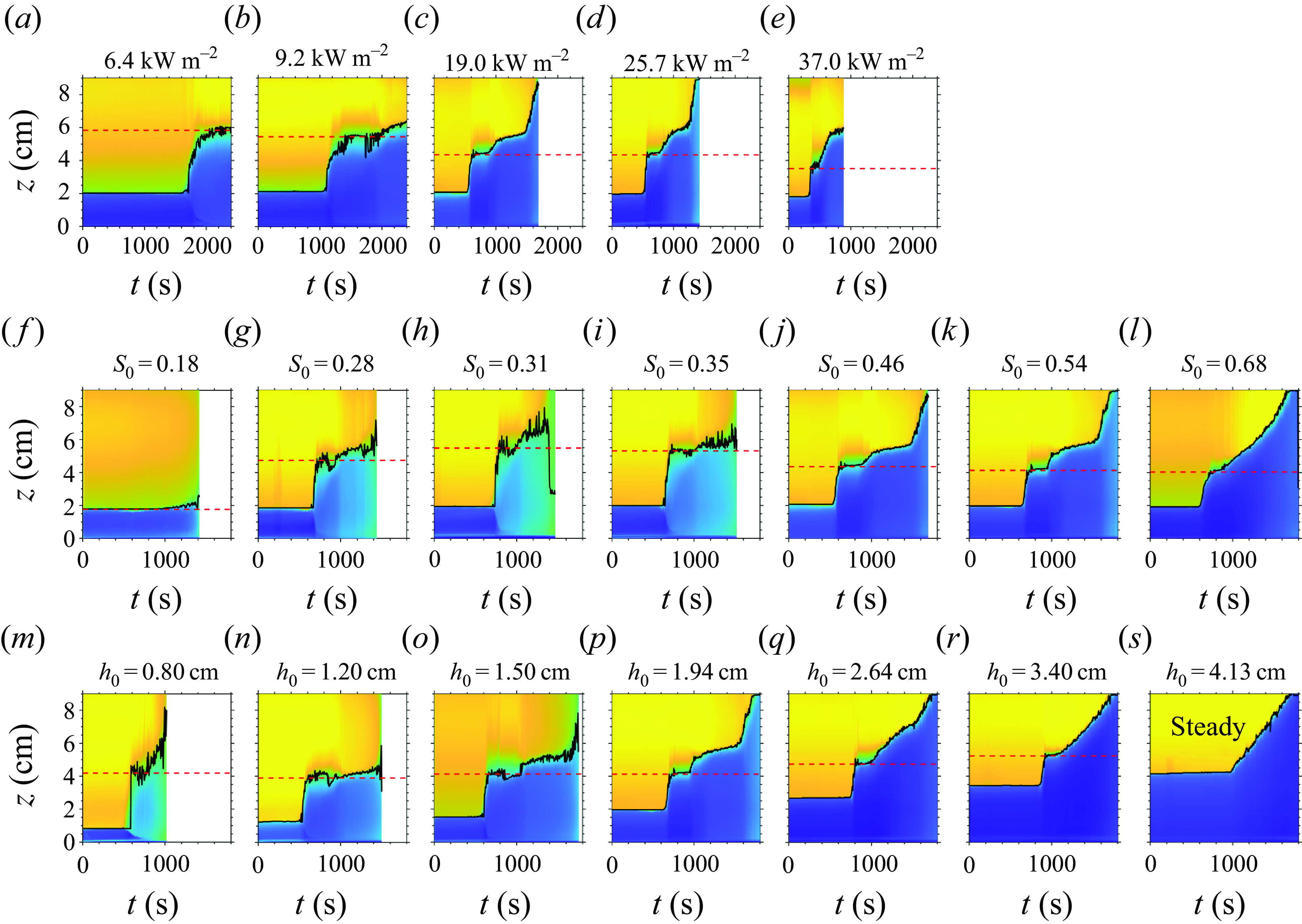

Figure 8. Time evolution of the syrup layer thickness shown by the video’s green pixel values. The solid black lines show the diagnosed height of the syrup–water interface, and the dashed red lines show $h_1$ . First row: experiments F1–F5, varying the surface heat flux $F_s$ . Second row: S1–S7, varying the initial concentration $S_0$ . Third row: T1–T7, varying the initial thickness $h_0$ . In (s), T7 is in the steady boiling regime without a well-defined $h_1$ . The $h_1$ values versus $F_s$ , $S_0$ and $h_0$ are shown in figure 9.

Figure 9. Validation of the theory. The post-boiling interface height $h_1$ diagnosed from the data of figure 8 using experiments (a) F1–F5 changing $F_s$ , (b) S1–S7 changing $S_0$ , and (c) T1–T6 changing $h_0$ . The blue shading in (c) shows the $h_0\lt 0.5$ cm regime where the post-boiling state lacks a clear interface, and the $h_0\gt 4$ cm regime where the boiling is steady. The blue circles show the experimental data, and the red lines show the theoretical prediction with $\alpha \beta =0.08$ , $h_{DE}=1.35$ cm, $\delta S_*=0.05$ and $S_* = 0.25$ .

5.1. Experiments with varying $F_s$

The increasing surface heat flux ( $F_s$ ) in figures 8(a–e) is analogous to increasing the solar radiative heating rate on the atmospheric lower boundary. The theory (4.19) shows that $F_s$ influences $h_1$ by two competing mechanisms.

1. (i) A higher $F_s$ reduces the critical syrup concentration necessary to initiate boiling, $S_*$ (see (C8)). It should make bubbles larger and increase $h_1$ .

2. (ii) A higher $F_s$ reduces the time interval between vortex rings and increases the turbulence intensity in the syrup layer. It should increase $C_E$ , trap more vortex rings, reduce the entrainment of fresh water into the syrup, and decrease $h_1$ .

Experiments show that $h_1$ decreases with $F_s$ (figure 9 a). It indicates that mechanism (ii) possibly plays a more important role than mechanism (i). Future work should study why this is the case by quantitatively modelling how $C_E$ depends on $F_s$ , involving a careful analysis of the interaction of vortex rings.

5.2. Experiments with varying $S_0$

The increasing initial syrup concentration ( $S_0$ ) in figure 8(f–l) is analogous to increasing atmospheric stratification near the boundary layer top. The theory predicts that $S_0$ influences $h_1$ by two competing mechanisms.

1. (i) A higher $S_0$ increases the viscosity. It thus reduces the convective ventilation of the syrup layer, enhances the superheating, and increases the vortex ring radius $R$ in (4.18). A higher $R$ makes the vortex ring less influenced by drag and trapping, allowing it to penetrate deeper, and thus increases $h_1$ in (4.19).

2. (ii) A higher $S_0$ makes the vortex rings more negatively buoyant and penetrate less deep, and thus decreases $h_1$ .

In the experimental results, $h_1$ first increases with $S_0$ and then decreases, yielding a maximum $h_1$ for an optimal $S_0\approx 0.3$ (figure 9 b). Thus in the relatively dilute regime ( $S_0 \lesssim 0.3$ ), the radius effect dominates, whereas in the relatively concentrated regime ( $S_0 \gtrsim 0.3$ ), the buoyancy effect dominates.

The red line of figure 9(b) shows the quantitative prediction of $h_1$ using (4.19). We use $h_0=2$ cm. The values of the four unknown parameters are prescribed as $\alpha \beta =0.08$ , $h_{DE}=1.35$ cm, $\delta S_*=0.05$ , $S_* = 0.25$ . This set of parameters is chosen to make the theory fit the experimental data, with their orders of magnitude justified in § 4.5. We stress that the specific parameter values are obtained from tuning, not any objective fitting method. The sensitivity to the values of the four parameters, perturbed with $\pm 20\, \%$ magnitude, is tested in the first row of figure 10, showing that the trend is robust. The optimal $S_0$ depends mainly on $S_*$ and $\delta S_*$ , with a higher $S_*$ and higher $\delta S_*$ shifting the optimal $S_0$ to larger values.

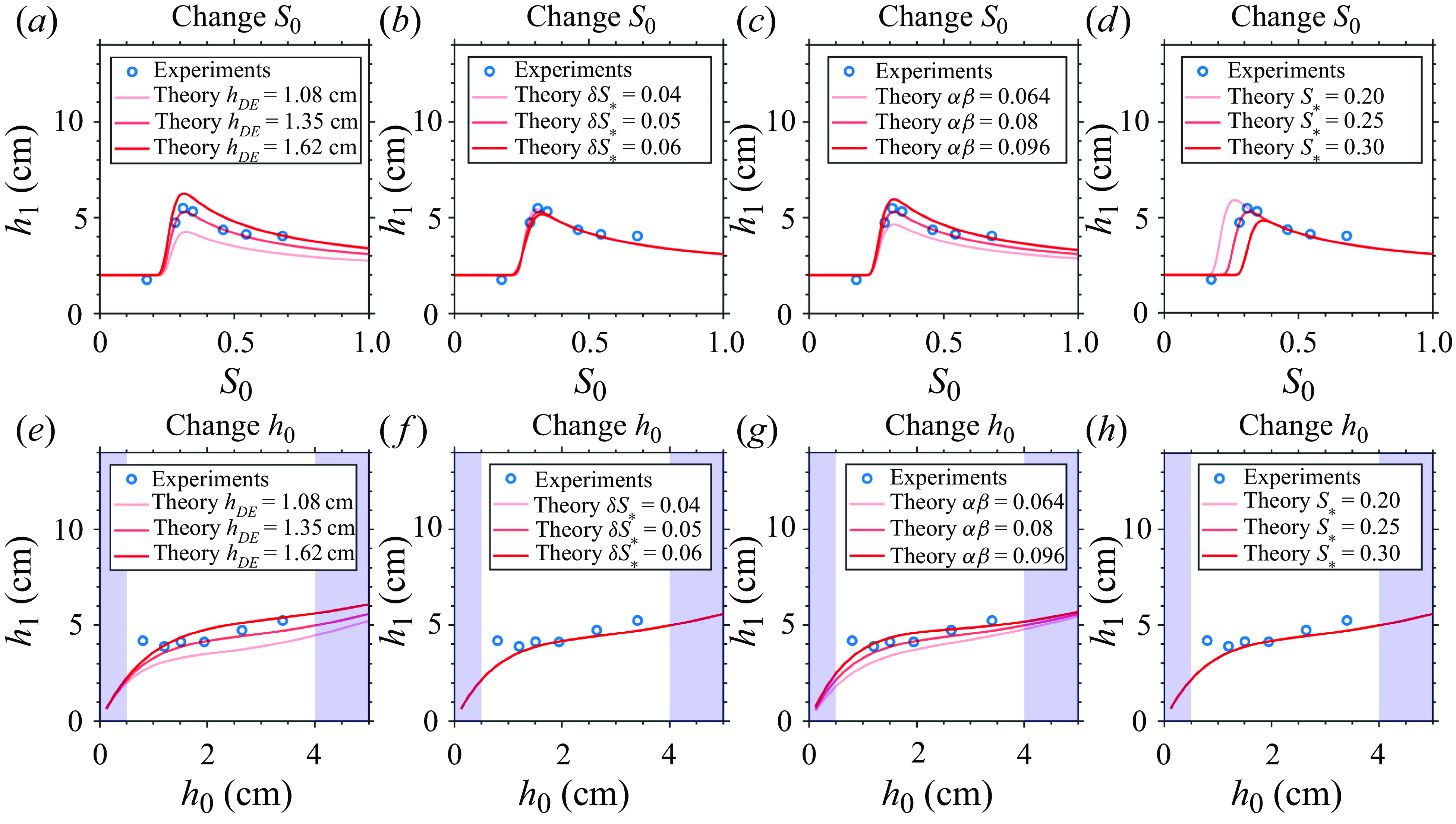

Figure 10. Sensitivity analysis of our theory to fitted parameter values. The first row shows the theoretical prediction of the $h_1$ versus $S_0$ relation with perturbed parameters. The experimental results are blue circles, and the theoretical results are solid red curves. Effects are shown of (a) varying $h_{DE}$ , (b) varying $\delta S_*$ , (c) varying $\alpha \beta$ , (d) varying $S_*$ , each by a perturbation magnitude of $\pm 20\%$ . The second row is analogous but for the $h_1$ versus $h_0$ relation. The blue shadings show the $h_0\lt 0.5$ cm and $h_0\gt 4$ cm regimes where $h_1$ is not well defined.

5.3. Experiments with varying $h_0$

The increasing initial syrup thickness ( $h_0$ ) in figure 8(m–s) represents increasing the atmospheric boundary layer thickness. The theory predicts that $h_0$ influences $h_1$ by three competing mechanisms.

1. (i) Trivially, a higher $h_0$ increases $h_1$ given the same entrainment ( $h_1-h_0$ ).

2. (ii) A higher $h_0$ increases the boiling duration time $\Delta t$ because it takes longer to remove a thicker bottom syrup layer by detrainment (3.2). This effect increases $h_1$ .

3. (iii) A higher $h_0$ increases the path for a vortex ring along which it is influenced by the drag and turbulence in the syrup layer, reducing its escape ratio $E$ and penetration depth $l$ (see (4.1) and (4.9)). Thus the vortex rings entrain less water, leading to a decrease of $h_1$ .

The experimental results show that $h_1$ slightly increases with $h_0$ (figure 9 c), indicating that the three mechanisms approximately balance each other, and a higher $h_0$ yields a less efficient dilution of the syrup layer by boiling. Using the same set of parameters as in § 5.2, and the measured $h_0$ , the trend is captured by the theory (figure 9 c). The theoretical trend is also robust in the 20 % range sensitivity tests (figure 10).

Experiments with $h_0 \lesssim 0.5$ cm (not shown in the experimental list) yield an overly dilute post-boiling state that directly transitions to a well-mixed state. Experiments with $h_0 \lesssim 4$ cm have a clear post-boiling state, which we call the transient boiling regime. Experiments with $h_0 \gtrsim 4$ cm, including our T7 experiment (figure 8 s), undergo continuous boiling with a steady interface rising rate, which we call the steady boiling regime. Next, we seek to understand the transition between the transient and steady regimes.

6. Transition between the transient and steady boiling regimes

6.1. Solving for the transitional $h_0$

We observed a steady boiling regime for a relatively high initial $h_0$ , a regime that is not considered in the theory of § 4. Below, we extend this theory to include the steady boiling regime, and study the transition between the transient and steady regimes.

In the steady regime, the thick syrup layer dissipates the vortex rings sufficiently, reduces their penetrating depth, and limits the entrainment of colder water. As a result, entrainment is maintained at a rate that keeps the syrup temperature at approximately $100\,^\circ$ C:

(6.1) \begin{eqnarray} \frac {{\textrm{d}}h}{{\textrm{d}}t} = \frac {F_s}{\rho _w c_w \left ( T_* - T_w \right )}. \end{eqnarray}

Latent heating does not appear in (6.1) because most bubbles condense in the syrup layer. The absorption and release of latent heat balance out. Figure 8(s) shows a $\sim5$ cm rise in the interface over 800 s. Using $F_s \approx 20$ kW m $^{-2}$ , $\rho _w c_w \approx 4\times 10^6$ J m $^{-3}$ K $^{-1}$ and $T_*-T_w=70\,^\circ$ C, we predict from (6.1) a 5.7 cm rise over 800 s, which is consistent with the observation.

Next, we study what controls the transitional $h_0$ . If the net entrainment rate by vortex rings (shown in (4.13)) is higher than that required to keep the syrup temperature at approximately $100\,^\circ$ C (shown in (6.1)), boiling should be transient:

(6.2) \begin{eqnarray} \textrm{transient when}\quad 6\,\frac {l}{R} \, E \, \overline {w_+} \gt \frac {F_s}{\rho _w c_w \left ( T_* - T_w \right ) }. \end{eqnarray}

Here, we must solve for the mean detrainment flux from the bottom syrup layer, $\overline {w_+}$ , a quantity that depends on the vaporisation rate at the bottom, and cancels out in solving $h_1$ . Not all surface heating is used to vaporise water because the turbulent heat transfer between the bottom syrup layer and the middle mixed layer also cools the surface. We parametrise the ratio of vaporisation cooling rate to $F_s$ as an unknown vaporisation efficiency $\chi$ . We hypothesise that a lower vortex ring escape ratio $E$ enhances the turbulent mixing within the syrup layer, i.e. between the bottom and middle syrup layers, and reduces $\chi$ . The validation of this hypothesis is left for future work. The flux of bubble number density $N$ (in m $^{-2}$ s $^{-1}$ ), should thus obey

(6.3) \begin{eqnarray} N = \frac {F_s \ \chi }{\frac {4}{3}\unicode{x03C0} R^3 L_v \rho _v }, \end{eqnarray}

where $L_v \approx 2.5\times 10^6$ J kg $^{-1}$ is the vaporisation heat, and $\rho _v \approx 0.6$ kg m $^{-3}$ is the density of vapour. The added mass argument introduced in § 4.2 indicates that the displaced volume of syrup around a bubble is half its volume ( ${2}/{3}\unicode{x03C0} R^3$ ), hence

(6.4) \begin{eqnarray} \overline {w_+} = \frac {2}{3}\unicode{x03C0} R^3 N = \frac {F_s \ \chi }{2L_v \rho _v}. \end{eqnarray}

We need to constrain $\chi$ from experiments. Figure 3(c) shows that the interface between the bottom syrup layer and the middle mixed layer drops from 2 cm to 0 cm in approximately 60 s, indicating $\overline {w_+}\approx 3.3\times 10^{-4}$ m s $^{-1}$ . To fit (6.4), we constrain $\chi = 2 L_v \rho _v \overline {w_+} / F_s \approx 0.05$ using $F_s \approx 20$ kW m $^{-2}$ . Thus vaporisation should play a minor role compared to turbulent mixing in cooling the syrup layer’s bottom. In other words, the mechanical removal of superheating by mixing is more important than the phase change effect. Substituting the expressions for $\overline {w_+}$ (6.4), $R$ (4.18), $l$ (4.9) and $E$ (4.1) into (6.2), we obtain the critical $h_0$ for transitioning to steady boiling:

(6.5) \begin{eqnarray} \textrm{steady when}\quad h_0 \gt h_{\perp } (S_0),\quad h_{\perp }(S_0) = h_{DE} \ln \left [ \frac {6 \alpha \beta \chi }{\gamma _s S_0}\, \frac {\rho _w c_w \left ( T_* - T_w \right )}{L_v \rho _v} \right ]. \end{eqnarray}

Equation (6.5) predicts that $h_{\perp }$ is linearly proportional to the dissipation length scale $h_{DE}$ . The factor in the logarithm is higher for a smaller $S_0$ because a lighter syrup allows for deeper penetration and more freshwater entrainment. In deriving (6.5), we have assumed that the non-boiling regime ( $S\lt S_*$ ) is sufficiently separated from the steady boiling regime by letting $R=R_m$ .

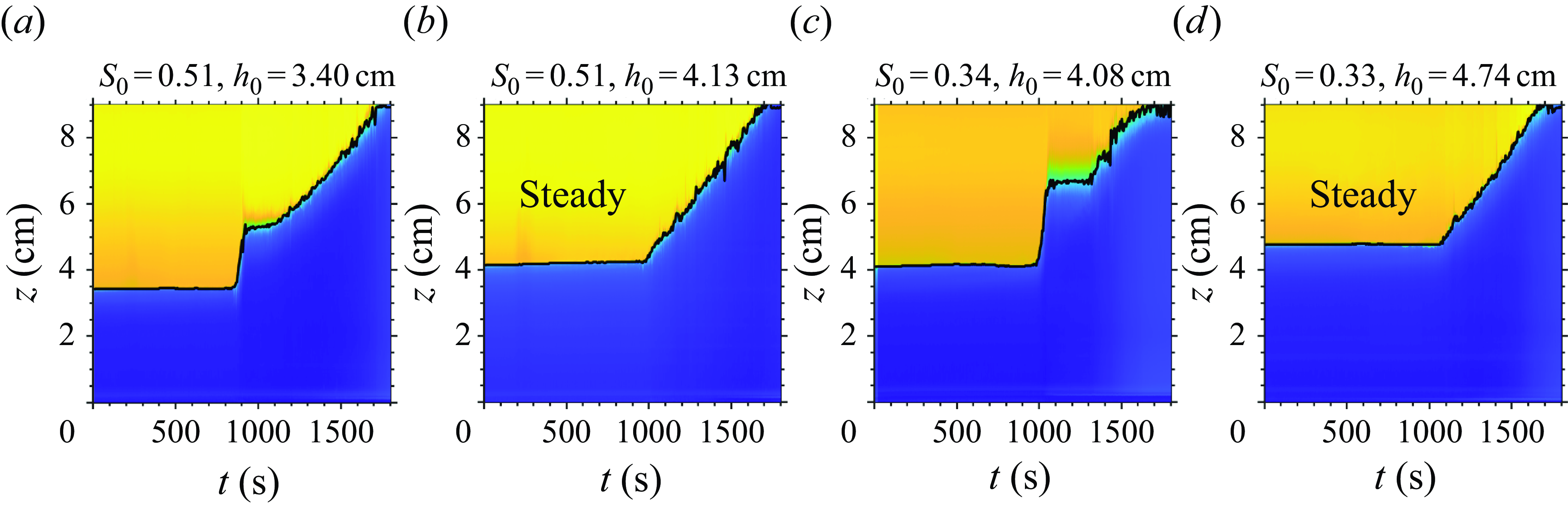

Figure 11. Verification of the dependence of the transitional $h_0=h_\perp (S_0)$ separating transient and steady boiling regimes. Similar visualisation as in figure 8, but for experiments ST1–ST4 that vary both $S_0$ and $h_0$ .

To verify the $h_{\perp } (S_0)$ dependence, we performed experiments ST1–ST4, as shown in figure 11. They use $S_0=0.5$ and $S_0=0.35$ . Substituting in estimated values ( $\alpha \beta =0.08$ , $\chi =0.05$ , $\gamma _s=0.4$ , $\rho _w c_w \approx 4\times 10^6$ J m $^{-3}$ K $^{-1}$ , $T_*-T_w=70\,^\circ$ C, $L_v=2.5\times 10^6$ J kg $^{-1}$ , $\rho _v=0.6$ kg m $^{-3}$ ), we get $h_{\perp }(S_0=0.5) \approx 4.20$ cm and $h_{\perp }(S_0=0.35) \approx 4.68$ cm. For $S_0 \approx 0.5$ experiments, the critical $h_0$ lies between $h_0=3.40$ cm (ST1) and $h_0=4.13$ cm (ST2). For $S_0 \approx 0.35$ experiments, the critical $h_0$ lies between $h_0=4.08$ cm (ST3) and $h_0=4.74$ cm (ST4). Though 4.13 cm (ST2) is still slightly above 4.08 cm (ST3), the former is clearly in the steady boiling regime, and the latter is in the transient boiling regime. This confirms that a more dilute syrup yields a higher critical $h_{\perp }$ for steady boiling, and the magnitude of theoretically predicted $h_{\perp }$ agrees with the experimental results. In summary, smaller $h_0$ and $S_0$ increase the entrainment and make boiling more transient.

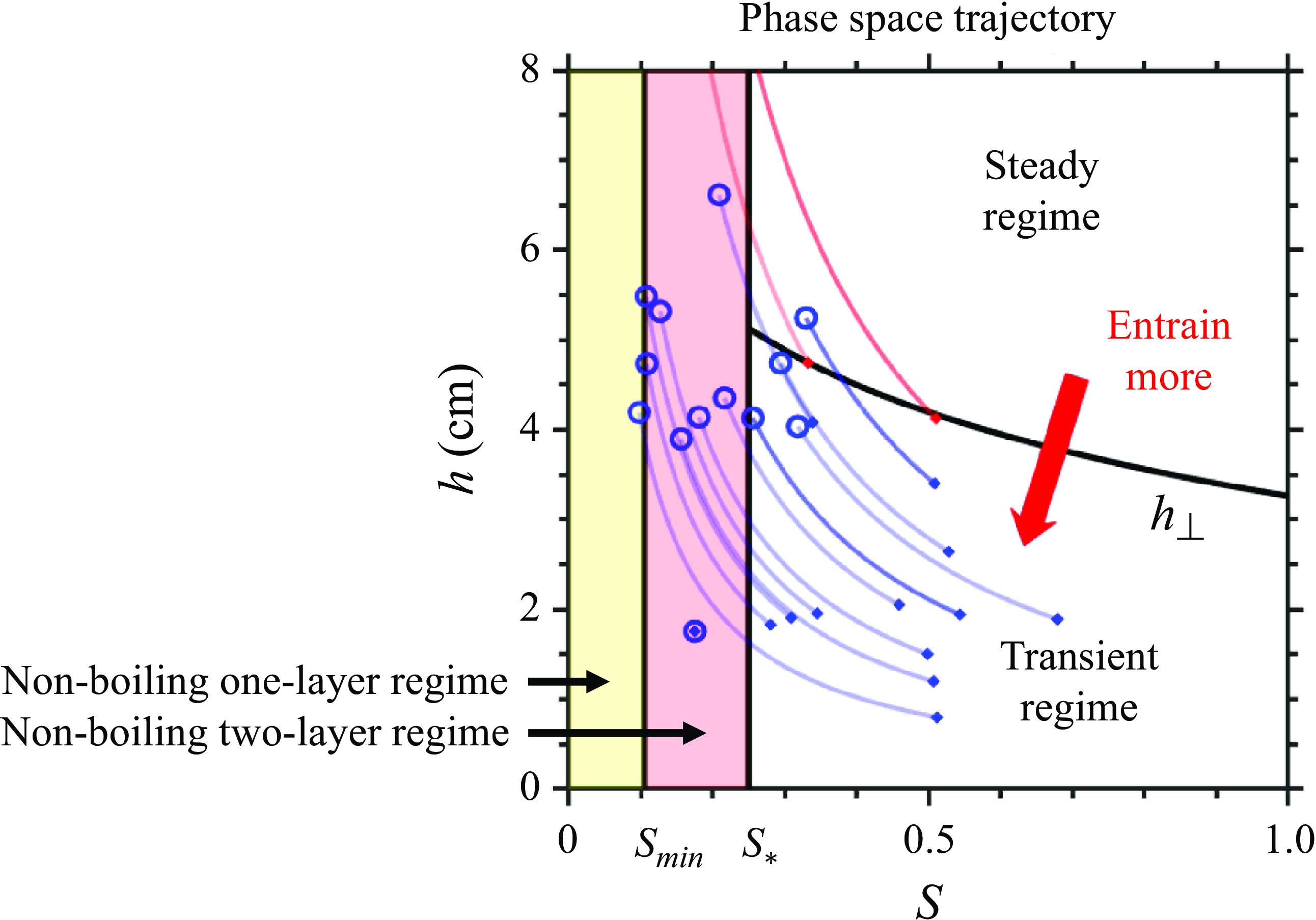

Figure 12. The system’s evolution in the syrup concentration-layer height $(S$ – $h)$ phase space. Trajectories of experiments S1–S7, T1–T7 and ST1–ST4 are plotted, obeying (6.6). Blue trajectories denote the experiments with transient boiling at the first onset. Red trajectories denote the experiments with steady boiling at the first onset. The dots denote the initial $h=h_0$ , and the circles denote the final $h=h_1$ (thus trajectories ‘move up’). Note the steady and transient regimes separated by the curve $h_\perp (S_0)$ . Also note that $S_{min}$ is the minimum syrup concentration for the two-layer system to be statically stable by overcoming the temperature gradient, and $S_*$ is the minimum to reach the boiling point by overcoming the convective ventilation.

6.2. System evolution in phase space

The above discussions are for the first onset of boiling. We can analyse the second, third and even $n$ th onset using the same theory by taking the post-boiling thickness $h_1$ as initial condition $h_0$ for the next onset. Some experiments with transient boiling at the first onset enter steady boiling after the syrup-layer temperature recovers to the boiling point. They include T5, T6 (ST1) and ST3, where either $S_0$ or $h_0$ is relatively large (figures 8 and 11). In other experiments, the first onset of boiling makes the syrup layer too dilute to restore enough heat and boil again (i.e. $S\lt S_*$ ). Here, $S_*$ is the critical syrup concentration for boiling, introduced in (4.18).

We summarise the system evolution in the two-dimensional phase space spanned by the instantaneous syrup concentration $S$ and syrup layer thickness $h$ , as shown in figure 12. Assuming that the syrup layer is diluted by entraining fresh water, and no syrup is released into the freshwater layer, there should be conservation of syrup:

(6.6) \begin{eqnarray} S \, h = S_0 \, h_0, \end{eqnarray}

which sets the system’s trajectory as an inverse proportional function. Note that trajectories move ‘up’ in time as $S$ decreases, while $h$ increases. The space is divided into four regions:

1. (i) the non-boiling one-layer regime ( $S\lt S_{min}$ , see yellow shading) where a two-layer configuration is convectively unstable

2. (ii) the non-boiling two-layer regime ( $S_{min}\lt S\lt S_*$ , see red shading) where the convective heat transfer prevents the syrup layer from boiling

3. (iii) the transient boiling regime ( $S\gt S_*$ and $h\lt h_{\perp }$ , below the solid black curve), of primary interest in this paper

4. (iv) the steady boiling regime ( $S\gt S_*$ and $h\gt h_{\perp }$ , above the solid black curve).

We recall that expressions for $S_{min}$ and $h_{\perp }$ are given in (2.4) and (6.5).

7. Discussion and conclusions

This paper has introduced a new class of experiment, boiling stratified flow, as a laboratory analogy for shallow cumulus convection. A thin syrup layer in a beaker, analogous to the atmospheric boundary layer, is heated beneath a thick freshwater layer analogous to the free troposphere. The temperature in the experiment is analogous to the water vapour mixing ratio, with the boiling exhibiting a threshold behaviour analogous to convective initiation. We summarise our fluid dynamics findings first before exploring the analogies and differences with atmospheric convection.

7.1. Fluid dynamics findings

We found that when the initial syrup concentration $S_0$ and layer thickness $h_0$ are relatively small (but $S_0$ is not too small; see figure 12), the system is in a transient boiling regime. The bubbles generated at the bottom of the beaker quench on their way up and drive vortex rings that penetrate the syrup–water interface, mix with fresh water, and sink back to the interface, producing a middle mixed layer. The bottom syrup layer gradually diminishes due to the mass detrainment by vortex rings. The relatively cold middle mixed layer eventually contacts the bottom and terminates boiling. Boiling is transient because more cold water is entrained into the syrup layer than is needed to remove superheating. In this process, the syrup layer is cooled, diluted and thickened.

We constructed a phenomenological theory to model the turbulent entrainment in a boiling event, and the growth of the interface $h_1-h_0$ . Key quantities include the vortex ring escape ratio $E$ and the vortex ring penetration depth $l$ . The theory explains the trends observed in experiments with varying surface heat fluxes $F_s$ , initial syrup concentrations $S_0$ , and initial syrup layer heights $h_0$ . The post-boiling interface height $h_1$ decreases with increasing $F_s$ because the higher surface heating increases the bubble number density and the turbulence in the syrup layer, which traps more vortex rings. The height $h_1$ is non-monotonic with $S_0$ , first increasing due to stronger superheating and larger bubble radius, then decreasing due to the negative buoyancy of the vortex rings. The height $h_1$ is relatively insensitive to $h_0$ because a thicker syrup layer makes a vortex ring more susceptible to drag and trapping, reducing its penetration depth $l$ . This reduces $h_1-h_0$ , keeping $h_1=h_0 + (h_1-h_0)$ approximately constant. Our theory for $h_1$ accounts for the heat transfer in the syrup layer and the collective mixing effect of vortex rings. The result agrees with our experiments.

By contrast, when $S_0$ and $h_0$ are relatively large, the entrainment rate drops to the minimum value needed to remove superheating in the syrup layer. This yields a steady boiling regime, where the overshooting vortex rings continuously entrain cold water into the syrup layer. By matching the transient and steady boiling theory, our transition curve predicts that smaller $S_0$ raises the transitional $h_0=h_\perp$ above which steady boiling occurs, agreeing with experiments.

These experiments raise several fluid dynamics questions for further study. First, what determines the escape ratio $E$ ? How is this quantity influenced by the interaction of vortex rings and surface heating? Second, how important is the deepening of the syrup layer by trapped vortex rings? The mixing by trapped vortex rings is considered minor compared to the mixing by escaped vortex rings. Borrowing the terminology in stratified turbulence research, the former might be considered as ‘scouring mixing’, and the latter might be considered as ‘overturning mixing’ (Caulfield 2021). The relative importance of these two mixing mechanisms in boiling stratified flow should be studied further. Third, what determines the fraction of surface heating used for vaporisation $\chi$ ? It depends on the turbulence strength in the syrup layer, and may depend indirectly on $E$ . These questions lead to a more fundamental question: how does the vertical eddy diffusivity vary with height, and how can it be parametrised?

7.2. Analogies and differences with atmospheric convection

The trends revealed by our experiments stimulate new research into atmospheric phenomena. First, the reduction of $h_1$ with increasing $F_s$ reveals the dual role of turbulence in mixing. Thayer-Calder & Randall (2015) proposed that the turbulence produced by downdrafts at the atmospheric boundary layer top may favour the vertical transport of moisture and heat. However, our experiments show another possibility: shallow cumulus convection, an efficient mixer, might be tilted and ‘trapped’ by turbulence. One possible future avenue would be to use large-eddy simulations to check whether this mechanism exists in the real atmosphere. Second, the optimal, intermediate $S_0$ for cold-water entrainment has an analogy to the atmosphere. Parker (2002) studied the response of moist convection to the strength of the stratification, and found that more stable stratification suppresses not only cumulus convection, but also dry air entrainment into the boundary layer by convective cells. This leads to the build up of humidity in the boundary layer, and possibly deeper convection later on. While these analogies are encouraging, we emphasise that the boiling stratified flow differs from atmospheric moist convection in various ways, as summarised in table 3.

Table 3. A summary of the comparison between the atmospheric and laboratory flows.

First, the direction of phase change is opposite to that of the atmosphere. In the experiment, buoyancy is gained by vaporisation, and lost by condensation. Latent heat is absorbed when the bubble forms, and released when the bubble quenches. Although the temperature effect on buoyancy plays a minor role compared to the bubble volume change, the analogy is less straightforward. Second, bubble nucleation in the experiment differs from the initiation of shallow cumuli by thermal bubbles in the convective boundary layer, which has regular spatial patterns (Agee & Lomax 1978). Their length scale has been explained with the most unstable wavelength of the (moist) Rayleigh–Bénard cell, which is related to boundary layer height (e.g. Ogura & Kondo 1970; Bretherton 1987; Thuburn & Efstathiou 2020; Öktem & Romps 2021). There are also convective cells in the syrup layer, but bubble formation in the experiment is more likely associated with imperfections on the beaker’s surface. A further investigation of the microphysical processes of phase change is needed. The condensation of water vapour into cloud droplets is facilitated by cloud condensation nuclei such as dust or sea salt particles (Wallace & Hobbs 2006; Rosenfeld et al. 2008). Similarly, boiling is facilitated by boiling nuclei, such as the air bubbles on surface imperfections or suspended particles (Collier & Thome 1994). Adding sand into the syrup solution may be pursued to explore this analogy. Third, the viscosity of the syrup layer plays an important role in suppressing the interfacial heat transfer. Atmospheric molecular viscosity is much less significant and does not play such a special role. The atmosphere has Rayleigh number ${Ra} \gtrsim 10^{16}$ (Pauluis & Schumacher 2013), while our syrup layer has much smaller $10^6 \lesssim {Ra} \lesssim 10^8$ (see Appendix B). Large cloud eddies have ${Re}_v\sim 10^7$ (Shaw 2003), while our vortex rings have $10^2 \lesssim {Re}_v \lesssim 10^3$ . The high syrup viscosity also questions our theoretical vortex ring model, which applies constant drag and entrainment coefficients appropriate for a turbulent flow.

We refrain from drawing an analogy with deep convection and the cumulonimbus that can penetrate the troposphere, as it appears even more uncertain. Deep convection releases significant latent heat that warms the troposphere against radiative cooling, maintaining a stable stratification (Riehl & Malkus 1958; Emanuel et al. 1994). In our experiment, the dehydration effect of vaporisation could increase $S$ in the syrup layer, and the condensation of bubbles could reduce $S$ in the freshwater layer. This process tends to enhance the buoyancy stratification, but the mass of the bubbles’ vapour is much smaller than the syrup moving with it, so the stratifying effect of boiling is much weaker than its de-stratifying effect.

In conclusion, although the boiling stratified flow experiment is not a generic analogue to atmospheric moist convection, it may be an enlightening model for studying the competition between convective cells and shallow cumuli in mixing. In addition, this experiment is visually striking, cost-efficient and easy to set up, and could thus be used as an educational demonstration to illustrate the feedbacks between convection, entrainment and stratification.
