Reconstructions of electron-temperature profiles from EUROfusion pedestal database using turbulence models and machine learning

Abstract

This study makes use of plasma-profile data from the EUROfusion pedestal database (Frassinetti et al. 2020 Nucl. Fusion vol. 61, p. 016001), focusing on the electron-temperature and electron-density profiles in the edge region of H-mode ELMy JET ITER-Like-Wall (ILW) pulses. We make systematic predictions of the electron-temperature pedestal, taking engineering parameters of the plasma pulses and the density profiles as inputs. We first present a machine-learning (ML) algorithm which, given more inputs than theory-based modelling, is able to reconstruct unseen temperature profiles within $20\,\%$ of the experimental values. We find a hierarchy of the most consequential engineering parameters for such predictions. This result confirms the conceptual possibility of accurate data-driven prediction. Next, taking a simple theoretical approach that assumes a definite local relationship between the electron-density ($R/L_{n_e}$) and electron-temperature ($R/L_{T_e}$) gradients, we find that a range of power-law scalings $R/L_{T_e}=A(R/L_{n_e})^\alpha$ with $\alpha\approx 0.4$ correctly capture the behaviour of the electron-temperature in the steep-gradient region. Fitting $A$ and $\alpha$ independently for each pedestal reveals a clear one-to-one correlation, suggesting an underlying constraint in pedestal physics. The measured $\eta_e = L_{n_e}/L_{T_e}$ values across the pedestal exhibit a wide distribution, significantly exceeding the slab-ETG linear stability threshold, implying either a non-linear threshold shift or a measurably supercritical saturated turbulent state. Finally, we fit parameters for scalings that relate the turbulent heat flux to the gradients $R/L_{T_e}$ and $R/L_{n_e}$, similarly to models extracted from gyrokinetic simulations. The inclusion of more experimental parameters is necessary for such models to match the accuracy of our ML results.

1. Introduction

The operation of tokamaks with a divertor can result in an edge-transport barrier (ETB), which occurs once the heating power exceeds a certain threshold. The appearance of this ETB marks the onset of the high-confinement mode (the H-mode, see, e.g., Wagner et al. 1982 – as opposed to a lack of an ETB in the L-mode, see, e.g., Solano et al. 2022). This barrier results in enhanced confinement and correspondingly higher plasma temperatures and densities in the core region, which are desirable for the optimisation of fusion power. As a result, it is the H-mode that is also planned to be achieved in future tokamaks such as ITER.

The ETB is located just inside the edge of the confined plasma, which is identified by the last closed flux surface (LCFS) bounded by the separatrix. The ETB is characterised by high temperature and density gradients, so the plasma profiles appear to be ‘raised up’ upon a pedestal. The pedestal exhibits a stability limit, which constrains the pressure gradient (via unstable ballooning modes) and the bootstrap current (via unstable peeling modes) (Wilson et al. 1999). When this peeling-ballooning threshold is crossed, the equilibrium becomes subject to magnetohydrodynamic (MHD) instabilities that are thought to trigger edge-localised modes (ELMs). Peeling and ballooning instabilities extend radially on scales larger than the typical pedestal width (Snyder et al. 2004), and, therefore, the stability of these modes imposes a ‘global’ condition on the pedestal’s width and height. Such stability conditions are used by the semi-empirical EPED model (Snyder et al. 2009) in order to predict the pedestal width and height in fusion devices.

Alongside the MHD limitations on the plasma equilibrium, the pedestal profile is also believed to be determined by the transport caused by turbulence saturated in these steep-gradient regions. We assume that the action of this turbulence is local, i.e. that the gradients of the temperature and density are sources of free energy that linearly destabilise turbulent modes on micro-scales (much smaller than the extent of the pedestal), and that the nonlinear saturation of these unstable modes determines the effective transport at each location in the pedestal.

The exact relationship between the transport properties of such turbulence and the underlying equilibrium is still largely unknown. This represents a significant shortcoming in the modelling and prediction of tokamak plasmas: while the linear stability of a profile is generally well understood, this must be coupled consistently with energy and particle transport (turbulent, or otherwise) to predict experimental equilibria correctly; in particular, the pedestal is a boundary layer that significantly affects the overall confinement of the plasma. Here, we approach this question using data-driven methods, focusing on the pedestal structure. Previous studies have found that a distinctive feature of pedestals in several machines is a general radial shift between the density-pedestal location and the temperature-pedestal location: the steep-temperature-gradient region occurs further inside the LCFS than the steep-density-gradient region. This has been found on JET, ASDEX, and DIII-D by Dunne et al. (2016), Stefanikova et al. (2018), Wang et al. (2018), Frassinetti et al. (2020, 2021). Of these works, Frassinetti et al. (2020, 2021) used the EUROfusion database, which contains the pedestal characteristics (position, height, width) of over 2000 JET-C and JET-ILW type-I ELMy H-mode pulses, alongside their engineering and magnetic-equilibrium parameters. The pedestal profile data are obtained by compiling high-resolution Thomson-scattering (HRTS) measurements of density and temperature pedestals, which are in a near-steady state. Because of the slow evolution time scale of the plasma profiles compared with that of turbulent fluctuations, the transport properties of the pedestal plasma ought to be set ‘quasistatically’ by a saturated state of the local turbulence.

Here, we will make use of the pedestal profile data for pulses in the EUROfusion database in order to identify correlations between the electron-temperature ( $T_e$ ) and electron-density ( $n_e$ ) profiles of $1251$ JET-ILW pedestals and the corresponding pulse parameters. These pedestal profiles constitute information with which it should be possible to characterise the nature of edge transport in JET-ILW and the effect of this transport on confinement. In order to do this, we will reconstruct electron-temperature profiles using machine learning (ML) or a number of ‘physics-based’ turbulence models, and we will use the quality of these reconstructions to determine the accuracy of each method.

Section 2 provides an overview of the pedestal profiles and the functional fits that represent these profiles. Formal definitions of the pedestal height, width, and position are given in § 2.2; we identify how these values correlate with the $T_e$ and $n_e$ profiles and the corresponding gradients in § 2.3. In § 2.4 we define reference positions at characteristic locations across the pedestal (the locations of the density-pedestal top, temperature-pedestal top, steep-gradient point, and separatrix). In § 2.5 we describe a method to align these locations across the database. Section 3 explains our usage of the contents of the EUROfusion database. We justify the choice of the $1251$ -pulse subset of the database used in our analysis in § 3.1, and then outline the database parameters and their values in § 3.2. Appendix A defines these parameters formally.

Our first method of reconstructing pedestal $T_e$ profiles, presented in § 4, uses an ML approach. This is a natural step to take in order to use nonlinear correlations in the multidimensional parameter space of the EUROfusion pedestal database. We will conclude that it is indeed possible to infer electron-temperature profiles statistically, taking the electron-density profiles and various pulse parameters as inputs. The ML method fully exploits the information in the pedestal database. Therefore, it gives us an effective upper bound for the accuracy of such a pedestal prediction in our database using ML, physics-based models, or otherwise.

We build two different families of models, which generate ‘global’ and ‘local’ predictions. Global predictions, presented in § 4.1, reconstruct the full temperature-pedestal profile using the knowledge of the full density-pedestal profile and different groups of database parameters. Local models, presented in § 4.2, assemble the temperature profile from predictions of the local electron temperature, using the corresponding local electron density and various database parameters. The local approach allows us to mimic a local-transport model and compare the outcome to the global predictions of § 4.1. In § 4.3, we scan systematically through all combinations of database parameters and identify those that result in the most accurate predictions. This exhaustive approach of training a different network for each parameter combination reveals the most important parameters for a successful local or global prediction. Appendix B describes the numerical methods employed for our ML models.

As an alternative to ML, we turn to physics-based turbulence models to reproduce the electron-temperature pedestal. Section 5 depicts the loci of normalised gradients of the electron density ( $R/{L_{n_e}}$ ) and electron temperature ( $R/{L_{T_e}}$ ) over the pedestal region. With this information, we discuss the relevance of linear instabilities and sources of turbulence in this physical regime. The plasma gradients are found to lie in a regime unstable to electron-temperature-gradient (ETG) modes. In particular, an experimentally relevant proportion of the turbulent transport is believed to be caused by slab-ETG modes (Field et al. 2023), which should have a strong influence on the nature of local turbulence, as we will discuss in § 5.1.

In § 6, we investigate the experimental distribution of $\eta _e \equiv {L_{n_e}}/{L_{T_e}}$ , a parameter that governs the linear instability of slab-ETG modes. In § 6.1, we find that in the steep-gradient region of the pedestal, the mean value of this parameter is $\approx 2$ . This mean value is consistent with past findings, however, we find a considerable spread in the values of $\eta _e$ . In § 6.2, by assuming that the turbulence in the pedestal region can be described as ‘pinned’ to a nominal value of $\eta _e$ , we reconstruct electron-temperature profiles by numerically inverting and integrating the relationship between the temperature and density gradients, with the density gradient as an input (as described in Appendix C). Doing this by minimising the discrepancy between the reconstructed and the experimental profile in the steep-gradient region yields an ‘effective’ $\eta _e = 1.9$ across the database. If, instead, the nominal $\eta _e$ is allowed to vary between pulses, then this optimal pulse-dependent $\eta _e$ agrees well with the measured local $\eta _e$ in the steep-gradient region of the pedestal.

In § 7, we complicate the model by using the experimental distribution of $R/{L_{n_e}}$ and $R/{L_{T_e}}$ and an assumed relation between them of the form ${R/{L_{T_e}}} = A ({R/{L_{n_e}}})^{\alpha }$ to reconstruct the $T_e$ -pedestal profiles, with $A$ and $\alpha$ being fitting constants. Section 7.1 highlights that the exponent $\alpha$ maintains values below $1.5$ across the pedestal when calculated locally. Such an approach can indeed produce correct plasma profiles, since any value of $\alpha \neq 1$ allows the gradient ratio $\eta _e$ to adjust over the span of the pedestal. Section 7.2 identifies an effective value of $\alpha \approx 0.4$ required for an accurate full-database reproduction, however, most such reconstructions of the $T_e$ profiles do not produce a pedestal, instead growing exponentially towards the core and failing to reproduce the correct gradient inside the temperature-pedestal top. If $A$ and $\alpha$ are fit independently for each pulse, a clear relationship between $A$ and $\alpha$ emerges, meaning that identifying either of these parameters for each pulse is sufficient for excellent reconstructions of the pedestal profile up to the position of the electron-temperature top.

Having found in § 4 that the power transported through the separatrix is a crucial parameter, we use the power balance in the pedestal and the knowledge of turbulent transport for more accurate reconstructions of $T_e$ profiles in § 8. In § 8.1, we discuss recent results on modelling electron-channel transport in the pedestal by Guttenfelder et al. (2021), Chapman-Oplopoiou et al. (2022), Hatch et al. (2022, 2024), Farcaş et al. (2024). The models of turbulent transport by Guttenfelder et al. (2021) and Chapman-Oplopoiou et al. (2022) represent a physical picture of ETG transport: the electron-channel turbulent heat flux is thought to increase with the difference between the actual gradient ratio $\eta _e$ and some nonlinear critical value of it, $\eta _{e,\mathrm{crit}}$ (Field et al. 2023). More general models of heat transport, for which the physical picture is more uncertain, should still be considered because of the existence in the pedestal of ETG modes with low parallel wavenumbers (toroidal ETG) and other instabilities that survive suppression by flow shear, such as micro-tearing modes (MTMs) (Told et al. 2008; Parisi et al. 2020; Leppin et al. 2023). These other modes can alter the saturation of pedestal turbulence, and could therefore heavily affect the resulting heat fluxes. No comprehensive comparison between the predictions of various heat-flux scaling laws and experimental data has been carried out before on the EUROfusion database. We carry this out in § 8.3 by fitting the free parameters of the models proposed by Chapman-Oplopoiou et al. (2022) and Hatch et al. (2022). We obtain models that yield far better pedestal reconstructions than those of §§ 6 and 7, however not better than the ML results of § 4, as evidenced in Appendix D. We also discuss the differences in the analytical forms of the heat-flux models and the consequences these differences have on the reconstructed profiles. We find that more recent heat-flux models, which also account for the local properties of the local magnetic field (Farcaş et al. 2024; Hatch et al. 2024), comply with the requirements for good $T_e$ -profile reconstructions, showing promise for a study that has access to magnetic-field equilibrium reconstructions.

We provide a summary and a discussion of our results in § 9.

2. Pedestal profiles

For the purpose of this analysis, the electron temperature $T_e$ and density $n_e$ were measured for type-I ELMy JET-ILW pulses using the HRTS diagnostic (Pasqualotto et al. 2004). The HRTS laser path crosses the magnetic flux surfaces on the device midplane, from the outboard side through the centre of the plasma core, and back out. The HRTS diagnostic uses a laser beam fired at $20\,\mathrm{Hz}$ throughout the duration of the pulse. The scattered light from the beam is measured at different locations by detectors (Pasqualotto et al. 2004); this information was then used to determine the electron temperature and density at these locations (Frassinetti et al. 2012). The profiles that occur within the last $20\,\%$ of each inter-ELM period was then selected manually. Only inter-ELM periods longer than $2\tau _{E}$ were used, where the profiles of temperature and density reach near-steady state. Here, $\tau _{E} = W/P_{\mathrm{Loss}}$ is the energy-confinement time, with $W$ the plasma energy and $P_{\mathrm{Loss}}$ the total power loss. This data selection obtained profiles close to the peeling-ballooning stability threshold, which is reached many times over the duration of a pulse. Once this threshold is crossed, an ELM is triggered. More information regarding type-I ELMs and their relevance for the pedestal profiles can be found in § 3.1.

The profiles obtained from the HRTS diagnostic will be referred to as $\texttt {raw}$ profiles (scatter points in figure 1 a,b). These $\texttt {raw}$ profiles were used by Frassinetti et al. (2020) to determine the deconvolved $\texttt {mtanh}$ fits used in our analysis (which we will introduce in § 2.2). These $\texttt {raw}$ profiles will be used in our analysis to estimate the experimental confidence intervals of the data for the ML methods described in § 4, avoiding the systematic biases of the $\texttt {mtanh}$ fits.

Figure 1. The $\texttt {fit}$ (lines) and $\texttt {raw}$ (dots) profiles for pulse $\#90339$ : (a) the electron density $n_e$ and (b) the electron temperature $T_e$ , with the pedestal-top points highlighted; (c) the gyro-Bohm heat flux $ {Q_{e,\mathrm{gB}}}$ ; (d) the normalised radial gradients of the profiles, $({\mathrm{d}T_e/\mathrm{d}R} )/ {T_{e}^{\mathrm{Ped}}}$ and $({\mathrm{d}n_e/\mathrm{d}R} )/ {n_{e}^{\mathrm{Ped}}}$ , which are the gradients of a normalised mtanh fit with height $1$ at the pedestal top; (e) the $R/{L_{T_e}}$ and $R/{L_{n_e}}$ profiles; (f) the $\eta _e \equiv {L_{n_e}} / {L_{T_e}}$ profile. The horizontal axes represent the normalised poloidal-magnetic-flux coordinate $\psi _N$ (lower) and the radial position $R$ (upper). These profiles are plotted alongside the four characteristic pedestal locations introduced in § 2.4 (vertical lines): A is the $T_e$ top position $\psi _{{T_e,}\mathrm{Top}}$ , B is the $n_e$ top position $\psi _{{n_e,}\mathrm{Top}}$ , C is the steep-gradient point $\psi _{\mathrm{Steep}}$ , D is the separatrix position $\psi _{\mathrm{Sep}}$ . The steep-gradient region is bounded by points B and D, and the exact middle of this region is marked by $\psi _{\mathrm{Steep}}$ (point C). We define the core as the locations inside of point A, and the SOL as those outside of D. The horizontal arrows in panels (a) and (b) represent the radial extent of the pedestal region for $T_e$ and $n_e$ .

2.1. Radial coordinates

The $\texttt {raw}$ profiles and other calculated plasma profiles are cast as functions of the radial coordinate: either $R$ (the radial distance from the axis of JET-ILW) or $\psi _N$ (the poloidal-magnetic-flux label). The normalisation convention of $\psi _N$ and the radial shift applied to each pulse will be described below.

Due to uncertainties in the exact underlying equilibrium and in the location of the separatrix, the HRTS profiles are shifted radially to pin them at a specific prescribed value of the electron temperature at the separatrix,

(2.1) \begin{equation} T_e({R^{\mathrm{Sep}}})\equiv {T_{e}^{\mathrm{Sep}}}, \end{equation}

a relationship used to determine the location of the separatrix $R^{\mathrm{Sep}}$ . The same separatrix location applies to both the electron-temperature and density profiles. The value of $T_{e}^{\mathrm{Sep}}$ is estimated to be $100\;\mathrm{eV}$ in JET-ILW using the two-point model for heat flux, as described in Chapter 5.2 of Stangeby (2000). The two-point model is a simplified model that describes the transport of heat along the scrape-off layer (SOL) between a point on the divertor and a point in the outboard plasma midplane. In this context, the model treats the SOL as being in a dominantly conductive (as opposed to convective) regime, which is consistent with the usage of stationary inter-ELM plasma profiles. This model yields a scaling of the SOL heat flux $Q_e \propto T_e^{7/2}({R^{\mathrm{Sep}}})$ , which implies that $T_{e}^{\mathrm{Sep}}$ is very insensitive to changes in $Q_e$ . The EDGE2D simulations consistently show that $T_{e}^{\mathrm{Sep}}$ varies in the range $80{-}110\;\mathrm{eV}$ (Simpson et al. 2019). As shown by Frassinetti et al. (2020), this uncertainty of the value of $T_{e}^{\mathrm{Sep}}$ has a negligible effect on the radial location of the separatrix as a result of the steepness of the profiles around $R = {R^{\mathrm{Sep}}}$ . This can also be generally inferred from the shapes of the electron-temperature profiles shown in figure 1(a).

The poloidal-magnetic-flux label $\psi _N$ is a normalised poloidal-magnetic-flux coordinate $\psi (R)$ . It is defined to be the poloidal-magnetic flux subtended between the magnetic axis and the radial position $R$ . Consistent with this definition, on the magnetic axis, $\psi _{\mathrm{axis}}=0$ ; and $ \psi (R)$ is obtained by reconstructing the equilibrium magnetic field using the MHD code HELENA (Huysmans et al. 1999). For this, HELENA is provided with the plasma profiles and the shape of the plasma boundary reconstructed using EFIT (Lao et al. 1985). Then $\psi _N$ is obtained by normalising $\psi (R)$ so that $\psi _N = 1.0$ at the radial location of the separatrix, viz.,

(2.2) \begin{equation} \psi _N = \frac {\psi (R)}{\psi ({R^{\mathrm{Sep}}})} . \end{equation}

2.2. mtanh fits

The pedestal profiles that are the subject of our analysis are functions fit to the measured raw profiles. The general form of the fits is

(2.3) \begin{equation} \mathtt {mtanh}(x,{h_{\mathrm{Ped}}},{s_{\mathrm{Core}}}) = \frac {{h_{\mathrm{Ped}}}}{2}\left [\frac {(1+x \; {s_{\mathrm{Core}}} )e^x - e^{-x}}{e^x+e^{-x}}+1 \right ], \end{equation}

where $x = ({\psi _{\mathrm{Pos}}}- \psi _N)/{w_{\mathrm{Ped}}}$ and all the free parameters will be defined below. Such mtanh fits are commonly used in many studies of H-mode physics and, thus, they offer the advantage of a generalised convention for pedestal profiles, while being differentiable fits with relatively few free parameters. These free parameters also represent formal definitions of several important properties of the pedestal. Namely, these are: the profile value at the top of the pedestal $h_{\mathrm{Ped}}$ ( $= {T_{e}^{\mathrm{Ped}}}$ and $={n_{e}^{\mathrm{Ped}}}$ for the temperature and density, respectively), the position of the middle of the pedestal $\psi _{\mathrm{Pos}}$ , the width of the pedestal $w_{\mathrm{Ped}}$ ( $={w_{{T_e,}\mathrm{Ped}}}$ and $={w_{{n_e,}\mathrm{Ped}}}$ ), and the position of the pedestal top ${\psi _{\mathrm{Top}}} = {\psi _{\mathrm{Pos}}} - {w_{\mathrm{Ped}}}/2$ ( $= {\psi _{{T_e,}\mathrm{Top}}}$ and $= {\psi _{{n_e,}\mathrm{Top}}}$ ). The core slope to which the profile tends at $\psi _N \ll {\psi _{\mathrm{Top}}}$ is determined by ${h_{\mathrm{Ped}}} {s_{\mathrm{Core}}} / 2 {w_{\mathrm{Ped}}}$ , parametrised by $s_{\mathrm{Core}}$ . The profiles derived using an mtanh fit, as per (2.3), will be referred to as $\texttt {fit}$ profiles, and they represent the nominal plasma profiles used for the EUROfusion database (Frassinetti et al. 2020).

Importantly, the fits are performed taking into account the finite radial resolution of the HRTS diagnostic, as described by Frassinetti et al. (2012). Therefore, each fit profile is computed from the raw profile using deconvolved fits. For this, the fit electron-density profile is obtained by minimising the residual between the raw $n_e$ values and the fit $n_e$ profile, convolved with the spatial instrument function of the HRTS diagnostic. Then, the fit electron-temperature profile is obtained by minimising the residual between the raw $T_e$ values and the fit $T_e$ profile weighed by the fit $n_e$ profile and convolved with the instrument function of the HRTS diagnostic. This is because the density profiles affect the inference of the temperature from the HRTS data. The instrument function of HRTS represents a ‘scattering kernel’ with a full-width-half-maximum of approximately $11\;\mathrm{mm}$ in the pedestal region. The scatter is caused by the HRTS diagnostic imaging a finite volume of the plasma around each measurement location, so the variations of the profile across this volume must be taken into account.

2.3. Gradients

Fitting the $\texttt {raw}$ profiles to a differentiable function allows for gradients to be meaningfully calculated. The gradients are an essential ingredient for studying the local quasi-equilibrium that the plasma settles to during the inter-ELM period. They must be related to the heat flux crossing the pedestal because they provide the drive for the turbulence that controls transport across the pedestal. It is important to acknowledge that the choice of an mtanh fit is a source of systematic bias in estimating the gradients of the profiles, however, this fit has been used to characterise the properties of pedestal shapes across devices for more than 20 years, which helps make our study easily generalisable to other databases.

The gradients of the $T_e$ and $n_e$ profiles are calculated with respect to the radial coordinate $R$ . For any quantity $A(R)$ , we define

(2.4) \begin{equation} L_A = A(R) \left ({\frac {\mathrm{d}A}{\mathrm{d}R}}\right )^{-1} \end{equation}

as the corresponding gradient scale length.

Figure 1 is an overview of pulse $\#90339$ : the plasma profiles (panels aandb), the value of the gyro-Bohm heat flux (shown in panel c and defined below), the profile gradients (panels d and e) and the gradient-length-scale ratio $\eta _e = {L_{n_e}} / {L_{T_e}}$ (panel f). The radial gradients $\mathrm{d}T_e/\mathrm{d}R$ and $\mathrm{d}n_e/\mathrm{d}R$ in figure 1(d) are normalised to the pedestal-top values $T_{e}^{\mathrm{Ped}}$ and $n_{e}^{\mathrm{Ped}}$ , respectively. This normalisation is done in order to show the qualitative behaviour of the raw gradients. For our analysis throughout this study, we will focus on the gradient length scales $L_{T_e}$ and $L_{n_e}$ , defined in (2.4). The most important trends manifest in figure 1 are the increase by approximately two orders of magnitude of the normalised gradients $R/{L_{T_e}}$ and $R/{L_{n_e}}$ towards the separatrix, and the typical values of $\eta _e = \mathcal{O}(1) - \mathcal{O}(10)$ . The finite values of $R/{L_{T_e}}$ and $R/{L_{n_e}}$ outside the separatrix region is a result of the $\texttt {mtanh}$ convention that all $\texttt {fit}$ profiles tend to zero in the SOL. These tendencies of the gradients of pulse $\#90339$ are qualitatively representative of the behaviour of most pulses across the database.

The gyro-Bohm heat flux is defined as

(2.5) \begin{equation} {Q_{e,\mathrm{gB}}} = n_e T_e {v_{\mathrm{th},e}} \frac {\rho _e^2 }{R^2}, \end{equation}

where $ {v_{\mathrm{th},e}} = \sqrt {2 T_e / m_e}$ is the electron thermal velocity, $\rho _e = m_e {v_{\mathrm{th},e}}/eB$ is the electron gyroradius, $m_e$ is the electron mass, $e$ is the electron charge, and $B$ is the magnitude of the magnetic field. The gyro-Bohm heat flux (2.5) maintains values of $\mathcal{O}(\mathrm{MW}\,\mathrm{m}^{-2})$ across the profiles inside of the half-way point between the density-pedestal top and and separatrix (defined as the `steep-gradient point' in § 2.4); $ {Q_{e,\mathrm{gB}}}$ decreases rapidly towards the separatrix, approaching $0$ together with the $T_e$ and $n_e$ profiles.

2.4. Pedestal regions and relevant locations

It is useful to define formally some important radial locations and regions for our profiles. Using the parameters of the $\texttt {mtanh}$ fits in $\psi _N$ coordinates, the pedestal-top positions of $T_e$ and $n_e$ are $\psi _{{T_e,}\mathrm{Top}}$ and $\psi _{{n_e,}\mathrm{Top}}$ , respectively. These pedestal-top positions are defined as

(2.6) \begin{equation} {\psi _{\mathrm{Top}}} = {\psi _{\mathrm{Pos}}} - \frac {{w_{\mathrm{Ped}}}}{2}. \end{equation}

We refer to the region $\psi _N \lt {\psi _{{T_e,}\mathrm{Top}}}$ as the core of the plasma. This definition with respect to $\psi _{{T_e,}\mathrm{Top}}$ holds across the database as a result of the relative shift between the tops of the $n_e$ and $T_e$ pedestals (Frassinetti et al. 2021): the top of the density pedestal is radially further out than the top of the temperature pedestal. Hence, the low temperature gradients in the regions within $\psi _{{T_e,}\mathrm{Top}}$ guarantee low electron-density gradients. We will also use this pedestal-shift property in § 2.5: the separatrix position will be conventionally placed at $\psi _N={\psi _{\mathrm{Sep}}}=1.0$ such that $T_e = 100 \; \mathrm{eV}$ as per the normalisation described in § 2.1, and, consequently, the region of $\psi _N\gt 1.0$ is referred to as the SOL.

The region between the separatrix and $\psi _{{T_e,}\mathrm{Top}}$ is the pedestal. Because most of the pulses obey ${\psi _{{T_e,}\mathrm{Top}}}\lt {\psi _{{n_e,}\mathrm{Top}}}\lt 1.0$ , the interval between $\psi _{{n_e,}\mathrm{Top}}$ and $1.0$ will be referred to as the steep-gradient region, since both the electron-temperature and density gradients are very large there. In the interval between $\psi _{{T_e,}\mathrm{Top}}$ and $\psi _{{n_e,}\mathrm{Top}}$ , the electron-density gradient is much smaller, which justifies making a qualitative distinction between these two neighbouring regions of the pedestal. We will identify this distinction again in § 5, and we will discuss the physical difference between the two regions in the sections thereafter.

The profile values at the top of the $T_e$ pedestal are $T_{e}^{\mathrm{Ped}}$ and $n_{e}({\psi _{{T_e,}\mathrm{Top}}})$ ; at the top of the $n_e$ pedestal they are $T_{e}({\psi _{{n_e,}\mathrm{Top}}})$ and $n_{e}^{\mathrm{Ped}}$ . These pedestal-top points (large dots in figure 1 a,b) are the locations where the gradient scale lengths change from the high-gradient regime of the pedestal to the low-gradient regime characteristic of the core. As a representative location in the steep-gradient region, we define the ‘steep-gradient point’ location as

(2.7) \begin{equation} {\psi _{\mathrm{Steep}}} = \frac {{\psi _{{n_e,}\mathrm{Top}}}+1}{2} , \end{equation}

i.e., half-way between the electron-density top and the separatrix. This location will be considered representative of the steepest region of the pedestal, as it will be far enough away from $\psi _{{n_e,}\mathrm{Top}}$ and $\psi _{{T_e,}\mathrm{Top}}$ to not be influenced by core turbulence. Further out from the steep-gradient point, towards (or beyond) the separatrix, the uncertainties of $R/{L_{n_e}}$ and $R/{L_{T_e}}$ become comparable to the values of the gradients themselves, as obtained by uncorrelated variation of the $\texttt {mtanh}$ parameters within their confidence intervals (Field et al. 2023). This is because the normalisation of the gradients against the asymptotically vanishing values of $n_e$ and $T_e$ in the SOL results in diverging errors. We shall, therefore, use the steep-gradient point as indicative of the pedestal’s steep-gradient region.

2.5. Rescaled radial coordinate

In order to group together qualitatively similar regimes of the pedestal, we use the landmarks that we defined above, i.e., the separatrix position $\psi _{\mathrm{Sep}}$ , the density-pedestal-top position $\psi _{{n_e,}\mathrm{Top}}$ and the temperature-pedestal-top position $\psi _{{T_e,}\mathrm{Top}}$ , to define a new ‘renormalised’ radial coordinate $X_{\mathrm{Ren}}$ . This will map each point in the density-top and steep-gradient regions to a value $X_{\mathrm{Ren}}$ that depends on its position relative to these landmarks.

Namely, a point whose flux label is $\psi _N \in [\min ({\psi _{{T_e,}\mathrm{Top}}},{\psi _{{n_e,}\mathrm{Top}}}), 1 ]$ will have the radial coordinate ${X_{\mathrm{Ren}}} \in [ 0, 2 ]$ defined by

(2.8) \begin{equation} {X_{\mathrm{Ren}}} \left (\psi _N\right ) = \begin{cases} \dfrac {\psi _N - 1}{{\psi _{{n_e,}\mathrm{Top}}} - 1} & \text{if } 1 \geqslant \psi _N \geqslant {\psi _{{n_e,}\mathrm{Top}}}, \\[15pt] 1 + \dfrac {\psi _N - {\psi _{{n_e,}\mathrm{Top}}}}{{\psi _{{T_e,}\mathrm{Top}}} - {\psi _{{n_e,}\mathrm{Top}}}} & \text{if } {\psi _{{T_e,}\mathrm{Top}}} \geqslant \psi _N \gt {\psi _{{n_e,}\mathrm{Top}}}. \end{cases} \end{equation}

This is a piecewise linear transformation that maps $\psi _{\mathrm{Sep}}$ to $0$ , $\psi _{{n_e,}\mathrm{Top}}$ to $1$ , $\psi _{{T_e,}\mathrm{Top}}$ to $2$ , and $\psi _{\mathrm{Steep}}$ to $0.5$ . Because of the relative shift between the pedestal-top locations in the database (Frassinetti et al. 2020), all but $22$ pedestals obey the pedestal-shift condition $({\psi _{{n_e,}\mathrm{Top}}} \gt {\psi _{{T_e,}\mathrm{Top}}})$ in the subset relevant to this study, as per § 3.1. For the pedestals that do not obey this condition, the map (2.8) will place the entire pedestal profile in the $[ 0, 1 ]$ interval. The map (2.8) will be used in §§ 6 and 7 to uncover the overall structure of pedestal gradients.

More complex functional forms of $X_{\mathrm{Ren}}$ that maintain the separation of $\psi _{\mathrm{Sep}}$ , $\psi _{{n_e,}\mathrm{Top}}$ , and $\psi _{{T_e,}\mathrm{Top}}$ , but are also, e.g., differentiable at ${X_{\mathrm{Ren}}} = 1$ , offer little advantage while being more cumbersome.

3. Database and parameters

The database used for this study is the EUROfusion pedestal database described in Frassinetti et al. (2020). This database contains the parameters of over $2000$ ELMy H-mode pulses from JET-C (carbon wall) and JET-ILW (ITER-like wall, with beryllium main chamber and tungsten divertor plates). The pulse parameters that we will use are the fit coefficients of mtanh functions as described in § 2.2. We narrow the scope of the database to a subset of $1251$ pulses, based on considerations of the plasma equilibrium, as explained below.

3.1. Data selection and ELMs

In order to contextualise the data representing our H-mode pulses, it is useful to understand how the pedestals in the database are measured and how they relate to the stability of ELMs.

The pedestal profiles are constrained by the peeling–ballooning MHD stability limit, which depends on the pressure gradient and the current density (Wilson et al. 1999). Edge-localised modes are thought to be triggered when a plasma profile strays past this stability limit, and they result in a sudden reduction of the energy density on spatial scales larger than the size of the pedestal (Snyder et al. 2004). An ‘ELM cycle’ contains the ELM itself and the recovery period of the plasma profile until the occurrence of the next ELM. The classification of ELMs depends on their frequency, associated energy loss and on whether the pedestal is peeling-unstable or ballooning-unstable (Connor, Kirk & Wilson 2008; Murari et al. 2014). ‘Giant’ type-I ELMs are those occurring throughout the pulses in our database.

The EUROfusion pedestal database contains data from type-I ELMy H-mode pulses in JET, and the pedestal profiles are taken from measurements from the last $20\,\%$ of each ELM cycle, as described in § 2. This choice ensures that the pedestal profiles are in near-steady state over the course of the measurement, and that they represent optimal operation of the plasma, just below the ELM stability threshold.

While the EUROfusion pedestal database contains a wide range of pulses, we will narrow the scope in order to limit the variation of the underlying MHD instability of the plasma. We will focus on deuterium-only plasmas (so the effective ion mass will be $M_{\mathrm{eff}}=2$ atomic units). Furthermore, methods of ELM control or mitigation affect the equilibrium of the plasma, meaning that plasma pressure is reduced to a subcritical, ELM-stable regime. Therefore, we chose pulses that had no methods of ELM control or mitigation applied, such as impurity seeding (added impurities producing a regime with high-frequency, low-amplitude ELMs), pellet injection (a method of plasma fuelling inside the ETB, triggering ELMs) or vertical kicks (vertical displacements of the plasma MHD equilibrium, also triggering ELMs).

This means that, for the current analysis, we will work with a subset of the database containing $1251$ pulses.

3.2. Parameter values

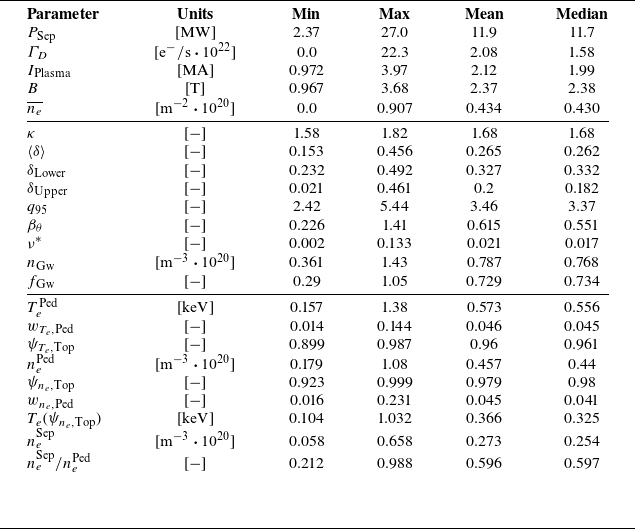

The database also contains a wide range of experimental parameters, so we limit ourselves to a physically relevant subset of engineering parameters and magnetic-equilibrium-reconstruction parameters. The list of these parameters is provided in Appendix A.1 and an overview of their distribution is given in figure 2.

Figure 2. Histograms of the distributions of the engineering and equilibrium parameters described in Appendix A.1. The number of pulses with each strike-point configuration is also shown. The strike points are formatted as ‘inner/outer’, as explained in Appendix A.1.

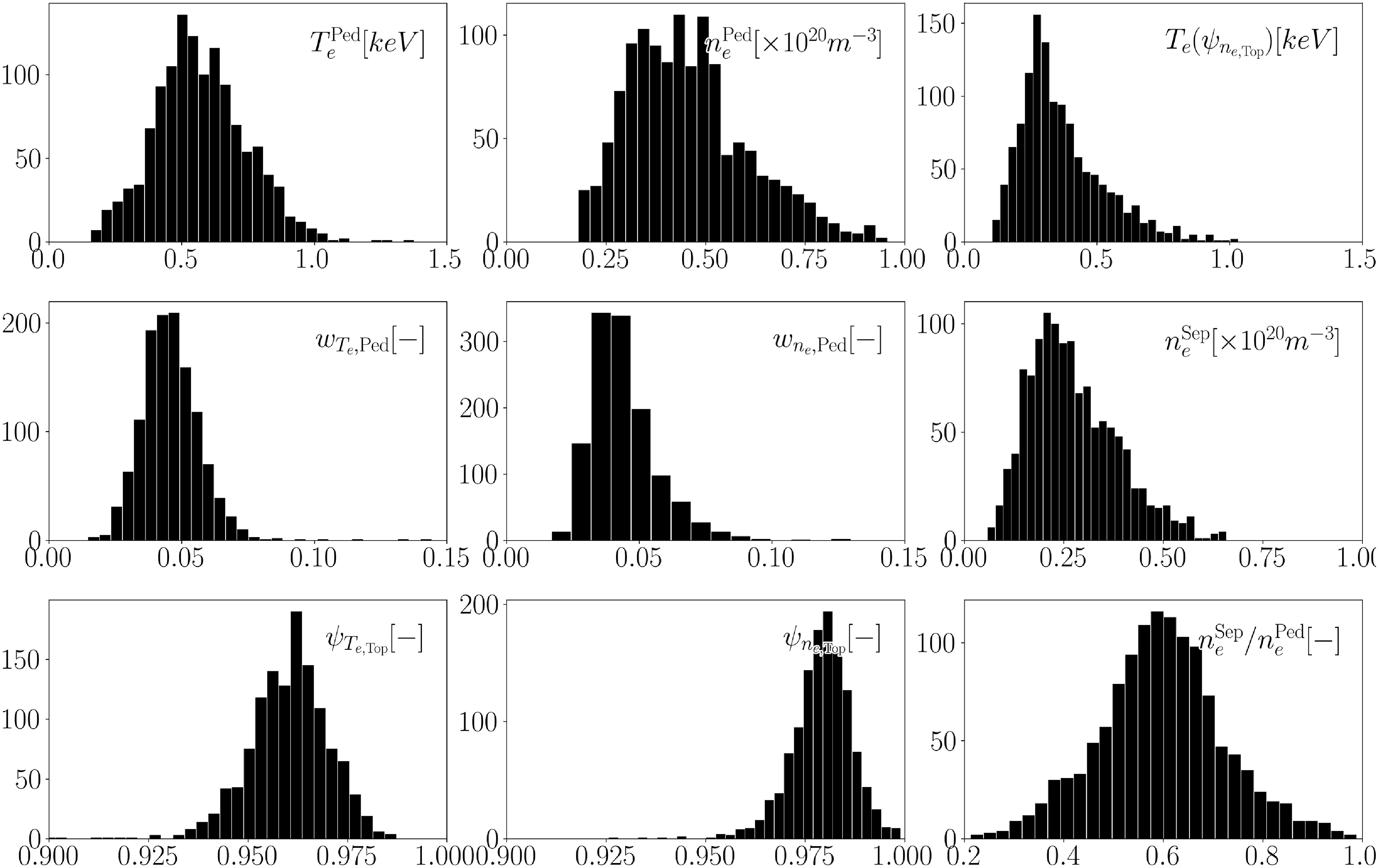

Figure 3. Histograms of the distributions of relevant $T_e$ and $n_e$ profile values. Their definitions are given in § 2.2.

Because of the wide scatter in the values of these parameters, we anticipate the necessity for data augmentation (Appendix B.2) for effective training of $T_e$ -predicting neural networks in § 4. We note that the poloidal beta, $\beta _{\theta }$ , and the electron-electron collisionality, $\nu ^*$ , are physically important in determining the nature of local turbulence in the pedestal; however, the calculation of these parameters directly references $T_{e}^{\mathrm{Ped}}$ , as per Frassinetti et al. (2020). This becomes an issue as the neural networks of § 4 manage to trivially invert the calculation of these parameters. This results in excellent $T_e$ predictions with a priori knowledge of the $T_e$ pedestal. The inclusion of such information into our neural networks defeats the point of our study, although they are worth mentioning amongst the parameters that are usually considered important for characterising the physical environment of a pedestal.

Some of these parameters will also be used in § 8 and Appendix D for predictions using heat-flux scalings and for the calculation of $ {Q_{e,\mathrm{gB}}}$ .

For our analysis of the plasma profiles themselves, we will make use of the $\texttt {raw}$ and $\texttt {fit}$ profiles described in § 2. These profiles are not normally a part of the EUROfusion database, so we sourced them directly from processed pulse files (PPFs) for each pulse. We have access to the electron-density and temperature profiles and the corresponding $R$ and $\psi _N$ for each pulse, as described in § 2.

The distribution of $\texttt {mtanh}$ parameters (defined in § 2.2) and other relevant values of the $T_e$ and $n_e$ profiles are shown in figure 3. The value of the temperature at the density-pedestal top, $T_e({\psi _{{n_e,}\mathrm{Top}}})$ , will be an important measure of the accuracy of our temperature-pedestal reconstruction over the steep-gradient region. The density at the separatrix, ${n_{e}^{\mathrm{Sep}}} = n_e(\psi _N = 1.0)$ , and the ratio ${n_{e}^{\mathrm{Sep}}} / {n_{e}^{\mathrm{Ped}}}$ between the separatrix density and the pedestal-top density are strongly correlated with temperature-pedestal parameters, as was anticipated in Field et al. (2023) and will be confirmed in figure 22.

4. Neural-network predictions

The high-dimensional parameter space of the EUROfusion pedestal database together with the pulse profiles present an opportunity for ML to identify complex, nonlinear correlations. Before attempting to use physics-based models, either stemming from theoretical considerations or from numerical experiments (§§ 5–8), we will leverage neural networks to predict $T_e$ profiles using $n_e$ profiles and selected database parameters.

This section will detail the prediction of $T_e$ profiles using various input parameter groups, enabling us to quantify the contributions of specific engineering and equilibrium-reconstruction parameters to the accuracy of predictions. We will prove that such a prediction is indeed possible, and find the highest accuracy to which $T_e$ profiles can be reconstructed using an ML interpolation method over our data, effectively establishing also the maximal standard of accuracy of such reconstruction by any method. We will also explore the difference between predictions of $T_e$ carried out across the full-pedestal profiles versus those over narrow windows of the pedestal profile, the latter of which mimic predictions using some model of local turbulence. Finally, we will find the pulse parameters in our database that are most important for the correct prediction of such $T_e$ profiles.

For our purposes, neural networks will act as a generalised fit to the experimental data, with the advantage that they allow for arbitrary complexity and easy inclusion of many parameters into such a fit. Simple analytical forms that have a physical prior will be fit to our data in § 8. However, we expect that any high-complexity or many-parameter analytical form resulting from such a dataset would not be any more transparent than a ML ‘black box’ that will be obtained below.

In Appendix B.1, we explain the form of the data used in training our networks. Importantly, we will use $T_e$ , $n_e$ , and $R/{L_{n_e}}$ profiles from the radial interval $R = [3.7, 3.85] \; \mathrm{m}$ , sampled at evenly distributed locations in $R$ . Once a new $T_e$ profile is computed, a new $\texttt {mtanh}$ fit is constructed in order to obtain the pedestal height, width, and top position. These are used as metrics of agreement with the experimental profile (for which they were derived from a deconvolved $\texttt {mtanh}$ fit, as explained in § 2).

Two baseline requirements for using ML for such predictions are that the database parameter space is populated densely enough and that experimental uncertainties are low enough in order to be able to infer correct trends from the data. We deal with the issues of parameter-space sparsity and experimental uncertainty by using data augmentation in order to obtain robust methods to predict the $T_e$ profiles. Methods and criteria for data augmentation are explained in Appendix B.2.

Our choices of the model loss, the train-test split, and network architecture are described in Appendices B.3–B.5. In particular, for all predictions, the database is split into a training set of $80\,\%$ and a testing set of $20\,\%$ of the database. The same split is maintained for consistency across all the presented results, and all our results will be shown for a testing set that is unseen during training.

Initial tests revealed that the electron collisionality $\nu ^*$ and poloidal beta $\beta _\theta$ artificially improved accuracy of predictions because they included exact information about the $T_e$ pedestal. These parameters were originally obtained using a specific reference to $T_{e}^{\mathrm{Ped}}$ (Frassinetti et al. 2020). Therefore, we have excluded these parameters to avoid circular reasoning and maintain the integrity of the predictive task. Similarly, $\psi _N$ is omitted altogether because its normalisation explicitly demands that ${T_{e}^{\mathrm{Sep}}} = 100\,\mathrm{eV}$ .

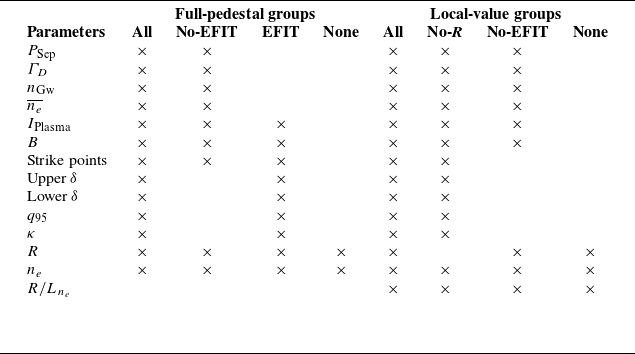

Table 1. The parameter groups and the respective included parameters for the neural networks informed of the full $n_e$ pedestal profile (§ 4.1) and of the local values of the $n_e$ profile (§ 4.2).

Figure 4. Database predictions using neural networks informed of the full density pedestal. These correspond to each of the four groups of parameters listed in table 1: (a–d) no database parameters used as inputs, with the exception of $R$ and $n_e$ ; (e–h) only engineering parameters alongside $R$ and $n_e$ ; (i–l) only the parameters relevant to the MHD-equilibrium reconstruction, alongside $R$ and $n_e$ ; (m–p) all of the aforementioned information used. The colour bar represents the mean-square error between the predicted $T_e$ and the experimental fit profile. For each pedestal prediction, a new mtanh fit is performed in order to establish the $T_e$ -pedestal parameters. Comparisons of the prediction accuracy of these $\texttt {mtanh}$ parameters are provided (a,e,i,m) for $T_e$ at the inner edge of the steep-gradient region, (b,f,j,n) for $T_e$ at the top of the temperature pedestal, (c,g,k,o) for the temperature-pedestal widths, (d,h,l,p) for the temperature-pedestal locations. The solid lines represent the correct prediction, the dashed lines represent a discrepancy of a factor of $\sqrt {2}$ , and the dotted lines represent a discrepancy of a factor of 2. The text on the bottom right of each plot signifies the respective $r^2$ coefficient of determination, with a value of $1$ indicating a perfect prediction and lower values indicating less accurate predictions.

Figure 5. Pulse $\#90339$ $\texttt {fit}$ profiles compared with neural-network predictions of the $T_e$ profile over the full pedestal. The layout is the same as in figure 1. The $\;\texttt {fit}$ profiles are shown as solid lines, while the predictions using different parameter groups listed in table 1 are shown as dash-dotted (‘All Parameters’), dashed (‘No-EFIT’), and dotted (‘EFIT’) lines. The vertical lines and dots represent the landmarks of the $\texttt {fit}$ profiles (see § 2.4 and figure 1), while the crosses represent the pedestal top of the $T_e$ predictions.

4.1. Full-profile electron-temperature predictions

We first make predictions of the full temperature-pedestal profile using the information from the full density-pedestal profile and various database parameters. Randomly located radial cropping is used for the $n_e$ profile during augmentation to reduce bias, ensuring that networks remain independent of specific radial data points while preserving overall profile features. The random crop keeps $80\,\%$ of the pedestal information, i.e., $L$ is close to the full-pedestal extent, as detailed in figure 23 of Appendix B.2.

Four groups of parameters are defined for this comparison (found under the heading ‘Full-pedestal groups’ in table 1). Figure 4 illustrates the prediction results across these parameter groups, showing the mtanh parameters that describe the reconstructed $T_e$ pedestals for the $251$ pulses in the test set. The results in figure 4 correspond to the groups of parameters listed in table 1 as follows:

1. (a-d) ‘None’ – only the radial coordinate and $n_e$ profile, with no additional pulse parameters;

2. (e-h) ‘No-EFIT’ – $R$ and $n_e$ profiles and engineering parameters only, excluding magnetic-equilibrium-reconstruction parameters;

3. (i-l) ‘EFIT’ – $R$ and $n_e$ profiles and magnetic-equilibrium-reconstruction parameters, excluding engineering parameters;

4. (m-p) ‘All Parameters’ – all available engineering and EFIT parameters alongside $R$ and $n_e$ profiles.

Figure 4 and similar diagnostic plots in what follows display the coefficient of determination

(4.1) \begin{equation} r^2 = 1- \frac {S_{\mathrm{res}}}{S_{\mathrm{tot}}}, \end{equation}

where, for a diagnostic $y \in \left \{ T_e({\psi _{{n_e,}\mathrm{Top}}}), {T_{e}^{\mathrm{Ped}}},{w_{{T_e,}\mathrm{Ped}}},{\psi _{{T_e,}\mathrm{Top}}}\right \}$ , $S_{\mathrm{res}} = \sum (y_{\mathrm{meas}}-y_{\mathrm{pred}} )^2$ is the sum of the prediction residual, $ S_{\mathrm{tot}} = \sum (y_{\mathrm{meas}}-\langle y_{\mathrm{meas}} \rangle )^2$ is the total variance of the measured data, and $\langle y_{\mathrm{meas}} \rangle =(1/N)\sum y_{\mathrm{meas}}$ is the average experimental value. Here, $y_{\mathrm{meas}}$ is the experimentally measured value of a diagnostic $y$ and $y_{\mathrm{pred}}$ is its predicted value. A value of $r^2$ close to $1$ suggests an excellent reconstruction, low values suggest a poor agreement. These values serve as our measure of agreement between the experimental and predicted $T_e$ profiles, and, in particular, they represent a direct measure of profile goodness-of-fit for $T_e({\psi _{{n_e,}\mathrm{Top}}})$ because $\psi _{{n_e,}\mathrm{Top}}$ is common for both profiles.

The ‘None’ group yielded largely random predictions of the $T_e$ -pedestal’s width $w_{{T_e,}\mathrm{Ped}}$ and top $T_{e}^{\mathrm{Ped}}$ , demonstrating insufficient predictive power without parameter input.

The ‘No-EFIT’ group performed significantly better, with marked improvements in the predictions of $T_e({\psi _{{n_e,}\mathrm{Top}}})$ , $T_{e}^{\mathrm{Ped}}$ , and $\psi _{{T_e,}\mathrm{Top}}$ , suggesting that engineering parameters are highly relevant to the $T_e$ profile.

The ‘EFIT’ group showed enhanced accuracy of the prediction of the pedestal width $w_{{T_e,}\mathrm{Ped}}$ , and comparable performance in predicting $T_e({\psi _{{n_e,}\mathrm{Top}}})$ and $T_{e}^{\mathrm{Ped}}$ as the ‘No-EFIT’ group. However, this group predicts the pedestal-top location $\psi _{{T_e,}\mathrm{Top}}$ more poorly compared with the ‘No-EFIT’ group.

The ‘All Parameters’ group provided the most accurate predictions, achieving close alignment with experimental profiles across all our metrics for pedestal amplitudes and position. This is confirmed by the high $r^2$ values for the $T_e({\psi _{{n_e,}\mathrm{Top}}})$ , $T_{e}^{\mathrm{Ped}}$ , and $\psi _{{T_e,}\mathrm{Top}}$ reconstructions. The prediction of $w_{{T_e,}\mathrm{Ped}}$ also improved, compared with the ‘None’ and ‘No-EFIT’ groups, underscoring the complementary roles of EFIT and engineering parameters in predicting $T_e$ profiles.

Examples of these predictions are shown in figure 5 for pulse $\#90339$ . The outputs of the models using the ‘All Parameters’, ‘No-EFIT’, and ‘EFIT’ groups closely follow the experimental $T_e$ and $R/{L_{T_e}}$ profiles.

4.2. Local electron-temperature predictions

We further explore the $T_e$ predictions based on local values of the density $n_e$ and normalised density gradient $R/{L_{n_e}}$ within a narrow radial window. This approach emulates predictions using physical models that use local parameters within the pedestal. Here, neural networks are trained to predict $T_e$ values over narrow radial intervals, using the density information at these positions. The radial extent used at each location is $L = 2.5\,\%$ of the sampled radial interval (Appendix B.2). By choosing many randomly positioned samples, the full $T_e$ profile is then assembled from local predictions.

Four parameter groups are defined under the heading ‘Local-value groups’ in table 1. The resulting mtanh parameters of these reconstructions are given in figure 6, arranged as follows:

1. (a-d) ‘None’ – only the radial coordinate $R$ , $n_e$ , and $R/{L_{n_e}}$ profiles, with no additional pulse parameters;

2. (e-h) ‘No-EFIT’ – engineering parameters and $R$ , $n_e$ , and $R/{L_{n_e}}$ profiles, excluding magnetic-equilibrium-reconstruction parameters;

3. (i-l) ‘No- $R$ ’ – all parameters, $n_e$ , and $R/{L_{n_e}}$ , but excluding the radial coordinate $R$ ;

4. (m-p) ‘All Parameters’ – all available engineering and EFIT parameters, and profiles including the radial coordinate $R$ .

Figure 6. Database predictions using neural networks informed of the local values of $n_e$ and $R/{L_{n_e}}$ . These correspond to each of the four groups of parameters in table 1: (a--d) no database parameters used as inputs, with the exception of $R$ and $n_e$ ; (e--h) only engineering parameters alongside $R$ and $n_e$ ; (i--l) all available parameters and the $n_e$ values, omitting the radial location $R$ ; (m--p) all available parameters used, alongside $R$ and $n_e$ . The colour bar represents the mean-square error between the predicted $T_e$ and the experimental fit profile. The plots follow the same layout as in figure 4.

Figure 7. Pulse $\#90339$ $\texttt {fit}$ profiles, compared with neural-network local predictions of the $T_e$ values. The layout is the same as in figures 1 and 5. The $\texttt {fit}$ profiles are shown as solid lines, the predictions with different parameter groups listed in table 1 are shown as dash-dotted (‘None’), dashed (‘All Parameters’), and dotted (‘No- $R$ ’) lines. The vertical lines and dots represent the landmarks of the $\texttt {fit}$ profiles (see § 2.4 and figure 1), the crosses represent the pedestal top of the $T_e$ predictions. The full predicted $T_e$ profiles are a result of assembling many local predictions of $T_e$ values at different locations.

The ‘None’ group yields near-constant pedestals, reflecting the failure of local $n_e$ values alone in capturing pedestal variation over our database. This is a case where insufficient information is provided, resulting in the network yielding an output with little variation. The parameters for the $\texttt {mtanh}$ fits have large negative values, symptomatic of this strategy’s inability to reconstruct the pedestal shape using local predictions with no added parameters.

The ‘No-EFIT’ group enhances predictions of $T_e({\psi _{{n_e,}\mathrm{Top}}})$ , $T_{e}^{\mathrm{Ped}}$ , and $\psi _{{T_e,}\mathrm{Top}}$ with a strong correlation with the experimental values, although the predictions of the pedestal width remain inaccurate.

The ‘No- $R$ ’ group demonstrates the critical role of the radial position $R$ for precise pedestal predictions; without $R$ , $T_{e}^{\mathrm{Ped}}$ is over-predicted by a factor of about $1.5$ , and the pedestal shapes are predicted poorly, indicating that $R$ could act as a proxy for larger-scale spatial effects. This means that the local shape of the density profile alone is not sufficient to predict how tall the $T_e$ profile must be in that location.

The ‘All Parameters’ group achieves high accuracy across all metrics, comparable with the results using the full-pedestal profile in § 4.1. The pedestal width, however, is reproduced with a large inaccuracy, suggesting that $w_{{T_e,}\mathrm{Ped}}$ is linked to global properties of the $n_e$ profile. This link was also noticed by Saarelma et al. (2023, 2024), who found $w_{{n_e,}\mathrm{Ped}}$ and $n_{e}^{\mathrm{Ped}}$ to be related to the $T_e$ profile based on the penetration of neutrals and their ionisation through the pedestal region.

Examples of these predictions for $\#90339$ are presented in figure 7, showing the effectiveness of local predictions with full parameter inclusion, and a high scatter in the temperature gradient of the reassembled profiles. Overall, the local profile predictions provide slightly poorer pedestal reconstructions than the global ones of § 4.1, and these results are generally far more easily degraded by omitting information.

4.3. Assessment of most important database parameters

Figure 8. Normalised mean-square error of neural-network predictions of (a) full $T_e$ profiles and (b) local $T_e$ profiles, averaged over combinations of $N$ parameters that include each given parameter (horizontal axis). The normalisation is with respect to the mean-square error of the all-parameter networks, shown as the black dashed line at the value of 1 (the all-parameter networks are shown in figure 4 m–p for full-profile predictions and in figure 6 m–p for local-value predictions). The bright bars indicate the test-set errors, while the pale bars represent the training-set errors. The red bars show the error when only the single parameter marked on the horizontal axis is used. The pink bars display the average error when the parameter is used in two-parameter combinations, with further bars showing averages across combinations of more parameters. The parameters are arranged left to right in ascending order of the single-parameter test error, demonstrating the relative importance of each parameter for accurate full-profile predictions.

For a quantitative assessment of parameter importance, we measure and compare the prediction accuracy of $T_e$ profiles using various parameter combinations as inputs. We scan sequentially through combinations of $N$ parameters from table 1 and identify those that correlate most with the success of the $T_e$ -pedestal reconstruction.

Because of the difference in the sensitivity to parameter inclusion and in the performance of full-profile and local-value predictions, we scan parameters for each case. The results of these parameter scans are presented in figure 8, where we rank the performance of networks that use $N$ parameters as inputs, with $N$ indicated by different colours, as shown in the legends. The diagrams present the average performance for each parameter on the horizontal axis, when $N-1$ other parameters are included. Our metric for the performance of each network is the total mean-square error across all pulses, normalised to the error obtained from the respective ‘All Parameter’ groups from §§ 4.1 and 4.2. The error for any given network is defined as

(4.2) \begin{align} \mathcal{E} = \sum _{\mathrm{Pulses}} \sum _{i}\left [T_{\texttt {fit} }(R_i) - T_{\mathrm{Pred}}(R_i)\right ]^2, \end{align}

where $\{R_i\}$ denote the evenly spaced radial locations where the profiles are sampled numerically, $T_{\texttt {fit} }(R_i)$ is the experimental fit profile, and $T_{\mathrm{Pred}}(R_i)$ is the predicted value at each location. Bright colours represent the sum over the test pulses, pale colours represent the training pulses.

For full-profile predictions (figure 8 a), for $N \geqslant 2$ , the deuterium gas fuelling rate $\varGamma _{D}$ becomes one of the highest-performance parameters in spite of its low importance in the $N=1$ group. Overall, the inclusion of $\varGamma _{D}$ , the separatrix loss power $ {P_{\mathrm{Sep}}}$ , the plasma current $ {I_{\mathrm{Plasma}}}$ , and the strike-point configuration has proved essential for maximising the accuracy of neural networks with $N\geqslant 4$ . Furthermore, the magnetic-equilibrium parameters have less impact than the engineering parameters, suggesting that there is redundancy in the system: the $n_e$ profile contains sufficient information to infer some features of the MHD equilibrium.

The importance of the strike-point configuration and $\varGamma _{D}$ in the full-profile models suggests that changing the magnitude and/or location of the neutral ionisation source (and also the efficiency of the pumping) and, hence, the particle flux through the pedestal, might affect the nature of the turbulence, and, consequently, the steady-state $T_e$ profile that is consistent with this changed transport. One known pathway through which the information about $T_e$ can be inferred lies in the ratio ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ , which is not contained in the $n_e$ profiles: profiles with a higher ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ have a higher mean $\eta _e$ (figure 13) and are, therefore, more turbulent (§ 8), causing lower $T_{e}^{\mathrm{Ped}}$ values; in turn, ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ is strongly related to $\varGamma _{D}$ (Frassinetti et al. 2021) and to the strike-point configuration.

For local predictions (figure 8 b), the radial coordinate $R$ has proved to be the most important parameter across all metrics used, consistent with the findings of § 4.2. The inclusion of $R$ and the magnitude of the magnetic field $B$ on the axis has turned out to be the most effective two-parameter choice, however, for $N\geqslant 3$ , $ {P_{\mathrm{Sep}}}$ , $\varGamma _{D}$ , $ {I_{\mathrm{Plasma}}}$ , and the strike-point configuration have proved to be the best-performing set. The importance of the strike-point configuration and $\varGamma _{D}$ in this case is unsurprising, as they are essential for the formation of the $n_e$ pedestal (Frassinetti et al. 2020; Saarelma et al. 2023, 2024), supplying information that would be contained in the full shape of the $n_e$ .

Overall, these scans of parameter combinations suggest that the $ {P_{\mathrm{Sep}}}$ , $ {I_{\mathrm{Plasma}}}$ , $\varGamma _{D}$ , and the strike points are the parameters strongest correlated to the correct prediction of the $T_e$ -pedestal shapes. The difference between the ‘All Parameter’ groups in the full-profile and local predictions suggests that successful predictions rely on both global and local plasma characteristics. These global characteristics are contained in the full geometry of the $n_e$ profile, and omitting this information degrades the quality of the predictions.

To conclude, the ML approach has proved quite successful in reconstructing the temperature pedestal given the density profile alongside other available parameters. Each of the eight neural networks presented in §§ 4.1 and 4.2 correspond to entries 39–46 in table 3, where their performances are compared with the other results in this study, stressing the success of such methods. Besides the practical importance of this success for modelling endeavours aiming to help design and operate future devices, the success of our local methods of pedestal reconstruction in § 4.2 also suggests that the search for a physics-based model of local transport is not a hopeless enterprise.

5. Temperature and density gradients

In this section, we will describe the qualitative behaviour of the temperature and density gradients across our database. These are expected to be the essential parameters of the local plasma equilibrium: local gradients represent a source of free energy, which causes microinstabilities. In the local picture, these microinstabilities saturate into a turbulent state that, in turn, determines the transport of heat (and particles) at each location. The object of theory and modelling is the relationship between the resulting transport coefficients, the underlying equilibrium gradients, and the consequent equilibrium profiles in a plasma carrying a known heat flux that is determined on the device scale.

Figure 9 shows the normalised gradients in the pedestal region for all pulses, separated based on their position relative to $\psi _{{T_e,}\mathrm{Top}}$ , $\psi _{{n_e,}\mathrm{Top}}$ , and $\psi _{\mathrm{Sep}}$ . This separation gives rise to a threshold that is effectively described by ${R/{L_{n_e}}} \gt \mathcal{O}(20)$ in the steep-gradient region; concomitantly, ${R/{L_{T_e}}} \gt \mathcal{O}(100)$ for the majority of pulses in the steep-gradient region. For both the density-top and the steep-gradient regions, it is apparent that the pulses reside in a regime roughly characterised by ${L_{n_e}} / {L_{T_e}} \gt 1$ . In the density-top region, this difference in magnitude between $R/{L_{T_e}}$ and $R/{L_{n_e}}$ is consistent with the temperature pedestal’s inwards shift (Frassinetti et al. 2020), and is a contrivance of the split at $\psi _{{n_e,}\mathrm{Top}}$ . In contrast, in the steep-gradient region, it is believed to represent an important physical feature originating from the instability of electron-scale modes, as we will see below.

5.1. Instabilities and ETG turbulence

Figure 9. Loci of the data from all pulses in terms of $({R/{L_{n_e}}}, {R/{L_{T_e}}})$ coordinates: panels (a,c) contain the subsets of each profile spanning the steep-gradient region; panels (b,d) contain profiles between the $T_e$ -pedestal top and the $n_e$ -pedestal top; panels (a,b) contain all pulses considered by us, with their position in $\psi _N$ used to colour code the points; the colour in panels (c,d) shows the number of pulses where profiles cross each bin in the $( {R/{L_{n_e}}}, {R/{L_{T_e}}})$ space. All data points lie above the slab-ETG stability threshold of ${R/{L_{T_e}}} = 0.8 {R/{L_{n_e}}}$ (Jenko, Dorland & Hammett 2001), depicted as the lower blue dash-dotted line in (a,b). The upper blue line represents ${R/{L_{T_e}}} = 1.2 {R/{L_{n_e}}}$ , as explained in § 5.1.

Besides the density and temperature gradients, which can trigger instabilities, the pedestal region features a large $\boldsymbol{E} \times \boldsymbol{B}$ flow shear. This has a suppressive effect on microinstabilities (Zhang & Mahajan 1992; Hahm & Burrell 1995; Terry 2000), quenching those of them that have growth rates smaller than the shear rate. Amongst the instabilities that are fast enough to overcome this suppression, the most relevant ones are modes with electron-scale radial extent, which cause heat transport in the electron channel (Told et al. 2008; Jenko et al. 2009; Hatch et al. 2015, 2016, 2017; Kotschenreuther et al. 2017, 2019). Namely, these are MTMs (see Drake & Lee 1977; Drake et al. 1980; Applegate et al. 2007; Guttenfelder et al. 2012; Zocco et al. 2015; Larakers et al. 2020, 2021; Giacomin et al. 2023), which are electromagnetic instabilities relying on finite resistivity, and ETG modes (see Horton, Hong & Tang 1988; Farengo, Guzdar & Lee 1989; Jenko et al. 2000; Adkins et al. 2022, 2023), which are electrostatic modes. Both of these are driven by the equilibrium electron-temperature gradient.

While gyrokinetic simulations of pedestal-regime plasmas recover various contributions to heat transport from MTMs, ETG modes, or other instabilities (e.g., Guttenfelder et al. 2021; Chapman-Oplopoiou et al. 2022; Leppin et al. 2023), the consensus appears to be that ETG modes are often responsible for an experimentally significant proportion of the turbulent heat transport in the pedestal (see Ren et al. 2024 and references therein). A recent study of two JET pulses (one JET-C and one JET-ILW) confirming the dominance of ETG modes was given by Hatch et al. (2019). Therefore, it makes sense to discuss the implications of ETG turbulence for the pulses in our database.

The ETG instability has two branches, one mediated by the magnetic-field curvature, called toroidal ETG, and one independent of the curvature and mediated by fluctuating parallel electron flow (current), called slab ETG. The slab-ETG instability is driven by the electron-temperature gradient but stabilised by the electron-density gradient. A measure of their competition is the gradient ratio

(5.1) \begin{equation} \eta _e(R) = \frac {{L_{n_e}}}{{L_{T_e}}}, \end{equation}

already introduced in § 1 as a key (local) physical parameter.

Fluid models (Adkins et al. 2022) and linear GENE simulations (Jenko et al. 2001) all result in linear stability thresholds characterised by a near-unity $\eta _{e,\mathrm{crit}}$ such that, for $\eta _e\gt {\eta _{e,\mathrm{crit}}}$ , slab-ETG modes are unstable. The numerical stability scans performed by Jenko et al. (2001) yielded

(5.2) \begin{align} \left (\frac {R}{{L_{T_e}}}\right )_{\mathrm{crit}}= \mathrm{max}\left \{ 0.8 \ \frac {R}{{L_{n_e}}} , (1+\tau )(1-1.5\varepsilon )\left (1.33 + 1.91 \frac {\hat {s}}{q}\right ) \left ( 1+0.3 \varepsilon {\frac {\mathrm{d}\kappa }{\mathrm{d}\varepsilon }} \right )\right \} ,\nonumber\\[5pt] \end{align}

where $\tau = Z_{\mathrm{eff}} T_e/T_i$ is the temperature ratio, $\varepsilon = a/R$ is the aspect ratio, $q$ is the magnetic safety factor, $\hat {s}$ is the magnetic shear, and $\kappa$ is the plasma elongation. This formula contains the linear thresholds for the slab-ETG branch (left) and the toroidal-ETG branch (right). Typically, the second term in (5.2) has order-unity values and is therefore much smaller than $0.8 {R/{L_{n_e}}}$ .

The linear gyrokinetic stability analyses of pedestal plasmas by Jenko et al. (2009) and Guttenfelder et al. (2021) find a value of $\eta _{e,\mathrm{crit}}$ in the range $0.9{-}1.2$ . This variation in the critical threshold is attributed to the effect of magnetic geometry and toroidal modes on the instability (Jenko et al. 2009). The region of ${\eta _{e,\mathrm{crit}}} \in [0.8,1.2]$ is marked in figure 9, bounded by the two blue dash-dotted lines. These order-unity values of $\eta _{e,\mathrm{crit}}$ are situated well below the experimental values of the gradients; only near-separatrix values considerably overlap with this region, albeit they are subject to large uncertainties. This means that, throughout the pedestal, the slab-ETG modes are linearly unstable, to the best of existing theoretical knowledge.

This discussion prepares the analysis of the gradient ratio $\eta _e$ and the outcomes of reconstructing $T_e$ profiles based on the assumption that the pedestal gradients are ‘pinned’ to a specific value of $\eta _e$ in § 6. This is based on the possibility that the system simply pins itself locally to a marginal value of $\eta _e$ (although whether that marginality is with respect to the traditional linear stability threshold is to be discussed). In contrast to this approach, in § 8, we will present the results of reconstructing pedestals using scalings of turbulent heat transport: we will relate the separatrix loss power $ {P_{\mathrm{Sep}}}$ to the background gradients of temperature and density, allowing $\eta _e$ to vary.

6. Gradient ratio $\eta _e$ and pedestal reconstruction

A simple way to use a physics-inspired approach for pedestal reconstructions is to make use of $\eta _e = {L_{n_e}} / {L_{T_e}}$ . First, we will understand the disposition of this gradient ratio in relation to $R/{L_{T_e}}$ , $R/{L_{n_e}}$ , and the pedestal location $X_{\mathrm{Ren}}$ . Once we will understand the trends of the experimental values of $\eta _e$ in § 6.1, we use our own model fits to reconstruct the temperature-pedestal profiles in § 6.2.

6.1. Distributions of the gradient ratio $\eta _e$

Figure 10. Distributions of the gradient ratio $\eta _e$ , defined in (5.1), across the database conditioned on (a) $R/{L_{T_e}}$ , (b) $R/{L_{n_e}}$ , (c) $Q/ {Q_{e,\mathrm{gB}}}$ . All data are obtained from the pedestal region, between $\psi _{{T_e,}\mathrm{Top}}$ and $\psi _{Sep}$ . Panel (b) suggests that ${R/{L_{n_e}}}\propto \eta _e ^\zeta$ describes the pedestal data well, as will be discussed in § 7. The orange lines in (a) and (b) represent three fit values of $\zeta$ to the maxima of the $R/{L_{n_e}}$ distribution (dashed), the full $R/{L_{n_e}}$ distribution (dotted) and the steep-gradient-region prediction across the database discussed in § 7.2 (solid).

In figures 10(a) and 10(b), the data from figure 9 is recast to show an important property of the pedestals: the steep-gradient region ( ${R/{L_{n_e}}} \gtrsim 20$ ) displays a strong tendency of $\eta _e$ to maintain values of around $2$ across this region. It is also apparent that there is a power-law relationship between $\eta _e$ and $R/{L_{n_e}}$ , which will be discussed in § 7. There is no such relationship between $\eta _e$ and $R/{L_{T_e}}$ evident in figure 10(a), as there is far more variance in $R/{L_{T_e}}$ for any given $\eta _e$ . Furthermore, the gyro-Bohm-normalised heat flux $Q/ {Q_{e,\mathrm{gB}}}$ appears to increase as $\eta _e$ approaches the stability threshold (or a different $\mathcal{O}(1)$ value). This confirms the intuition of Field et al. (2023) regarding the role of the linear threshold, although with the notable difference that the heat flux must decrease further away from it.

In (2.8), we defined a radial coordinate $X_{\mathrm{Ren}}$ in order to exploit the geometry of each pulse and to match $\psi _{\mathrm{Sep}}$ , $\psi _{{n_e,}\mathrm{Top}}$ , and $\psi _{{T_e,}\mathrm{Top}}$ across the database. In figure 11 we provide the explicit dependence of $\eta _e$ on the radial location relative to these pedestal landmarks. An important pedestal property highlighted by figure 11 is that the most probable values of $\eta _e$ range between $1.5$ and $3.5$ across the steep-gradient region, increasing from the separatrix (figure 11 e) towards $\psi _{{n_e,}\mathrm{Top}}$ (figure 11 c). Since the stability threshold of ETG modes is expected to be at $\eta _e \approx 1$ (see § 5), this implies a measurable deviation of the turbulence from the linear threshold. Consequently, the turbulence resides in an order-unity supercritical regime where $\eta _e$ is closer to $2$ (which has also been reported in several ASDEX experiments, e.g., Neuhauser et al. 2002). The distribution of $\eta _e$ does overlap with the linear threshold in the vicinity of the separatrix, although only just.

Figure 11. (a) Distribution of $\eta _e$ (as defined in (5.1)) conditioned on the renormalised profile position $X_{\mathrm{Ren}}$ , defined in (2.8). The red lines represent the mean and variance of $\eta _e$ at each $X_{\mathrm{Ren}}$ . (b--e) Cross-sections of the histogram at (b) $({\psi _{{T_e,}\mathrm{Top}}}+{\psi _{{n_e,}\mathrm{Top}}}) / 2$ , (c) $\psi _{{n_e,}\mathrm{Top}}$ , (d) $\psi _{\mathrm{Steep}}$ , and (e) $\psi _{\mathrm{Sep}}$ , corresponding to the white dash-dotted lines in (a). In each of these cross-sections, the continuous red lines represent the mean value of $\eta _e$ , and the dotted red lines represent the values one standard deviation away from the mean. Note that these lines are outside of the range of $\eta _e$ captured in (b).

We note that $\eta _e$ increases rapidly once the profiles cross ${X_{\mathrm{Ren}}} = 1$ , which is a consequence of the inward shift of the electron-temperature pedestal: the temperature pedestal maintains large gradients irrespective of the reduction in the density gradient. This could be indicative of a difference between the saturated turbulent states in the steep-gradient and density-top regions. This qualitative difference between the two regions can be interpreted to imply that, in the steep-gradient region, the density gradient plays an essential role in characterising the turbulence, and the turbulent state resides in a critical regime where the temperature gradient is (almost) uniquely determined by the density gradient. In contrast, inside the density-pedestal top, the density gradient does not uniquely determine the temperature gradient, and $R/{L_{T_e}}$ depends more strongly on other plasma parameters, as can be inferred from the comparison of figures 10(a) and 10(b). This difference could be attributed to the physically expected prevalence of slab-ETG modes in the steep-gradient region, with the density gradient being the dominant stabilising effect on these modes. At small $R/{L_{n_e}}$ , toroidal-ETG modes become unstable before the slab-ETG ones (Jenko et al. 2001), and the addition of such subdominant modes can alter the heat transport (Parisi et al. 2022). This might be the relevant physics in the density-top region. The inclusion of electromagnetic effects into this picture complicates matters further, as we briefly discussed in § 5.1.

6.2. Electron-temperature reconstruction using constant gradient ratio

Figure 12. Database predictions obtained by integrating $1 / {L_{T_e}} = \eta _e / {L_{n_e}}$ inwards from the separatrix, (a–d) with the best-fit $\eta _e$ for each pulse over the pedestal region, (e–h) with the best-fit $\eta _e=1.90$ across the database over the pedestal region, and (i–l) with the best-fit $\eta _e=2.19$ across the database over the region $\psi _N \in [0.9,1.0]$ . The colour bars represent the ratio between the separatrix density $n_{e}^{\mathrm{Sep}}$ and the density-pedestal height $n_{e}^{\mathrm{Ped}}$ . The plots follow the same layout as in figure 4.

Using the tendency of $\eta _e$ to have order-unity values in the pedestal region, we will proceed to predict the electron-temperature profiles assuming there is a simple functional relationship between the normalised gradients $R/{L_{T_e}}$ and $R/{L_{n_e}}$ . The simplest such relationship, proposed by Field et al. (2020), would be a set value of $\eta _e$ describing the turbulence across the whole profile. This is, in itself, an assumption of infinitely ‘stiff’ transport limited by a critical $\eta _e$ , maintained across the pedestal: the heat flux diverges as soon as this value of $\eta _e$ is crossed, reducing the local temperature gradient and consequently bringing the heat flux back to a finite value. Based on the results of § 6.1, we expect this imposed value of $\eta _e$ to be in the vicinity of $2$ . We note that the experimental value of $\eta _e \approx 2$ across the pedestal was initially measured by Neuhauser et al. (2002) on ASDEX, but has been observed to characterise H-mode pedestals correctly on other devices as well (Ren et al. 2024). Horton et al. (2005) used the assumption of $\eta _e=2$ to reproduce correctly an electron-temperature-pedestal profile on ASDEX Upgrade.

In order to find the values of $\eta _e$ that best describe the pulses in our database, we reconstruct the electron-temperature profiles by first assuming that there is a constant $\eta _e$ in (5.1), and then integrating inwards from the boundary at $R^{\mathrm{Sep}}$ (as detailed in Appendix C). We then identify the best ‘nominal’ $\eta _e$ such that the difference between the $\texttt {fit}$ and the reconstructed pedestal is minimised (as explained in Appendix C.1).

In figure 12, we present three sets of results obtained using this method of integration and parameter optimisation over different domains. These three database reconstructions are calculated by maximising the accuracy of the $T_e$ profile across:

1. (a-d) the pedestal region, $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}}, 1.0]$ , with a different $\eta _e$ for each pulse;

2. (e-h) the pedestal region, $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}}, 1.0]$ , with the best-fit $\eta _e = 1.90$ across the database;

3. (i-l) the region including a part of the core, $\psi _N \in [0.9, 1.0]$ , with the best-fit $\eta _e = 2.19$ across the database.

From the pedestal parameter comparison in figure 12, it is apparent that reconstructed temperature-pedestal profiles have temperature-top locations pushed further outwards than the experimental location. The inflexibility of mandating a constant value of $\eta _e$ yields predicted values of $\psi _{{T_e,}\mathrm{Top}}$ that follow $\psi _{{n_e,}\mathrm{Top}}$ , irrespective of whether $\eta _e$ is fixed across the database or allowed a different value for each pulse. Furthermore, for the database-wide $\eta _e$ predictions in figure 12(e--h), we find that the temperature-pedestal height, width, and top locations are strongly correlated to the ratio between the separatrix density $n_{e}^{\mathrm{Sep}}$ and the pedestal density $n_{e}^{\mathrm{Ped}}$ , supporting this observation. Overall, while it is reassuring that we recover $\eta _e \approx 2$ in our database, setting a constant value of $\eta _e\approx 2$ produces poor predictions of the pedestal-top regions. Furthermore, the negative values of $r^2$ in the case of $T_e({\psi _{{n_e,}\mathrm{Top}}})$ indicate that a fixed value of $\eta _e$ is unable to reproduce the steep-gradient region, as it gives a poorer reconstruction than asserting that the predicted $T_e$ pedestal is the average of the pedestals across our database.

The performance of the models using database-wide $\eta _e$ are presented in entries 31–34 of table 3. In particular, those presented in figures 12(e–h) and 12(i–l) correspond to entries 32 and 34, respectively.

Figure 13. Values of $\eta _e$ that best predict the $T_e$ profiles across the pedestal region. (a) The distribution of values of fit $\eta _e$ . (b) Comparison between the fit values of $\eta _e$ and the database values of $\eta _e$ at $\psi _{\mathrm{Steep}}$ (as shown in figure 11 d).

Thus, allowing the value of $\eta _e$ to vary across the database, i.e., assuming that the turbulence in each individual pedestal can be described by a single parameter that is constant across the profile, yields reasonably good predictions for the steep-gradient region, while over-predicting $T_e$ at $\psi _{{n_e,}\mathrm{Top}}$ and under-predicting $T_{e}^{\mathrm{Ped}}$ within a factor of $\sqrt {2}$ of the experimental value. The distribution of the best-fit $\eta _e$ across the steep-gradient region is shown in figure 13. We find a considerable overlap between the best-fit values of $\eta _e$ from the pedestal predictions of figure 12(a–d) and the experimental values of $\eta _e({\psi _{\mathrm{Steep}}})$ at the steep-gradient point (shown in figure 11 d). The largest discrepancies between the experimental $\eta _e({\psi _{\mathrm{Steep}}})$ and the fit $\eta _e$ are correlated with the ratio ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ : outwards shifted $n_e$ pedestals require a higher optimal $\eta _e$ than the experimental $\eta _e$ in order for the $T_e$ pedestal to rise enough. In general, pedestals with a significant shift have a poor prediction accuracy because of the inability of the constant- $\eta _e$ models to reproduce large $R/{L_{T_e}}$ beyond the density-top point.

Applying symbolic regression models (Cranmer 2023) to estimate the optimised $\eta _e$ for each pulse as a function of database parameters shows that the engineering and magnetic-field parameters lack any correlation with the obtained $\eta _e$ . The inclusion of ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ alongside these parameters is essential for the correct estimation of $\eta _e$ , but the scalings fit to the optimised $\eta _e$ are extremely complex and unlikely to have physical meaning. The importance of ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ could not have been elicited in § 4 as the location of the separatrix (and, hence, the value of $n_{e}^{\mathrm{Sep}}$ ) was omitted from the training information of the neural networks. This importance of ${n_{e}^{\mathrm{Sep}}}/{n_{e}^{\mathrm{Ped}}}$ must complement the relationship this ratio bears with the pedestal pressure (Frassinetti et al. 2021).

6.3. Physical implications of $\eta _e$ results

The distribution of experimental values of $\eta _e$ (figure 10) over the steep-gradient region and their agreement with the best-fit $\eta _e$ values over the pedestal region in figure 13(b) represent an important finding. These best-fit values of $\eta _e$ are nominally higher than $2$ , with a considerable spread.

One can interpret the results of this section as providing physical insight into the steep-gradient-region turbulence in several alternative ways.

1. (i) The turbulence can be described by a quasilinear model strongly dominated by the linear picture of electrostatic and electromagnetic modes, but the true linear threshold $\eta _{e,\mathrm{crit}}$ differs from the solution of Jenko et al. (2001) by an order-unity value.

2. (ii) The turbulence saturates in a nonlinear ‘Dimits’-like state (Dimits et al. 2000; Colyer et al. 2017; Ivanov, Schekochihin & Dorland 2022), and the transport level increases abruptly once some nonlinear threshold $\eta _{e,\mathrm{Dimits}}$ is surpassed; based on our results, we expect that $\eta _{e,\mathrm{Dimits}}$ would be higher than the linear $\eta _{e,\mathrm{crit}}$ by an $\mathcal{O}(1)$ amount.

3. (iii) The turbulence causes a moderately (rather than near-infinitely) ‘stiff’ heat transport (Field et al. 2023) and, given the separatrix loss power $ {P_{\mathrm{Sep}}}$ in JET-ILW pulses, it results in a value of $\eta _e$ that is greater than $\eta _{e,\mathrm{crit}}$ by an $\mathcal{O}(1)$ amount.

In § 6.1, we also identified and discussed the stark difference between the steep-gradient and density-top regions. Explaining this difference demands a theoretical model that accounts for qualitative changes in the turbulent behaviour with the change of the density gradient $R/{L_{n_e}}$ . Such changes could be the result of the contribution of toroidal-ETG modes to the turbulent transport, as recently found by Chapman-Oplopoiou et al. (2025) and Krutkin et al. (2025). We will discuss gyrokinetics-inspired models (Guttenfelder et al. 2021; Chapman-Oplopoiou et al. 2022; Hatch et al. 2022) that use the turbulent heat flux to reconstruct the $T_e$ profiles in § 8, but before that, in § 7, we will construct and assess a simpler scaling prescription that allows for $\eta _e$ to adjust over the pedestal region.

7. Scaling exponent $\alpha$ and pedestal reconstruction

The relationship between $\eta _e$ and $R/{L_{n_e}}$ shown by the dashed orange line in figure 10(b) suggests that a power-law scaling between the gradients can effectively describe the pedestal. Furthermore, a clear characteristic of the plasma gradients in figure 9 is that $R/{L_{T_e}}$ monotonically increases as $R/{L_{n_e}}$ does. This increase can perhaps be described by a power-law relationship of the form

(7.1) \begin{equation} \frac {R}{{L_{T_e}}} = A \left (\frac {R}{{L_{n_e}}}\right )^\alpha , \end{equation}

where $\alpha$ and $A$ are parameters to be measured (and theorised about). To analyse the behaviour of the exponent $\alpha$ at different locations in the pedestal, we formally define

(7.2) \begin{align} \alpha (R) = {\frac {\mathrm{d}\ln {({R/{L_{T_e}}})}}{\mathrm{d}\ln {({R/{L_{n_e}}})}}}, \end{align}

where $R$ is the radial location at which the gradients are evaluated. Following the $R/{L_{T_e}}$ vs $R/{L_{n_e}}$ loci for any given pulse in figure 9, we find that $\alpha (R)$ decreases from $\psi _{{T_e,}\mathrm{Top}}$ (low-gradient region of figure 9 a) to $\psi _{\mathrm{Sep}}$ (dark-red lines in figure 9 b).

In § 7.1, this local $\alpha (R)$ will be calculated for each pulse in the database. Then, in § 7.2,verall, the range of value, we will fit $\alpha$ -based models to the database and reconstruct the electron-temperature pedestals, similar to our analysis of $\eta _e$ in § 6.

7.1. Distributions of the scaling exponent $\alpha$

Figure 14. Distribution of the exponent $\alpha$ , defined in (7.2), across the database as a function of (a) $R/{L_{T_e}}$ , (b) $R/{L_{n_e}}$ , (c) $\eta _e$ . All data are obtained from the pedestal region, between $\psi _{{T_e,}\mathrm{Top}}$ and $\psi _{Sep}$ .

Figure 15. (a) Distribution of $\alpha$ , as defined in (7.2), conditioned on $X_{\mathrm{Ren}}$ . The red lines represent the mean and variance of $\alpha$ at each $X_{\mathrm{Ren}}$ . (b–e) Cross-sections of the histogram at (b) $({\psi _{{T_e,}\mathrm{Top}}}+{\psi _{{n_e,}\mathrm{Top}}}) / 2$ , (c) $\psi _{{n_e,}\mathrm{Top}}$ , (d) $\psi _{\mathrm{Steep}}$ , and (e) $\psi _{\mathrm{Sep}}$ , corresponding to white dash-dotted lines in (a). In each of these cross-sections, the continuous red lines represent the mean value of $\alpha$ , and the dotted red lines represent the values one standard deviation away from the mean.

In figure 14, we show the distribution of the exponent $\alpha$ conditioned on the gradients $R/{L_{T_e}}$ , $R/{L_{n_e}}$ , and their ratio $\eta _e$ . The values of $\alpha$ at the separatrix are clustered around $\approx 0.33$ (as seen in figure 14 b at large $R/{L_{n_e}}$ ). Overall, the range of values taken by $\alpha$ is narrow, indicating that a power-law relationship between $R/{L_{T_e}}$ and $R/{L_{n_e}}$ with a constant exponent might indeed represent the profiles in the steep-gradient region correctly. The relationship between $\alpha$ and $\eta _e$ is shown in figure 14(c), and it implies a clear correlation between increasing $\eta _e$ and increasing $\alpha$ .

Rearranging the values of $\alpha$ using the renormalised radial coordinate $X_{\mathrm{Ren}}$ given by (2.8) gives us figure 15. Its most important feature is the convergence of all profiles to $\alpha \approx 0.33$ at the separatrix ( $X_{\mathrm{Ren}}$ approaching $0$ in figure 15 a). This coincides with the highest values of the normalised gradients $R/{L_{T_e}}$ (figure 14 a) and $R/{L_{n_e}}$ (figure 14 b). The exponent $\alpha$ commonly lies in the range of $0.3{-} 0.5$ in the steep-gradient region, with a large spread towards $\psi _{{n_e,}\mathrm{Top}}$ . The values of $\alpha$ remain order unity in the density-top region.

7.2. Electron-temperature reconstructions using constant exponent $\alpha$

Because of the small variance of $\alpha$ in the pedestal region, it makes sense to explore the consequences of asserting that $\alpha$ is constant across the pedestal. This is conceptually similar to the analysis carried out in § 6.2, where $\alpha =1$ and $A\equiv \eta _e$ , but now $\alpha \neq 1$ allows the physically relevant parameter $\eta _e$ to adjust over the pedestal (as a function of either of the gradients). The case for such an adjustment of $\eta _e$ across the pedestal is clear in figure 10(a,b), where the orange lines represent fits of $\alpha$ to the distributions of $\eta _e$ vs $R/{L_{n_e}}$ – in the figure caption, these fits are presented as ${R/{L_{n_e}}} \propto \eta _e^\zeta$ , where $ \zeta = (\alpha -1)^{-1}$ . The dotted line with $\alpha \approx 0.1$ is the fit to the whole distribution of $\eta _e$ in figure 10(b), while the dashed line with $\alpha = 0.41$ (obstructed by the continuous orange line with $\alpha = 0.39$ obtained below as a best fit for database reconstructions) is the fit to the highest-likelihood $\eta _e$ values in the histogram. It is clear that $\alpha \approx 0.1$ fails to reproduce the trend of pedestal profiles, whereas $\alpha = 0.41$ meaningfully matches the relationship between $\eta _e$ and $R/{L_{n_e}}$ . Hence, using a constant $\alpha$ to describe a pedestal should lend enough flexibility to the relationship between $R/{L_{T_e}}$ and $R/{L_{n_e}}$ .

Figure 16. Database predictions obtained by integrating ${R/{L_{T_e}}} = A({R/{L_{n_e}}})^\alpha$ inwards from the separatrix, with (a–d) the best-fit $A$ and $\alpha$ for each pulse, and (e–h) the best-fit $A = 50.6$ and $\alpha =0.39$ across the database. The fits are done over the pedestal region. The colour bar represents the separatrix loss power $ {P_{\mathrm{Sep}}}$ . The layout of the figure is the same as in figure 4.

Figure 17. Pulse $\#90339$ $\texttt {fit}$ profiles compared with predictions using the scaling (7.1). The layout is the same as in figure 1. The $\texttt {fit}$ profiles are shown as solid lines, while the predictions using the $A$ and $\alpha$ optimised individually for pulse $\#90339$ are shown as dashed lines, and predictions using the $A$ and $\alpha$ optimised for the whole database are shown as dotted lines. Both fits are done over the interval $[{\psi _{{T_e,}\mathrm{Top}}}, {\psi _{\mathrm{Sep}}}]$ . The vertical lines and dots represent the landmarks of the $\texttt {fit}$ profiles (see § 2.4 and figure 1), while the crosses represent the pedestal top of the $T_e$ predictions.

Thus, similar to our approach in § 6.2, we attempt to reproduce the pedestals using (7.1) as a fitting formula, seeking the best values of $A$ and $\alpha$ . Figure 16 shows two database reconstructions that were calculated using the scaling (7.1). These reconstructions maximise the accuracy of the $T_e$ profile across the pedestal region, $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}}, {\psi _{\mathrm{Sep}}}=1.0]$ , with:

1. (a-d) $A$ and $\alpha$ fit individually for each pulse;

2. (e-h) $A=50.6$ and $\alpha =0.39$ fit across the database.

For these reconstructions in figure 16, the values of $A$ and $\alpha$ are the best-fit values obtained using the optimisation method described in Appendix C.1. Note that the value of $\alpha = 0.39$ in this method agrees with the fit to the highest-likelihood values of $\eta _e$ of figure 10(b).

Figure 18. Values of $\alpha$ and $A$ that best predict the $T_e$ profiles individually across the pedestal region: (a) the distribution of values of fit $\alpha$ , (b) the fit values of $\alpha$ vs $A$ . The black cross represents the $A$ and $\alpha$ fit for the whole database (shown in figure 16 e–h). The linear fit between $\ln A$ and $\alpha$ is shown as a blue line.

The predictions obtained by allowing $\alpha$ and $A$ to be fit individually for each pulse (figure 16 a–d) are very accurate in reproducing the pedestal region overall, as seen in figure 16(a). Furthermore, the pedestal shapes are reconstructed well for a large proportion of the database, although for some pulses, the $T_e$ profiles continue increasing exponentially towards the core, so $\texttt {mtanh}$ parameters do not describe these profiles well. This can be seen in figure 16(b–d), where a subset of the $\texttt {mtanh}$ parameters is very far from the correct prediction.

This issue of unbounded $T_e$ profiles is more pronounced for the reproductions using a single combination of $A = 50.6$ and $\alpha = 0.39$ across the database. Since many reconstructed profiles do not resemble an $\texttt {mtanh}$ , the corresponding pedestal parameters are obtained poorly (figures 16 f–h). However, the accuracy of these fits across the steep-gradient region (figure 16 e) is much better than the best-fitting $\eta _e$ predictions of § 6.2 (figure 12 e,i), meaning that such an approach is more effective for the steep-gradient region than the methods in § 6. This combination of $A$ and $\alpha$ is shown in figure 10(a,b) as the continuous orange lines, recovering the fit performed directly to the distribution of $R/{L_{n_e}}$ and $\eta _e$ shown by the dashed line.

If $A$ and $\alpha$ are instead optimised over the interval $\psi _N \in [0.9,1.0]$ for a database-wide fit, we obtain $A = 31.7$ and $\alpha = 0.46$ (not shown). This combination produces slightly degraded pedestals over the $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}}, 1.0]$ interval when compared with the combination in figure 16(e–h), and it does not solve the general issue of the exponential divergence of $T_e$ profiles. The combinations of $A$ and $\alpha$ optimised over the intervals $[{\psi _{{T_e,}\mathrm{Top}}}, 1.0]$ and $[0.9, 1.0]$ correspond to entries 36 and 38 of table 3 in Appendix A, where their accuracies over different ranges are compared with our other attempts at $T_e$ -pedestal reconstructions in this study.

Examples of the profiles that constitute figure 16 are given in figure 17 for the pulse $\#90339$ . The database-optimised fit (dotted lines) has a lower value of $\alpha$ than the optimal value for pulse $\#90339$ , causing $R/{L_{T_e}}$ to vary less with $R/{L_{n_e}}$ . Because of this, the database-optimised values give a large $R/{L_{T_e}}$ beyond the density-pedestal top and a diverging $T_e$ profile without a $\psi _{{T_e,}\mathrm{Top}}$ within the bounds shown in figure 17. The optimal combination of $A$ and $\alpha$ for this individual pulse (dashed lines) results in a good $T_e$ pedestal and reproduces $\eta _e$ correctly between $\psi _{{T_e,}\mathrm{Top}}$ and $\psi _{\mathrm{Sep}}$ .

The distributions of $A$ and $\alpha$ fit for each pedestal (corresponding to figure 16 a–d) are shown in figure 18. The key finding, manifest in figure 18(b), is that, while we found that a two-parameter fit (7.1) is much better than the one-parameter fit ( $\alpha = 1$ , $A = \eta _e$ in § 6), the two parameters appear to be highly correlated. Their relationship is given by $\ln A = 5.64 \pm 0.05 - (4.42 \pm 0.08) \alpha$ , which allows for (7.1) to be recast as

(7.3) \begin{align} \frac {R}{{L_{T_e}}} = (281 \pm 15) \left ( \frac {1}{84 \pm 7} \frac {R}{{L_{n_e}}} \right ) ^ \alpha . \end{align}

The ranges for the numerical constants represent a $95\,\%$ confidence interval. This means that the fits performed in this section in fact intrinsically have only one degree of freedom. We have found that a similar locus of fit parameters $A$ and $\alpha$ , given by $ \ln A = 5.73 \pm 0.09 - (5.18 \pm 0.12) \alpha$ , describes a subset of $273$ JET-C pulses from the EUROfusion pedestal database, selected based on criteria similar to those described in § 3.1. These JET-C pulses are not otherwise included in this study.

Finding a relationship between $\alpha$ and physical parameters would represent a major success in modelling the pedestal steep-gradient region. However, we anticipate that a model like (7.3) might be much harder to justify physically than other alternatives used in §§ 6 and 8. We also note that we have failed to find any correlation between the distribution of $\alpha$ and database parameters.

8. Heat-flux models

As we saw throughout the parameter-combination scans of § 4.3, the separatrix loss power $ {P_{\mathrm{Sep}}}$ is strongly correlated with the $T_e$ pedestals. As also highlighted by the correlation matrix in figure 22, the values of the $T_e$ -pedestal profile at the pedestal-top locations $T_{e}^{\mathrm{Ped}}$ and $T_{e}({\psi _{{n_e,}\mathrm{Top}}})$ are positively correlated with $ {P_{\mathrm{Sep}}}$ . We will now attempt to exploit this dependence of $T_e$ on $ {P_{\mathrm{Sep}}}$ using models of heat transport to reconstruct $T_e$ pedestals.

This section will show the outcomes of $T_e$ -pedestal-profile reconstruction using models that relate the gradients $R/{L_{n_e}}$ and $R/{L_{T_e}}$ to the turbulent heat flux transported in the electron channel. First, in § 8.1, we will build upon the discussion of linear instabilities in the pedestal given in § 5.1 and present the properties of the turbulent transport caused by ETG modes and other instabilities. This will provide context to the rest of our analysis. Section 8.2 will describe the calculation of the turbulent heat flux and its normalisation using database parameters. Using the models explained in § 8.1, in § 8.3, we will reconstruct electron-temperature pedestals and assess the quality of these predictions. Our reconstructions will use the parameter-optimisation methods described in Appendix C, and the results in this section will represent an illustrative subset of the full set of models we assessed in Appendix D.

8.1. Electron-scale turbulence

The nonlinear dynamics of ETG-driven turbulence in the steep-gradient region of pedestals are strongly influenced by the complex interactions between microinstabilities that emerge as a result of the underlying plasma equilibria. Here, we briefly review the key findings from nonlinear gyrokinetic simulations and their implications for pedestal turbulence.

Chapman-Oplopoiou et al. (2022) carried out gyrokinetic simulations using the nominal gradients $R/{L_{T_e}}$ and $R/{L_{n_e}}$ evaluated at $\psi _{\mathrm{Steep}}$ for four JET-ILW pedestals, which are also present in this study. Varying these gradients within the experimental confidence intervals showed that the electron-channel turbulent heat flux $ {Q_{e,\mathrm{Turb}}}$ increased with increasing $R/{L_{T_e}}$ and decreased with increasing $R/{L_{n_e}}$ . This is consistent with the linear picture of the slab-ETG instability, where electron-temperature gradients drive the instability, while electron-density gradients suppress it. Chapman-Oplopoiou et al. (2022) showed that a good fit to their results was the relationship

(8.1) \begin{equation} \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}}} = A \left (\frac {R}{{L_{T_e}}}\right )^2 \left (\eta _e -{\eta _{e,\mathrm{crit}}}\right )^{\beta }, \end{equation}

where, as defined in § 2.3, $ {Q_{e,\mathrm{gB}}} = n_e T_e {v_{\mathrm{th},e}} \rho _e^2 / R^2$ , and the best-fit parameters were $A=0.85$ , ${\eta _{e,\mathrm{crit}}} = 1.28$ , and $\beta = 1.32$ . The simulated heat fluxes were also consistent with the fit found in simulations of DIII-D pedestals by Guttenfelder et al. (2021): $A=1.5$ , ${\eta _{e,\mathrm{crit}}} = 1.4$ , and $\beta =1$ . Models of this form can also reproduce results such as those from the $R/{L_{T_e}}$ scans in Parisi et al. (2022): keeping $\eta _e$ constant yields $ {Q_{e,\mathrm{Turb}}}/ {Q_{e,\mathrm{gB}}} \propto ({R/{L_{T_e}}})^2$ , whereas keeping $R/{L_{n_e}}$ constant gives $ {Q_{e,\mathrm{Turb}}}/ {Q_{e,\mathrm{gB}}} \propto ({R/{L_{T_e}}})^4$ . This behaviour would be matched by (8.1) with $\beta =2$ when $\eta _e \gg {\eta _{e,\mathrm{crit}}}$ .

The behaviour of the turbulent heat flux $ {Q_{e,\mathrm{Turb}}}$ parametrised by (8.1) can be justified by the physical picture proposed by Field et al. (2023). In their model, the $({R/{L_{T_e}}})^2$ term is justified by replacing the radial size $R$ of the tokamak with the locally relevant length scale $L_{T_e}$ in the gyro-Bohm normalisation of the heat flux:

(8.2) \begin{equation} {Q_{e,\mathrm{gB}}} = n_e T_e {v_{\mathrm{th},e}} \frac {\rho _e^2}{R^2} \;\;\; \rightarrow \;\;\; Q_{e,\mathrm{gB}}^* = n_e T_e {v_{\mathrm{th},e}} \frac {\rho _e^2}{{L_{T_e}}^2}, \end{equation}

i.e., the relevant scale associated with free-energy injection is $L_{T_e}$ , rather than $R$ . This is a natural choice if turbulent transport is controlled by the slab-ETG instability. With the redefinition (8.2), (8.1) becomes

(8.3) \begin{equation} \frac { {Q_{e,\mathrm{Turb}}}}{ Q_{e,\mathrm{gB}}^*} =A \left (\eta _e - {\eta _{e,\mathrm{crit}}}\right )^{\beta }, \end{equation}

and, therefore, for $\beta \gt 0$ , the normalised turbulent heat flux is a function of how much the slab-ETG drive (expressed through $\eta _e$ ) exceeds the (nonlinear) threshold $\eta _{e,\mathrm{crit}}$ . This is an essential characteristic that sets this model of turbulent transport apart from the models using a fixed $\eta _e$ (§ 6) or a power law for the relationship between $R/{L_{T_e}}$ and $R/{L_{n_e}}$ (§ 7). Those models amounted to assuming that the turbulence was marginal and, therefore, ‘pinned’ to a specific value of $\eta _{e,\mathrm{crit}}$ , constant across the pedestal or varying in a prescribed manner. Model (8.1) allows the profiles to reach beyond this marginal regime.

This type of modelling of turbulent transport is common in the context of ion-temperature-gradient mode (ITG) turbulence in core plasmas and has been reported to reproduce measurements correctly (e.g., Garbet et al. 2004; Mantica et al. 2009). In the case of ITG turbulence, the critical value of the ion-temperature gradient is usually expected to be larger than the linear stability threshold because the nonlinear saturation just above the linear threshold is in the ‘Dimits’ regime, in which strong, nonlinearly saturated zonal flows suppress heat transport (Dimits et al. 2000; Ivanov et al. 2022). A similar behaviour is sometimes found in simulations of ETG turbulence, where the long-term onset of zonal flows suppresses the heat transport caused by ETG (Colyer et al. 2017). Thus, it is conceivable (although, at this stage, far from certain) that $\eta _{e,\mathrm{crit}}$ is a nonlinear threshold.

Note also that in the limit of strong drive ( $\eta _e \gg {\eta _{e,\mathrm{crit}}}$ ), (8.1) with $\beta = 1$ leads to the scaling $Q / {Q_{e,\mathrm{gB}}} \propto (R/{L_{T_e}})^3$ , which is in accord with a simple scaling theory (Barnes, Parra & Schekochihin 2011; Adkins, Ivanov & Schekochihin 2023). ¹

Electron-temperature-gradient turbulence in the pedestal is subject to further complexity (see the review by Ren et al. 2024). The structure of toroidal-ETG modes along the field lines (Jenko et al. 2009; Parisi et al. 2020) leads to nonlinear coupling between ion-scale ( $k_y \rho _i \sim 1$ ) and electron-scale ( $k_y \rho _e \sim 1$ ) modes. This can lead to quenching of ETG turbulence under certain conditions (Parisi et al. 2022). Other studies of the effects of toroidal-ETG modes on pedestal turbulence suggest that the contribution of toroidal-ETG modes amplifies transport (Chapman-Oplopoiou et al. 2025; Krutkin et al. 2025).

The global study by Leppin et al. (2023) of pedestal transport over a radial interval wider than the steep-gradient region suggests that the modes that constitute the turbulence are different between the pedestal-top and the steep-gradient region. At the top, ion-scale trapped-electron modes dominate the transport, whereas in the steep-gradient region, they are suppressed as a result of high $\boldsymbol{E} \times \boldsymbol{B}$ shear (Hahm & Burrell 1995). Consistent with this, the study of a JET pedestal by Leppin et al. (2024) concluded that the steep-gradient region was dominated by transport through the electron channel, with a large ion-scale heat flux at the top of the pedestal.

In spite of the above, ETG-centric models are unlikely to be a complete description of the turbulence in the pedestal. It has been shown by Hatch et al. (2016, 2021) that MTMs are responsible for magnetic fluctuations that are measured in pedestals in JET-C and JET-ILW. Large transport through MTMs was also found in the multi-machine study by Kotschenreuther et al. (2019), and these modes were recovered as non-negligible contributors to the turbulent heat flux in cases dominated by ETG (Chapman-Oplopoiou et al. 2022). Electromagnetic effects were also found to be important for the saturation of pedestal turbulence in the comparison carried out by Dicorato et al. (2024). Still, they found that turbulent transport had a much higher contribution from ETG modes for the type-I ELMy pedestal when compared with the small-ELM pedestals.

Aside from electron-scale turbulent transport, ion-scale effects can be relevant transport contributors through ion-scale turbulence and ion neoclassical transport (Trinczek et al. 2023). Predebon et al. (2023) found, in a study of the isotope effect, the electron-scale heat transport to be smaller than the ion neoclassical heat flux and the ion-scale turbulent heat flux close to the SOL, although the comparison was reversed close to the pedestal top. Furthermore, earlier work by Hatch et al. (2019) showed that, for a discharge in JET-C and one in JET-ILW, ion-scale and ion neoclassical transport could be larger than that originating from ETG turbulence.

In yet another body of work, the pedestal is considered to be limited by the instability of the kinetic ballooning mode (KBM; see Tang, Connor & Hastie 1980; Snyder 1999; Snyder & Hammett 2001; Pueschel, Kammerer & Jenko 2008; Waltz 2010). This mode is a source of high particle transport and effectively acts as a stiff transport threshold that limits the pressure gradient of the pedestal. This threshold is used in predictive models such as EPED (Snyder et al. 2009; Saarelma et al. 2019), and pedestals in various devices were consistently found by, e.g., Kotschenreuther et al. (2019) to be marginally stable to KBMs, with other forms of instabilities causing transport, such as MTMs.

Keeping in mind the foregoing discussion and acknowledging the potentially diverse nature of pedestal transport, we will make the simplifying assumption that the heat transport in the steep-gradient region is dominated by electron-scale turbulence. It is arguably not entirely unreasonable to claim that the ETG-centric model (8.1) can crudely represent pedestal turbulence, but we also extend our considerations to other heat-flux models that have been obtained by analysing a large dataset of gyrokinetic simulations by Hatch et al. (2022). Their table 1 contains several symbolic-regression fits to the heat transport in those simulations. These relationships are explicitly stated (see D2 and D3) and tested in Appendix D.1. Optimised versions of these relationships, including (8.1), will also be used in our analysis below in the forms of (8.12) and (8.13).

Further extrapolations obtained from simulation datasets are those found by Farcaş et al. (2024),

(8.4) \begin{equation} \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}} } \propto \sqrt \frac {m_e}{m_i} \left (\frac {R}{{L_{T_e}}}\right ) ^{1.40} \left (\eta _e - 1\right )^{0.79} q^{-0.51} \beta _e^{-0.87} \lambda _D^{-0.51}, \end{equation}

and by Hatch et al. (2024),

(8.5) \begin{equation} \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}} } \propto \sqrt \frac {m_e}{m_i} \left ({\frac {\mathrm{d}\ln T_e}{\mathrm{d}\psi }}\right ) ^{2} \left (\eta _e - 1\right ) \eta _e ^{1.57} \tau _e ^ {-0.5} \lambda _D^{-0.4}. \end{equation}

Here $\lambda _D$ is the electron Debye length normalised with respect to the electron gyroradius $\rho _e$ in Farcaş et al. (2024) and to the ion sound radius $\rho _s = \sqrt {m_i T_e }/eB$ in Hatch et al. (2024). These are relationships where the properties of the magnetic field appear via the safety factor $q$ , the electron beta $\beta _e$ , and the normalised temperature gradient with respect to the poloidal flux, $1/\tilde {L}_{T_e} \equiv {\mathrm{d}\ln T_e/\mathrm{d}\psi }$ . Because we do not have a good magnetic-equilibrium reconstruction for our pedestals, we omit these models from our study.

8.2. Assumptions for the turbulent heat flux

The nonlinear dynamics of ETG turbulence provide a pathway to connect the separatrix loss power $ {P_{\mathrm{Sep}}}$ with pedestal profiles. Using the scalings derived from gyrokinetic simulations, $T_e$ -pedestal profiles will be reconstructed in § 8.3 by assuming that the heat flux is dominated by the electron-channel turbulent transport, $Q(R) = {Q_{e,\mathrm{Turb}}}$ , and that $Q$ matches the experimentally determined separatrix loss power $ {P_{\mathrm{Sep}}}$ , i.e.,

(8.6) \begin{equation} Q({R^{\mathrm{Sep}}}) = \frac { {P_{\mathrm{Sep}}} }{ S_{\mathrm{Sep} }} , \end{equation}

where $S_{\mathrm{Sep}} \approx 135\, \mathrm{m}^2$ is the surface area of the separatrix. Further to this, we argue that, given the small width of the pedestal $w_{\mathrm{Ped}} = \mathcal{O}(\mathrm{cm})$ compared with the device length scales $R$ or $a = \mathcal{O}(\mathrm{m})$ , the variation in the area of the flux surface as a function of $R$ is negligible. We also assume that the plasma profiles are in steady state (see § 2 and Frassinetti et al. 2020), so the rate of change of the thermal energy over the small extent of the pedestal is small. Therefore, we approximate the turbulent heat flux as constant over the pedestal:

(8.7) \begin{equation} {Q_{e,\mathrm{Turb}}}(R) \approx \frac { {P_{\mathrm{Sep}}} }{ S_{\mathrm{Sep} }} . \end{equation}

To calculate the gyro-Bohm normalisation $ {Q_{e,\mathrm{gB}}}$ of the turbulent heat flux (see 8.2), we use a locally approximated value of the magnetic field, i.e.,

(8.8) \begin{equation} B(R) = \sqrt {B_\theta (R)^2 + B_\phi (R)^2} \approx B_{\mathrm{Vac}} \frac {R_0}{R} \sqrt {1 - \frac {1}{q_{95}^2}} \approx 0.66 B_{\mathrm{Vac}}, \end{equation}

where $B_\theta$ and $B_\phi$ are, respectively, the poloidal and toroidal components of the magnetic field, $B_{\mathrm{Vac}}$ is the vacuum magnetic field on the axis of JET-ILW (shown as $B$ in figure 2 and table 2), $q_{95}$ is the safety factor evaluated at $\psi _N = 0.95$ , and $R_0 = 0.92 \; \mathrm{m}$ is the radius of the axis of JET-ILW. This should remain a good approximation over the extent of the pedestal, irrespective of the divergence of the safety factor at the separatrix, $q \rightarrow \infty$ as $R \rightarrow {R^{\mathrm{Sep}}}$ . This approximation also agrees well with what one would obtain by using $ {I_{\mathrm{Plasma}}}$ and Ampere’s law to estimate $B_\theta (R)^2$ . These approximations fall short of the precision of the magnetic field calculated via the MHD equilibrium, but they are good enough for the purpose of gyro-Bohm normalisation.

Because of the approximations that we use, uncertainties remain as to the exact contribution of additional transport mechanisms such as neoclassical transport (Guttenfelder et al. 2021; Trinczek et al. 2023) and ELM-induced losses (Field et al. 2020). Order-unity errors of the heat flux do not significantly affect the reconstruction of pedestals because of the ‘stiffness’ of pedestal transport described in § 8.1. This property means that small changes in $R/{L_{T_e}}$ in the models introduced below, (8.9)–(8.13), can lead to large changes in heat flux. Conversely, a large inaccuracy in the heat flux results in a comparatively small change in $R/{L_{T_e}}$ , meaning that pedestal reconstructions are robust. This is illustrated in figure 25 (Appendix D.3), where an order-unity change in $ {Q_{e,\mathrm{Turb}}} / {Q_{e,\mathrm{gB}}}$ (represented in figure 25 d by a change in $A$ ) has only a small effect on $R/{L_{T_e}}$ and the reconstructed $T_e$ profile.

8.3. Electron-temperature reconstruction using heat-flux models

Using the methods outlined in Appendix C, we optimise the free parameters in (8.1) and the general forms of the heat-flux models from Hatch et al. (2022) given in (D2) and (D3). With these, we then reconstruct the $T_e$ profiles.

Figure 19. Database predictions obtained by inverting heat-flux models for $R/{L_{T_e}}$ and integrating inwards from the separatrix. The models use best-fit parameters over the pedestal region (a–p) (models (8.9)--(8.12)) and over the steep-gradient region (q–t) (model (8.13)). The colour bar represents the separatrix loss power $ {P_{\mathrm{Sep}}}$ . The plots follow the same layout as in figure 4.

Figure 19 shows the mtanh parameters that describe such reconstructions using models optimised over the pedestal region $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}},1]$ (figure 19 a–p) and the steep-gradient region $\psi _N \in [{\psi _{{n_e,}\mathrm{Top}}},1]$ (figure 19 q–t). The exact models that we used correspond to the panels of figure 19 as follows:

1. (a-d) model (8.1) with fixed $\beta =1$ and ${\eta _{e,\mathrm{crit}}}=1.4$ , and the value of $A=0.95$ optimised over the pedestal region $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}},1]$ ; this corresponds to entry 8 in table 3:

   (8.9) \begin{equation} \mathrm{Model \; 1}: \;\; \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}}} = 0.95 \left (\frac {R}{{L_{T_e}}}\right ) ^ 2 \left ( \eta _e - 1.4 \right ) ; \end{equation}

2. (e-h) model (8.1) with fixed $\beta =1$ and the values of ‘ $\eta _{e,\mathrm{crit}}$ ’ $=-0.55$ and $A=0.29$ optimised over the pedestal region $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}},1]$ ; this corresponds to entry 17 in table 3:

   (8.10) \begin{equation} \mathrm{Model \; 2}: \;\; \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}}} = 0.29 \left (\frac {R}{{L_{T_e}}}\right ) ^ 2 \left ( \eta _e + 0.55 \right ) ; \end{equation}

3. (i-l) model (8.1) with the values of ‘ $\eta _{e,\mathrm{crit}}$ ’ $=-8.6$ , $\beta =3.75$ , and $A=10^{-3}$ optimised over the pedestal region $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}},1]$ ; this corresponds to entry 14 in table 3:

   (8.11) \begin{equation} \mathrm{Model \; 3}: \;\; \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}}} = 10^{-3} \left (\frac {R}{{L_{T_e}}}\right ) ^ 2 \left ( \eta _e + 8.6 \right ) ^ {3.75} ; \end{equation}

4. (m-p) model (D2) from Hatch et al. (2022) with the values of the numerical constants optimised over the pedestal region $\psi _N \in [{\psi _{{T_e,}\mathrm{Top}}},1]$ ; this corresponds to entry 22 in table 3:

   (8.12) \begin{equation} \mathrm{Model \; 4}: \;\; \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}}} = 9.64 \frac {R}{{L_{T_e}}} \left ( \eta _e ^ {2.92} + 16.02 \right ) ; \end{equation}

5. (q-t) model (D3) from Hatch et al. (2022) with the values of the numerical constants optimised over the steep-gradient region $\psi _N \in [{\psi _{{n_e,}\mathrm{Top}}},1]$ ; this corresponds to entry 30 in table 3:

   (8.13) \begin{equation} \mathrm{Model \; 5}: \;\; \frac { {Q_{e,\mathrm{Turb}}}}{ {Q_{e,\mathrm{gB}}}} = 0.01 \frac {R}{{L_{T_e}}} \left ( \eta _e + 8.86 \right ) ^{4.77} . \end{equation}

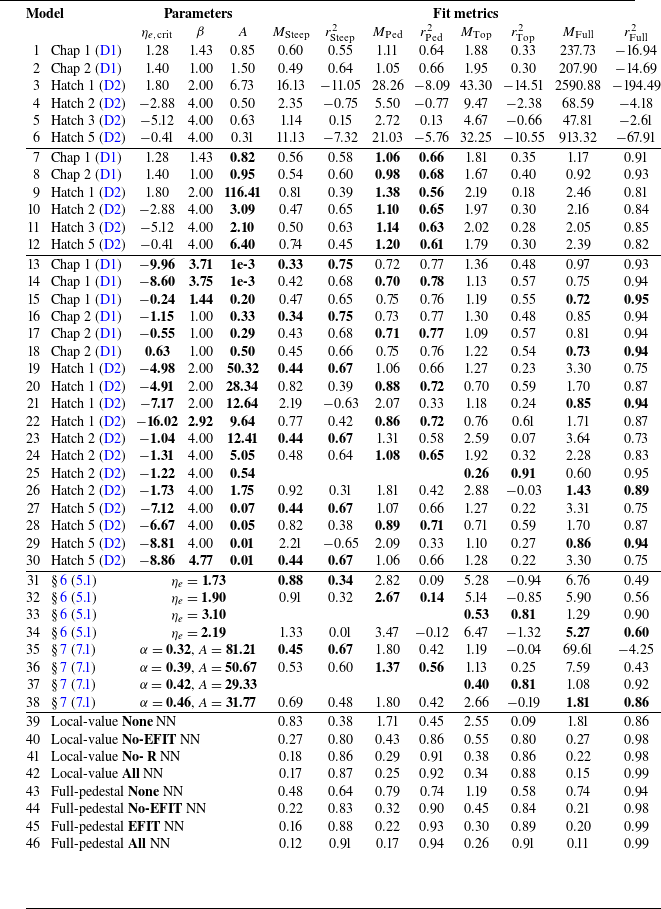

A more comprehensive list of accuracy metrics for various heat-flux models is given in table 3 of Appendix D. There, we present the performance of the exact models from Chapman-Oplopoiou et al. (2022) and Hatch et al. (2022): those given by (8.9)--(8.13) and their variations that minimise the mean-squared difference between the reconstructed and the fit $T_e$ profiles. We also compare them with the results of §§ 4, 6, and 7.

We note that the optimised prefactor $A = 0.95$ of (8.1) over the steep-gradient region is in good agreement with the value of $A = 0.85$ proposed by Chapman-Oplopoiou et al. (2022).

Model (8.9) maintains the physical intuition of ETG-based turbulent transport outlined in § 8.1 and manages to capture the shapes of pedestals much better than the simplistic models of §§ 6 and 7. Model (8.10) is a further improvement to all metrics of pedestal shape, although the optimisation of $\eta _{e,\mathrm{crit}}$ yields a negative value over the ranges of the pedestal or steep-gradient region (see entries 12, 14, 16, and 17 in table 3). The improvement in reconstruction accuracy by setting this value to be negative casts doubt on the idea of a turbulent threshold $\eta _{e,\mathrm{crit}}$ . Models (8.9) and (8.10) share two systematic limitations: $R/{L_{T_e}}$ is over-predicted close to the separatrix and the reconstructed $\psi _{{T_e,}\mathrm{Top}}$ tracks the experimental $\psi _{{n_e,}\mathrm{Top}}$ . The inaccuracy in $R/{L_{T_e}}$ comes as a result of the following process, illustrated in figure 20: the large value of $ {Q_{e,\mathrm{Turb}}} / {Q_{e,\mathrm{gB}}}$ near the separatrix yields a large $R/{L_{T_e}}$ (panel d), and this then quickly increases the value of the $T_e$ profile as the integration goes on, reducing the value of $ {Q_{e,\mathrm{Turb}}} / {Q_{e,\mathrm{gB}}}$ faster than the experimental profile suggests (panel c). This means that in the steep-gradient region of the $T_e$ pedestal, the temperature gradient is always over-predicted, with an over-estimated $R/{L_{T_e}}$ at the separatrix. Furthermore, the increase of $n_e$ away from the separatrix increases $ {Q_{e,\mathrm{gB}}}$ , which reduces $ {Q_{e,\mathrm{Turb}}} / {Q_{e,\mathrm{gB}}}$ . This produces the shape of the $T_e$ pedestal, by switching to low values of $R/{L_{T_e}}$ away from the separatrix, and, in the process, causing $\psi _{{T_e,}\mathrm{Top}}$ to match $\psi _{{n_e,}\mathrm{Top}}$ (see figure 19 d,h,l and 20 a).

Figure 20. Pulse $\#90339$ $\texttt {fit}$ profiles compared with predictions using heat-flux models 1 (8.9) and 2 (8.10). The layout is the same as in figure 1. The $\;\texttt {fit}$ profiles are shown as solid lines, with the predictions using the heat-flux models shown as dashed (model 8.11), and dotted (model 8.9) lines. The fit is done over the interval $[{\psi _{{T_e,}\mathrm{Top}}}$ , ${\psi _{\mathrm{Sep}}}]$ . The vertical lines and dots represent the landmarks of the $\texttt {fit}$ profiles (see § 2.4 and figure 1), while the crosses represent the pedestal top of the $T_e$ predictions.

Seeking optimal values of the exponent $\beta$ in (8.1) yields large exponents for the term containing the gradient ratio $\eta _e$ (entries 13 and 14 in table 3). In spite of this, the parameter scan shown in figure 25 (Appendix D.3) suggests that reconstructions using (8.1) are not very sensitive to the exponent $\beta$ , and that the corresponding reduction of the predicted values of $R/{L_{T_e}}$ are compensated by the decrease in the prefactor $A$ to $10^{-3}$ (effectively increasing the turbulent heat flux). This insensitivity of the qualitative shape of predictions to the exponent $\beta$ is also present for models (8.12) and (8.13).

The predictions using models (8.12) and (8.13) (derived from Hatch et al. 2022) give improved $r^2$ values of the predictions of $T_{e}({\psi _{{n_e,}\mathrm{Top}}})$ and $T_{e}^{\mathrm{Ped}}$ (see figure 19 m,n,q,r) when compared with those obtained from model (8.9). However, the shape of pedestals suggests that there is little variation in $w_{{T_e,}\mathrm{Ped}}$ and $\psi _{{T_e,}\mathrm{Top}}$ (see figure 19 o,p,s,t), and that the reconstructed pedestals are very thin and pushed towards the separatrix. This signals the importance of a larger exponent of the temperature gradient in such models (such as $R^2/L_{T_e}^2$ in 8.1), since the use of $({R/{L_{T_e}}})^1$ in (8.12) and (8.13) (corresponding to models (D2) and (D3) further discussed in Appendix D) demands a large value of the temperature gradient in order to balance the magnitude of $ {Q_{e,\mathrm{gB}}} / {Q_{e,\mathrm{Turb}}}$ near the separatrix. This temperature gradient produces outwards shifted $T_e$ pedestals, as illustrated in figure 21. The sheer magnitude of $R/{L_{T_e}}$ near the separatrix also means that there is little sensitivity of the mtanh parameters to the $n_e$ profile for models (8.12) and (8.13).

Figure 21. Same as figure 20, but for predictions using heat-flux models 3 (8.11), 4 (8.12), and 5 (8.13). The $\;\texttt {fit}$ profiles are shown as solid lines, while the predictions using different heat-flux models are shown as dashed (model (8.10)), dotted (model (8.12)), and dash-dotted (model (8.13)) lines. The fit is done over the intervals $[{\psi _{{T_e,}\mathrm{Top}}}$ , ${\psi _{\mathrm{Sep}}}]$ for models (8.11) and (8.12), and $[{\psi _{{n_e,}\mathrm{Top}}}$ , ${\psi _{\mathrm{Sep}}}]$ for model (8.13).

Another important common characteristic of our fit parameters is the embarrassing tendency of $\eta _{e,\mathrm{crit}}$ to become negative. This is manifest in (8.10)--(8.13) and in the majority of optimisations in table 3, and we discuss this at length in Appendix D. While the sign of $\eta _{e,\mathrm{crit}}$ does not have a dramatic effect on the reconstructed $T_e$ profiles (see figures 19 a–h and 20), we interpret this result as an indication that either the forms of the models for $ {Q_{e,\mathrm{Turb}}}$ are inaccurate for the data, or that the physical argument for $ {Q_{e,\mathrm{Turb}}} \propto \eta _e - {\eta _{e,\mathrm{crit}}}$ for some physical threshold $\eta _{e,\mathrm{crit}}$ is not supported by the data.

8.4. Discussion of heat-flux model results

In this section, we have obtained proof that the models of Guttenfelder et al. (2021), Chapman-Oplopoiou et al. (2022), and Hatch et al. (2022) perform well in reproducing the $\texttt {mtanh}$ parameters of pedestals (figure 19), alongside matching the experimental profile well over the regions with steep gradients (table 3) when compared with our simple database-wide models from §§ 6 and 7.

A thorough analysis of these gyrokinetics-inspired turbulent transport models has confirmed the necessity of $R/{L_{T_e}}$ appearing with an exponent larger than unity in the expression for $ {Q_{e,\mathrm{Turb}}}/ {Q_{e,\mathrm{gB}}}$ , as also recognised by models (8.4) and (8.5). We have also found a unanimously negative sign of the constant $\eta _{e,\mathrm{crit}}$ , however, this physically dubious feature is not demanded strongly by the predictions: forcing $\eta _{e,\mathrm{crit}}$ to be positive does not severely impact prediction performance.

We note that all of our pedestal reconstructions using optimised heat-flux models generally produce similar $\texttt {mtanh}$ parameters. The minimisation of the sum of squared discrepancies between prediction and experiment also yields comparable reconstruction accuracy between fits done across the same range of the pedestal (entries 7–30 in table 3). These two outcomes mean that a significant part of our assessment of which transport models are best comes from the qualitative shape of the profiles such as those in figures 20 and 21 (as we discuss at the end of § 8.3).

Overall, the inclusion of the turbulent heat flux into our pedestal-reconstruction methods addresses to a noticeable degree the shortcomings of the ‘marginal’ models that used database-wide parameters in §§ 6 and 7. This said, the fact that the reconstructed $T_e$ pedestals inherit the shape of the $n_e$ pedestals is a sign that such models require more complexity in order to capture the density-top region correctly, and hence, the shift between the $T_e$ and $n_e$ pedestals (Frassinetti et al. 2020). This is also supported by the significantly better performance of our neural-network models in § 4.2, which successfully learned this difference in turbulent particle and energy transport.

It is also worth noting that the absence in the database of the exact profiles of the magnetic field, e.g., $q(R), \; B(R), \; \hat s (R)$ , limits the range of models that can be tested without including the results of numerical magnetic-field reconstruction.

9. Summary and conclusions

In this paper, we have analysed the JET-ILW pedestal database (Frassinetti et al. 2020) and reconstructed pedestal temperature profiles using density profiles and other engineering parameters.

In § 2, we described the pedestal profiles used in this study and defined the pedestal parameters via $\texttt {mtanh}$ fits. We showed the distributions and correlations of database parameters in § 3 and Appendix A. This overview helped frame § 4, which navigated this parameter space using ML methods. Our objective was to use neural networks to predict $T_e$ profiles. Different parameter sets were tested and, in § 4.1, we found that using the full $n_e$ profiles yielded excellent results for reconstructing $T_e$ pedestals, in particular when all of the available information was included. This was shown both in terms of $\texttt {mtanh}$ metrics such as pedestal height and location (figure 4), and in terms of the mean-squared difference between prediction and experiment over the steep-gradient region (table 3). In § 4.2, local predictions of the $T_e$ profile showed good results for the pedestal heights, although there were inaccuracies in predicting the pedestal width and location (figure 6).

The ability to reconstruct pedestals with excellent quality using neural networks suggests that predicting $T_e$ pedestals using $n_e$ profiles and other database parameters is a well-posed problem, both because of the underlying physics being governed by reproducible phenomena, and because the dataset is statistically robust. The success of local predictions indicates that this task can be achieved using models that take into account the local amplitudes and gradients of the pedestal. This said, we have observed that the inclusion of the radial location $R$ of the local prediction resulted in improved performance. This could be explained by the fact that, during training, the networks developed a general model of the large-scale structure of pedestals, and the inclusion of the radial location indirectly gave an indication of global physics, improving the prediction. In § 4.3, we explicitly identified the most important parameters for accurate $T_e$ prediction in the global and local cases: the separatrix loss power $ {P_{\mathrm{Sep}}}$ , the plasma current $ {I_{\mathrm{Plasma}}}$ , the fuelling rate $\varGamma _{D}$ and the strike-point configuration.

In § 5, we discussed the importance of the normalised temperature and density gradients $R/{L_{T_e}}$ and $R/{L_{n_e}}$ in the context of known linear ETG mode stability thresholds (figure 9). We found that all steep-gradient region pedestals were in an order-unity-supercritical regime, which suggested that the gradient ratio $\eta _e$ was an important parameter. In § 6, our analysis of $\eta _e$ showed that it is not a good descriptor of the $T_e$ and $n_e$ inside of the density-top location because the values of $\eta _e$ range over several orders of magnitude. We found that $\eta _e \approx 2$ across the steep-gradient region (figure 11), confirming across a large database the previous experimental observations of values of $\eta _e$ in the pedestal. This result could be interpreted as pointing to the existence of a nonlinear threshold $\eta _{e,\mathrm{crit}}$ in pedestals, or as an indication that the turbulence saturates in an order-unity-supercritical regime to match the transport necessary to maintain a steady state.

Next, we assumed a simple prescription for the relationship between the pedestal gradients $R/{L_{T_e}}$ and $R/{L_{n_e}}$ : a constant $\eta _e$ across the pedestal. This was empirically motivated by the clustering of $\eta _e$ around $2$ in the steep-gradient region, and is equivalent to assuming that turbulence is marginal, close to an (in general, nonlinearly) established threshold. Reconstructing $T_e$ pedestals using a given $\eta _e$ value gave reasonable but not very accurate pedestal predictions (figure 12). Using an optimisation algorithm to find a nominal value of $\eta _e$ across the database yielded values between $1.9$ and $2.1$ . Pulse-by-pulse fits of $\eta _e$ performed much better at reproducing the pedestal region (figure 12 a–d), although $T_e$ pedestals where shifted outwards towards the separatrix, in line with the $n_e$ pedestals. The pulse-by-pulse optimisation yielded a distribution of fit values of $\eta _e$ that matched the experimental $\eta _e$ in the middle of the steep-gradient region (figure 13), suggesting that the value of $\eta _e$ is a reliable indicator of the transport processes in the pedestal.

The results shown in figure 10 hinted at a power-law relationship between $R/{L_{T_e}}$ and $R/{L_{n_e}}$ of the form ${R/{L_{T_e}}} = A({R/{L_{n_e}}})^\alpha$ , a possibility that was explored further in § 7. There, we examined the distribution of the exponent $\alpha$ of such a hypothetical power-law relationship between the temperature and density gradients. While this lacked physical grounding, it was a simple model for our data. In § 7.2 we found that the best database-wide value of the exponent was $\alpha \approx 0.4$ for the pedestal region (figure 16 e–h). Fitting $\alpha$ and $A$ independently for each pulse gave excellent agreement over the steep-gradient region (figure 16 a). The resulting pairs of $A$ and $\alpha$ all turned out to lie on the similarity line $\ln A = 5.64 - 4.42 \alpha$ (figure 18), giving the relationship (7.3) to describe all pedestals of our JET-ILW subset of the database. Remarkably, a large set of JET-C pulses also obeyed a similar linear relationship between the gradients. This was one of the clearest modelling insights that we obtained in this study, even though we could not find a relationship between the pedestal wide $\alpha$ and other database parameters. Constructing a model for $\alpha$ would complete the predictive model of the steep-gradient region, but the lack of physical intuition for such a power-law relationship makes this task difficult.

Finally, in § 8, we explored the role of the separatrix loss power $ {P_{\mathrm{Sep}}}$ in relating temperature and density gradients. We focused our analysis on transport models inspired by gyrokinetic simulations (Guttenfelder et al. 2021; Chapman-Oplopoiou et al. 2022; Hatch et al. 2022). In § 8.3 and Appendix D, we computed the best-fit parameters for these models and discussed the quality of the resulting $T_e$ -profile reconstructions.

The models of the form (8.1) (Guttenfelder et al. 2021; Chapman-Oplopoiou et al. 2022) produced good reconstructions of the $T_e$ profile without major adjustments. Such models have a theoretical root in slab-ETG-driven turbulent transport, as described in § 8.2. Reconstructions of pedestal profiles using parameters optimised for these models and those found by Hatch et al. (2022) provided excellent values for the $T_e$ -profile values at the top of the $n_e$ and $T_e$ pedestals as a result of our optimisation process, although the pedestal shapes were subject to systematic inaccuracies (figure 19). The temperature gradients were wildly over-estimated near the separatrix when the formulae used for the heat flux included a prefactor of $({R/{L_{T_e}}})^1$ (figure 21), whereas models with $({R/{L_{T_e}}})^2$ resulted in much better reconstructions (figure 20). This is a confirmation that the locally relevant length scale $L_{T_e}$ must be used for the gyro-Bohm estimate of the heat flux $ {Q_{e,\mathrm{gB}}}$ . Optimising for the critical value of the gradient ratio $\eta _{e,\mathrm{crit}}$ almost always resulted in negative values (table 3), undermining the physical picture that we described in § 8.2. We interpret this as a sign that the models that we analysed are missing key elements of the underlying physics of the pedestal.

In spite of the shortcomings of our heat-flux models, the results of § 8 confirm that we have successfully accounted for the separatrix loss power in order to find the electron-temperature gradients. These results were a major improvement over the predictions that used database-wide fitting parameters in §§ 6 and 7. However, the much better quality of the local-neural-network reconstructions of § 4.2 suggests that the upper bound of prediction accuracy has not yet been reached by the ‘physics-based’ models. It appears that, in order to obtain a more accurate model of pedestal transport, a clearer theoretical understanding of the underlying gyrokinetic turbulence is required, and, also, more clarity regarding whether the pedestal-shape parameters, such as the width and position of the pedestal, are determined by local turbulence or by device-scale physics. Extending our investigation to other devices could give the key for creating a simple generalised model for pedestal transport.

Our analysis aims to reconstruct the pedestal profiles of electron temperature in the JET-ILW pedestal database. While a complete local-transport model would predict the height, width, and position of a pedestal – essential parameters for tasks such as core-edge integrated modelling – such a model would also describe the structure of the plasma on scales smaller than the pedestal width. Because of this focus on the small scales and transport models, this is a different approach from that of existing pedestal models based on MHD stability such as EPED (Snyder et al. 2009). In fact, local-transport models could perhaps remedy the occasional inaccuracy of EPED predictions. Finally, an ELM-free and transport-limited pedestal (Parisi et al. 2025) would be governed by self-consistent transport prescriptions such as those we have tested in this study.
