The influence of free-stream turbulence on the fluctuating loads experienced by a cylinder exposed to a turbulent cross-flow

Published online by Cambridge University Press:  19 May 2025

Francisco J. G. de Oliveira*
Affiliation:
Department of Aeronautics, Imperial College London, London, UK
Zahra Sharif Khodaei
Affiliation:
Department of Aeronautics, Imperial College London, London, UK
Oliver R.H. Buxton
Affiliation:
Department of Aeronautics, Imperial College London, London, UK
*
Corresponding author: Francisco J.G. de Oliveira, f.oliveira22@imperial.ac.uk

Abstract

The impact of several ‘flavours’ of free-stream turbulence (FST) on the structural response of a cantilever cylinder, subjected to a turbulent cross-flow is investigated. At high enough Reynolds numbers, the cylinder generates a spectrally rich turbulent wake that contributes significantly to the experienced loads. The presence of FST introduces additional complexity through two primary mechanisms: directly, by imposing a fluctuating velocity field on the cylinder’s surface, and indirectly, by altering the vortex shedding dynamics, modifying the experienced loads. We employ concurrent temporally resolved particle image velocimetry and distributed strain measurements using Rayleigh backscattering fibre optic sensors to instrument the surrounding velocity field and the structural strain respectively. By using various turbulence-generating grids, and manipulating their distance to the cylinder, we assess a broad FST parameter space allowing us to explore individually the influence of the transverse integral length scale ($\mathcal{L}_{13}/D$) and turbulence intensity of the FST on the developing load dynamics. The FST enhances the magnitude of the loads acting on the cylinder. This results from a decreased vortex formation length, increased coherence of regular vortex shedding, and energy associated with this flow structure in the near wake. The cylinder’s structural response is driven mainly by the vortex shedding dynamics, and its modification induced by the presence of FST, i.e. the indirect effect outweighs the direct effect. From the explored FST parameter space, turbulence intensity was seen to be the main driver of enhanced loading conditions, presenting a positive correlation with the fluctuating loads magnitude at the root.

Information

Type
JFM Papers
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2025. Published by Cambridge University Press

1. Introduction

Free-stream turbulence (FST) plays a pivotal role in a broad range of engineering applications, influencing the lifetime and performance of structures in several situations. Fuel elements in nuclear reactors (Wang, Wong & Zhou Reference Wang, Wong and Zhou2019), wind turbines in wind farms (Chamorro & Porté-Agel Reference Chamorro and Porté-Agel2011; Stevens & Meneveau Reference Stevens and Meneveau2017) and buildings in cities (Nakayama, Takemi & Nagai Reference Nakayama, Takemi and Nagai2011) are often designed to accommodate the effects of FST. The widespread presence of FST in natural flows also influences how trees grow in forests, and is relevant to predicting forest damage induced by climate change and the modification of wind conditions (Sellier, Brunet & Fourcaud Reference Sellier, Brunet and Fourcaud2008). The structures listed above share a common feature: they act as bluff bodies. When structures are exposed to a cross-flow, an unsteady flow is generated, exposing them to the phenomenology of the developing flow. The study of the flow around bluff bodies holds paramount significance in fluid mechanics, spanning several decades.

The cross-flow over a circular cylinder, a quintessential bluff body, has been a focal point of intensive research spanning numerous works due to its duality in the simplicity and complexity of the occurring flow phenomena. Pioneering contributions by Roshko (Reference Roshko1954) and Gerrard (Reference Gerrard1965) elucidated the fundamental aspects of vortex formation, wake characteristics and flow-generated loads on this body. The comprehensive reviews of Bearman & Morel (Reference Bearman and Morel1983) and Williamson (Reference Williamson1996) further distil this knowledge. The Reynolds number plays a pivotal role in the development of the flow conditions. After a specific regime, the interplay between a cylinder’s free shear layers gives rise to regular vortex shedding. This phenomenon ends up dominating the loading events experienced by the cylinder exposed to the cross-flow. Regular vortex shedding engenders a mean drag force and a temporal oscillation of lift and drag, generated by the oscillating pressure field developing around the cylinder.

A general case of the flow around a circular cylinder is the flow around finite cylinders (Okamoto & Yagita Reference Okamoto and Yagita1973; Farivar Reference Farivar1981; Uematsu, Yamada & Ishii Reference Uematsu, Yamada and Ishii1990; Fox & Adcroft Reference Fox and Adcroft1993; Fox & Apelt Reference Fox and Apelt1993a ,Reference Fox and Apelt b ; Porteous, Moreau & Doolan Reference Porteous, Moreau and Doolan2014; Crane et al. Reference Crane, Popinhak, Martinuzzi and Morton2021; Essel, Tachie & Balachandar Reference Essel, Tachie and Balachandar2021). Besides the dependence on the Reynolds number ( $Re$ ), the flow is highly sensitive to the cylinder’s aspect ratio $L/D$ . The three-dimensionality of this flow is frequently met in several engineering applications, such as wind turbine masts or building wakes (Wang et al. Reference Wang, Liang, Huang, Song and Zou2018; Wang & Fan Reference Wang and Fan2019), where the three-dimensional (3-D) free-end effects generate a more complex shedding process than the classical two-dimensional (2-D) flow case (Crane et al. Reference Crane, Popinhak, Martinuzzi and Morton2021). Porteous et al. (Reference Porteous, Moreau and Doolan2014) provided a comprehensive review of several models to describe the wake topology of such flows, and Essel et al. (Reference Essel, Tachie and Balachandar2021) analysed how different aspect ratios influence the shedding from the cylinder. Furthermore, Fox & Apelt (Reference Fox and Apelt1993a ,Reference Fox and Apelt b ) and Fox & Adcroft (Reference Fox and Adcroft1993) explored the effects of different aspect ratios on the loads experienced by the cylinder, analysing the sensitivity of the flow to the aspect ratio. In addition, Okamoto & Yagita (Reference Okamoto and Yagita1973) verified that the introduced vorticity and entrainment near the wake by 3-D flow events acting on the wake relieve some low pressure in the wake, decreasing the drag of the cylinder when compared to an infinite cylinder. Overall, this generates an inhomogeneous shedding of the von Kármán street, where the energy and coherence of this flow structure grows towards the root, imposing obliqueness into the vortex shedding. Depending on the aspect ratio of the cylinder, the shedding process of the cylinder changes severely. In our experiment, the cylinder is set with aspect ratio $L/D \sim 10$ . In these conditions, two cellular shedding regions develop along the cylinder, with longitudinal streamwise vortices forming close to the free end of the cylinder. Away from these and closer to the root, the shedding process is characterised by regular vortex shedding (Porteous et al. Reference Porteous, Moreau and Doolan2014).

The presence of FST has been associated with a modification of the entrainment of momentum, energy and mass into the near and far wakes of a circular cylinder (Kankanwadi & Buxton Reference Kankanwadi and Buxton2020, Reference Kankanwadi and Buxton2023; Chen & Buxton Reference Chen and Buxton2023). The increase of the integral length scale ( $\mathcal{L}$ ) in the turbulent free-stream past a cylinder has been associated with promotion of large-scale engulfment in the near wake. Contrastingly, the increase of turbulence intensity ( $\textit{TI}$ ) in the free-stream has been associated with a reduced entrainment rate in the far wake of a cylinder (Kankanwadi & Buxton Reference Kankanwadi and Buxton2020), and with an increase of vibrations and forces experienced by bluff bodies (Bearman & Morel Reference Bearman and Morel1983; Wang et al. Reference Wang, Wong and Zhou2019). This is in line with the reported decrease of the recirculation region and extent of the vortex formation region, pulling low-pressure vortex cores closer to the cylinder (Norberg & Sunden Reference Norberg and Sunden1987; West & Apelt Reference West and Apelt1993). Furthermore, the presence of FST influences the development of the shear layers, modifying the position of the flow separation points over the surface of the cylinder (Bearman & Morel Reference Bearman and Morel1983; Zdravkovich Reference Zdravkovich1997), which in turn modifies the wake expansion and evolution when compared to cases where no FST is present. Maryami et al. (Reference Maryami, Aki, Azarpeyvand and Afshari2020) showed how FST influences the aerodynamic performance of a double fixed cylinder. Combining the usage of sets of turbulence-generating grids and pressure transducers over the cylinder’s spanwise extent, the authors reported an increased extent of spanwise correlation at the regular vortex shedding frequency with an increase of $\textit{TI}$ .

The FST has been associated with an increased vibration, and larger fluctuating loads on bluff bodies under cross-flows (Bearman & Morel Reference Bearman and Morel1983; Uematsu et al. Reference Uematsu, Yamada and Ishii1990; Wang et al. Reference Wang, Wong and Zhou2019; de Oliveira et al. Reference G. de Oliveira, Khodaei and Buxton2024; Ramesh, Morton & Yarusevych Reference Ramesh, Morton and Yarusevych2024). We may separate the impact of FST on the loads acting over a wake-generating body into two effects: a direct impact by introducing an increasingly energetic fluctuating velocity field into the free-stream, immediately impacting on the windward surface of the body; and an indirect impact, modifying the regular shedding process within the cylinder’s wake thereby impacting on the dynamic load experienced by it. The work of G. de Oliveira et al. (Reference G. de Oliveira, Khodaei and Buxton2024) analysed the response of a cantilevered cylinder exposed to FST, and in this work, the authors identified a stronger correlation of the structural dynamics to the modification of vortex shedding when compared to a case without the presence of FST, this flow structure being the most relevant to the structural response of the cylinder. Ramesh et al. (Reference Ramesh, Morton and Yarusevych2024) also reported an increased energy of regular vortex shedding with the introduction of moderate levels of FST. The influence of FST on bluff-body flows is often characterised by both $\textit{TI}$ and $\mathcal{L}$ , yet most studies have primarily focused on $\textit{TI}$ effects. However, turbulence length scales play a crucial role in governing flow separation, wake development and unsteady loading. Studies such as Bearman & Morel (Reference Bearman and Morel1983) and Kankanwadi & Buxton (Reference Kankanwadi and Buxton2023) demonstrated that vortex shedding is significantly altered when $\mathcal{L}/D \gt 1$ , leading to an enhanced energy content of the near-wake coherent vortex structures. Surry (Reference Surry1972) investigated the effects of high-intensity, large-scale FST on a circular cylinder at subcritical Reynolds numbers. The author reported that large-scale turbulence can mimic an increase in the effective Reynolds number, shifting separation points and altering vortex shedding. Norberg & Sunden (Reference Norberg and Sunden1987) observed that the vortex formation length is influenced by a combined effect of $\mathcal{L}/D$ and $\textit{TI}$ in the free-stream, with larger turbulence scales leading to a reduced vortex formation length, and consequently stronger fluctuating forces on the cylinder. Moreover, Maryami et al. (Reference Maryami, Aki, Azarpeyvand and Afshari2020) reported that increasing $\mathcal{L}/D$ and $\textit{TI}$ in the free-stream resulted in a longer spanwise correlation length at the vortex shedding frequency, along with higher energy levels and broader spectral peaks associated with this flow structure. Given the range of length scales present in natural and engineering flows, understanding their effect is critical when extrapolating results to real-world applications, such as atmospheric boundary layer interactions with buildings or wind turbines. We explore in depth the impact introduced by different FST ‘flavours’, isolating the impact of both $\mathcal{L}/D$ and $\textit{TI}$ , and the different dynamics imposed, which then correlate flow to the structural dynamics.

To measure flow-induced loads, load cells, strain gauges, microphones, pressure taps or pressure transducers are often employed. Load cells are usually connected to the bases of bodies, so are thus restricted to measuring the integrated effect of flow events occurring over the entirety of the body, and pressure taps and pressure transducers as used by Maryami et al. (Reference Maryami, Aki, Azarpeyvand and Afshari2020) allow the acquisition of spatially distributed information, at the expense of complicated and burdensome set-ups. To obtain the strain field of submerged structures (in water), strain gauges are deemed unusable unless using waterproof coatings, which end up affecting the aerodynamic profile of the body. Fibre optic sensors (Zhou et al. Reference Zhou, So, Jin, Xu and Chan1999; Jin et al. Reference Jin, Zhou, Chan and Xu2000; Xu & Sharif Khodaei Reference Xu and Sharif Khodaei2020; de Oliveira et al. Reference G. de Oliveira, Khodaei and Buxton2024) have the potential to overcome this problem. Their dimensions and small weight have been proven to have a negligible effect on the structural response, and developing flow field (Zhou et al. Reference Zhou, So, Jin, Xu and Chan1999). In the current experimental campaign, we employ novel fibre optic Rayleigh backscattering sensors (RBS) (Xu & Sharif Khodaei Reference Xu and Sharif Khodaei2020; de Oliveira et al. Reference G. de Oliveira, Khodaei and Buxton2024; Li & Sharif Khodaei Reference Li and Sharif-Khodaei2025) to obtain the structural response of a cantilevered cylinder to different free-stream and flow conditions, along the spanwise direction of the structure. Fibre optic sensors have been used previously to instrument flow-induced strain over submerged structures (Zhou et al. Reference Zhou, So, Jin, Xu and Chan1999, Reference Zhou, Wang, So, Xu and Jin2001; Jin et al. Reference Jin, Zhou, Chan and Xu2000; Wang et al. Reference Wang, Wong and Zhou2019; de la Torre et al. Reference de la Torre, Floris, Sales and Escaler2021). This type of sensor has shown its compatibility to accurately represent the bending displacement on a structure induced by a cross-flow, with and without the presence of FST, and within the neighbouring regions of other bluff bodies (Zhou et al. Reference Zhou, Wang, So, Xu and Jin2001). The RBS rely on an optical frequency-domain reflectometry (OFDR) system, which exploits the Rayleigh backscattering spectrum occurring in the single mode fibres generated by random modulation of the refractive index profile along the length of the fibre yielded by the local strain field, to instrument and capture details of the structural response of the analysed body. The modulation of the refractive index within different positions of the fibre changes according to the response of the structure to which the fibres are integrated, allowing the assessment of the structural behaviour of different bodies subjected to the different dynamic conditions (Xu & Sharif Khodaei Reference Xu and Sharif Khodaei2020; Li & Sharif Khodaei Reference Li and Sharif-Khodaei2025). These measurements can be correlated directly to local strain/stresses experienced by the structure. In addition, thanks to the high spatial resolution and large extent of the fibres, we are able to easily instrument $520$ sensing points with resolution $2.6$ mm using a single channel. This strain can then be directly correlated to the local loads acting on the structure.

The present investigation sheds light on how different FST conditions modify the developing flow around a cantilevered cylinder with aspect ratio $L/D \sim 10$ , and how these modifications impact on experienced loads. This is done by combining an RBS network and 2-D particle image velocimetry (PIV) simultaneously, allowing us to spatially and temporally resolve the strain and flow field surrounding the cylinder. This novel technique was developed in de Oliveira et al. (Reference G. de Oliveira, Khodaei and Buxton2024). By doing this, we are able to assess different flow conditions and their respective impact on the structural response of the cylinder. The 2-D PIV captures the flow in two transverse planes to analyse how FST affects the shedding events of the cylinder, and to analyse how the flow structures captured in these planes map to the structural response of the body. The influence of FST on the flow and structural response of the cylinder was analysed by exploring the $\textit{TI}$ and integral length scale $\mathcal{L}_{13}/D$ space upstream of the cylinder. Furthermore, the used fibre optic strain sensing network allows us to distinguish the strain experienced locally by the cylinder upstream and downstream of the position of the time-averaged shear layer separation, enabling us to differentiate the effects of the modification of the near wake (by the FST) from the direct impact of the FST on the cylinder.

To summarise, we aim to answer the following questions. (i) How do different flavours of FST influence the fluctuating loads experienced by a cylinder in a turbulent cross-flow? (ii) Which of the mechanisms generated by the presence of FST (direct and indirect) translates to larger load dynamics on the cylinder? (iii) How does FST impact the spatial and temporal coherence of the loads along the cylinder’s spanwise extent? (iv) What are the key flow-induced mechanisms that govern the structural response under different FST conditions?

Following this introduction, § 2 details the experimental apparatus and methodology used to obtain the current set of data. Major obtained results and conclusions are presented throughout §§ 36. Section 8 presents a summary of the outcome of this experimental campaign.

2. Experimental methodology

The experimental campaign was conducted in the hydrodynamics flume of the Department of Aeronautics at Imperial College London. A novel combination of concurrent measurements of RBS and PIV was employed. Readers are referred to de Oliveira et al. (Reference G. de Oliveira, Khodaei and Buxton2024) for more details on the used methodology. The water tunnel was kept at constant cross-section $58\times 60$ cm $^{2}$ during the experiments. The test specimen consisted of an acrylic cylinder with $D = 50$ mm diameter and $2.5$ mm wall thickness ( $l_t$ ). The cylinder was submerged with $95\, \%$ of its body underwater, representing wet length $\approx 500$ mm (see figure 1). During the submersion of the cylinder, the cylinder was also filled with water to eliminate buoyancy effects. The tip of the cylinder was kept at distance $80$ mm away from the bottom of the tunnel, allowing the development of tip vortices and their respective wake advection towards the fixing root of the cylinder. The distance to the bottom of the flume also allowed the bottom wall boundary layer to develop without interacting with the cylinder. The cylinder was fixed as a cantilever, restraining any rotation and movement at the root. The incoming velocity without the presence of the turbulence-generating grids was $U_{1a} = 0.46$ m s−1, setting the Reynolds number based on the cylinder’s diameter to $Re \approx 23\,000$ . Surface deformation is not expected to interact with the developing flow dynamics over the cylinder as the computed Froude number was kept to $Fr \approx U_1/\sqrt {g\times H} \approx 0.2$ (Cicolin et al. Reference Cicolin, Buxton, Assi and Bearman2021). Two PIV fields of view (FOVs) were captured for each of the tested FST conditions, with concurrent strain data. In each run, the flow was initiated by gradually increasing the speed of the flume until the desired flow velocity was achieved. Data acquisition was triggered once the flow had reached a stable state. The Strouhal number is henceforth defined as $St = f \times D/U_1$ , where $U_1$ corresponds to the incoming mean velocity under each experimental FST condition. This definition takes into account the dynamic modification introduced by an increase in the incoming mean velocity field, caused by the pressure drop introduced by the presence of the turbulence-generating grid, which yields a small decrement of the water depth. The experienced free-stream velocities for each of the tested cases are presented in table 2. The averaged experienced Reynolds number by the cylinder was $Re \approx 26\,000$ . The maximum free-stream velocity experienced by the cylinder was $U_{2a} = 0.6$ m s−1. The cylinder’s drag regime thus did not change throughout the test cases reported. The used Cartesian system is centred at the top of the cylinder, on the rear face of its fixing region (see figure 1), and the fluctuating velocity components obtained by applying a Reynolds decomposition to the flow velocity corresponding to $(x,y,z)$ will herein be referred to as $u_i$ , where $i \in \{1,2,3\}$ .

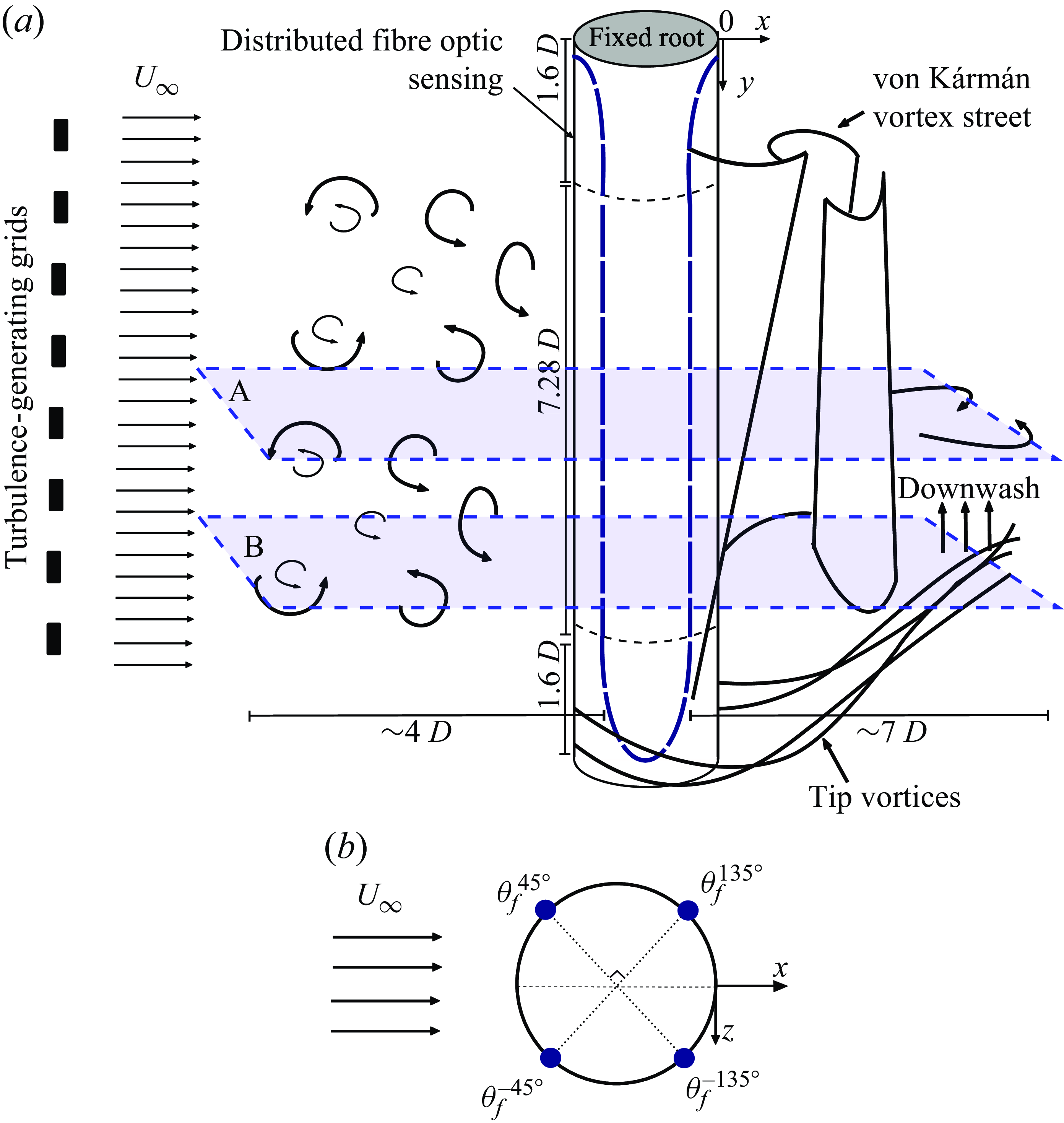

Figure 1. (a) Experimental schematic layout: fibre optic sensing path, fields of view captured, and representation of the main flow events over the cylinder. Both endings of the cylinder are flat-bottomed, and the top of the cylinder is mounted directly to the frame above the water tunnel. The Cartesian spatial coordinate system is represented in the figure, where $y$ corresponds to the spanwise direction of the cylinder, $x$ to the streamwise direction, and $z$ to the transverse direction of the flow. (b) Polar location, and respective nomenclature, for the fibre path.

Following Kankanwadi & Buxton (Reference Kankanwadi and Buxton2020, Reference Kankanwadi and Buxton2023) and Chen & Buxton (Reference Chen and Buxton2023), we change the FST conditions to which the cylinder is exposed by manipulating the $\textit{TI}$ ( $\textit{TI} = \sqrt {(u_1^{2}+u_3^{2})/2}/U_1$ ) and integral length scale ( $\mathcal{L}_{13}/D = \int _0^{r_i} R_{13}(r)\,\mathrm{d}r/D$ ) of the incoming flow. The cylinder was then exposed to different ‘flavours’ of FST, by exploring the FST parameter space $(\textit{TI}, \mathcal{L}_{13}/D)$ . In the previous definitions, $u_i$ corresponds to the velocity fluctuations, $R_{13}$ corresponds to the autocorrelation function between $u_{1}(x,z)$ and $u_{1}(x,z+r)$ , and $r_i$ corresponds to the first zero crossing position of the autocorrelation function. These statistics were computed $2D$ upstream of the cylinder. This ensures that the measured FST characteristics accurately represent the true flow conditions influencing the cylinder, while minimising direct interference from the cylinder itself.

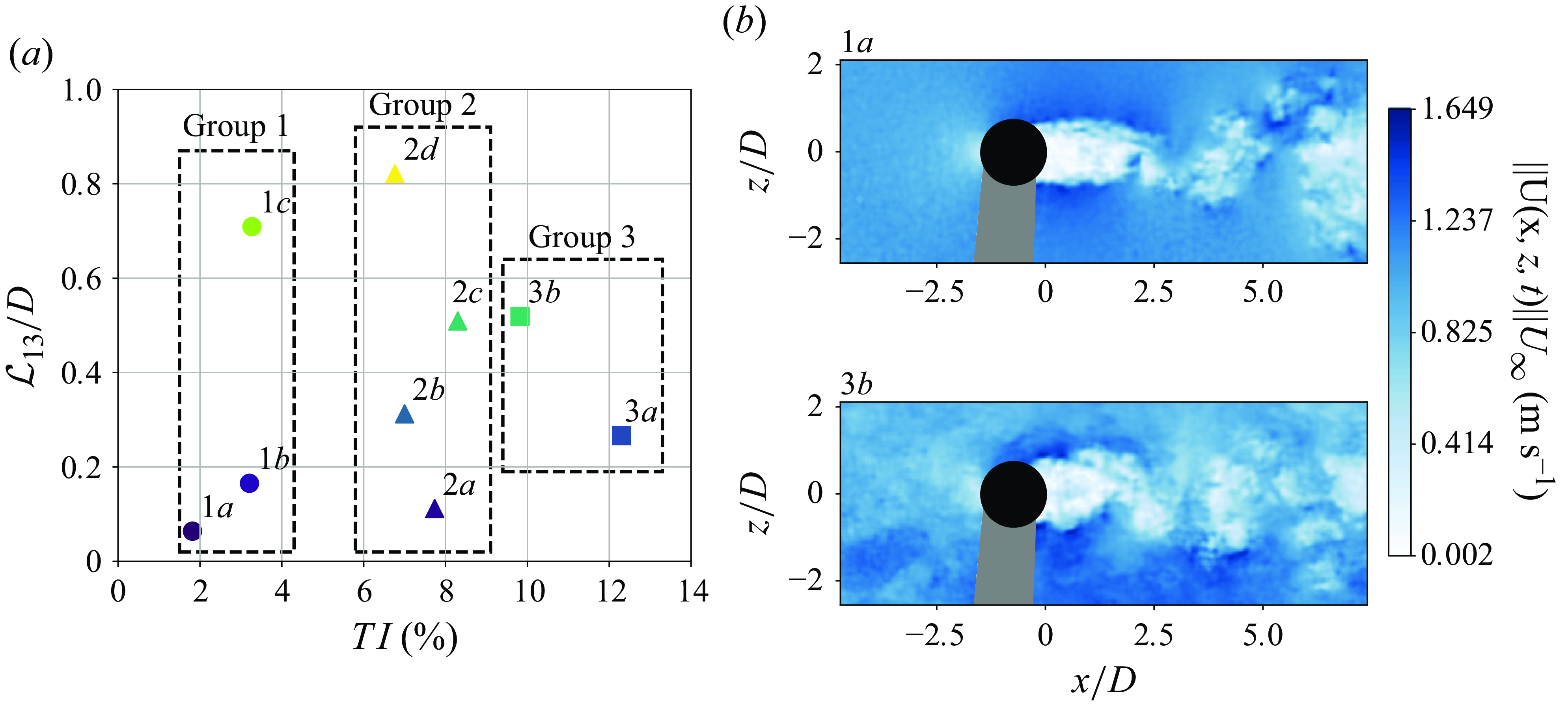

Figure 2. (a) The FST $(\mathcal{L}_{13}/D, \textit{TI}\, \%)$ parameter space tested. Groups are defined based on their $\textit{TI}$ , to explore within each group the effect of increasing $\mathcal{L}_{13}$ . (b) Velocity magnitude from PIV snapshots captured in FOV A for the FST conditions described by cases 1a, no FST, and 3b, high $\textit{TI}$ and $\mathcal{L}_{13}/D \approx 0.5$ . The black circle corresponds to the position of the cylinder during the experimental tests, and the grey region to the shadow originating from the positioning of the cylinder with respect to the laser sheet.

Figure 2(a) details the nine ‘flavours’ of FST considered, computed from the PIV snapshots from FOV A. Details of the turbulence-generating grids, and the distances between these to the location of the cylinder, thereby producing the various ‘flavours’ of FST documented in the FST parameter map of figure 2(a) are presented in Appendix A. Table 2 presents the averaged free-stream velocities for each of the explored cases represented. The test cases were grouped with respect to their $\textit{TI}$ levels, representing low, moderate and high $\textit{TI}$ conditions – respectively, groups $1,2,3$ . This was done to individualise, within each group of similar $\textit{TI}$ , the relative influence of $\mathcal{L}_{13}/D$ on the experienced loads by the cylinder. Figure 2(b) corresponds to two instantaneous snapshots captured by FOV A, for cases 1a and 3b. The largest integral length scale achieved in the free-stream of the cylinder is smaller than $1D$ , thus the outcome and statements provided in this work are applicable to FST conditions in which $\mathcal{L}_{13}$ is smaller than the reference length scale of the bluff body. Larger integral length scales were not tested to preserve uniformity of the temporally averaged flow upstream of the cylinder. The results of this study should not, therefore, be extrapolated to FST conditions in which the integral length scale is larger than the reference length scale for the body. This ensured a maximum gradient $10\, \%$ of the incoming temporally averaged velocity fields, across the transverse plane of the cylinder. For the remainder of the paper, $U_i$ refers to the velocity field as captured in the PIV FOV, and $u_i$ refers to the fluctuating velocity field after applying a Reynolds decomposition, removing the time-averaged velocity $\overline {U_{i}}$ from $U_i$ . In addition to generated FST, the presence of the turbulence-generating grids accounts for an increase of the incoming mean velocity, caused by the increased blockage introduced by the presence of an obstructing element to the flow.

2.1. Temporally resolved 2-DPIV

The analysis of the flow developing around the cylinder was achieved by performing 2-D PIV in two different planes, at two different spanwise locations. This was done to document how the different spanwise cellular shedding mechanisms influenced the structural response, and how they were affected by the presence of FST. The FOV A was located at $y/D = 3.4$ , away from the 3-D flow effects developed at the free end of the cylinder characterising the regular vortex-shedding cell at the midspan (Porteous et al. Reference Porteous, Moreau and Doolan2014). The FOV B was at $y/D = 7.4$ , characterising the longitudinal tip vortices shed from the free end of the cylinder. Table 1 outlines the experimental details of the resolution and acquisition of the PIV. For both FOVs, the streamwise and transverse extent was similar. Both FOVs documented the region upstream and downstream of the cylinder. The region downstream of the cylinder was large enough to capture the development of the near-wake of the cylinder, which in this work is considered to extend up to the vortex formation length.

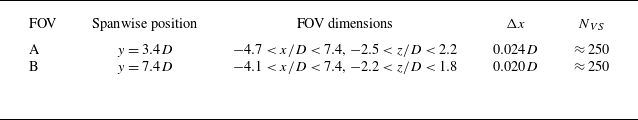

Table 1. Experimental conditions for the different captured FOVs. Here, $\Delta x$ and $N_{VS}$ correspond, respectively, to the spatial resolution of the experiments for each acquired FOV, and the number of vortex-shedding cycles captured.

The illumination source for the PIV measurements was a high-speed Litron LDY304 Nd:YLF laser, operating at $1000$ Hz. The images were acquired with two Phantom V640L cameras. The resulting FOVs resulted from the combination of the two velocity fields acquired, mapping the velocity field into the same coordinate referential. The cameras acquired a total of $12\,372$ images each, at full resolution ( $2560\ \text{px}\times1600\ \text{px}$ ), with acquisition frequency $f_{\textit{acq}} = 50$ Hz. This resulted in $\approx 125$ s of data acquisition, and $\approx 250$ vortex shedding cycles. The cameras were connected to two $50$ mm Nikkor lenses, set with aperture $f^{\#} = 2.8$ . The resulting images were processed employing a multi-pass PIV algorithm, to estimate the average particle displacement per interrogation window. Fourpasses were used, starting with a $32\times 32$ window, ending with a $16\times 16$ window, with a $50\, \%$ overlap region in each interrogation step. The spurious vector field was identified with a local $5\times 5$ mean test. The number of spurious vectors in the used snapshot groups was less than $1\, \%$ , and each vector, after identification, was recomputed by a linear interpolation of the neighbouring vector field. To reduce the uncertainty in the estimation of turbulence characteristics, the recursive PIV processing was employed with an initial window size significantly smaller than the dominant structures present in the flow (Scharnowski, Bross & Kähler Reference Scharnowski, Bross and Kähler2019). Furthermore, we have ensured that there was no peak-locking (Christensen Reference Christensen2004; Scharnowski et al. Reference Scharnowski, Bross and Kähler2019), by using a set of high-quality lenses and cameras placed in close proximity to the FOV, and fine-tuning the PIV set-up for optimal conditions. Additionally, spectral denoising techniques were employed to improve the estimation of turbulence characteristics from the PIV data. Specifically, we filtered the velocity spectra to remove high-frequency noise that arises from measurement uncertainties, preventing the artificial inflation of small-scale turbulence statistics. This ensures a more accurate representation of the energy distribution across scales, reducing bias in integral turbulence metrics.

2.2. Concurrent RBS measurements

The RBS were integrated onto the cylinder’s surface, as represented in figure 1, to accurately interrogate the structural response of the cylinder subjected to the different FST ‘flavours’. The fibre optic sensing range was entirely submerged, and the polar positions of the fibres were set using an optical rotating table. The strain data were acquired with the OFDR system developed by LUNA Ltd (ODiSI-B). Single-mode fibre optics were used as RBS in this study, to interrogate the cylinder’s strain response along its spanwise direction. The sensing network configuration enables the assessment of the direct impact of FST (on the windward face of the cylinder) through consideration of the distinct interactions between the wake and free-stream conditions, and the leeward ( $\theta _f^{\pm 135^{\circ }}$ ) and windward ( $\theta _f^{\pm 45^{\circ }}$ ) fibres attached to the cylinder (de Oliveira et al. Reference G. de Oliveira, Khodaei and Buxton2024).

The strain data were acquired at frequency $50$ Hz, and filtered with a low-pass filter at $15$ Hz. The low-pass frequency was set well above the characteristic frequency of the largest shed structures by the cylinder ( $2$ Hz), to remove high-frequency noise from the strain signal produced by the harmonics of the structure. An analysis of the PIV data shows that this operation does not remove the influence of vortex shedding and other important flow structures from the fibre optic signal. Each sensing line over each polar coordinate acquired a total of $140$ sensing points, with spatial resolution $\Delta y = 2.6$ mm ( $\Delta y/D \approx 0.05$ ). The measured region spanned $L_{i}=7.28D$ , with offset $y/D = 1.6$ at both the root and tip, to allow enough room to pass the fibres, without compromising the maximum bending radius (de Oliveira et al. Reference G. de Oliveira, Khodaei and Buxton2024). For each FST condition, the strain data were recorded twice, concurrently with PIV acquisitions in both FOVs. For more details on the methodology of the data acquisition, consult de Oliveira et al. (Reference G. de Oliveira, Khodaei and Buxton2024). As the cylinder’s length is larger than the extent of the measured region, we define herein a local referential coordinate $y'$ , spanning from the start of the measurement region until its end at $y/L_{i}=1$ .

3. The FST influence on the time-averaged loads of the cylinder

The presence of FST has been associated previously with a decrease of the vortex formation length (Gerrard Reference Gerrard1965; Bearman & Morel Reference Bearman and Morel1983; Khabbouchi et al. Reference Khabbouchi, Fellouah, Ferchichi and Guellouz2014) on the wake of a cylinder. This, in turn, modifies the mean flow around the cylinder, which results in a modification of the cylinder’s experienced time-averaged drag (Bearman & Morel Reference Bearman and Morel1983; Uematsu et al. Reference Uematsu, Yamada and Ishii1990). To explore the effect of the tested FST parameter space on the cylinder’s time-averaged loads, we analyse the cylinder’s time-averaged tip deflection. This metric reflects the overall induced force on the body, which is directly related to its maximum deflection magnitude. Thanks to the large sensing density provided by the RBS, we are able to reconstruct the deformed shape of the cylinder from the measured strain using classical beam theory (Xu & Sharif Khodaei Reference Xu and Sharif Khodaei2020; Li & Sharif Khodaei Reference Li and Sharif-Khodaei2025):

(3.1a) \begin{align} \beta _n = \frac {2\Delta L \times \varepsilon _{n-1}}{l_t} + \sum _{j=1}^{n-1}\beta _j, \end{align}
(3.1b) \begin{align} \delta _{n} = \Delta L \times \left (\frac {2\Delta L\times \varepsilon _{n-1}}{l_t} + \beta _{n-1}\right ) + \delta _{n-1}, \end{align}

where $\beta _n$ and $\delta _n$ correspond, respectively, to the rotation and deflection of the local sensorised regions. The deflection of the body is reconstructed using the local deformation obtained by the strain sensors, by projecting the acquired strain together with the local rotation experienced by each node; see (3.1). To compute the deflection field, we assume negligible deflection before the start of the sensing network ( $\delta (y/L{i} = 0)=0$ ). We then define the cylinder’s tip deflection as

(3.2) \begin{equation} \delta _{tip} = \frac {1}{N_{fibres}}\sum _i^{N_{fibres}}\overline {\delta (t,i,y'/L_{i} = 1)}, \end{equation}

reflecting the ensemble average of tip deflection captured by the four sets of fibres used, at $y'/L_{i} = 1$ .

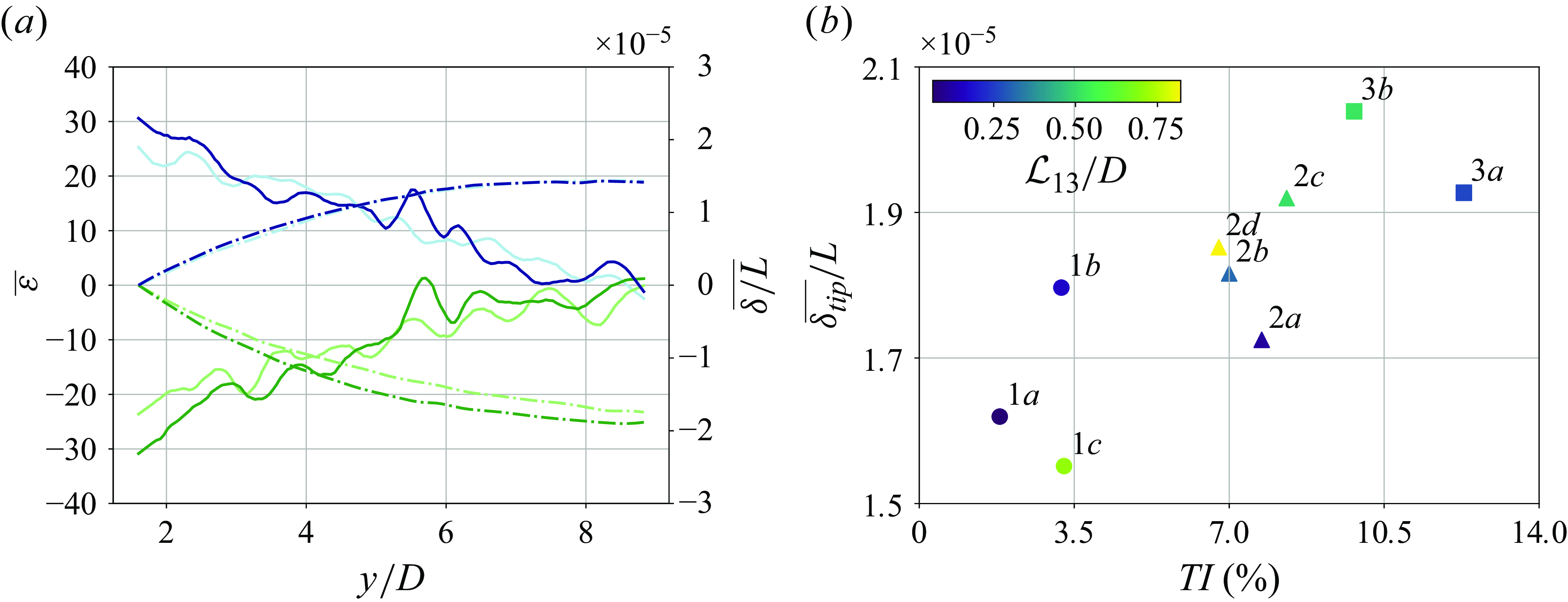

Figure 3. (a) Time-averaged strain ( $\overline {\varepsilon }$ , solid line) and reconstructed deflection field ( $\overline {\delta }$ , dot-dashed line) obtained by $\theta _f^{\alpha }$ , $\alpha \in \{45^{\circ}, -45^{\circ}, 135^{\circ}, -135^{\circ}\}$ , respectively represented by , , and . The waviness in the strain distribution is related to the non-uniformity wall thickness of the cylinder, due to its manufacturing process. (b) Averaged normalised tip deflection ( $\delta _{\textit{tip}}/L$ ) for each FST case.

Figure 3(a) corresponds to the captured time-averaged strain field and reconstructed deflection field from the set of four fibres, for case 1a. It shows an increased magnitude of strain at the root of the cylinder: negative on the leeward face of the cylinder, representative of the compressive loads in this region of the cylinder, and positive on the windward face of the cylinder, representative of tensile loads. The root region consists of the region with the largest magnitude of measured strain, whilst presenting negligible deflections. For a cantilevered structure, this is the location of the peak bending moment, and the region where these bodies are prone to fail. In contrast, the tip of the cylinder consists of the region with the largest deflection for all fibres.

Both the strain at the root and the tip deflection of the cylinder reflect the overall integrated impact of the flow on the structure. Figure 3(b) provides an estimation of the behaviour of the time-averaged loads experienced by the cylinder, for each FST condition. Here, $\delta _{\textit{tip}}$ presents a positive correlation with $\textit{TI}$ , with no apparent correlation with $\mathcal{L}_{13}/D$ , suggesting that $\textit{TI}$ dominates the evolution of the time-averaged loads over the bluff body. As documented in table 2, the introduction of the turbulence-generating grids accounted for an increase of the free-stream flow velocity introduced by an additional blockage in the water flume. Nonetheless, no correlation between the increased free-stream velocity and measured loads was identified. The different dynamics introduced by the presence of FST dominated the characteristic loading regimes acting on the cylinder.

To explore the impact of the introduction of FST on the developed fluctuating loads, we start by applying a Reynolds decomposition to the captured strain signal, extracting the mean ( $\overline {\varepsilon }$ ) and fluctuating ( $\varepsilon '$ ) strain fields,

(3.3) \begin{equation} \varepsilon (y/D, t, \theta _f^{\alpha }) = \overline {\varepsilon (y/D, \theta _f^{\alpha })} + \varepsilon ^{\prime } (y/D, t, \theta _f^{\alpha }), \end{equation}

where the latter is associated with the superimposition of the effects of the flow structures shed onto the wake, and those present in the free-stream.

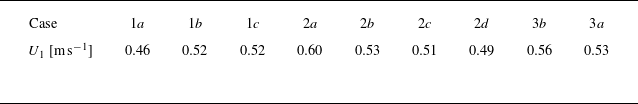

Table 2. Free-stream incoming flow velocities for each FST case.

An ensemble average of $rms(\varepsilon ^{\prime })$ over the root region of the cylinder ( $y/L_{i}\approx 0$ ) for the set of four fibres is conducted, characterising the impact of the induced fluctuating root bending moment evolution, for the different FST conditions tested. This quantity, herein referred to as $\gamma$ , provides insight into the magnitude of cyclic variations of strain experienced by the cylinder, induced by the different fluctuating root bending moment dynamics that it undergoes, introduced by the different FST conditions.

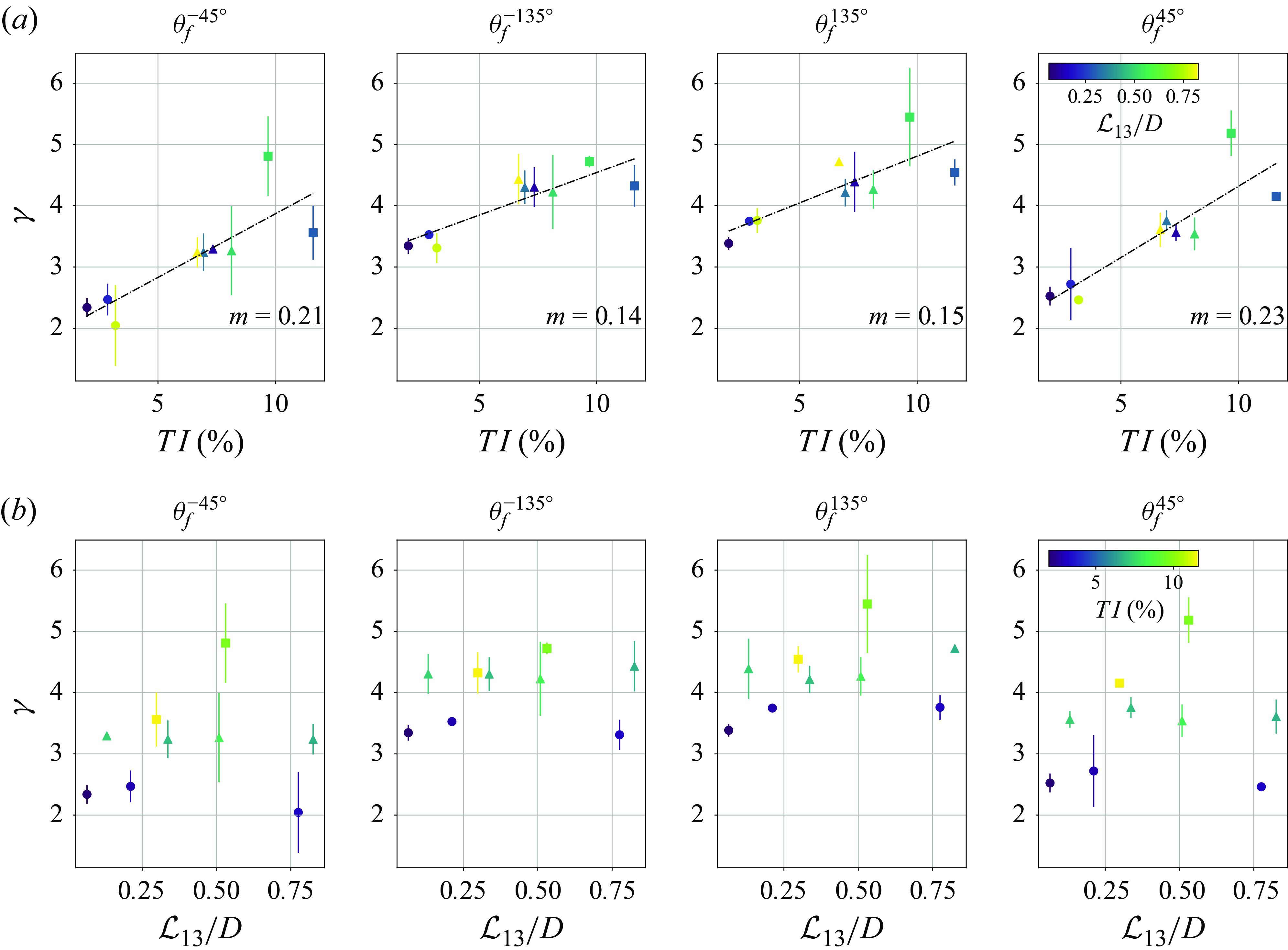

Figure 4. Fluctuating root bending stresses, characterised by $\gamma$ , with respect to (a) $\textit{TI}$ and (b) $\mathcal{L}_{13}/D$ content in the free-stream.Here, $m$ corresponds to the slope of the linear best fit of the evolution of $\gamma$ with $\textit{TI}$ .

Figure 4 depicts the evolution of $\gamma$ , for the different $\theta _{f}^{\alpha }$ , with respect to $\textit{TI}$ (figure 4 a) and $\mathcal{L}_{13}/D$ (figure 4 b). The scattered points of $\gamma$ consist of the average between the two tests conducted for each FST condition, and the associated error bars correspond to the standard deviation of $\gamma$ between the two measurements taken for the same FST conditions. Both $\mathcal{L}_{13}/D$ and $\textit{TI}$ present a positive correlation with the root bending $\gamma$ . However, a stronger positive correlation with $\textit{TI}$ is observed. The increase of $\textit{TI}$ contributes to the increase of the experienced fluctuating root bending moment with an apparent linear behaviour. The dark line plotted against the scatter plot in figure 4(a) corresponds to the best linear fit of the data spread, presenting average slope $m \approx 0.14$ for $\theta _f^{\pm 135^{\circ }}$ , and $m \approx 0.22$ for $\theta _f^{\pm 45^{\circ }}$ . This suggests that the two faces of the cylinder are affected by different conditions, indicative of the direct and indirect impacts of FST. The increasingly energetic fluctuating velocity field impacting on the windward surface of the cylinder has a clear impact on the dynamics in this region of the cylinder, decreasing the difference in magnitude of $\gamma$ between the two surfaces for each FST case, homogenising the structural dynamics experienced by the cylinder.

Moreover, the magnitude of $\gamma$ acquired by $\theta _{f}^{\pm 135^{\circ }}$ and $\theta _{f}^{\pm 45^{\circ }}$ is shown to be larger on the leeward side of the cylinder ( $\theta _{f}^{\pm 135^{\circ }}$ ). This is consistent for each of the instrumented regions of the cylinder, under each set of FST conditions. The surface closer to the location of the shed vortices seemingly suffers from their impact. This is assumed to be a direct effect of the naturally turbulent wake of the cylinder, where the generated flow structures impact the nearby structure surface, acting locally on the surface of the cylinder. Despite $\textit{TI}$ seemingly dominating the dynamics of the fluctuating root bending moment, we can also distinguish a strong secondary effect introduced by $\mathcal{L}_{13}/D$ . The evolution of $\mathcal{L}_{13}/D$ in figure 4 presents a positive non-monotonic correlation, with a maximum at $\mathcal{L}_{13}/D \approx 0.5$ , notably half of the diameter of the cylinder. The increase of $\mathcal{L}_{13}/D$ on FST has been linked to increased energy of large-scale structures shed by the cylinders, especially in their near wakes by promoting near-wake entrainment into the cylinder’s near-wake (Kankanwadi & Buxton Reference Kankanwadi and Buxton2023). The secondary effect of $\mathcal{L}_{13}/D$ seen in this work may thus be linked to increased near-wake entrainment.

4. Impact of the flow dynamics on the cylinder’s response

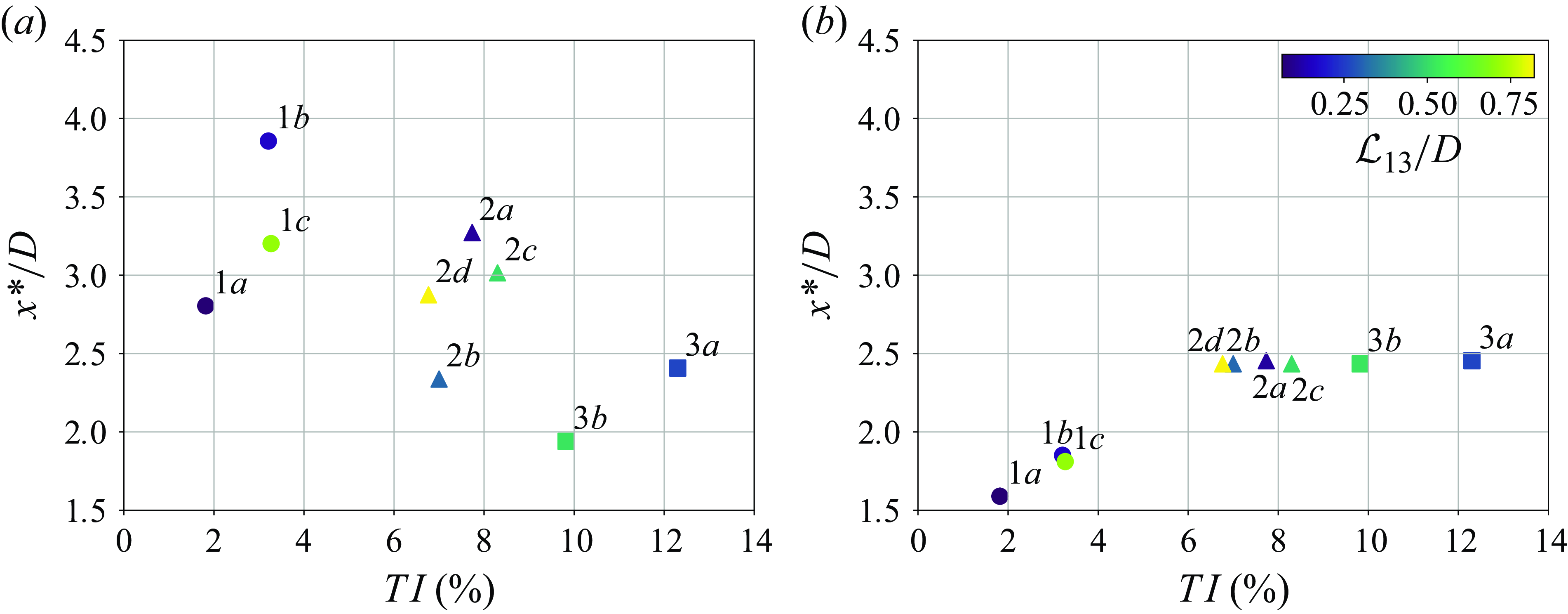

Figure 5. Vortex formation length ( $x^{*}/D \rightarrow \max(rms(\boldsymbol{u}_3^{\prime }(-1.5\lt z/D\lt 1.5)))$ ) variation of the wake of the cylinder, for each of the FST conditions tested, and each FOV interrogated: (a) FOV A, (b) FOV B.

The observed increase in the time-averaged loads, and magnitude of the induced fluctuating root strain introduced by FST may arise from the combination of three factors:

  1. (i) decreased vortex formation length, bringing the low-pressure vortices closer to the cylinder

  2. (ii) increased energy associated with the various flow structures

  3. (iii) increased spanwise coherence of such flow structures

which collectively contribute to the increased magnitude of the cylinder’s response.

We will start by exploring the first point represented in figure 5(a,b), by assessing the correlation between the vortex formation length in the two FOVs instrumented, and the FST conditions. The vortex formation length is defined as the streamwise location where $rms(u_3)$ reaches a maximum value, denoted by $x^{*}/D$ . At the midspan of the cylinder (FOV A, figure 5 a), $x^{*}/D$ decreases with the increase of $\textit{TI}$ in the free-stream. This is consisted with Gerrard (Reference Gerrard1965), and in line with Kankanwadi & Buxton (Reference Kankanwadi and Buxton2023), where the authors postulate that the increase of FST $\textit{TI}$ increases entrainment via large-scale engulfment in the near wake of the cylinder.

Figure 5(b) presents smaller values of $x^{*}/D$ for $\textit{TI}\lt 4\, \%$ than in figure 5(a). The reduced vortex formation length results from the introduced momentum and decreased pressure gradient added by the free-end condition at the tip of the cylinder (Hain & Kähler Reference Hain, Kähler and Michaelis2008; Porteous et al. Reference Porteous, Moreau and Doolan2014; Crane et al. Reference Crane, Popinhak, Martinuzzi and Morton2021), pulling the generated vortices closer to the cylinder. As $\textit{TI}$ is increased, so is the vortex formation length for $\textit{TI} \lt 4 \, \%$ . However, for $\textit{TI}\gt 6 \, \%$ , $x^*/D$ seems to saturate at $x^*/D \approx 2.5$ . The saturation length of vortex formation at FOV B is close to the vortex formation extent at the midspan of the cylinder for the same $\textit{TI}$ conditions, suggesting an increased spanwise coherence of the vortices shed by the cylinder, and a diminished 3-D effect of the free end. Effectively, the presence of a similar vortex formation length at the free end of the cylinder to what is experienced at midspan suggests that both regions are subjected to similar flow physics. Similarly, $\textit{TI}$ has been associated previously with an increased spanwise coherence of large-scale structures (Maryami et al. Reference Maryami, Aki, Azarpeyvand and Afshari2020; de Oliveira et al. Reference G. de Oliveira, Khodaei and Buxton2024).

Similarly to $\delta _{\textit{tip}}$ , $\textit{TI}$ governs the evolution of the vortex formation length of the cylinder, presenting a negative correlation with $x^*/D$ for FOV A. Similarly, a negative correlation between the decrease of vortex formation length and the increase of the time-averaged loads over the cylinder may be drawn. In the current experimental campaign, no clear correlation has been observed between $\mathcal{L}_{13}/D$ and $x^{*}/D$ . The energy spectra of the fluctuating velocity fields obtained allow us to analyse the relative modification of energy associated with the flow structures shed from the cylinder into the wake, at the two spanwise locations, and assess the effect of the presence of FST. The energy spectra of the strain fluctuations along the spanwise extent of the cylinder allow us to better understand how the structural response is modified along the cylinder’s extent. By analysing the structural response alongside the fluctuating velocity field’s spectrum, we can attribute the structural dynamic response to specific flow structures present in both the free-stream and the wake of the cylinder. Effectively, correlations between the energy increase of the fluctuating strain within a specific frequency band, which may be associated with a flow structure, may then be assessed from the relative energy, at the same frequency band, in the fluctuating velocity spectrum.

The flow over a cantilevered cylinder is marked by the presence of tip vortices generated at the free end of the cylinder characterised by low frequency dynamics ( $St = [6\times 10^{-2},10\times 10^{-2}]$ ), and a growing regular von Kármán vortex street towards the root (Hain & Kähler Reference Hain, Kähler and Michaelis2008; Porteous et al. Reference Porteous, Moreau and Doolan2014). Figure 6 presents the energy spectra of the concurrent measurements of strain, and velocity fluctuations $u_3$ respectively obtained by the RBS and 2-D PIV at FOVs A and B, for FST cases 1a, 2d, 3b.

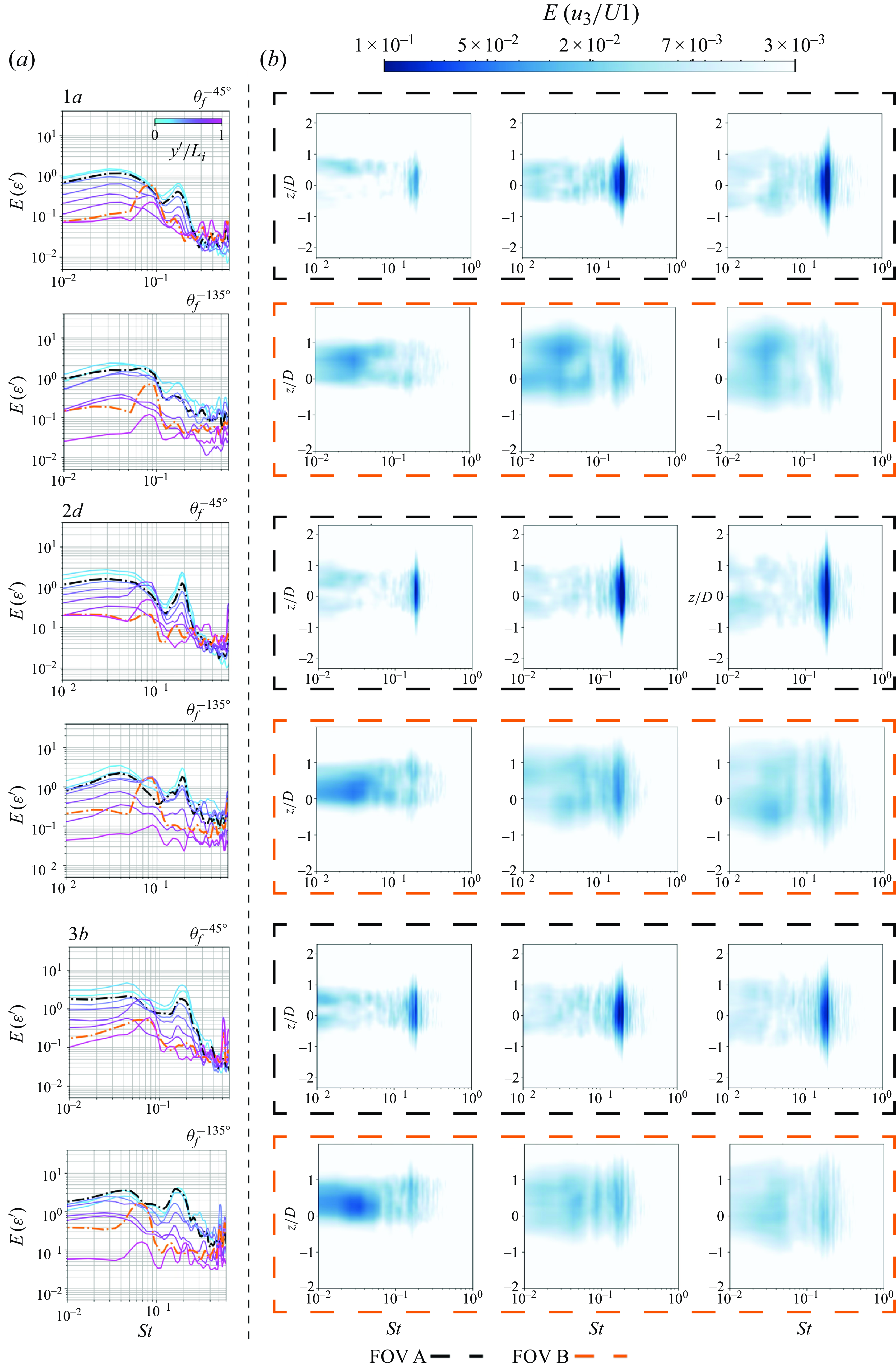

Figure 6. For FST cases 1a, 2d, 3b: (a) energy spectra of the measured fluctuating strain $\varepsilon '$ for $\theta _f^{\alpha }$ with $\alpha = -45^{\circ }, -135^{\circ }$ at various spanwise positions (notice how the FOV locations are highlighted); (b) energy spectra of $u_3$ along the transverse direction of the flow at $x/D = 0.5, 1.5, 2.5$ .

We start by addressing the spectra obtained from the structural response, captured by twoof the four sets of fibre sensing lines $\theta _f^{\alpha }$ , $\alpha =-45^{\circ }, -135^{\circ }$ . Figure 6 reveals a global increase in the overall ‘energy’ associated with the strain fluctuations of the cylinder, as the root of the body is approached ( $y'/L_{i} = 0$ ), similarly to what has been evidenced previously in figure 3(a). Furthermore, an ‘energy’ peak at $St \approx 0.2$ , associated with the von Kármán vortex shedding, is present in every ‘energy’ spectrum, with a relative increase of magnitude with the introduction of FST, for the fibres on both the windward and leeward regions.

As we progress towards the tip of the cylinder ( $y'/L_{i}=1$ ), we see an increased broadband energy at $St \approx 0.08$ , representative of the impact of the tip vortices, shed from the free end of the cylinder (Porteous et al. Reference Porteous, Moreau and Doolan2014). Moreover, the ‘energy’ associated with the structural response introduced by these flow structures increases with the introduction of FST. In addition, similarly to the increased root bending moment stress ( $\gamma$ ), the ‘energy’ of the strain dynamics is consistently larger in the leeward face of the cylinder.

The energy spectra of the transverse velocity component along the transverse direction of the flow, acquired in FOVs A and B for FST cases 1a, 2d, 3b, show an increase of vortex shedding intensity at $St \approx 0.2$ with the introduction of FST, especially close to the cylinder. It is clear that vortex shedding is the flow structure with the largest energy in FOV A. Similarly, the energy spectra obtained from the velocity field acquired by FOV B show an increase in energy in the characteristic vortex shedding frequency with the introduction of FST, when compared to case 1a. This trend is seemingly not systematic with $\textit{TI}$ ; case 2d presents increased energy within the vortex shedding frequency band when compared to 3b, exposed to larger $\textit{TI}$ . To evaluate the impact of $\textit{TI}, \mathcal{L}_{13}/D$ on the available energy for this flow structure, we analyse the streamwise evolution of relative energy of the fluctuating velocity field at the vortex shedding band $\Phi ^{VS}$ , defined as

(4.1) \begin{equation} \Phi ^{VS} = \left\langle \int _{St^{VS}-W/2}^{St^{VS}+W/2} E(u_3)/U_1\,\mathrm{d}St\right\rangle _{z/D}\Bigg\vert _{-1.5}^{1.5}, \end{equation}

where $\langle \Phi \rangle _{z/D}\vert _{-1.5}^{1.5}$ corresponds to the ensemble average of $\Phi$ within the range $-1.5\lt z/D\lt 1.5$ , $St^{VS}$ corresponds to the $St$ associated with vortex shedding for each FST case defined by the $St$ at which the amplitude of the spectrum is largest, and $W$ corresponds to an integration window, defined as $W = 0.08$ . However, despite being subjective, $W$ should be chosen to incorporate all frequencies from the spectrum associated with vortex shedding. In this study, $W$ was set to the smallest possible window, minimising the integration window while preserving the relevant spectral content. As $W$ increases, so will the overall magnitude of $\Phi ^{VS}$ . However, the drawn conclusions are insensitive to $W$ , and the overall evolution of each $\Phi ^{VS}$ along the streamwise direction, and relative distribution with respect to the other FST cases is preserved.

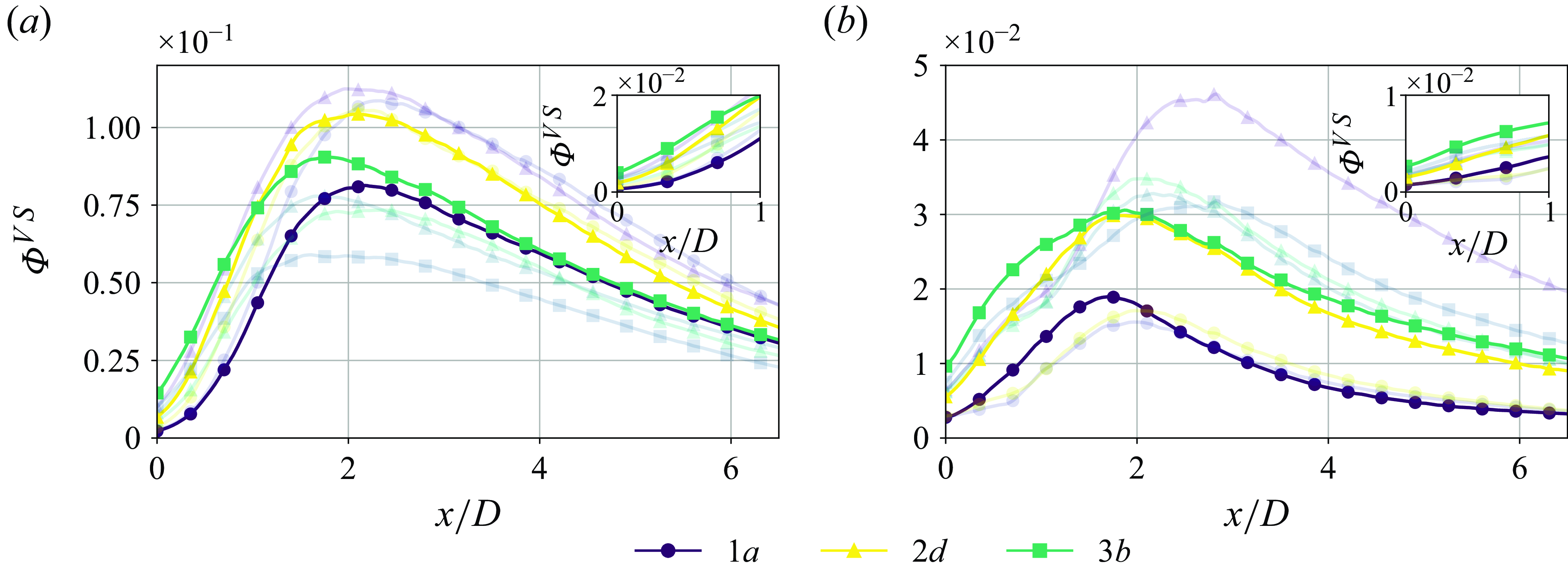

Figure 7. Streamwise evolution of the energy of $u_3/U_1$ associated with regular vortex shedding for the tested FST conditions, in (a) FOV A and (b) FOV B. The greyed-out scattered points correspond to the remaining FST cases tested, labelled and described as in figure 2(a).

Figure 7 represents the streamwise evolution of $\Phi ^{VS}$ for the explored FST ‘flavours’, highlighting cases 1a, 2d, 3b for FOVs A and B. The peak of $\Phi ^{VS}$ for each FST case closely matches the vortex formation extent defined in figure 5. The increase of $\textit{TI}$ results in an increase of the intensity of vortex shedding close to the cylinder (see insets of figure 7). Despite presenting less energy far from the cylinder, this increased energy available at earlier streamwise stations is postulated to be transferred more efficiently to the cylinder, leading to an increased structural response induced by the corresponding flow structure.

Furthermore, tip vortices and low-frequency flow components in the range $St = [6\times 10^{-2},10\times 10^{-2}]$ (Hain & Kähler Reference Hain, Kähler and Michaelis2008; Porteous et al. Reference Porteous, Moreau and Doolan2014) are also captured by FOV B, whilst in FOV A, these structures are less prominent. This represents the cellular shedding of the cantilevered cylinder along its spanwise direction described in Porteous et al. (Reference Porteous, Moreau and Doolan2014), and implies the physical origin of the increased energy at $St \approx 0.08$ of the fluctuating strain ‘energy’ spectra closer to the tip.

The increase in the intensity of the structural response at the characteristic Strouhal number of the regular vortex shedding reflects the modification of these coherent flow structures by the presence of FST. Ramesh et al. (Reference Ramesh, Morton and Yarusevych2024) similarly reported an increase in the intensity of vortex shedding, and its respective influence on the structural response of a double fixed cylinder, with the introduction of moderate levels of FST.

Overall, the introduction of FST accounts for an increase of the relative energy associated with vortex shedding. Close to the cylinder, there is an increase of energy in the regular vortex shedding frequency band, in line with the decrease of the vortex formation length seen previously in figure 5(a). In addition, the introduction of FST suggests an increased spanwise coherence of such flow structures, as seen by the energy content presence in FOV B, at the regular vortex shedding characteristic $St \approx 0.2$ . This corroborates the correlation between the increase in the structural response induced at the regular vortex shedding characteristic frequency, driven by the combination of a larger energy associated with the corresponding flow structure, and a stronger spanwise presence, increasing its imprint on the body.

Having postulated an increased spanwise coherence of regular vortex shedding with the introduction of FST ultimately resulting in a larger magnitude of the strain field, we now analyse the impact of FST on the coherence of the fluctuating strain field by analysing the autocorrelation function $R_{\varepsilon ^{\prime }}(r/D)$ between $\varepsilon ^{\prime }(t, y^{\prime }/L_{i})$ and $\varepsilon ^{\prime }(t, y^{\prime }/L_{i} + r e_y)$ , on both the windward and leeward faces of the cylinder. This metric is averaged over the first-third measured span of the cylinder starting from the root $\langle R_{\varepsilon ^{\prime }}\rangle _{y^{\prime }/L_{i} \in [0, 1/3]}$ , to capture the spanwise behaviour of the strain dynamics over a region close to the root of the cylinder. This metric is presented in figure 8(a), and highlighted for cases 1a, 2d, 3b, for the windward ( $\theta _{f}^{\pm 45^{\circ }}$ ) and leeward ( $\theta _{f}^{\pm 135^{\circ }}$ ) faces of the cylinder. Figure 8(b) shows $\varepsilon ^{\prime }_{VS}$ , computed from the raw $\varepsilon ^{\prime }$ but with a bandpass filter isolating the induced strain by regular vortex shedding with the same limits as defined in (4.1), allowing us to analyse how this flow structure impacts the structural dynamics along the spanwise extent of the cylinder.

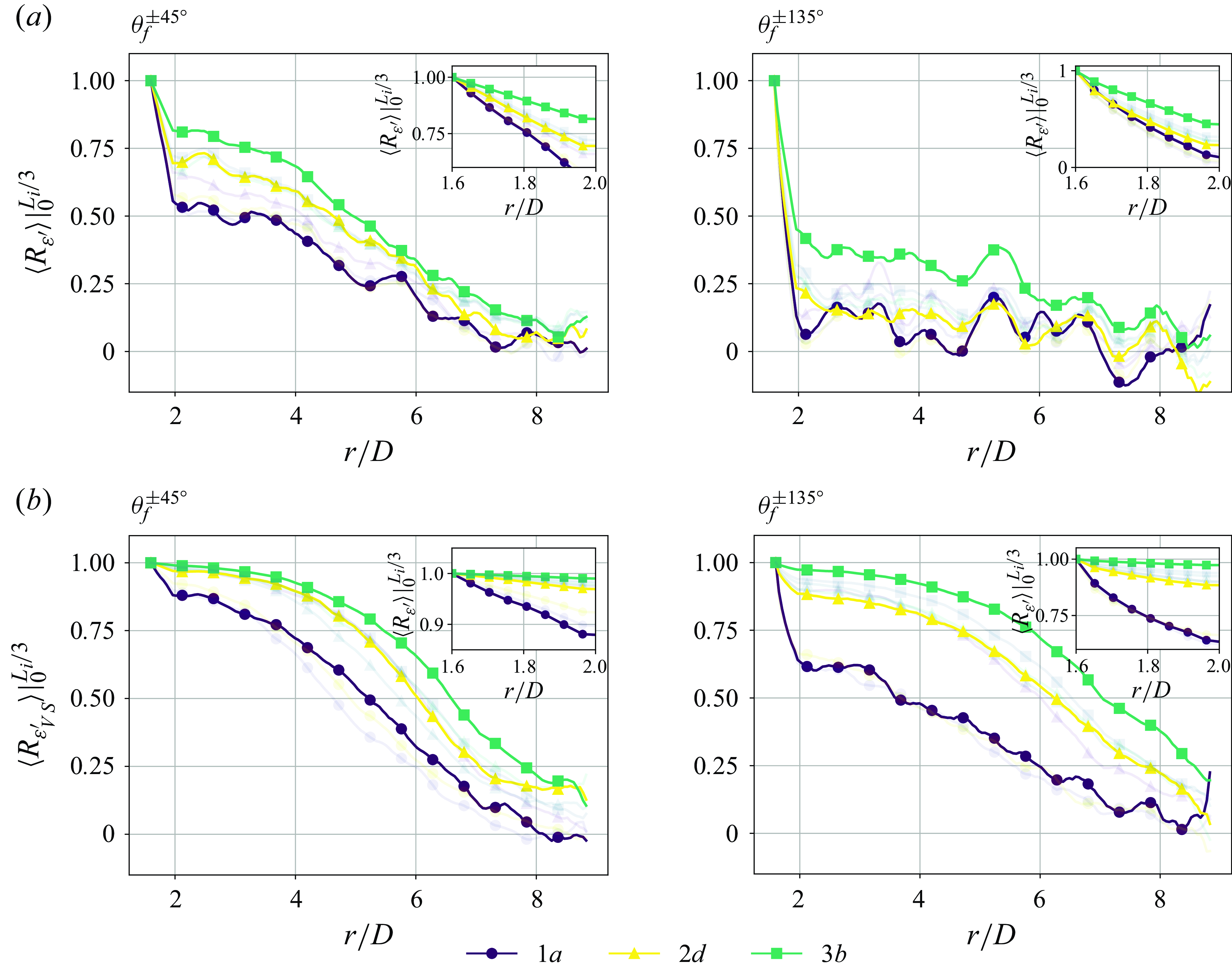

Figure 8. Autocorrelation functions (a) $R_{\varepsilon ^{\prime }}(r/D)$ and (b) $R_{\varepsilon ^{\prime }_{VS}}(r/D)$ along the spanwise extent of the cylinder, highlighting cases 1a, 2d, 3b. The greyed-out scattered points correspond to the remaining FST cases tested, labelled and described as in figure 2(a).

The different evolution of $\langle R_{\varepsilon ^{\prime }}\rangle _{y'/L_{i} \in [0, 1/3]}$ in the two faces as presented in figure 8(a) reflects the different dynamics imposed on the two faces of the cylinder, before and after the shear-layer separation points. This is the case even without the introduction of FST, evidencing the aforementioned relevance of the direct/indirect impact of FST. Strain fluctuations become uncorrelated over shorter distances (along the spanwise direction) on the leeward side of the cylinder, and contrarily, the windward side sustains correlated strain fluctuations for larger regions of the cylinder. Furthermore, the decreased magnitude of $\langle R_{\varepsilon ^{\prime }(r/D)}\rangle _{y'/L_{i} \in [0, 1/3]}$ as $r/D$ increases shows that the fluctuating strain acquired at larger distances between two points becomes increasingly uncorrelated.

By using a bandpass filter to isolate the regular vortex shedding influence on the fluctuating strain field, we assess the direct impact of this flow structure on the coherence of $\varepsilon ^{\prime }$ over the two faces of the cylinder, as presented in figure 8(b). For the same spanwise location and same FST conditions, $\langle R_{\varepsilon ^{\prime }_{VS}}\rangle _{y^{\prime }/L_{i} \in [0, 1/3]}$ presents lower values on the leeward face when compared to the windward face, reflecting the impact of the proximity of the flow structure to the surface under analysis. By comparing the evolution of $\langle R_{\varepsilon ^{\prime }}\rangle _{y^{\prime }/L_{i} \in [0, 1/3]}$ on the windward side of the cylinder presented in figure 8(a,b), we can see that regular vortex shedding largely contributes to the spatial dynamics of the induced fluctuating strain, even when FST is introduced.

Overall, the introduction of FST accounts for a slower decay of autocorrelation for both the windward and leeward face strain dynamics, and increased coherence of strain fluctuations. The introduction of FST increased the spanwise coherence of strain induced by vortex shedding in the windward and leeward faces, allowing us to indirectly infer an increased coherence of the corresponding flow structure. The different behaviour of the correlation between $\theta _f^{\pm 45^{\circ }}$ and $\theta _f^{\pm 135^{\circ }}$ highlights that flow structures generated in the immediate wake of the cylinder impact the experienced loads differently on both faces.

Having analysed the impact of FST on the spatial autocorrelation of the strain fluctuations, we now characterise its impact on the temporal strain dynamics on the leeward and windward sides. We focus on $\tau _{\varepsilon ^{\prime }}$ , defining the characteristic time over which strain fluctuations remain correlated.Then $\tau _{\varepsilon ^{\prime }}$ is defined as

(4.2) \begin{equation} \tau _{\varepsilon ^{\prime }}(y'/{L_{i}}, \theta _f^{\alpha }) = \left\langle \int _0^{\tau _0}R_{\varepsilon ^{\prime }}(\tau )\,\mathrm{d}\tau \right\rangle_{y'}\Big \vert_{0}^{L_{i}/3}, \end{equation}

where $R_{\varepsilon ^{\prime }}(\tau )$ corresponds to the autocorrelation function between $\varepsilon ^{\prime }(t, y'/L_{i}, \theta _f^{\alpha })$ and $\varepsilon ^{\prime }(t + \tau, y'/L_{i}, \theta _f^{\alpha })$ , $\tau _0$ corresponds to the first zero crossing position over the time lag ( $\tau$ ) of the autocorrelation function, as represented in figure 9(a) for FST cases 1a, 2d, 3b, and $\langle \cdot \rangle _{y'}\vert _{0}^{L_i/3}$ refers to the ensemble average of $\tau _0$ over the first measured third of the cylinder, i.e. $0 \leqslant y^{\prime } \leqslant L_{i}/3$ .

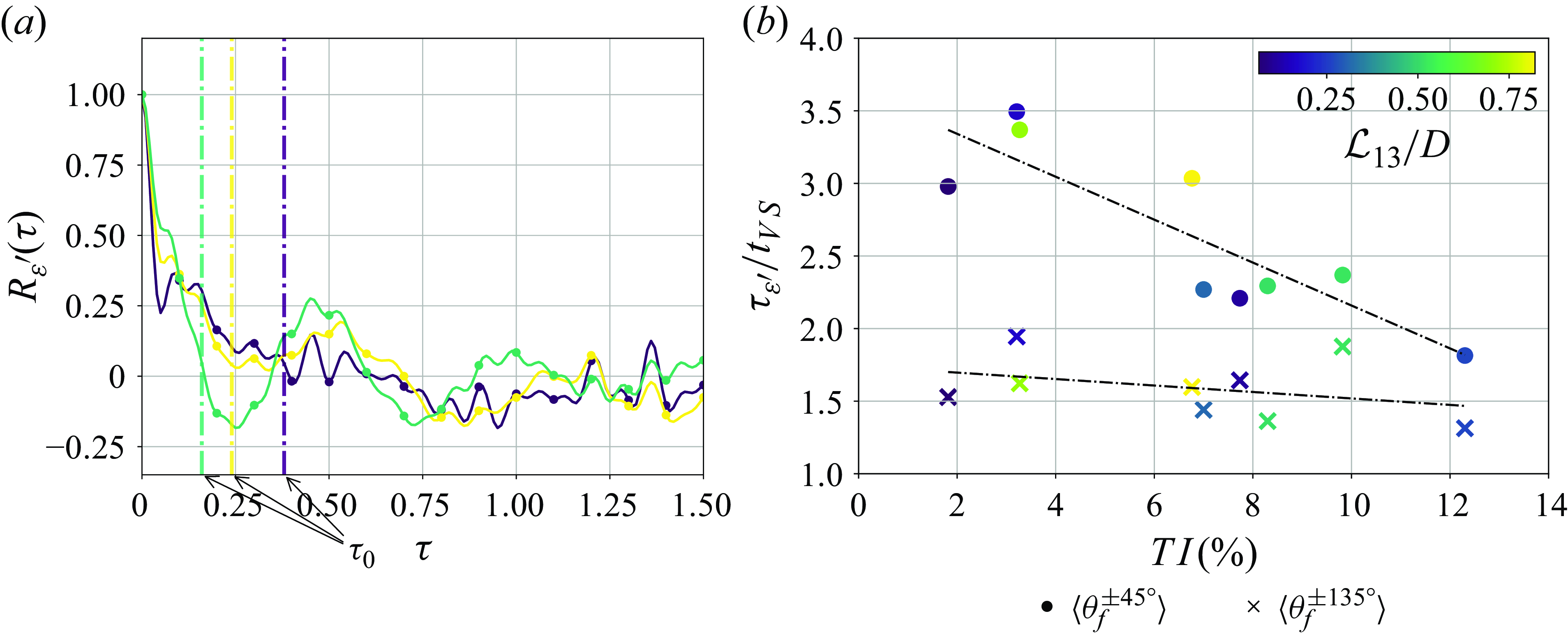

Figure 9. (a) Autocorrelation function of $R_{\varepsilon ^{\prime }}(\tau )$ along the spanwise extent of the cylinder, for 1a (black) $1a$ , 2d (yellow) $2d$ and 3b (green) $3b$ . (b) Autocorrelation temporal scale of the fluctuating strain signal $\tau _{\varepsilon ^{\prime }}/t_{VS}$ normalised by the characteristic vortex shedding temporal scale, as a function of $\textit{TI}$ experienced by the cylinder under each FST case considered, averaged between the two sensing lines on the windward and leeward faces of the cylinder.

Figure 9(b) presents $\tau _{\varepsilon ^{\prime }}/t_{VS}$ as a function of $\textit{TI}$ in each FST case, captured by the windward and leeward faces of the cylinder. The increase of $\textit{TI}$ in the free-stream accounts for a decrease of $\tau _{\varepsilon ^{\prime }}/t_{VS}$ in both the leeward and windward faces. This decrease of $\tau _{\varepsilon ^{\prime }}/t_{VS}$ suggests that as $\textit{TI}$ increases, the structure experiences changes in fluctuating forces faster, indicating a shorter correlation time under higher $\textit{TI}$ conditions. High- $\textit{TI}$ environments may then lead to more frequent stress cycles, thereby accelerating wear and failure, especially in the leeward face of the structure. This decrease is steeper in the windward face of the cylinder, where the direct influence of the FST is felt. In addition, the difference between $\tau _{\varepsilon ^{\prime }}/t_{VS}$ values captured in the windward and leeward faces decreases with the increase of $\textit{TI}$ in the free-stream, suggesting that $\textit{TI}$ tends to homogenise the temporal behaviour of the structural response of the cylinder on both faces, indicating a convergence in their temporal characteristics. Moreover, the increase of $\mathcal{L}_{13}/D$ does not seem to influence the temporal correlation time of the strain fluctuations in both faces.

The increased impact on the loading events over the cylinder is then attributed to the combination of the three aforementioned effects, rising from an increased proximity of the vortex formation region to the cylinder, increased energy available in the near-wake region immediately adjacent to the cylinder, and increased spanwise coherence of the near-wake flow structures, resulting in a larger coherence of loads acting on the cylinder. These three effects act simultaneously, adding up to an increased effective root bending moment experienced by the cylinder, and increased energy associated with regular vortex shedding (figure 6).

5. Cross-correlating the flow and structural response

The cross-power spectral density (CPSD) between the flow data and the strain data at the concurrent $y/D$ location is now addressed, to analyse the coherence between both fields. As the measurements were concurrent, this allows us to evaluate the spatio/temporal correlation between these two signals. The CPSD is then defined as

(5.1) \begin{equation} CPSD(x/D,z/D,St) = \mathcal{F}(R_{\varepsilon ^{\prime } u_{3} }(x/D,z/D, \tau )), \end{equation}

where $\mathcal{F}$ corresponds to the Fourier transform operator, and $R_{\varepsilon ^{\prime } u_{3} }(x/D,z/D, \tau )$ is the cross-correlation function between $\varepsilon '$ and $u_{3}$ , defined as

(5.2) \begin{equation} R_{\varepsilon ^{\prime } u_{3} }(x/D,z/D, \tau ) = \int _{-\infty }^{\infty }\varepsilon ^{\prime }(t)\,u_{3}(x/D,z/D,t + \tau )\, \mathrm{d}t. \end{equation}

Figure 10 represents the magnitude of the CPSD between $u_3(z/D)$ in both FOVs A and B, at streamwise stations $x/D = -1.2, 0.5, 1.0, 2.0, 3.0$ , and $\varepsilon ^{\prime }$ at the respective $y/D$ location for each FOV, for FST cases 1a, 2d, 3b. For $z/D\gt 0$ , the CPSD is computed with the fluctuating strain field captured by $\theta _{f}^{+135^{\circ }}$ , and for $z/D\lt 0$ with $\theta _{f}^{-135^{\circ }}$ .

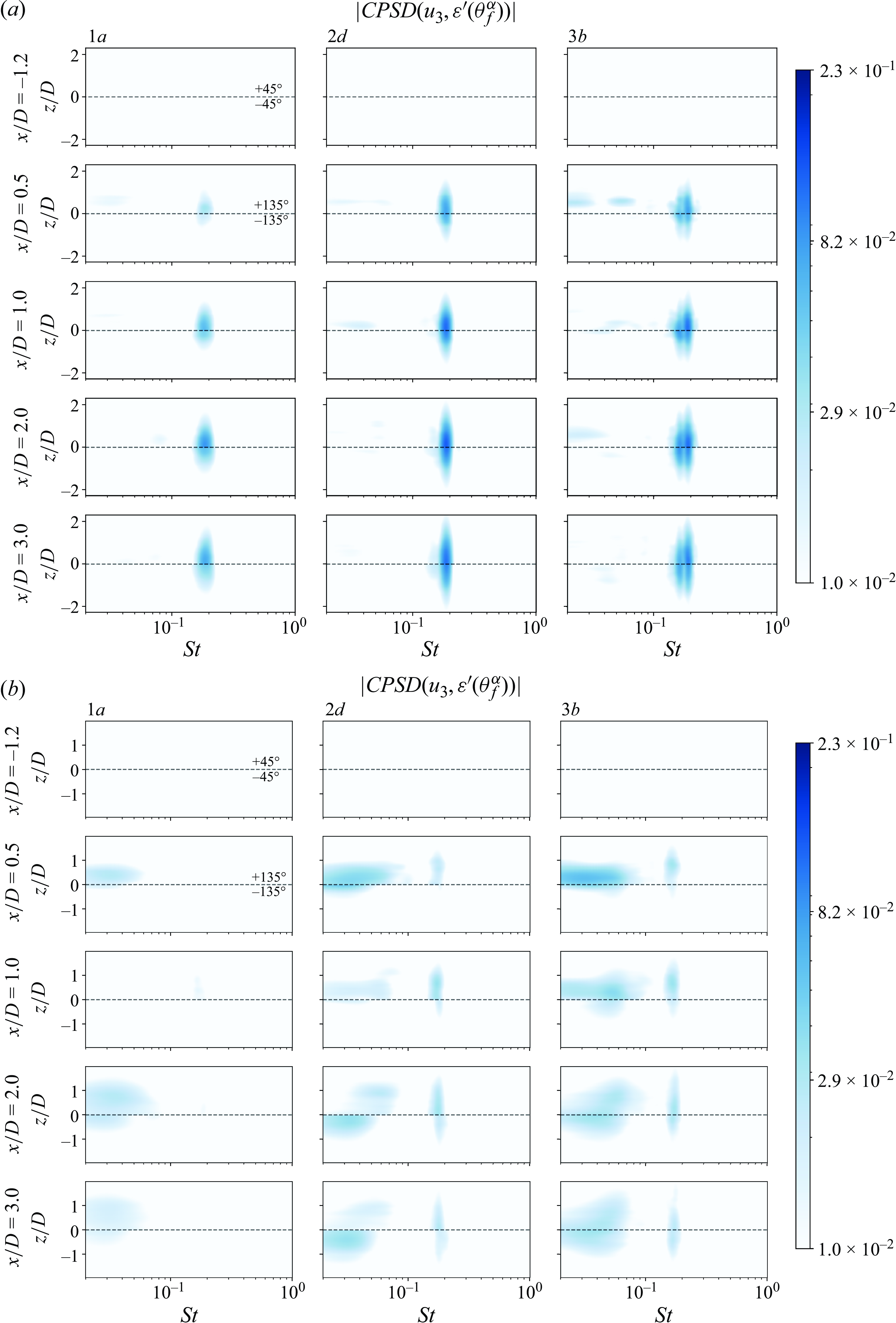

Figure 10. Magnitude of the CPSD between $\varepsilon ^{\prime }$ and $u_3$ , for cases 1a, 2d, 3b, with velocity information extracted from (a) FOV A and (b) FOV B. The correlation is performed with the induced strain at the FOV spanwise location. For $x/D\lt 0$ , the windward fibres are used to compute the cross-correlation.

The magnitude of the CPSD at $x/D = -1.2$ , representative of a location immediately upstream of the cylinder’s position, in both FOVs is deprived of energy when compared to the CPSD contours obtained from downstream of the cylinder, even with the introduction of FST. This station shows that there is no strong coherence between the experienced loads, and incoming flow structures. Figure 10(b) shows an increase in ‘energy’ associated with the tip vortices shed by the cylinder, reflecting both the increased energy and spanwise coherence of these structures. Furthermore, the presence of FST accounts for an increase of the energy associated with regular vortex shedding, similar to what has been discussed for the energy spectra presented in figure 6. This is true for both FOV A (figure 10 a) and FOV B (figure 10 b), supporting the claim that:

  1. (i) the introduction of FST accounts for an increase of spanwise coherence of large-scale structures associated with vortex shedding in a cantilevered cylinder, despite the 3-D disruption of regular shedding experienced at the tip

  2. (ii) FST introduces more energy in the large-scale structures (as seen in the ‘energy’ spectra of the fluctuating velocity field in figure 6), increasing the corresponding structural dynamics.

These effects combined result in an overall increased impact of the regular vortex shedding characteristic flow structures on the structural response of cylinder. In addition, the small scales introduced by FST do not induce a coherent structural response within the cylinder. However, the structural response is indeed more susceptible to the generation, modification and deformation of large coherent structures shed from the cylinder, observable with the acquired CPSD between both the windward and leeward fibre sensors. Based on the results provided by the CPSD, the cylinder response acts as a low-pass filter, primarily responding to the flow’s low-frequency content and shed structures.

The magnitude of the CPSDs computed with the fluctuating velocity field at different streamwise stations follows a trend similar to that assessed before in the evolution of the flow spectra. As streamwise distance from the leeward face of the cylinder increases, after reaching the maximum, the CPSD decreases in magnitude corresponding to the energy decay of the associated flow structures impacting on the cylinder’s structural response.

The CPSDs between the strain and velocity fluctuations allowed us to examine how coherent the two fields are, and how FST affects this coherence. To assess how FST affects the temporal interaction between the convected flow structures and the cylinder’s structural response, we analyse the cross-correlation between the two quantities defined in (5.2), focusing on the documented region downstream of the cylinder ( $x/D\gt 0$ ) and ensemble averaging the correlation between the two fibres located on the leeward face of the cylinder ( $\langle \cdot \rangle \alpha \vert _{-135^{\circ }}^{135^{\circ }}$ ) and over the transverse direction of the flow in $-1.5\lt z/D\lt 1.5$ ( $\langle \cdot \rangle _{z_D}\vert _{-1.5}^{1.5}$ ): $ {\langle } {\langle }R_{\varepsilon ^{\prime } u_{3}}(x/D,z/D, \tau ) {\rangle }_{\alpha } {\vert }_{-135^{\circ }}^{135^{\circ }} {\rangle }_{z/D} {\vert }_{-1.5}^{1.5}$ . The ensemble average over the two leeward fibres is henceforth omitted for simplicity.

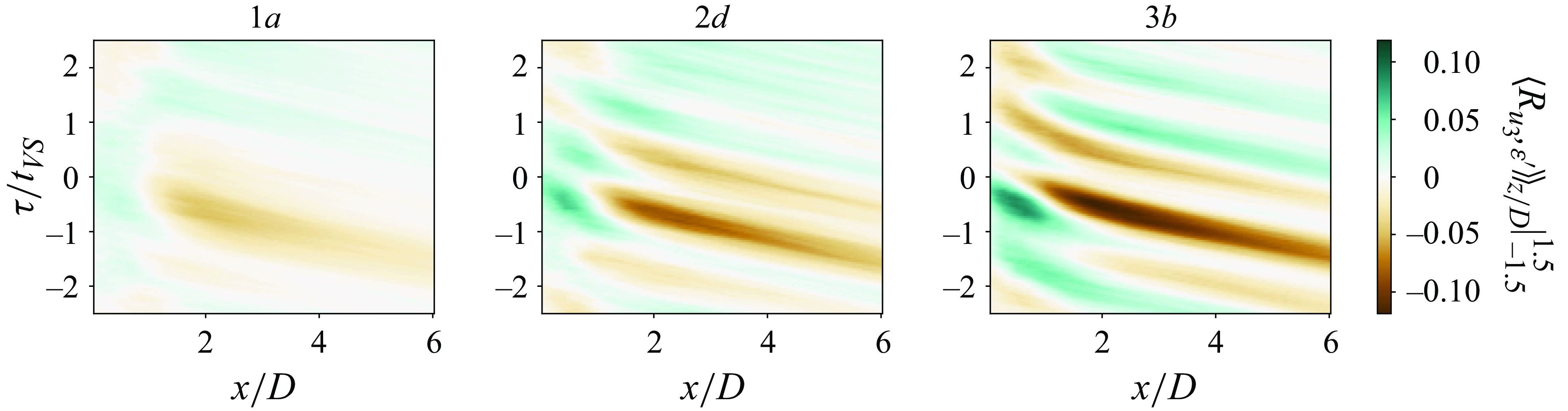

Figure 11. Evolution of $\langle R_{\varepsilon ^{\prime } u_{3}}(x/D, \tau )\rangle _{z/D}\vert _{-1.5}^{1.5}$ along the streamwise direction, for FST cases 1a, 2d, 3b. The time lag of the correlation function $\tau$ is normalised with the vortex shedding temporal scale $t_{\textit{VS}}$ relative to each FST case.

Figure 11 presents the streamwise evolution of $ {\langle }R_{\varepsilon ^{\prime } u_{3}}(x/D,z/D, \tau ) {\rangle }_{z/D} {\vert }_{-1.5}^{1.5}$ for FST cases 1a, 2d, 3b. The increase of $\textit{TI}$ induces a clear increase of the correlation magnitude. The periodicity in the time lag ( $\tau /t_{VS}$ ) of the correlation persists across all cases (because vortex shedding is the dominant flow structure), but with increasing $\textit{TI}$ , the represented structures become sharper and more evident. This again highlights that the increase of $\textit{TI}$ in FST increases the efficiency of the flow at inducing a structural response on the cylinder.

A clear transition from regions of positive to negative correlation magnitudes at fixed streamwise positions as a function of time lag ( $\tau /t_{VS}$ ) can also be seen in figure 11, reflecting the periodic relationship between the strain response and the flow velocity fluctuations downstream. The positive correlation peak at small $x/D$ is indicative of an initial region of the flow in which the fluctuating strain and velocity field are in phase, leading to a positive correlation between the two signals. As $x/D$ increases, the correlation peak becomes negative, whereby the two signals become out of phase, and anti-correlated. This behaviour is not affected by the presence of FST, and is consistent across all the tested cases.

Furthermore, the strain temporally leads the flow as the correlation peaks repeatedly occur at negative time lags, for all tested cases. As $\textit{TI}$ increases, this positive-to-negative transition becomes sharper and more defined, and the correlation magnitude becomes larger, reinforcing the idea that the strain response becomes more closely tied to the flow structures. This further supports the notion that turbulence amplifies the interaction between the flow and the structural response of the cylinder.

6. Contribution of regular vortex shedding as the main coherent flow structure to induced root bending stresses

With the CPSDs presented in figure 10, regular vortex shedding and its modification by the presence of FST has been shown to be the most relevant flow feature contributing to the correlation between the flow and the respective structural dynamics. To assess the influence of FST on the modification of vortex shedding, and its respective influence on the retrieved structural dynamics, we isolate the flow structure in question. This is done by using a modal decomposition technique to identify the vortex shedding mode(s). We are then able to project the PIV velocity fields onto these mode(s) and thereby compute a new set of CPSDs between the fluctuating strain and the vortex-shedding flow structures. In this way we are able to isolate the contribution from vortex shedding to the overall CPSD, and hence indirectly observe the contribution to the CPSDs from the remaining flow structures present within the wake. We choose to use optimal mode decomposition (OMD) using 200 ranks (Wynn et al. Reference Wynn, Pearson, Ganapathisubramani and Goulart2013) to extract the vortex shedding mode(s).

The presence of FST broadens the frequency band associated with regular vortex shedding as seen from figure 6, and in Rind & Castro (Reference Rind and Castro2012), Bourhis & Buxton (Reference Bourhis and Buxton2024) and Ramesh et al. (Reference Ramesh, Morton and Yarusevych2024). The OMD yields a set of individual modes, with similar, but ultimately slightly different characteristic eigenvalues in the frequency range occupied by the vortex shedding. We employ a mode-clustering algorithm to group the relevant modes to reconstruct the most energetic flow structure under analysis. This algorithm is explored in Beit-Sadi, Krol & Wynn (Reference Beit-Sadi, Krol and Wynn2021) and briefly described in Appendix B, and exploits the spatio/temporal similarity and respective energy of the individual modes, to select and cluster them into a global coherent flow structure. Figure 12(a,d) present the real part and characteristic frequency of the clustered OMD mode’s eigenvalues for FST cases 1a and 3b, and the selected and clustered mode representing regular vortex shedding. Figure 12(b,e) represent the reconstructed velocity field produced by the captured coherent flow motion, and figure 12(c, f) represent the quality of the mode clustering reconstruction, by comparing the reconstructed field $\tilde {u}_3/U_1$ and the raw PIV velocity field $u_3^\prime /U_1$ . We focus this analysis on the location of FOV A at the midspan, where regular vortex shedding remains relatively unaffected by 3-D events introduced by the free end of the cylinder.

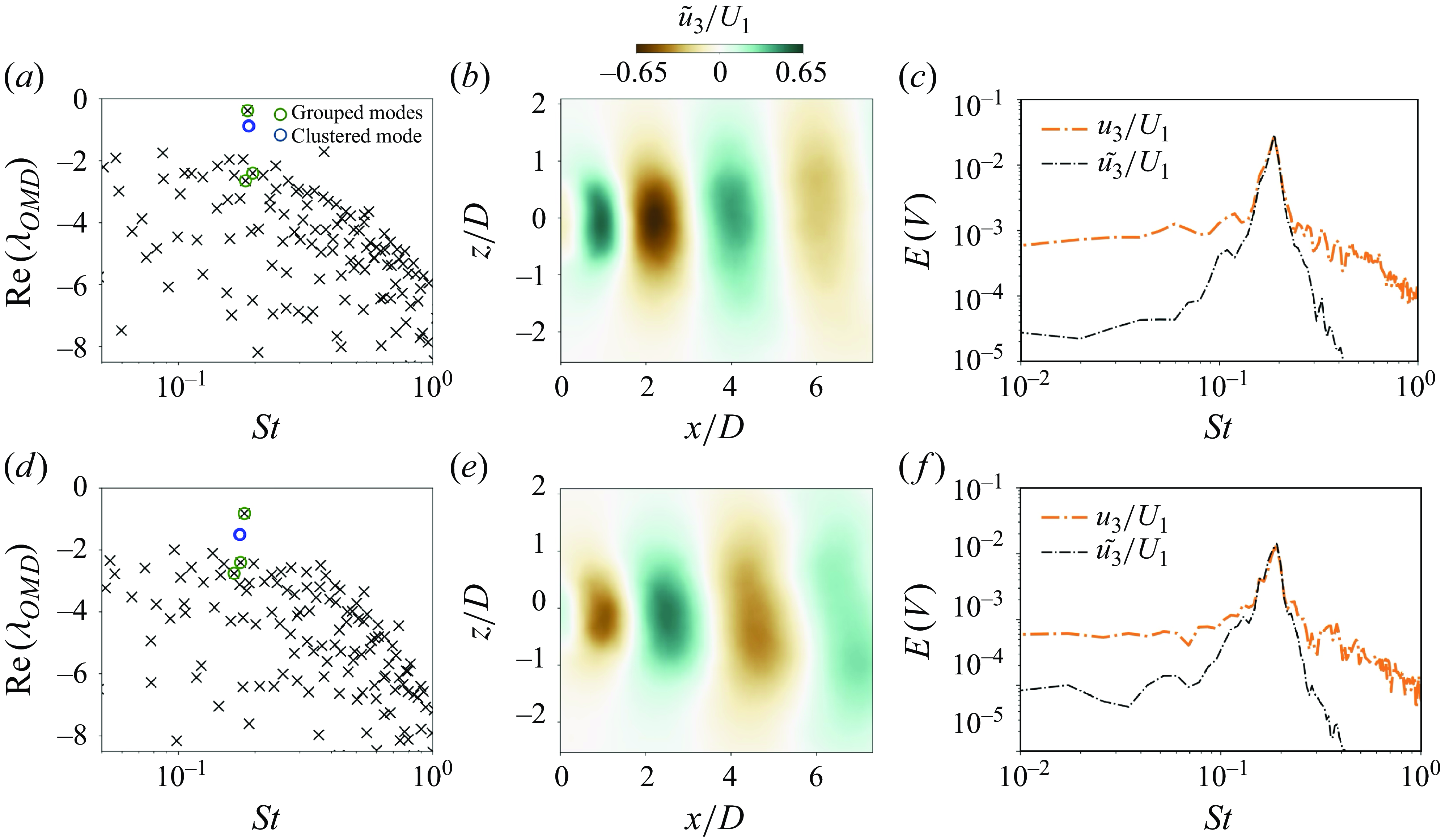

Figure 12. For FST cases (a,b,c) 1a and (d,e,f) 3b: (a) and (d) represent the raw OMD modes, selected and final clustered modes after application of the clustering algorithm (Beit-sadi et al. Reference Beit-Sadi, Krol and Wynn2021); (b) and (e) represent the reconstructed fluctuating velocity fields $\tilde {u}_3/U_1$ at a snapshot $t$ , induced by the coherent motion represented by the clustered mode; and (c) and (f) present the energy spectrum of reconstructed field $\tilde {u}_3/U_1$ , and the raw PIV velocity field.

We now define

(6.1) \begin{equation} \Gamma (x/D, y/D) = \int _{-\infty }^{\infty } \int _{-2}^{2} CPSD(V(x/D,z/D,t), \varepsilon ^{\prime }(y/D,t))\, \mathrm{d}(z/D)\, \mathrm{d}St, \end{equation}

where $V$ consists of either the raw velocity field or the velocity field yielded through projection onto the clustered OMD vortex shedding mode.

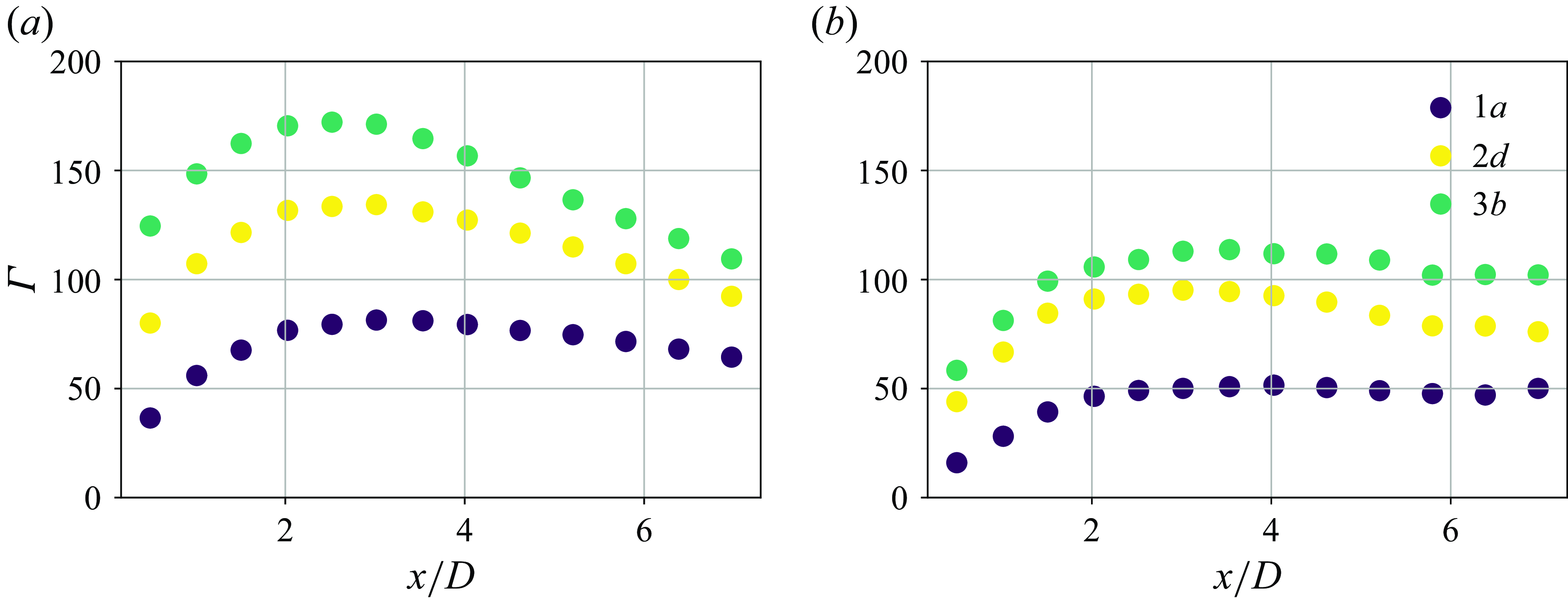

Figure 13. Influence of FST on the evolution of $\Gamma$ computed with (a) the raw PIV velocity field $u_3/U_1$ , and (b) the filtered velocity field by the OMD clustering $\tilde {u_3}/U_1$ , and the fluctuating strain at the FOV A location, similarly to the analysis in figure 10.

Figure 13 demonstrates the impact of FST on the evolution of $\Gamma$ , calculated from both the raw PIV velocity field (figure 13 a) that contains all the flow dynamics, including coherent and incoherent flow structures, and the OMD-filtered field (figure 13 b) isolating vortex shedding. In figure 13(a,b), $\Gamma$ increases with downstream distance $x/D$ , attaining a maximum at the vortex formation extent, indicating that the influence of coherent flow structures, such as vortex shedding, becomes more prominent as they develop in the wake of the cylinder.

The increase of $\textit{TI}$ leads to a larger magnitude of $\Gamma$ computed from the raw and filtered velocity fields. From the CPSDs analysed in figure 10, we have shown that regular vortex shedding is the key flow motion interacting with the structure. However, by filtering this motion and analysing the evolution of $\Gamma$ along the streamwise direction of the flow, we can indirectly see that especially in the near wake, incoherent motions introduced into the wake largely contribute to the ‘energy’ associated with the velocity–strain correlation. As we progress in the streamwise direction, the magnitude of $\Gamma$ in figure 13(a) approximates the magnitude of $\Gamma$ in figure 13(b), representing the decay of the incoherent motions, allowing regular vortex shedding to become the dominant flow structure contributing to the structural dynamics.

To determine the contribution of regular vortex shedding on the previously assessed increase in bending stresses, we analyse the previously defined metric $\gamma$ , applying a bandpass filter within the same limits defined in (4.1). This allows us to isolate the contribution of regular vortex shedding $\gamma ^{VS}$ to $\gamma$ , and compare it to the present incoherent flow motions.

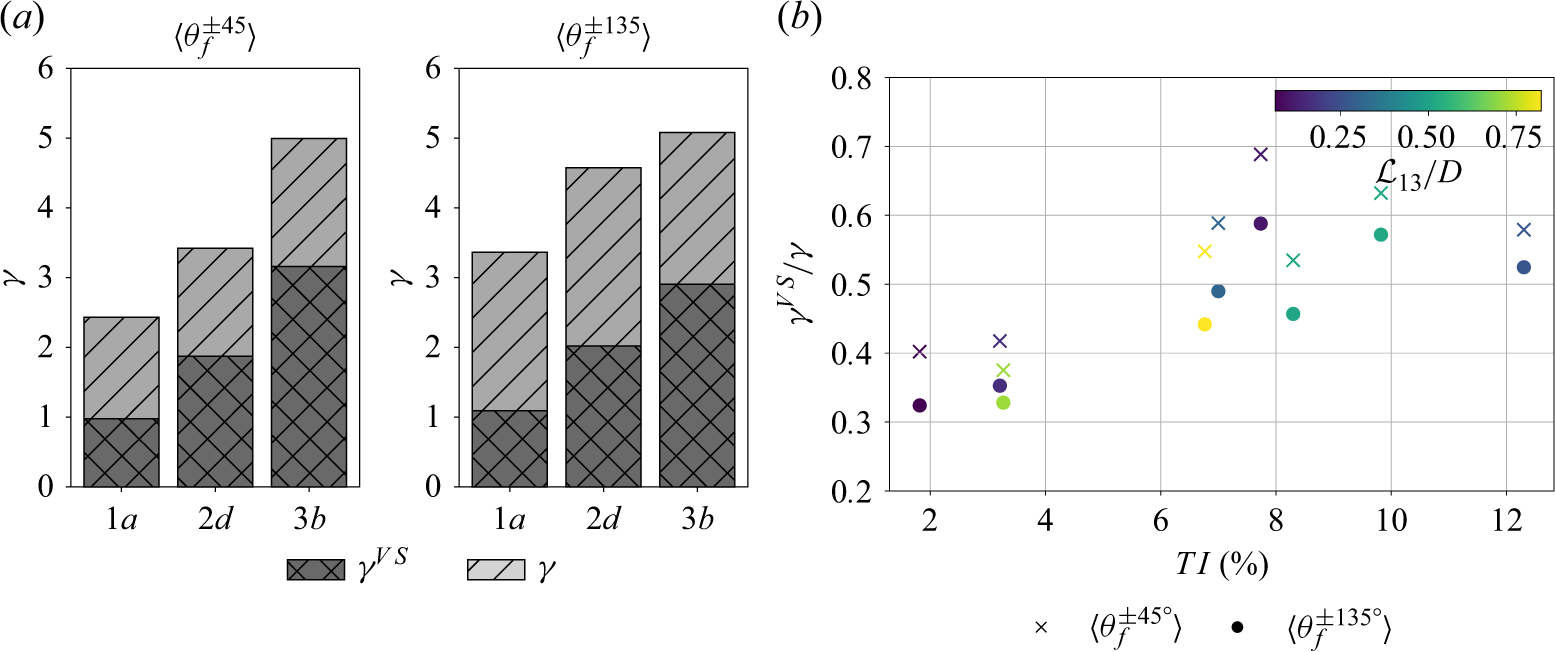

Figure 14. (a) Characterisation of the contribution of regular vortex shedding to $\gamma$ . (b) Relative contribution of regular vortex shedding to $\gamma$ to the global induced root bending moment, for each FST case.

Figure 14(a) presents $\gamma$ and $\gamma ^{VS}$ for FST cases 1a, 2d, 3b averaged between the windward and leeward faces ( $\langle \theta ^{\pm 45^{\circ }} \rangle$ and $\langle \theta ^{\pm 135^{\circ }} \rangle$ ). The increase of $\textit{TI}$ accounts for an increase of both $\gamma$ (as previously seen) and $\gamma ^{VS}$ . The increase of $\gamma ^{VS}$ is in line with the increase of the energy associated with regular vortex shedding in the near wake of the cylinder, introduced by the presence of FST. Both the leeward and windward faces present similar magnitudes for $\gamma ^{VS}$ , suggesting that vortex shedding contributes mainly to the global deformation of the cylinder, inducing similar (but oppositely signed) strain dynamics in the leeward and windward faces. Figure 14(b) presents the evolution of the ratio $\gamma /\gamma ^{VS}$ for each FST condition. The increase of $\textit{TI}$ in FST accounts for a global increase in the contribution of the fluctuating root bending moment stresses in both faces, with the leeward face consistently presenting a smaller contribution from regular vortex shedding. This is likely to be introduced by the direct proximity between the several flow structures generated on wake that actively impact this surface. As seen from the autocorrelation evolution of the fluctuating strain on the windward face of the cylinder (see figure 8), this region is mainly affected by the dynamics vortex shedding, in line with the larger $\gamma /\gamma ^{VS}$ .

7. Experimental outcomes

In this study, we set out to investigate the influence of FST on the fluctuating loads experienced by a cylinder exposed to a turbulent cross-flow. The questions posed at the outset were crucial in guiding our analysis, and the following key insights were drawn.

  1. (i) Impact of different flavours of FST on load fluctuations. The $\textit{TI}$ presented a positive correlation with the cylinder’s tip deflection (a surrogate for the experienced fluctuating drag by the cylinder) and root bending stresses. Moreover, despite being smaller than the cylinder’s reference scale ( $D$ ) for all the test cases, $\mathcal{L}_{13}/D$ presented a non-monotonic correlation with the experienced root bending stresses with a local maxima at $\mathcal{L}_{13}/D \approx 0.5$ .

  2. (ii) Influence of FST direct and indirect mechanisms. We have successfuly identified contributions arising from both direct and indirect mechanisms, highlighting the different dynamics impacting the windward and leeward faces of a rigid body, driven by the immediate surrounding flow phenomena. However, the structural dynamics were mainly governed by the indirect mechanisms, as the presence of FST increased the spanwise coherence of the shed vortices from the cylinder, and their relative energy content, somewhat ‘overcoming’ the natural inhomogeneous shedding induced by the boundary conditions at the free end of the cylinder. This in turn resulted in a larger spectral coherence between the measured structural and flow dynamics.

  3. (iii) Impact of FST on the spatial and temporal coherence of loads. The introduction of FST and relative increase of $\textit{TI}$ in the free-stream resulted in

    1. (a) a larger coherence of the structural dynamics as a direct impact from the increased coherence of regular shedding by the cylinder

    2. (b) shorter correlation temporal scales of the fluctuating structural dynamics indicating more frequent stress cycles imposed by the presence of FST.

  4. (iv) Flow-induced mechanisms governing the cylinder’s structural response. The key flow-induced mechanisms governing the structural response under different FST conditions were tied to changes in the wake dynamics and vortex shedding. Increased $\textit{TI}$ in the FST was linked to an enhanced magnitude of both the temporal and spectral correlations between the strain and flow dynamics. This was driven by an increased energy of regular vortex shedding closer to the cylinder, and a larger spanwise coherence associated with this flow structure. In addition, the introduced small-scale dynamics by FST presented a negligible correlation with the cylinder’s structural dynamics. This suggests that the cylinder acts as a low-pass filter, influenced mainly by how the introduced FST dynamics modulate the regular shedding developing in the cylinder’s wake.

The insights gained not only advance our knowledge of turbulence-induced loading but also have practical implications for the design of structures subjected to turbulent flows, such as in offshore engineering and wind turbine design, where similar flow conditions are encountered. Moreover, these findings are also relevant to natural systems, such as trees and vegetation, which are continuously exposed to turbulent wind conditions and experience dynamic loading that influences their structural stability, growth patterns and long-term adaptation to the environment (Vogel Reference Vogel1996; James Reference James2003). Understanding these effects is crucial for improving biomechanical models of plant response to wind, and informing ecological and agricultural studies on the impact of turbulent flows on vegetation.

8. Conclusions

The effect of free-stream turbulence (FST) on the flow dynamics and on the structural response of a cantilevered cylinder with aspect ratio $\approx 10$ , exposed to a turbulent cross-flow, was assessed. To do so, a combination of 2-D PIV and RBS was used, capturing the flow velocity field and structural response concurrently. Thanks to the spatial information retrieved by the RBS network, we are able to assess the influence of the developing flow structures on the flow along the extent of the cylinder, before and after the shear-layer separation of the flow, allowing us to assess the direct and indirect effects of FST. The cylinder was exposed to different conditions of FST, exploring different ‘flavours’ of FST, to individually explore the effects of $\mathcal{L}_{13}/D$ and $\textit{TI}$ . Due to the 3-D nature of the flow under analysis, two FOVs were used at different spanwise locations to characterise the flow structures shed by the cylinder. The FOVs focused on regions upstream and downstream of the cylinder, capturing the free-stream and near-wake conditions to which the cylinder was subjected concurrently to the distributed structural strain.

The presence of FST was seen to affect the structural dynamics of the cylinder through three mechanisms: (i) reduced vortex formation length, (ii) increased energy associated with wake flow structures, and (iii) an enhanced spanwise coherence of these structures. Together, these factors intensify the cylinder’s structural response. Specifically, FST increased the time-averaged loads by shifting the vortex formation region closer to the cylinder, thereby amplifying the root bending moment. These were further evidenced by increased strain fluctuation coherence along the cylinder’s span, with the increase of $\textit{TI}$ in FST.

Regular vortex shedding was seen to be energised especially in the near wake, with the increase of $\textit{TI}$ in FST, which mapped into a larger load magnitude associated with this flow structure. This increase was evident in the cross-power spectral densities between the velocity and strain fields, indicating a stronger correlation between flow fluctuations and the structural response under higher turbulence intensities. Our results also showed that FST tended to homogenise the strain dynamics across the cylinder’s leeward and windward faces, suggesting that FST reduces spatial variations in response, and reinforces the dominant role of coherent flow structures such as vortex shedding.

Through modal decomposition, we isolated the impact of vortex shedding, which was identified as the main contributor to the increased bending stresses under FST. This allowed us to quantify the impact of these coherent flow structures isolation, assessing their relevance to the contribution to the global coupling of the structural and flow dynamics. Despite being the largest contributor for the respective structural dynamics, the near-wake correlation to the structural dynamics still shows a large impact of small scales and other near-wake flow structures.

Declaration of interests

The authors report no conflict of interest.

Data availability statement

Data are available upon request to the corresponding author. For the purpose of open access, the authors have applied a Creative Commons Attribution (CC BY) licence to any Author Accepted Manuscript (AAM) version arising.

Appendix A. Details on the generation of FST

To experimentally generate a broad range of FST ‘flavours’ parametrised in the space $(\textit{TI}, \mathcal{L}_{13}/D)$ , we follow the same methodology as described in Kankanwadi & Buxton (Reference Kankanwadi and Buxton2020, Reference Kankanwadi and Buxton2023) and Chen & Buxton (Reference Chen and Buxton2023). This is done by placing different turbulence-generating grids at several distances upstream of the cylinder. By changing the distance between the grids and the cylinder, we leverage the streamwise turbulent decay from the flow at the grid’s location, to generate different incoming FST conditions. Grids of two types were employed: square fractal grids (SFGs) and square regular grids (SRGs). These grids were designed by Kankanwadi & Buxton (Reference Kankanwadi and Buxton2020) to create varying turbulence intensities and integral length scales. The grids were laser-cut from $10$ mm thick Perspex to ensure precision in geometry and uniformity in structure. Here, we give a brief overview of the grid characteristics, whilst for more information on the grids and their manufacturing, the reader is referred to Kankanwadi & Buxton (Reference Kankanwadi and Buxton2020).

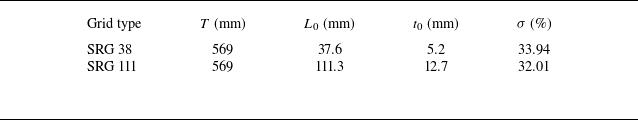

Table 3. Regular grids nomenclature and characteristics.

  1. (i) The SFGs featured a multi-scale pattern with four iterative subdivisions ( $N=4$ ), each scaled according to a predefined length ratio ( $R_L$ ) and thickness ratio ( $R_t$ ). The use of fractal grids provides greater control over turbulence characteristics, allowing for the independent tuning of $\textit{TI}$ and integral length scale. Additionally, fractal grids elongate both the production and decay regions of turbulence, enabling the generation of flows with the same $\textit{TI}$ but different length scales (Melina, Bruce & Vassilicos Reference Melina, Bruce and Vassilicos2016). The blockage ratio ( $\sigma$ ) for the SFGs varied between $33.8$ % and $34.5$ %.

  2. (ii) The SRGs comprised uniformly spaced square bars, providing a reference case for conventional grid-generated turbulence. The two tested SRGs differed primarily in bar spacing and characteristic length scale ( $L_0$ ), resulting in blockage ratios $32.0$ % and $33.9$ %.

The detailed geometrical specifications of the grids are summarised in tables 3 and 4. The grids used to generate each of the FST ‘flavours’ introduced in figure 2, and explored in this work, are detailed in table 5, together with their respective distances to the cylinder. The placements of the grids and respective distances to the cylinder were chosen based on previous work conducted with the same grids, in the same facility (Kankanwadi & Buxton Reference Kankanwadi and Buxton2020, Reference Kankanwadi and Buxton2023; Chen & Buxton Reference Chen and Buxton2023).

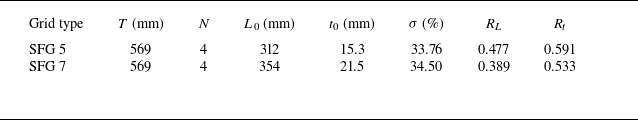

Table 4. Square fractal grids nomenclature and characteristics.

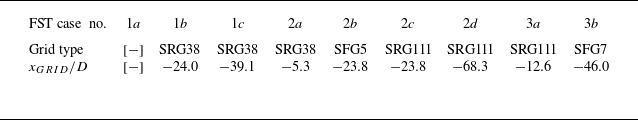

Table 5. Grid specifications and nomenclature.

Appendix B. Mode clustering algorithm

Here, we give a short and general overview of the algorithm developed in Beit-Sadi et al. (Reference Beit-Sadi, Krol and Wynn2021). After employing OMD appealing to the modal expansion, we have

(B1) \begin{equation} x_j \approx \sum _{i=1}^{r}\alpha _i\phi _i^{*}e^{\lambda ^{*}_i}, \end{equation}

where $\phi _i\in \mathcal{C}^{p}$ corresponds to the OMD modes with associated eigenvalue $\lambda ^{*}_i$ , and $\alpha _i\in \mathcal{C}$ are the coefficients associated with the modes obtained from the projection of $\phi _i$ onto the temporal velocity snapshots. We cluster the available modes with characteristic frequency $St_i$ , taking into account their spectral and spatial similarity, defined respectively as

(B2) \begin{equation} \epsilon _{ij} = \cos\left(\sin^{-1}(\| \phi _i - \phi _j(\phi _i^{\rm T}\phi _j)\|_2)\right), \end{equation}
(B3) \begin{align} s_{ij} = \frac {1}{1+\vert St_i-St_j\vert ^{2}}. \\[6pt] \nonumber \end{align}

Having computed the spatial $\epsilon _{ij}$ and spectral $s_{ij}$ similarity matrices, we define the clustering matrix:

(B4) \begin{equation} d_{ij} = \begin{cases} 1 & \text{if } \epsilon _{ij} - \delta _{ij} \geqslant \epsilon _0 \, \mathrm{and} \, s_{ij} \geqslant s_0, \\[6pt] 0 & \text{if } \epsilon _{ij} - \delta _{ij} \lt \epsilon _0 \, \mathrm{and} \, s_{ij} \lt s_0, \end{cases} \end{equation}

where $\epsilon _0$ and $s_{0}$ represent user-defined cut-off parameters defined for $0\leqslant \epsilon _0\leqslant 1$ and $0\leqslant s_{0}\leqslant 1$ . The final similarity matrix $d_{ij}$ is then computed iteratively by scanning through the available modes provided by OMD, grouping similar modes defined by $d_{ij}=1$ . Given that the most energetic and coherent flow structure present is vortex shedding, the algorithm creates a single cluster $\mathcal{M}_{VS}$ , defined by the set of modes selected, $\mathcal{C}_{M} := \{\phi _{d_{ij}==1}\}$ :

(B5) \begin{equation} \mathcal{M}_{VS} = \textit{SVD}(\mathcal{C}_{M}\{\phi _{d_{ij}==1}\}). \end{equation}

The spectral similarity cut-off parameter was set to be $s_{0} = 0.3$ , ensuring that enough modes centred around vortex shedding were assessed for whether or not to be clustered. Figure 15(a) presents the mode selection with (B3) for FST case 3b with $s_{0} = 0.3$ , resulting in $N_T = 38$ modes to be assessed. The spatial similarity cut-off parameter was set to be $\epsilon _0 = 0.8$ , minimising the number of clustered modes selected, and ensuring the algorithm’s convergence; i.e. increasing the cut-off value beyond this point did not affect the selected modes to be clustered – see figure 15(b). The decay rate and associated frequency of the final mode cluster are estimated from the clustered group of modes real and imaginary parts of their respective eigenvalues as

(B6) \begin{equation} \text{Im}_{\mathcal{M}_{VS}} = \frac {1}{\#{\phi _{d_{ij}}==1}}\sum _{i\in \mathcal{C}_{M}\{\phi _{d_{ij}}==1\}} \text{Im}(\lambda _i^{*}), \end{equation}
(B7) \begin{align} \text{Re}_{\mathcal{M}_{VS}} = \left (\frac {1}{\#{\phi _{d_{ij}}==1}}\sum _{i\in \mathcal{C}_{M}\{\phi _{d_{ij}}==1\}} 1/\text{Re}(\lambda _i^{*})\right ) ^{-1} \\[6pt] \nonumber ,\end{align}

where $\#{\phi _{ij}==1}$ corresponds to the number of modes forming the cluster $\mathcal{C}_{M}\{\phi _{d_{ij}}==1\}$ .

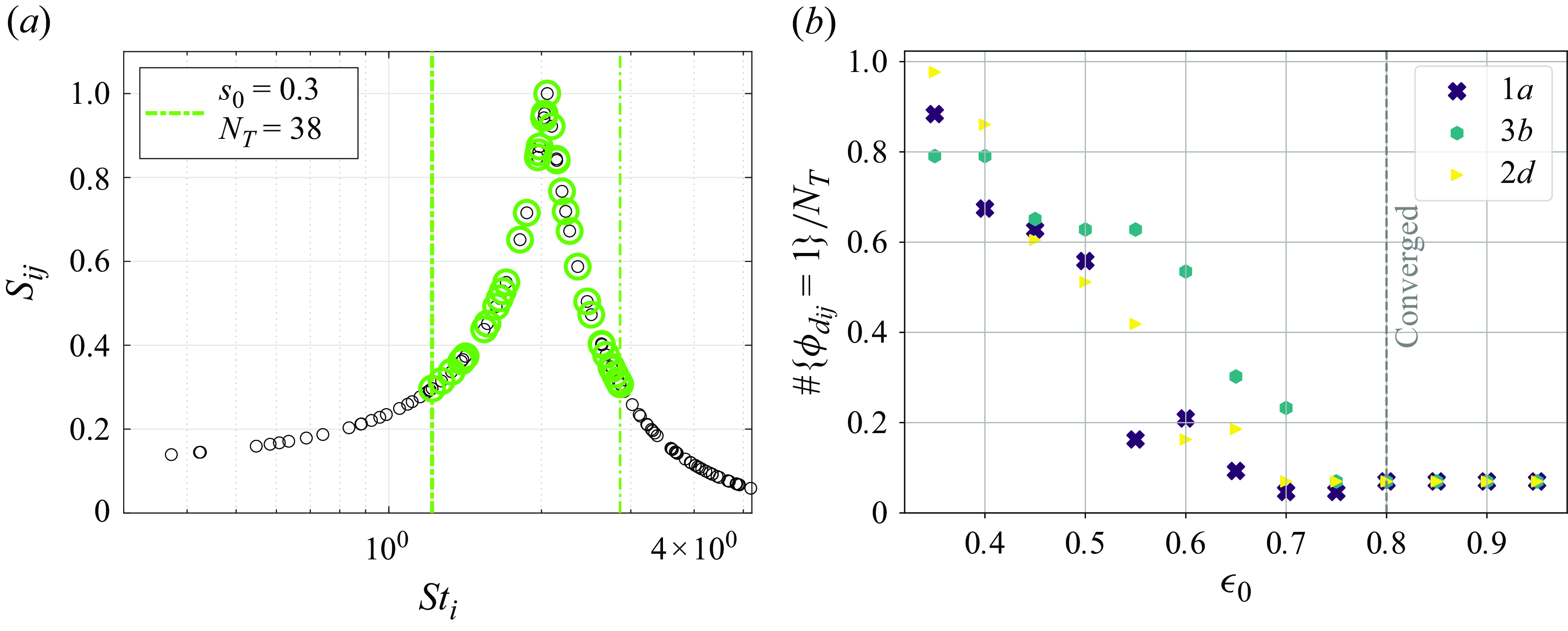

Figure 15. (a) Selection of modes from spectral similarity around the vortex shedding. (b) Convergence of the algorithm with the increase of the spatial similarity cut-off parameter.

References

Bearman, P.W. & Morel, T. 1983 Effect of free stream turbulence on the flow around bluff bodies. Prog. Aerosp. Sci. 20 (2–3), 97123.CrossRefGoogle Scholar
Beit-Sadi, M., Krol, J. & Wynn, A. 2021 Data-driven feature identification and sparse representation of turbulent flows. Intl J. Heat Fluid Flow 88, 108766.CrossRefGoogle Scholar
Bourhis, M. & Buxton, O.R.H. 2024 Influence of freestream turbulence and porosity on porous disk-generated wakes. Phys. Rev. Fluids 9 (12), 124501.CrossRefGoogle Scholar
Chamorro, L.P. & Porté-Agel, F. 2011 Turbulent flow inside and above a wind farm: a wind-tunnel study. Energies 4 (11), 19161936.CrossRefGoogle Scholar
Chen, J. & Buxton, O.R.H. 2023 Spatial evolution of the turbulent/turbulent interface geometry in a cylinder wake. J. Fluid Mech. 969, A4.CrossRefGoogle Scholar
Christensen, K.T. 2004 The influence of peak-locking errors on turbulence statistics computed from PIV ensembles. Exp. Fluids 36 (3), 484497.CrossRefGoogle Scholar
Cicolin, M.M., Buxton, O.R.H., Assi, G.R.S. & Bearman, P.W. 2021 The role of separation on the forces acting on a circular cylinder with a control rod. J. Fluid Mech. 915, A33.CrossRefGoogle Scholar
Crane, R.J., Popinhak, A.R., Martinuzzi, R.J. & Morton, C. 2021 Tomographic PIV investigation of vortex shedding topology for a cantilevered circular cylinder. J. Fluid Mech. 931, R1.CrossRefGoogle Scholar
Essel, E.E., Tachie, M.F. & Balachandar, R. 2021 Time-resolved wake dynamics of finite wall-mounted circular cylinders submerged in a turbulent boundary layer. J. Fluid Mech. 917, A8.CrossRefGoogle Scholar
G. de Oliveira, F.J., Sharif Khodaei, Z. & Buxton, O.R.H. 2024 Simultaneous measurement of the distributed longitudinal strain and velocity field for a cantilevered cylinder exposed to turbulent cross flow. Exp. Fluids 65 (134), 112.CrossRefGoogle Scholar
Farivar, D. 1981 Turbulent uniform flow around cylinders of finite length. AIAA J. 19 (3), 275281.CrossRefGoogle Scholar
Fox, T.A. & Adcroft, C.J. 1993 Fluid-induced loading of cantilevered circular cylinders in a low-turbulence uniform flow. Part 3: Fluctuating loads with aspect ratios of 4 to 25. J. Fluids Struct. 7 (4), 375386.CrossRefGoogle Scholar
Fox, T.A.A. & Apelt, C.J. 1993 a Fluid-induced loading of cantilevered circular cylinders in a low-turbulence uniform flow. Part 1: Mean loading with aspect ratios in the range 4 to 30. J. Fluids Struct. 7 (1), 114.CrossRefGoogle Scholar
Fox, T.A.A. & Apelt, C.J. 1993 b Fluid-induced loading of cantilevered circular cylinders in a low-turbulence uniform flow. Part 2: Fluctuating loads on a cantilever of aspect ratio 30. J. Fluids Struct. 7 (1), 1528.CrossRefGoogle Scholar
Gerrard, J.H. 1965 The mechanics of the formation region of vortices behind bluff bodies. J. Fluid Mech. 25 (2), 401413.CrossRefGoogle Scholar
Hain, R., Kähler, C.J. & Michaelis, D. 2008 Tomographic and time resolved PIV measurements on a finite cylinder mounted on a flat plate. Exp. Fluids 45 (4), 715724.CrossRefGoogle Scholar
James, K. 2003 Dynamic loading of trees. J. Arboriculture 29 (3), 165171.Google Scholar
Jin, W., Zhou, Y., Chan, P.K.C. & Xu, H.G. 2000 A fibre-optic grating sensor for the study of flow-induced vibrations. Sensors Actuators 79, 3645.CrossRefGoogle Scholar
Kankanwadi, K. & Buxton, O.R.H. 2020 Turbulent entrainment into a cylinder wake from a turbulent background. J. Fluid Mech. 905, A35.CrossRefGoogle Scholar
Kankanwadi, K. & Buxton, O.R.H. 2023 Influence of freestream turbulence on the near-field growth of a turbulent cylinder wake: turbulent entrainment and wake meandering. Phys. Rev. Fluids 8 (3), 034603.CrossRefGoogle Scholar
Khabbouchi, I., Fellouah, H., Ferchichi, M. & Guellouz, M.S. 2014 Effects of free-stream turbulence and Reynolds number on the separated shear layer from a circular cylinder. J. Wind Engng Ind. Aerodyn. 135, 4656.CrossRefGoogle Scholar
Li, Y. & Sharif-Khodaei, Z. 2025 Shape sensing of composite shell using distributed fibre optic sensing. Intl J. Mech. Sci. 286, 109859.CrossRefGoogle Scholar
Maryami, R., Aki, S.A.S., Azarpeyvand, M. & Afshari, A. 2020 Turbulent flow interaction with a circular cylinder. Phys. Fluids 32 (1), 015105.CrossRefGoogle Scholar
Melina, G., Bruce, P.J.K. & Vassilicos, J.C. 2016 Vortex shedding effects in grid-generated turbulence. Phys. Rev. Fluids 1 (4), 044402.CrossRefGoogle Scholar
Nakayama, H., Takemi, T. & Nagai, H. 2011 LES analysis of the aerodynamic surface properties for turbulent flows over building arrays with various geometries. J. Appl. Meteorol. Climatol. 50 (8), 16921712.CrossRefGoogle Scholar
Norberg, C. & Sunden, B. 1987 Turbulence and Reynolds number effects on the flow and fluid forces on a single cylinder in cross flow. J. Fluids Struct. 1 (3), 337357.CrossRefGoogle Scholar
Okamoto, T. & Yagita, M. 1973 The experimental investigation on the flow past a circular cylinder of finite length placed normal to the plane surface in a uniform stream. Bull. Japan Soc. Mech. Engrs 78 (95), 805814.CrossRefGoogle Scholar
Porteous, R., Moreau, D. & Doolan, C.J. 2014 A review of flow-induced noise from finite wall-mounted cylinders. J. Fluids Struct. 51, 240254.CrossRefGoogle Scholar
Ramesh, N.T., Morton, C. & Yarusevych, S. 2024 Vortex-induced vibrations in the presence of moderate freestream turbulence. Phys. Fluids 36 (2), 027121.CrossRefGoogle Scholar
Rind, E. & Castro, I.P. 2012 On the effects of free-stream turbulence on axisymmetric disc wakes. Exp. Fluids 53 (2), 301318.CrossRefGoogle Scholar
Roshko, A. 1954 On the development of turbulent wakes from vortex streets. Report 1191. National Advisory Committee for Aeronautics, California Institute of Technology, pp.1–25.Google Scholar
Scharnowski, S., Bross, M. & Kähler, C.J. 2019 Accurate turbulence level estimations using PIV/PTV. Exp. Fluids 60 (1), 112.CrossRefGoogle Scholar
Sellier, D., Brunet, Y. & Fourcaud, T. 2008 A numerical model of tree aerodynamic response to a turbulent airflow. Forestry 81 (3), 279297.CrossRefGoogle Scholar
Stevens, R.J.A.M. & Meneveau, C. 2017 Flow structure and turbulence in wind farms. Annu. Rev. Fluid Mech. 49 (1), 311339.CrossRefGoogle Scholar
Surry, D. 1972 Some effects of intense turbulence on the aerodynamics of a circular cylinder at subcritical Reynolds number. J. Fluid Mech. 52 (3), 543563.CrossRefGoogle Scholar
de la Torre, O., Floris, I., Sales, S. & Escaler, X. 2021 Fiber Bragg grating sensors for underwater vibration measurement: potential hydropower applications. Sensors (Basel) 21 (13), 4272.CrossRefGoogle ScholarPubMed
Uematsu, Y., Yamada, M. & Ishii, K. 1990 Some effects of free-stream turbulence on the flow past a cantilevered circular cylinder. J. Wind Engng Ind. Aerodyn. 33 (1–2), 4352.CrossRefGoogle Scholar
Vogel, S. 1996 Blowing in the wind: storm-resisting features of the design of trees. J. Arboriculture 22 (2), 9298.Google Scholar
Wang, L. & Fan, X. 2019 Failure cases of high chimneys: a review. Engng Failure Anal. 105, 11071117.CrossRefGoogle Scholar
Wang, L., Liang, S., Huang, G., Song, J. & Zou, L. 2018 Investigation on the unstability of vortex induced resonance of high-rise buildings. J. Wind Engng Ind. Aerodyn. 175, 1731.CrossRefGoogle Scholar
Wang, P., Wong, C.W. & Zhou, Y. 2019 Turbulent intensity effect on axial-flow-induced cylinder vibration in the presence of a neighboring cylinder. J. Fluids Struct. 85, 7793.CrossRefGoogle Scholar
West, G.S. & Apelt, C.J. 1993 Measurements of fluctuating pressures and forces on a circular cylinder in the Reynolds number range 104 to 2.5 × 105. J. Fluids Struct. 7 (3), 227244.CrossRefGoogle Scholar
Williamson, C.H. 1996 Vortex dynamics in the cylinder wake. Annu. Rev. Fluid Mech. 28 (1), 477539.CrossRefGoogle Scholar
Wynn, A., Pearson, D.S., Ganapathisubramani, B. & Goulart, P.J. 2013 Optimal mode decomposition for unsteady flows. J. Fluid Mech. 733, 473503.CrossRefGoogle Scholar
Xu, C. & Sharif Khodaei, Z. 2020 Shape sensing with Rayleigh backscattering fibre optic sensor. Sensors (Basel) 20 (14), 4040.CrossRefGoogle ScholarPubMed
Zdravkovich, M.M. 1997 Flow Around Circular Cylinders: Volume 1: Fundamentals. Oxford University Press.CrossRefGoogle Scholar
Zhou, Y., So, R.M.C., Jin, W., Xu, H.G. & Chan, P.K.C. 1999 Dynamic strain measurements of a circular cylinder in a cross flow using a fibre Bragg grating sensor. Exp. Fluids 27 (4), 359367.CrossRefGoogle Scholar
Zhou, Y., Wang, Z.J., So, R.M.C., Xu, S.J. & Jin, W. 2001 Free vibrations of two side-by-side cylinders in a cross-flow. J. Fluid Mech. 443, 197229.CrossRefGoogle Scholar
Figure 0

Figure 1. (a) Experimental schematic layout: fibre optic sensing path, fields of view captured, and representation of the main flow events over the cylinder. Both endings of the cylinder are flat-bottomed, and the top of the cylinder is mounted directly to the frame above the water tunnel. The Cartesian spatial coordinate system is represented in the figure, where $y$ corresponds to the spanwise direction of the cylinder, $x$ to the streamwise direction, and $z$ to the transverse direction of the flow. (b) Polar location, and respective nomenclature, for the fibre path.

Figure 1

Figure 2. (a) The FST $(\mathcal{L}_{13}/D, \textit{TI}\, \%)$ parameter space tested. Groups are defined based on their $\textit{TI}$, to explore within each group the effect of increasing $\mathcal{L}_{13}$. (b) Velocity magnitude from PIV snapshots captured in FOV A for the FST conditions described by cases 1a, no FST, and 3b, high $\textit{TI}$ and $\mathcal{L}_{13}/D \approx 0.5$. The black circle corresponds to the position of the cylinder during the experimental tests, and the grey region to the shadow originating from the positioning of the cylinder with respect to the laser sheet.

Figure 2

Table 1. Experimental conditions for the different captured FOVs. Here, $\Delta x$ and $N_{VS}$ correspond, respectively, to the spatial resolution of the experiments for each acquired FOV, and the number of vortex-shedding cycles captured.

Figure 3

Figure 3. (a) Time-averaged strain ($\overline {\varepsilon }$, solid line) and reconstructed deflection field ($\overline {\delta }$, dot-dashed line) obtained by $\theta _f^{\alpha }$, $\alpha \in \{45^{\circ}, -45^{\circ}, 135^{\circ}, -135^{\circ}\}$, respectively represented by , , and . The waviness in the strain distribution is related to the non-uniformity wall thickness of the cylinder, due to its manufacturing process. (b) Averaged normalised tip deflection ($\delta _{\textit{tip}}/L$) for each FST case.

Figure 4

Table 2. Free-stream incoming flow velocities for each FST case.

Figure 5

Figure 4. Fluctuating root bending stresses, characterised by $\gamma$, with respect to (a) $\textit{TI}$ and (b) $\mathcal{L}_{13}/D$ content in the free-stream.Here, $m$ corresponds to the slope of the linear best fit of the evolution of $\gamma$ with $\textit{TI}$.

Figure 6

Figure 5. Vortex formation length ($x^{*}/D \rightarrow \max(rms(\boldsymbol{u}_3^{\prime }(-1.5\lt z/D\lt 1.5)))$) variation of the wake of the cylinder, for each of the FST conditions tested, and each FOV interrogated: (a) FOV A, (b) FOV B.

Figure 7

Figure 6. For FST cases 1a, 2d, 3b: (a) energy spectra of the measured fluctuating strain $\varepsilon '$ for $\theta _f^{\alpha }$ with $\alpha = -45^{\circ }, -135^{\circ }$ at various spanwise positions (notice how the FOV locations are highlighted); (b) energy spectra of $u_3$ along the transverse direction of the flow at $x/D = 0.5, 1.5, 2.5$.

Figure 8

Figure 7. Streamwise evolution of the energy of $u_3/U_1$ associated with regular vortex shedding for the tested FST conditions, in (a) FOV A and (b) FOV B. The greyed-out scattered points correspond to the remaining FST cases tested, labelled and described as in figure 2(a).

Figure 9

Figure 8. Autocorrelation functions (a) $R_{\varepsilon ^{\prime }}(r/D)$ and (b) $R_{\varepsilon ^{\prime }_{VS}}(r/D)$ along the spanwise extent of the cylinder, highlighting cases 1a, 2d, 3b. The greyed-out scattered points correspond to the remaining FST cases tested, labelled and described as in figure 2(a).

Figure 10

Figure 9. (a) Autocorrelation function of $R_{\varepsilon ^{\prime }}(\tau )$ along the spanwise extent of the cylinder, for 1a (black) $1a$, 2d (yellow)$2d$ and 3b (green)$3b$. (b) Autocorrelation temporal scale of the fluctuating strain signal $\tau _{\varepsilon ^{\prime }}/t_{VS}$ normalised by the characteristic vortex shedding temporal scale, as a function of $\textit{TI}$ experienced by the cylinder under each FST case considered, averaged between the two sensing lines on the windward and leeward faces of the cylinder.

Figure 11

Figure 10. Magnitude of the CPSD between $\varepsilon ^{\prime }$ and $u_3$, for cases 1a, 2d, 3b, with velocity information extracted from (a) FOV A and (b) FOV B. The correlation is performed with the induced strain at the FOV spanwise location. For $x/D\lt 0$, the windward fibres are used to compute the cross-correlation.

Figure 12

Figure 11. Evolution of $\langle R_{\varepsilon ^{\prime } u_{3}}(x/D, \tau )\rangle _{z/D}\vert _{-1.5}^{1.5}$ along the streamwise direction, for FST cases 1a, 2d, 3b. The time lag of the correlation function $\tau$ is normalised with the vortex shedding temporal scale $t_{\textit{VS}}$ relative to each FST case.

Figure 13

Figure 12. For FST cases (a,b,c) 1a and (d,e,f) 3b: (a) and (d) represent the raw OMD modes, selected and final clustered modes after application of the clustering algorithm (Beit-sadi et al.2021); (b) and (e) represent the reconstructed fluctuating velocity fields $\tilde {u}_3/U_1$ at a snapshot $t$, induced by the coherent motion represented by the clustered mode; and (c) and (f) present the energy spectrum of reconstructed field $\tilde {u}_3/U_1$, and the raw PIV velocity field.

Figure 14

Figure 13. Influence of FST on the evolution of $\Gamma$ computed with (a) the raw PIV velocity field $u_3/U_1$, and (b) the filtered velocity field by the OMD clustering $\tilde {u_3}/U_1$, and the fluctuating strain at the FOV A location, similarly to the analysis in figure 10.

Figure 15

Figure 14. (a) Characterisation of the contribution of regular vortex shedding to $\gamma$. (b) Relative contribution of regular vortex shedding to $\gamma$ to the global induced root bending moment, for each FST case.

Figure 16

Table 3. Regular grids nomenclature and characteristics.

Figure 17

Table 4. Square fractal grids nomenclature and characteristics.

Figure 18

Table 5. Grid specifications and nomenclature.

Figure 19

Figure 15. (a) Selection of modes from spectral similarity around the vortex shedding. (b) Convergence of the algorithm with the increase of the spatial similarity cut-off parameter.
