Turbulence-resolving integral simulations for wall-bounded flows

Abstract

The physical fidelity of turbulence models can benefit from a partial resolution of fluctuations, but doing so often comes with an increase in computational cost. To explore this trade-off in the context of wall-bounded flows, this paper introduces a framework for turbulence-resolving integral simulations (TRIS) with the goal of efficiently resolving the largest motions using a two-dimensional, three-component representation of the flow defined by instantaneous wall-normal integrals of velocity and pressure. Self-sustaining turbulence with qualitatively realistic large-scale structures is demonstrated for TRIS on an open-channel (half-channel) flow configuration using moment-of-momentum integral equations derived from Navier–Stokes with relatively simple closure approximations. Evidence from direct numerical simulations (DNS) suggests that TRIS can theoretically resolve $35\,\%{-}40\,\%$ of the turbulent skin friction enhancement for friction Reynolds numbers between $180$ and $5200$, without a noticeable decrease or increase as a function of Reynolds number. The current implementation of TRIS can match this resolution while simulating one flow through time in ${\sim}1$ minute on a single processor, even for very large Reynolds numbers. The framework facilitates a detailed apples-to-apples comparison of predicted statistics against data from DNS. Comparisons at friction Reynolds numbers of $395$ and $590$ show that TRIS generates a relatively accurate representation of the flow, while highlighting discrepancies that demonstrate a need for improving the closure models. The present results for open-channel flow represent a proof of concept for TRIS as a new approach for wall-bounded turbulence modelling, motivating extension to more general flow configurations such as boundary layers on immersed objects.

1. Introduction

The wide range of scales involved in turbulent boundary layers and other forms of wall-bounded turbulence, common to many engineering and natural flows, presents a difficult challenge to computational modelling and prediction efforts. The cost of direct numerical simulations (DNS) rises rapidly with increasing Reynolds number, making its use for practical applications computationally infeasible for the foreseeable future. The large-eddy simulation (LES) framework, meanwhile, provides a potential alternative, but wall-resolved LES remains quite costly at high Reynolds numbers (Spalart 2000; Choi & Moin 2012; Yang & Griffin 2021). Consequently, Reynolds-averaged Navier–Stokes (RANS) models remain relevant and popular. Even with wall-modelled LES or hybrid RANS–LES techniques, scale-resolving simulations can be costly (even prohibitively so) for turbulent boundary layers and immersed bodies at large Reynolds number (Goc, Bose & Moin 2020).

The RANS-based integral methods for turbulent boundary layers, which pre-date the explosion of computer performance over the past half-century (Kline et al. 1968), provide a significant reduction in computing cost by seeking a solution for (averaged) quantities integrated in the wall-normal direction across the turbulent boundary layer. For aerodynamic and hydrodynamic boundary layers over immersed bodies, integral methods can be coupled with potential flow solvers to provide rapid prediction, albeit at reduced physical fidelity, e.g. Drela (1989). The use of depth-averaged equations is similarly common in many other wall-bounded turbulence scenarios, e.g. Ungarish (2010).

Compared with RANS-based methods, approaches that partially resolve turbulent fluctuations (e.g. LES) potentially offer a substantial advantage in physical fidelity because of their inherent ability to capture non-local behaviour in the large-scale motions. Large-scale motions (LSMs) and very-large-scale motions (VLSMs), sometimes referred to as superstructures, play a prominent role in wall-bounded turbulence. Compared with the turbulent layer thickness (i.e. boundary layer thickness, channel height, pipe radius, etc.), the streamwise lengths of these motions are comparable to and much longer than the turbulent layer thickness and their wall-normal heights are of the order of the turbulent layer thickness (Brown & Thomas 1977; Monty et al. 2007, 2009; Lee, Sung & Zaki 2017). Furthermore, these large streaky structures possess a significant portion of both the Reynolds shear stress and turbulent kinetic energy (Guala, Hommema & Adrian 2006; Balakumar & Adrian 2007). The prominence and significance of these structures raises a motivation for numerical approaches to develop a framework around (V)LSMs. To successfully develop a reduced-order model, it is imperative to encapsulate the essential dynamics of these structures.

The dynamics of streamwise-oriented fluctuations in wall-bounded turbulence received more earlier attention in the context of buffer-layer streaks in the near-wall region (Kline et al. 1967). It was shown, using DNS on a minimal flow unit, that these turbulent motions of the low-speed structures self-sustain independent of the flow in the outer region (Jiménez & Moin 1991; Jiménez & Pinelli 1999). Further DNS analysis demonstrated the presence of streamwise counter-rotating vortices (Kim, Moin & Moser 1987). The interplay between streamwise rolls and streaks is crucial for the self-sustaining process of near-wall streaks (Jiménez & Moin 1991). Specifically, these rolls produce a ‘lift-up’ effect that generates the observed low-/high-speed streaks. Due to instabilities and/or nonlinear interactions, the streaks become wavy and breakdown. Then, by nonlinear physical mechanisms that result in the breakdown of the streaks, new streamwise vortices are formed to repeat the cycle through another iteration. This is the classical understanding of a self-sustaining process for buffer-layer streaks in the near-wall region (Hamilton, Kim & Waleffe 1995).

Adding the log layer and outer region to consideration, the role of the (V)LSMs introduces additional complexities. The fundamental mechanism for producing and sustaining large-scale turbulence has been a topic of significant interest. One possibility is that the (V)LSMs require the interaction with the flow in the inner region. Kim & Adrian (1999) hypothesised that a group of hairpin vortices merges to develop the large-scale structures. Studies using particle image velocimetry have made some observations to this effect (Adrian, Meinhart & Tomkins 2000; Jodai & Elsinga 2016), and other DNS studies have also observed merging of the small-scale structures to form larger ones (Toh & Itano 2005; Hwang et al. 2016). However, significant evidence is now available suggesting that there exists a similar self-sustaining mechanism for LSMs and VLSMs (Cossu & Hwang 2017; Lee & Moser 2019; Zhou, Xu & Jiménez 2022). For example, Hwang & Bengana (2016) observed that the dynamical structure of the large-scale streaks is strikingly similar to that of the near-wall streaks. Even though a wealth of knowledge on (V)LSMs is provided by these and other studies, encapsulating these motions in a reduced-order modelling framework remains a significant opportunity.

This paper explores the possibility of turbulence-resolving integral simulations (TRIS), that is, LES-like integral methods in which the wall-normal integration is instantaneously carried out across the entire turbulent layer thickness. By reducing the description of the turbulent flow from three to two dimensions, a significant cost savings may be possible while still capturing the physics of (V)LSMs. To the authors’ knowledge, this instantaneous wall-normal integral approach has not been previously proposed or investigated, as it differs substantially from both LES and the common RANS-based integral methods. At the outset, however, it is not clear (i) how much of the turbulence can still be captured in this two-dimensional (2-D) representation, and (ii) how unsteady, 2-D, Navier–Stokes-based evolution equations can be developed which support self-sustaining turbulence with realistic structure. This paper provides an answer for these two questions in the simplified context of an open-channel (half-channel) flow.

The rest of the paper is organised as follows. The governing equations for TRIS are introduced for an open-channel flow configuration in § 2. Then, § 3 estimates the theoretical ability of TRIS to capture a certain fraction of active turbulence using open-channel and full-channel DNS data with $180 \leqslant Re_\tau \leqslant 5200$ . Closure approximations for the TRIS equations are introduced in § 4. Results from their implementation in § 5 demonstrate self-sustaining fluctuations with realistic structure, allowing a detailed apples-to-apples evaluation against open-channel DNS data for $Re_\tau = 395$ and $590$ . A concluding discussion is provided in § 6.

2. Instantaneous moment-of-momentum evolution equations

In this section, evolution equations for TRIS are derived from the Navier–Stokes equations and boundary conditions for an open-channel flow, a useful surrogate with a similar structure to boundary layers. This configuration shares the general characteristics of wall-bounded turbulence while allowing for homogeneity in the wall-parallel direction and simple boundary conditions at the top of the domain (opposite to the no-slip wall). This choice provides a simple starting point for developing the TRIS framework without the added complexities of spatial development and interaction with a potential flow; the details for including these effects in the context of external boundary layer flows are an important topic for future work.

To guide the derivation, the notation will distinguish between wall-normal and wall-parallel components. Using a 2-D index notation, the indices correspond to the streamwise ( $i=1$ ) and spanwise ( $i=2$ ) directions, such that implied summation only applies over the wall-parallel directions. Therefore, the notation used here is $u_1=u$ , $u_2=w$ and $v$ along with $x_1=x$ , $x_2=z$ and $y$ for the streamwise, spanwise and wall-normal components of velocity and position, respectively. The conservation equations for incompressible flow are non-dimensionalised by the height of the open channel ( $h$ ) and friction velocity ( $u_\tau$ ). The bottom wall of the open channel ( $y=0$ ) is a no-slip, no-penetration boundary whereas a no-penetration, zero-vorticity boundary condition is applied at the top wall ( $y=1$ ). Using this notation, the incompressible Navier–Stokes equations for conservation of mass, wall-parallel momentum and wall-normal momentum are

(2.1) \begin{align}&\qquad\qquad\qquad\qquad\qquad \frac {\partial {u_i}}{\partial x_i} + \frac {\partial {v}}{\partial y} = 0, \end{align}

(2.2) \begin{align}& \frac {\partial {u_i}}{\partial t} + \frac {\partial {u_i u_j}}{\partial x_j} + \frac {\partial {u_i v}}{\partial y} = -\frac {\partial {p}}{\partial x_i} +\frac {1}{Re_{\tau }}\left ( \frac {\partial ^2 {u_i}}{\partial x_j \partial x_j} + \frac {\partial ^2 {u_i}}{\partial y^2} \right ) + \delta _{i1}, \end{align}

(2.3) \begin{align}&\qquad \frac {\partial {v}}{\partial t} + \frac {\partial {v u_j}}{\partial x_j} + \frac {\partial {v v}}{\partial y} = -\frac {\partial {p}}{\partial y} + \frac {1}{Re_{\tau }} \left ( \frac {\partial ^2 {v}}{\partial x_j \partial x_j} + \frac {\partial ^2 {v}}{\partial y^2} \right ). \end{align}

Here, $Re_\tau = \rho u_\tau h / \mu$ is the friction Reynolds number for a fluid with density $\rho$ and viscosity $\mu$ . The Kronecker delta, $\delta _{i1}$ , is the dimensionless imposed pressure gradient that drives the flow and $p$ is the dimensionless pressure field that enforces (2.1).

Flow fields are integrated in the wall-normal direction and represented as zeroth and first moments, respectively,

(2.4) \begin{equation} \left \langle \phi \right \rangle _0(x_1, x_2, t) = \int _0^1 \phi (x_1, y, x_2, t) {\rm d}y, \qquad \left \langle \phi \right \rangle _1(x_1, x_2, t) = \int _0^1 2y\phi (x_1,y,x_2,t) {\rm d}y. \end{equation}

Thus, the zeroth moment is an unweighted wall-normal integral and the first moment is a wall-normal integral linearly weighted by wall-normal distance to favour events occurring further from the wall. In addition to wall-normal integration, the fields are also low-pass filtered in the wall-parallel directions, $\widetilde {\phi }$ , where the filter width corresponds to the 2-D grid spacing to be used for TRIS.

The filtered zeroth and first moments of (2.1) are

(2.5) \begin{equation} \frac {\partial \langle \widetilde {u}_i \rangle _0}{\partial x_i} = 0, \qquad \qquad \frac {\partial \langle \widetilde {u}_i \rangle _1}{\partial x_i} = 2 \langle \widetilde {v} \rangle _0, \end{equation}

where the zeroth moment of the wall-parallel velocity, $\langle \widetilde {u}_i \rangle _0$ , is a 2-D, two-component (2D/2C) vector field with zero divergence. The no-penetration condition at the upper boundary has been applied in the first moment of the mass equation. The first moment of the wall-parallel velocity, $\langle \widetilde {u}_i \rangle _1$ , is also 2D/2C and has divergence equal to (twice) the zeroth moment of the wall-normal velocity, $\langle \widetilde {v} \rangle _0$ . In this way, the inclusion of the first moment provides a three-component (2D/3C) description of the zeroth-moment velocity field.

The first moment of mass conservation, (2.5), compactly describes the relationship between streamwise rolls and sweeps/ejections (characterised by $\partial \langle \widetilde {u}_2 \rangle _1 / \partial x_2$ and $\langle \widetilde {v} \rangle _0$ , respectively) that are responsible for the formation of streamwise-oriented streaks. This relationship is illustrated in figure 1, which views a streamwise roll–streak flow pattern in the spanwise-normal plane. In this view, a clockwise roll corresponds to a positive first moment of spanwise velocity, $\langle \widetilde {u}_2 \rangle _1 \gt 0$ , and a counter-clockwise roll corresponds to $\langle \widetilde {u}_2 \rangle _1 \lt 0$ . The negative or positive gradients in between two counter-rotating rolls correspond to negative or positive wall-normal velocities, in accordance with (2.5). These sweeps and ejections, respectively, transport fluid across the mean velocity gradient leading to high- and low-speed streaks in between the rolls. Thus, the implementation of (2.5) allows for the proper relationship between streamwise rolls and streaks that participate in the classical picture of the self-sustaining process.

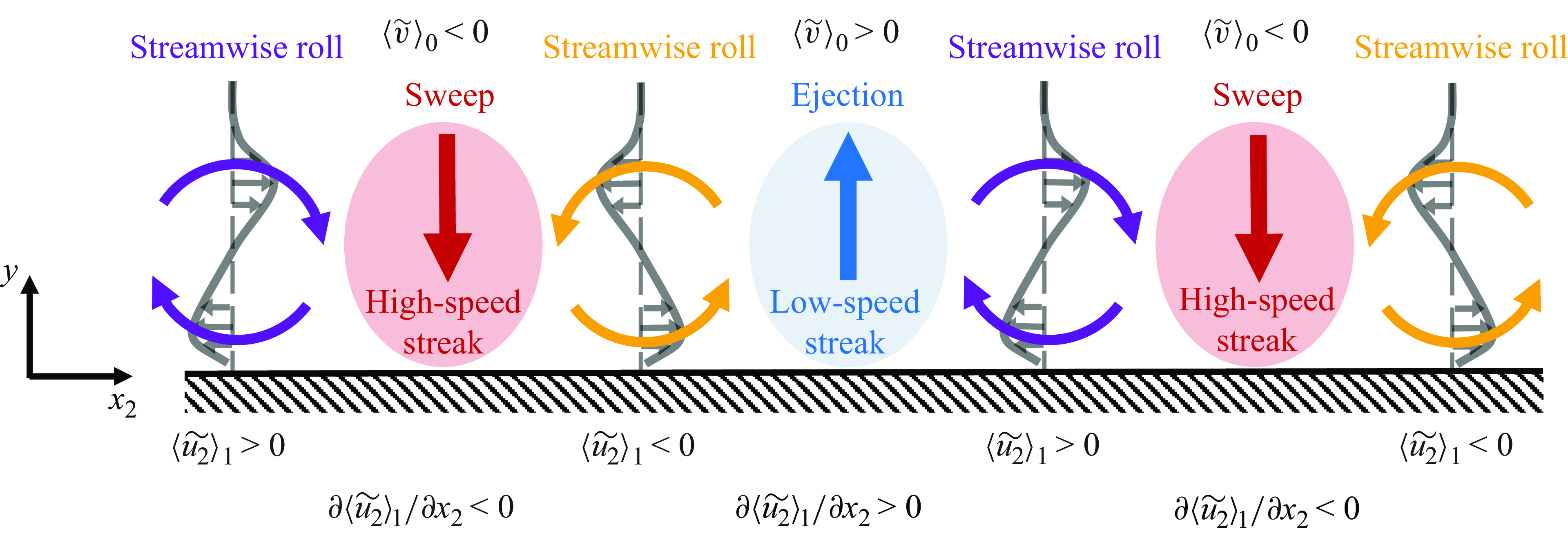

Figure 1. View in the flow direction of the large-scale streamwise rolls generating regions of high- and low-speed streaks, which correspond to sweeps and ejections, respectively. The profiles located at the streamwise rolls represent the local spanwise velocity. This phenomenon encapsulates the effect of (2.5) (right).

The dynamics of the zeroth-moment velocity fields is given by the zeroth moment of (2.2), also including the wall-parallel filtering

(2.6) \begin{equation} \frac {\partial \left \langle \widetilde {u}_i \right \rangle _0}{\partial t} + \frac {\partial \langle \widetilde {u_i u_j} \rangle _0}{\partial x_j} = - \frac {\partial \left \langle \widetilde {p} \right \rangle _0}{\partial x_i} + \frac {1}{Re_\tau } \frac {\partial ^2 \left \langle \widetilde {u}_i \right \rangle _0}{\partial x_j \partial x_j} - \widetilde {\tau }_i +\delta _{i1}, \end{equation}

where $\widetilde {\tau }_i$ is the instantaneous (dimensionless) wall shear stress (2D/2C). Equation (2.6) lacks an explicit representation of the turbulent momentum flux in the wall-normal direction. The dynamics of the first-moment velocity field is obtained by applying the first moment to (2.2) along with wall-parallel filtering

(2.7) \begin{equation} \frac {\partial \left \langle \widetilde {u_i} \right \rangle _1}{\partial t} + \frac {\partial \langle \widetilde {u_i u_j} \rangle _1}{\partial x_j} = 2\left \langle \widetilde {u_i v} \right \rangle _0 - \frac {\partial \left \langle \widetilde {p} \right \rangle _1}{\partial x_i} + \frac {1}{Re_\tau } \frac {\partial ^2 \left \langle \widetilde {u_i} \right \rangle _1}{\partial x_j \partial x_j} - \frac {2 \widetilde {u}_{i,\textit{top}}}{Re_\tau } + \delta _{i1}, \end{equation}

where $\widetilde {u}_{i,{top}}$ is the wall-parallel velocity vector (2D/2C) at the top of the open channel (where a Neumann boundary condition is imposed on wall-parallel velocity components and a no-penetration condition is imposed on the wall-normal component). The first moment of the momentum equation includes an explicit representation of turbulent wall-normal momentum flux, namely, the zeroth moment of the Reynolds shear stress, $\langle \widetilde {u_iv} \rangle _0$ .

Equations (2.6) and (2.7) contain unclosed terms that need to be modelled: $\widetilde {\tau }_i$ , $\langle \widetilde {u_i u_j}\rangle _0$ , $\langle \widetilde {u_i u_j}\rangle _1$ , $\langle \widetilde {u_i v}\rangle _0$ and $\widetilde {u}_{i,{top}}$ . The divergence of (2.6) and (2.7) provide elliptic equations for the pressure moments, $\langle \widetilde {p} \rangle _0$ and $\langle \widetilde {p} \rangle _1$

(2.8) \begin{align}&\qquad\qquad \frac {\partial ^2 \langle \widetilde {p} \rangle _0}{\partial x_j \partial x_j} = - \frac {\partial ^2 \langle \widetilde {u_i u_j} \rangle _0}{\partial x_i \partial x_j} - \frac {\partial \widetilde {\tau }_j}{\partial x_j}, \end{align}

(2.9) \begin{align}& \frac {\partial ^2 \langle \widetilde {p} \rangle _1}{\partial x_j \partial x_j} = 2[\widetilde {p}_{{top}} -\widetilde {p}_{{bot}}] - \frac {\partial ^2 \langle \widetilde {u_i u_j} \rangle _1}{\partial x_i \partial x_j} + 4 \frac {\partial \langle \widetilde {u_i v} \rangle _0}{\partial x_i}. \end{align}

The zeroth moment of (2.3) has been used to simplify (2.9). Here, $\widetilde {p}_{{top}}$ and $\widetilde {p}_{{bot}}$ are the pressures at the top and bottom of the open channel, respectively, and their difference must be modelled to close the system of equations.

3. Turbulence resolution estimate

Before introducing closure models for (2.6)–(2.9), it is worthwhile to consider how much of the turbulent motions can theoretically be captured in this 2D/3C representation of the flow. This is accomplished by asking a more specific question in terms of the turbulent enhancement of the skin friction coefficient, $C_f = 2 / \overline {u}_{{top}}^2$ , relative to a laminar flow with the same $Re_{{top}} = \overline {u}_{{top}} Re_\tau$ . The $\overline {\phi }$ operator denotes a Reynolds average, and the fluctuation about the mean is $\phi ^{\prime } = \phi - \overline {\phi }$ .

Subtracting (2.7) from (2.6) and averaging, assuming statistical stationarity and homogeneity in the wall-parallel directions

(3.1) \begin{equation} 1 = 2\frac {\overline {u}_{{top}}}{Re_\tau } + 2\big\langle -\overline {u^\prime v^\prime }\big\rangle _0 = \frac {\frac {4}{Re_{{top}}} + \frac {\big\langle -4\overline {u^\prime v^\prime }\big\rangle _0}{\overline {u}_{{top}}^2}}{C_f} = \frac {C_{f,{lam}} + C_{f,{turb}}}{C_f}, \end{equation}

where $C_{f,{lam}} = 4 Re_{{top}}^{-1}$ is the skin friction coefficient of a laminar open-channel flow, therefore $C_{f,{turb}} = - 4 \langle \overline {u^\prime v^\prime }\rangle _0 / \overline {u}_{{top}}^2$ represents the turbulent enhancement of the skin friction coefficient relative to the laminar state. This type of equation was previously introduced as the angular momentum integral (AMI) equation by Elnahhas & Johnson (2022) for spatially developing boundary layers. The turbulent enhancement, $C_{f,{turb}}$ , is partially resolved by the 2D/3C zeroth-moment velocity vector field, $\langle \overline {u^\prime v^\prime }\rangle _0 = \overline {\langle \widetilde {u} \rangle _0^\prime \langle \widetilde {v} \rangle _0^\prime } + \langle \overline {u^{\prime \prime } v^{\prime \prime }}\rangle _0$ , where $\phi ^{\prime \prime } = \phi ^\prime - \langle \widetilde {\phi } \rangle _0^\prime$ is the unresolved portion of a fluctuating field when integrated in the wall-normal direction and filtered in the wall-parallel directions. Thus, the turbulent skin friction enhancement is the sum of a resolved and unresolved portion, $C_{f,{turb}} = C_{f,{res}} + C_{f,{unres}}$ .

Note that the skin friction in terms of the velocity at the top of the open-channel domain corresponds more closely to the typical definition for boundary layer flows, whereas friction factors based on the bulk velocity (flow rate) are more common for internal flows such as pipes and channels. The reason for the choice depends on the context. Internal flows are typically analysed in terms of flow rates whereas the potential flow velocity (or edge velocity) is more relevant for boundary layer contexts. Thus, the choice of this $C_f$ definition reflects an interest in analysing the open-channel flow as one would treat the engineering context of an external boundary layer. The alternative choice to analyse the open-channel flow in terms of friction factor based on bulk velocity (flow rate) would lead to the use of the Fukagata–Iwamoto–Kasagi (FIK) equation (Fukagata, Iwamoto & Kasagi 2002; Nikora et al. 2019; Duan et al. 2021), which is derived from the second moment of momentum equation and contains the first moment of the Reynolds shear stress. Elnahhas & Johnson (2022) discuss the similarities and differences between the AMI and FIK equations in more detail.

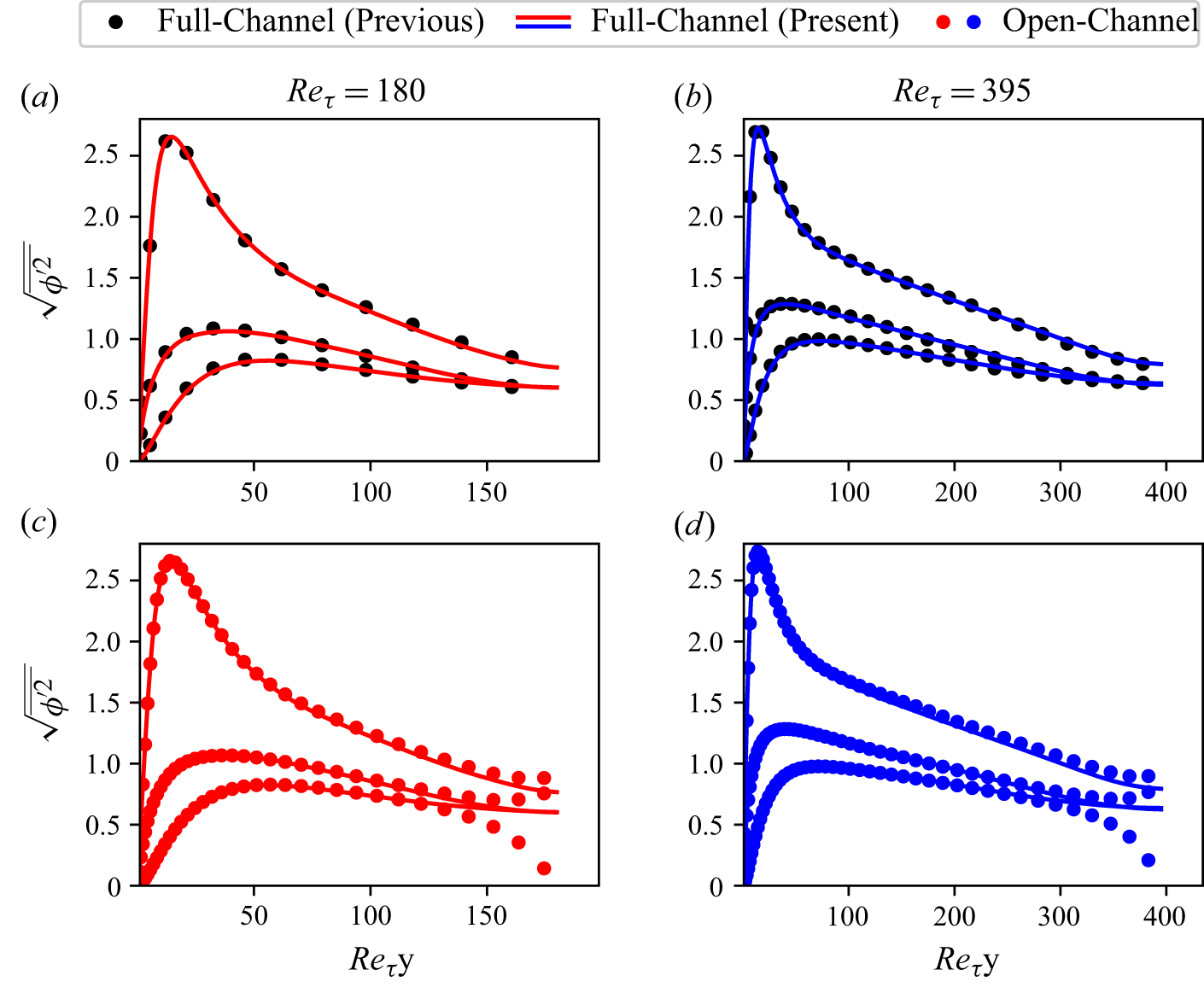

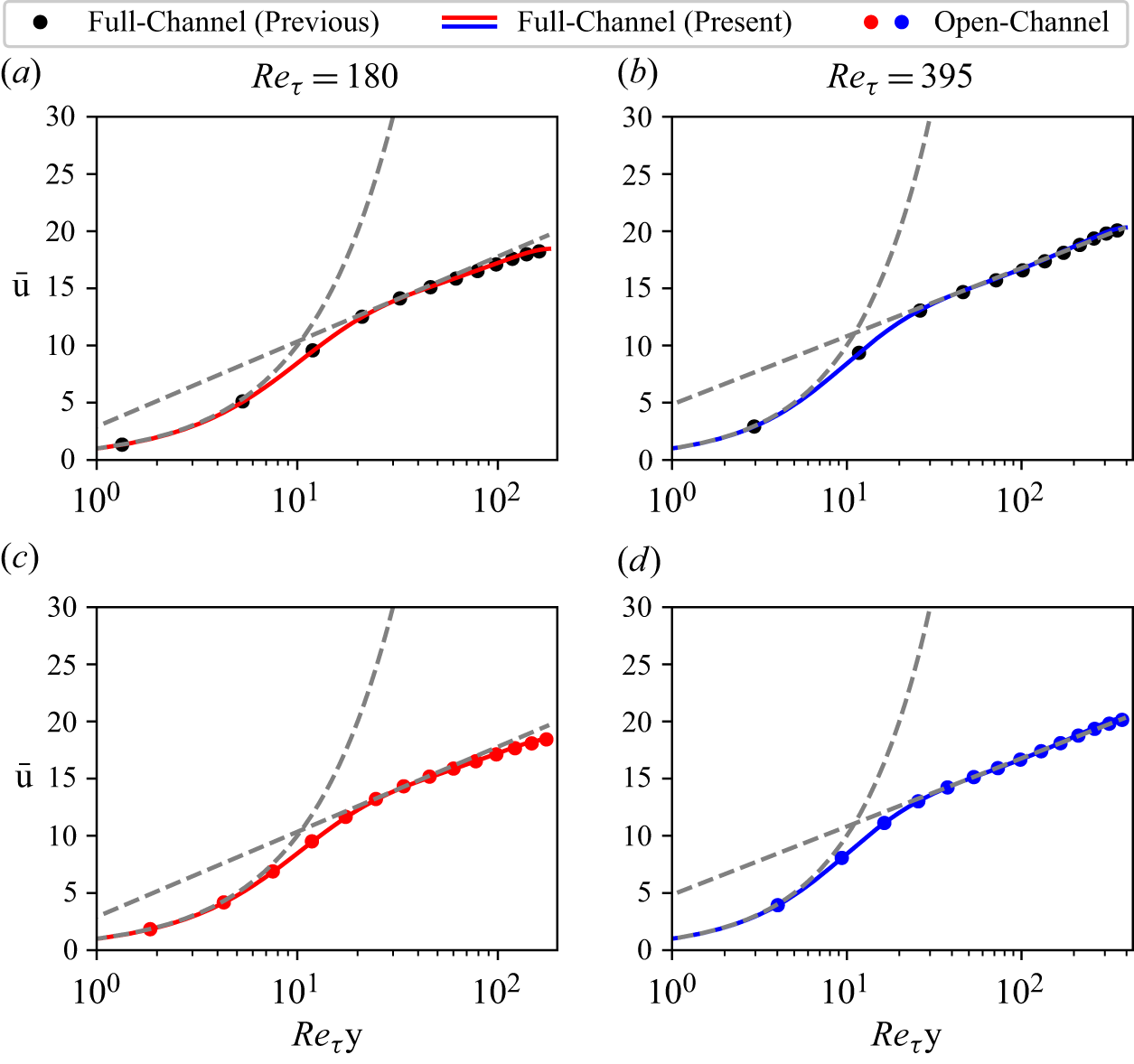

Direct numerical simulation was used to compute the terms in the AMI equation, including the resolved and unresolved components of the Reynolds shear stress, for $180 {\leq } Re_\tau {{\leq }} 5200$ on a domain size of $L_x=8\pi$ and $L_z=3\pi$ . The lower friction Reynolds number flows ( $Re_\tau = 180, 395, 590$ ) were simulated using a second-order, staggered finite difference code (Lozano-Durán et al. 2018) for both full-channel and open-channel configurations and the data for the larger Reynolds numbers ( $Re_\tau = 1000, 5200$ ) are full-channel simulations from the Johns Hopkins Turbulence Databases (Lee & Moser 2015; Graham et al. 2016). Note that (3.1) is equally valid for the bottom half of a full-channel flow where $\overline {u}_{{top}}$ corresponds to the average centreline velocity and $h$ is the half-height of the full channel. The results using a spectral cutoff filter with $k_{{cut}} h=16$ applied to the streamwise and spanwise directions are shown in figure 2, $k_{cut} = \pi/\delta$ , where $\delta$ is the coarsened grid spacing representative of the filtered field. In this analysis, the isotropic cutoff filter of $k_{{cut}}h=16$ is chosen based on the grid resolution used in § 5. Finer wall-parallel resolution does not significantly increase $C_{f,{res}}$ (Ragan, Warnecke & Johnson 2025). The estimated statistical convergence error, following Shirian, Horwitz & Mani (2023), is approximately equal to or smaller than the size of the symbols used, and is further discussed in Appendix A. There is no noticeable difference between open-channel and full-channel flow results for friction Reynolds numbers $180$ to $590$ , providing the basis to use full-channel flow datasets at higher Reynolds numbers ( $1000$ and $5200$ ) to estimate the AMI results for the open-channel configuration.

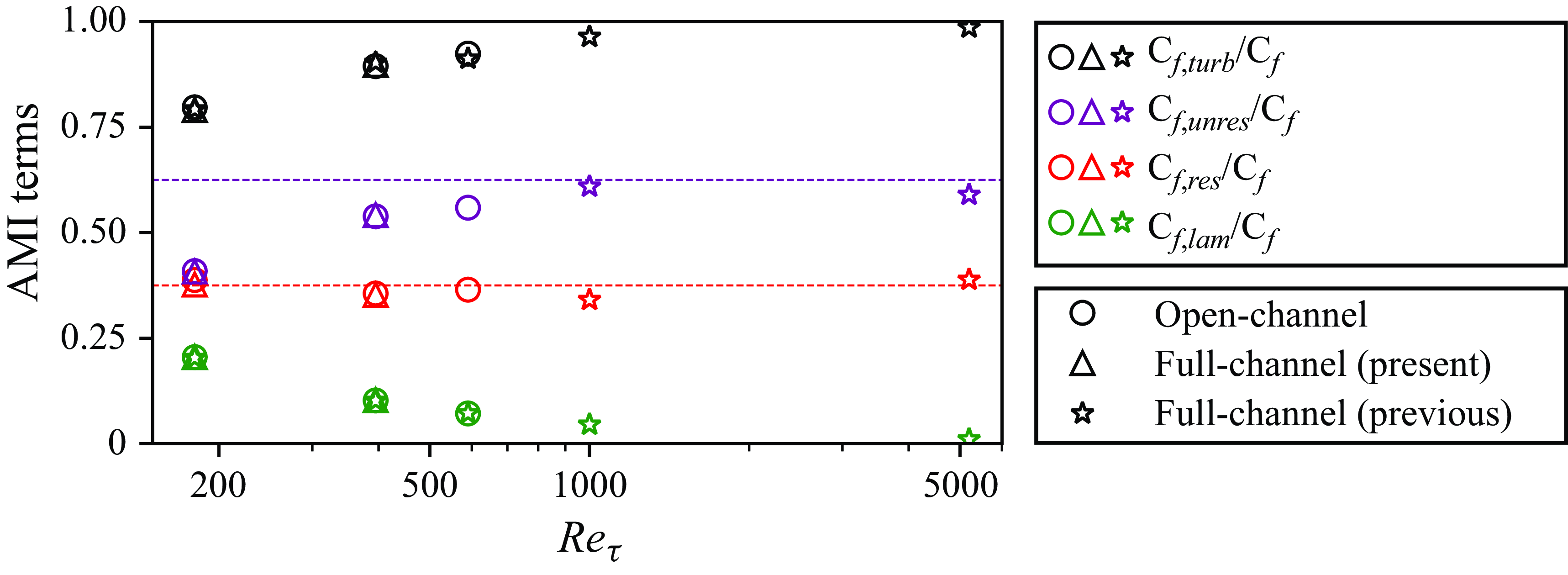

Figure 2. Decomposition of the total skin friction in (3.1). The circular and triangular markers are associated with the authors’ open-channel and full-channel flow simulations, respectively. The star marker corresponds to full-channel flow simulations from previous work (Moser, Kim & Mansour 1999; Lee & Moser 2015; Graham et al. 2016). The colours black, purple, red and green represent the total, unresolved and resolved skin friction by turbulent enhancement and laminar skin friction, respectively. The purple and red dashed lines are at values of $ {5}/{8}$ and ${3}/{8}$ , respectively.

As expected, the laminar skin friction decays with increasing $Re_\tau$ , so the sum of the resolved and unresolved components of the total turbulent enhancement approaches unity. The unresolved portion generally increases with $Re_\tau$ and appears to approach an asymptotic value based on the available data. Assuming the observed trends continue, it may be estimated that the TRIS equations derived in § 2 can resolve approximately $35\,\%{-}40\, \%$ of the turbulent skin friction enhancement at large Reynolds numbers using a numerical resolution of ${\sim}h/5$ in the wall-parallel directions. This theoretical estimate is based on DNS data for open-channel and full-channel flows, and it is not tied to any particular implementation of closure models for TRIS.

4. Closure approximations

To perform a TRIS calculation, a few unclosed terms in (2.6)–(2.9) need to be approximated in terms of the resolved 2-D fields. The present objective is to demonstrate the sufficiency of the framework presented in § 2 for supporting self-sustaining turbulent fluctuations with realistic structure. To this end, a simple closure is presented by writing the wall-parallel velocity as $\widetilde {u}_i = U_i + U_i^{\prime \prime }$ , where $U_i(x_1, y, x_2, t)$ is interpreted as the mean velocity profile conditioned on the local resolved state defined by $\langle \widetilde {u_i} \rangle _0(x_1, x_2, t)$ and $\langle \widetilde {u_i} \rangle _1(x_1, x_2, t)$ . For now, this conditional mean profile is modelled using a skewed Coles profile (Coles 1956)

(4.1) \begin{equation} U_i = \left [ \frac {1}{\kappa } \text{ln} y + \left ( \frac {1}{\kappa } \text{ln}Re_{\ast } + B \right ) \right ] e_{i,\ast } + \left [ \frac {2 \Pi }{\kappa } \text{sin}^2\left (\frac {\pi }{2}y\right ) \right ] e_{i,\Pi }, \end{equation}

where $\kappa =0.41$ is the inverse log slope and $B$ is the log vertical intercept, parameters that are pre-set. The local friction Reynolds number is $Re_{\ast }(x_1, x_2, t)$ and $\Pi (x_1, x_2, t)$ is the local wake parameter. The 2-D unit vectors $e_{i,\ast }(x_1, x_2, t)$ and $e_{i,\Pi }(x_1, x_2, t)$ align with the local wall shear stress and wake correction, respectively, allowing for skew in the instantaneous velocity profile. Specific details on the alignments are provided in Appendix B. The local values of $Re_*$ , $\Pi$ , $e_{i,\ast }$ and $e_{i,\Pi }$ are uniquely determined at each point in the $x_1-x_2$ plane given the local resolved state defined by the zeroth and first moments, $\langle \widetilde {u}_i \rangle _0 = \langle U_i \rangle _0$ and $\langle \widetilde {u}_i \rangle _1 = \langle U_i \rangle _1$ , where it is assumed that the integral moments of the fluctuations about the conditionally averaged velocity profiles are neglected.

Equation (4.1) is evaluated at $y=1$ to close $\widetilde {u}_{i,\text{top}}$ . The local wall shear stress $\widetilde {\tau _i}$ is tied to the log portion of the assumed profile in (4.1)

(4.2) \begin{equation} \widetilde {\tau _i} = \left (\frac {Re_\ast }{Re_\tau }\right )^2 e_{i,\ast }. \end{equation}

The zeroth and first moments of $\widetilde {u_i u_j}$ are closed by decomposing the term into a portion that is resolved by the Coles profile and unresolved ( $\sigma _{0,ij}$ and $\sigma _{1,ij}$ )

(4.3) \begin{equation} \langle \widetilde {u_i u_j} \rangle _0 = \langle U_i U_j \rangle _0 + \sigma _{0,ij},\qquad \qquad \langle \widetilde {u_i u_j} \rangle _1 = \langle U_i U_j \rangle _1 + \sigma _{1,ij}. \end{equation}

The resolved portion can be directly computed from the assumed profile, while the unresolved part is modelled by a wall-parallel eddy viscosity approximation (Smagorinsky 1963), $\sigma _{0,ij} = C_s \varDelta ^2 \sqrt {\langle S_{mn} \rangle _{0} \langle S_{mn} \rangle _0} \langle S_{ij} \rangle _{0}$ and $\sigma _{1,ij} = C_s \varDelta ^2 \sqrt {\langle S_{mn} \rangle _{1} \langle S_{mn} \rangle _1} \langle S_{ij} \rangle _{1}$ , where $C_s = 0.78$ is chosen to be a small value that is still large enough to ensure stability, $S_{ij}$ is the wall-parallel strain rate tensor and $\Delta$ is the grid spacing (filter width). The resolved portions, $\langle U_i U_j \rangle _0$ and $\langle U_i U_j \rangle _1$ , are linearised about reference (mean) values for the log offset, $B$ , and the Coles wake strength, $\Pi _{{ref}}$ , which are set to match the mean zeroth and first moments of the streamwise velocity computed from DNS.

The $\langle \widetilde {u_i v} \rangle _0$ term is also decomposed into a resolved and unresolved component

(4.4) \begin{equation} \left \langle \widetilde {u_i v} \right \rangle _0 = \langle U_i \rangle _0 \langle \widetilde {v} \rangle _0 + \langle \!\widetilde{\,u''_i v''\,}\! \rangle _0. \end{equation}

Here, $\langle \!\widetilde{\,u''_i v''\,}\! \rangle _0$ is modelled using an eddy viscosity with an attached eddy scaling

(4.5) \begin{equation} -2\big\langle \!{\widetilde{\,u''_i v''\,}}\! \big\rangle _0 = C_{uv} \frac {\left [1+(1-C_{\Pi })\Pi _{{ref}}\right ]e_{i,\ast } + C_{\Pi }\Pi e_{i,\Pi }}{1 + \Pi _{{ref}}}, \end{equation}

where $C_{uv}$ is set using the AMI balance (the purple symbols in figure 2) and $C_\Pi$ is tuned to allow for the correct amount of resolved Reynolds shear stress, $\langle U_i \rangle _0 \langle \widetilde {v} \rangle _0$ (the red symbols in figure 2). Lastly, the pressure difference between the top and bottom of the open channel is closed by assuming a linear pressure profile at each location, $\widetilde {p}_{{top}} - \widetilde {p}_{{bot}} = 6 [\langle \widetilde {p} \rangle _1 - \langle \widetilde {p} \rangle _0 ]$ . A detailed derivation of these closure approximations is available in Appendix B.

5. Results

5.1. Numerical implementation and self-sustaining turbulence

A Python code was developed to solve (2.6)–(2.9) together with the closure models described in § 4 using a pseudo-spectral approach on a doubly periodic domain of size $L_x = 8\pi$ and $L_z = 3\pi$ to match the DNS domain. The maximum dimensionless wavenumber is $k_{{max}} h = k_{{cut}} h = 16$ in the wall-parallel directions, such that the grid spacing based on collocation points is $\varDelta = \pi /16 \approx {1}/{5}$ (five grid points per half-channel thickness). Initially ( $t=0$ ), $\langle \widetilde {u}\rangle _0$ is set to a uniform field based on the approximate mean velocity, $\langle \widetilde {u}\rangle _1$ and $\langle \widetilde {w}\rangle _0$ are initialised to zero, while $\langle \widetilde {w}\rangle _1$ is initialised with white noise. As the simulation advances from the structureless initial conditions, a statistically stationary state emerges with self-sustaining fluctuations. The details of the structure and statistics observed in TRIS simulations are shown below. For now, it is emphasised that the TRIS equations comprising instantaneous zeroth and first-order moments of momentum described in § 2 produce self-sustaining fluctuations when used with the relatively straightforward closures described in § 4. Earlier attempts by the authors to generate self-sustaining turbulence without the first-moment equation were unsuccessful.

5.2. Choice and verification of model parameters

Results in this section are presented for a choice of model parameters shown in table 1. These model parameters are tuned to provide accurate values for the results reported in table 2. Note that the parameter tuning at $Re_\tau = 1000$ and $5200$ relies on full-channel DNS. Results in figure 2 verify that full-channel DNS data provide a good proxy for open-channel flow for the quantities used in the parameter tuning.

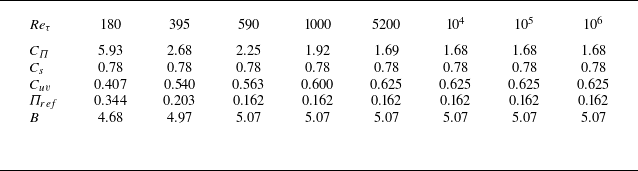

Table 1. Values of tuning (and set) parameters in TRIS at various $Re_\tau$ (established in § 4, additional details provided in Appendix B).

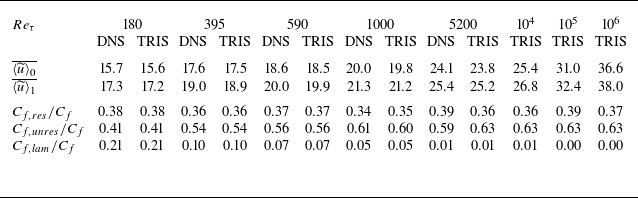

Table 2. Verification of TRIS implementation and parameter selection for reproducing target values from DNS.

For Reynolds numbers larger than those with available DNS data, the parameters from $Re_\tau = 5200$ are used. The only exception is that $C_\Pi$ is adjusted to close the AMI equation as the viscous term continues to decrease toward zero with increasing $Re_\tau$ (a very small effect). To verify the successful selection of model parameters according to the above procedure, table 2 shows the target DNS values and the TRIS results. The average zeroth and first moments of streamwise velocity increase with increasing $Re_\tau$ because the flow variables are normalised by friction velocity and length scales. The statistics in table 2 and the remainder of § 5 are calculated over $128$ large-eddy turnover times, $h / u_\tau$ .

Importantly, it is demonstrated here that the theoretical resolution of $35\,\%{-}40\, \%$ of the Reynolds shear stress can be achieved with the present TRIS formulation, however simple it may be. Without significant effort to optimise the computational runtime, a flow through time for a domain of length $L_x = 8\pi$ takes ${\sim}1$ minute on a single processor with a desktop computer. Furthermore, simulations up to $Re_\tau =10^6$ were performed without increase in computational cost. Note that these results are for a specific domain size and grid resolution, and that the $C_\Pi$ coefficient require retuning for different choices of grid spacing and domain size.

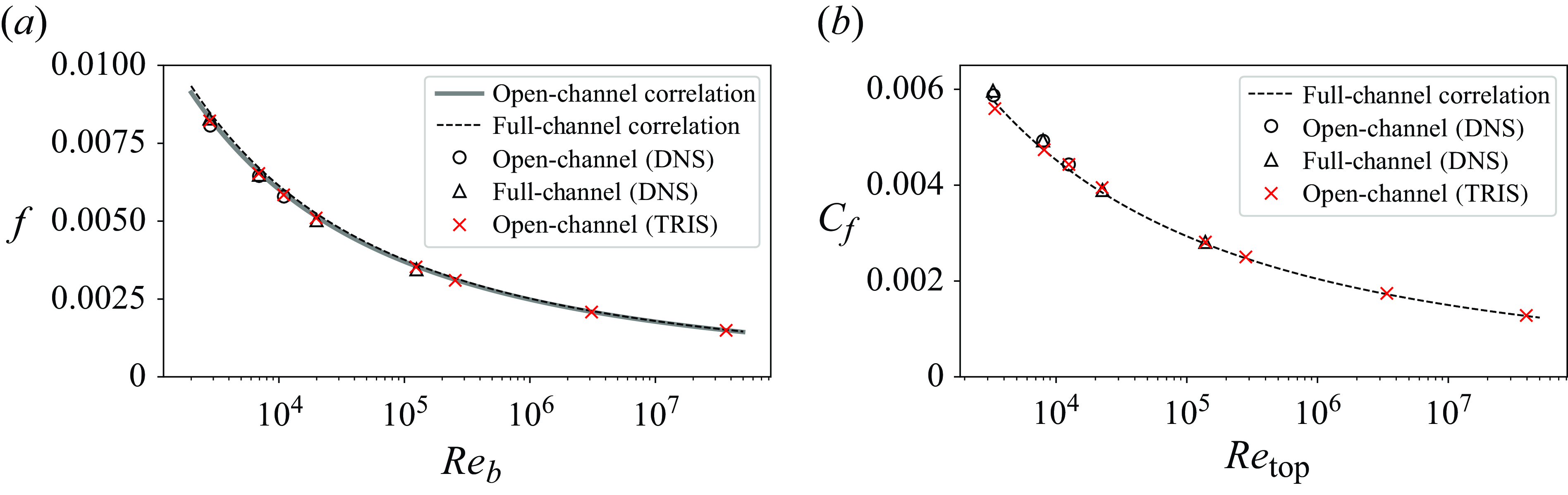

Figure 3. Friction factor plotted against the bulk Reynolds number (a) and skin friction plotted against the Reynolds number based on $\overline {u}_{{top}}$ (b). The dashed lines plot full-channel correlations (Dean 1978). The grey solid line plots the friction factor correlation for an open-channel flow (Bellos, Nalbantis & Tsakiris 2018).

The validity of model parameter extrapolation to high Reynolds number is verified by inspecting TRIS results for the friction factor, $f=2/\langle \overline {u} \rangle _0^2$ , as a function of bulk Reynolds number, $Re_b=Re_\tau \langle \overline {u}\rangle _0$ , in figure 3. Here, the friction factor is compared with the correlation from Dean (1978) (dashed lines). The successful alignment of TRIS with DNS up to $Re_\tau = 5200$ and with the empirical correlation at all $Re_\tau$ demonstrates the success and robustness of the choice of parameters in table 1.

5.3. Flow structure

The flow structure in TRIS is now inspected by comparison with the DNS data. For an apples-to-apples comparison, only the open-channel flow DNS data ( $180 \leqslant Re_\tau \leqslant 590$ ) are considered in this subsection. First, an instantaneous snapshot from open-channel DNS is integrated in the wall-normal direction and filtered using the spectral cutoff filter corresponding to the TRIS grid resolution. The TRIS simulation reaches a statistically stationary state with streamwise-oriented streaky structures that exhibit the self-sustaining dynamics, as shown in figure 4(a,b). The TRIS results on the right-side column are in comparison with (filtered) zeroth-moment fields from DNS on the left-side column. Results at $Re_\tau = 590$ are visually similar to the $Re_\tau = 395$ snapshots shown here.

In order to emphasise flow structure, all fields in figure 4 are standardised (denoted with a superscript $s$ ), i.e. fluctuations normalised by their standard deviation. While $\langle \widetilde {u} \rangle _0^s$ (a,b) exhibit relatively realistic streaky structure, $\langle \widetilde {w} \rangle _0^s$ and $\langle \widetilde {v} \rangle _0^s$ (c–f, respectively) do not show similar streaks in the TRIS results, in agreement with the flow structure observed from the DNS results. Similarly, $\langle \widetilde {p} \rangle _0^s$ and $\langle \widetilde {u}\rangle _0\langle \widetilde {v}\rangle _0$ (g–j, respectively) do not contain streamwise-oriented streaks. These TRIS results demonstrate that the 2-D-based integral moment equations, derived from the Navier–Stokes equations, are sufficient to generate self-sustaining turbulence with qualitatively realistic structure in a 2D/3C representation.

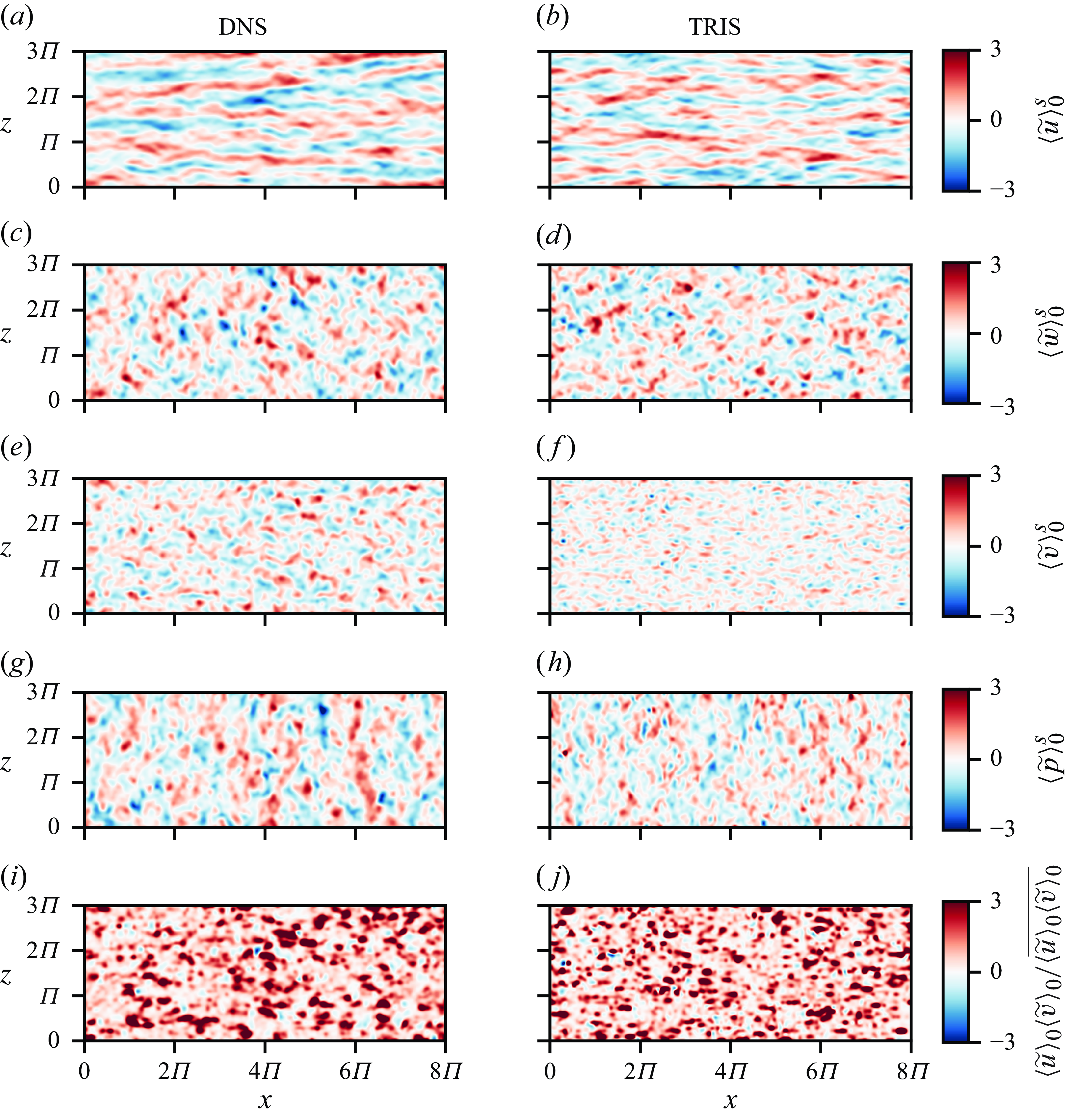

Figure 4. Instantaneous snapshots of the standardised (denoted by a superscript $s$ ) $\langle \widetilde {u}\rangle _0$ , $\langle \widetilde {w}\rangle _0$ , $\langle \widetilde {v}\rangle _0$ and $\langle \widetilde {p}\rangle _0$ fields in descending order at $Re_\tau = 395$ . The covariance field, $\langle \widetilde {u}\rangle _0\langle \widetilde {v}\rangle _0$ , is normalised by its mean. Snapshots are based on the field imposed by a spectral cutoff filter of $k_{{cut}} h=16$ for DNS (a,c,e,g,i) to match the grid resolution of TRIS (b,d,f,h,j). Videos of the temporal evolution of these fields are available in the supplementary material. For TRIS specifically, a Python code running the time progression of these fields through Jupyter notebook is available at https://www.cambridge.org/S0022112025103248/JFM-Notebooks/files/figure-4.

For a quantitative evaluation of the present TRIS formulation (in terms of results that are not set or tuned via closure parameter manipulation), the streamwise and spanwise (co-)spectra of the Reynolds shear stress and three kinetic energy components are shown in figure 5 for $Re_\tau = 395$ and $Re_\tau = 590$ . Here, $k_i$ is non-dimensionalised by the height of the open channel, $h$ . Figure 5(a,b) shows the co-spectra for the Reynolds shear stress. The sum of the co-spectra over all streamwise ( $k_1 = k_x$ ) or spanwise ( $k_2 = k_z$ ) modes is the zeroth moment of the Reynolds shear stress as it shows up in the AMI balance, (3.1), which matches the DNS by means of parameter tuning. More interestingly, the TRIS results show a good degree of success in replicating the shape of the distribution of the Reynolds shear stress as a function of both streamwise (red) and spanwise (blue) wavenumbers. In keeping with the structure observed in figure 4, the co-spectrum peaks at the lowest streamwise wavenumber and at an intermediate spanwise wavenumber. The TRIS results thus reproduce this basic structure, although the spectrum peaks at a larger spanwise wavenumber compared with DNS, which is related to the observation from figure 4 that the typical streak width is generally under-predicted by the current TRIS formulation. The TRIS and DNS results do not show significant sensitivity to $Re_\tau$ .

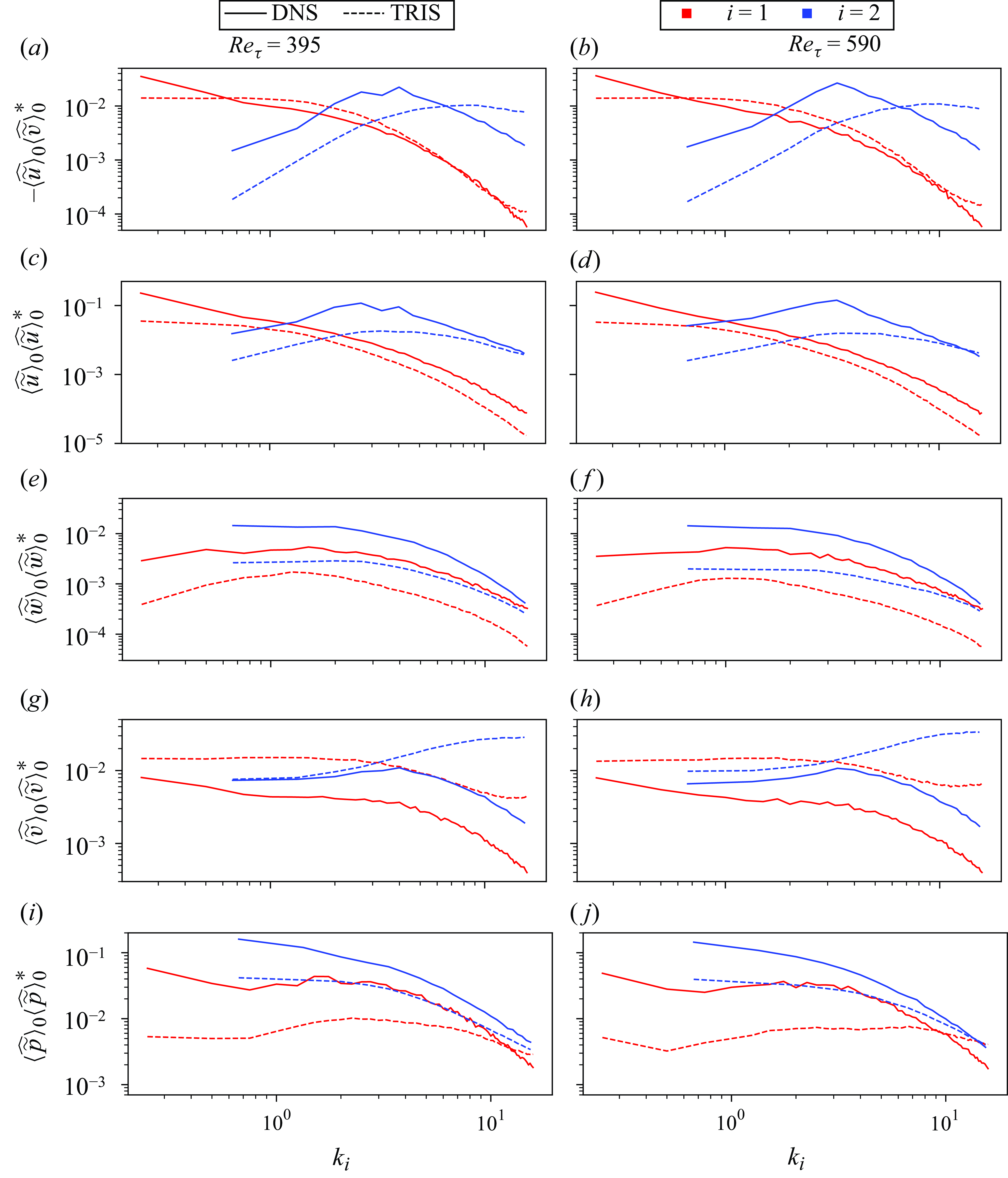

Figure 5. Streamwise (red) and spanwise (blue) spectral distributions of the resolved shear, streamwise, spanwise and wall-normal Reynolds stress components and resolved pressure in descending order at $Re_\tau =395$ (a,c,e,g,i) and $Re_\tau =590$ (b,d,f,h,j). The Fourier transform, $\widehat {\phi }$ of the resolved component is multiplied by its complex conjugate, $\widehat {\phi }^*$ . The solid and dashed lines represent DNS and TRIS, respectively, and $k_i$ is non-dimensionalised by the height of the open channel, $h$ .

Figure 5(c–h) show the spectra for each of the three components of kinetic energy: Streamwise (c,d), spanwise (e,f), and wall normal (g,h), respectively. The shapes of the spectra of the streamwise and spanwise velocity components produced by the present TRIS formulation are generally similar to the DNS results, but with lower overall magnitude. That is, the root-mean-square of $\langle \widetilde {u} \rangle _0$ and $\langle \widetilde {w} \rangle _0$ are under-predicted by TRIS. For the wall-normal velocity component, the shape of the TRIS spectra with respect to $k_1$ is relatively accurate. However, TRIS shows a peak at the highest resolved $k_2$ , which is significantly different than the DNS spectrum. As a result, the $\langle \widetilde {v} \rangle _0$ root mean square shows an over-prediction by TRIS. Figure 5(i,j) illustrates the resolved pressure spectra. Here, the TRIS pressure spectra are relatively realistic, although not perfect, with an indication that the magnitude of the large-scale pressure fluctuations are under-predicted.

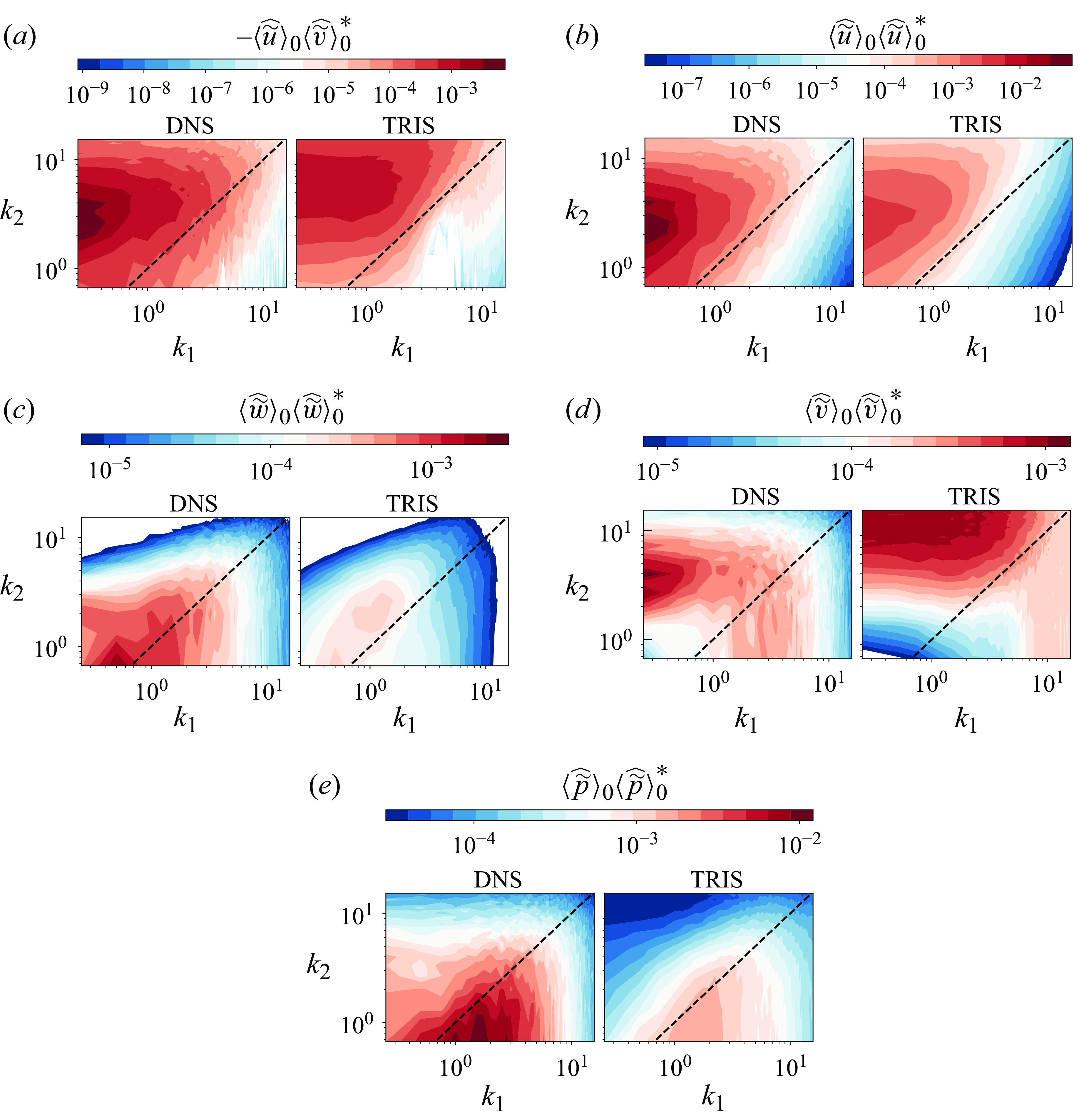

Figure 6. Two-dimensonal spectral distribution of the resolved Reynolds shear stress, streamwise, spanwise and wall-normal variances, and pressure across panels (a)–(e), respectively. Results are plotted at $Re_\tau =395$ and the Fourier transform, $\widehat {\phi }$ , of the resolved component is multiplied by its complex conjugate, $\widehat {\phi }^*$ . The dashed black line is a linear line with a slope of unity and a vertical intercept of zero ( $k_2=k_1$ ). In each panel, the spectral fields of DNS and TRIS are on the left and right, respectively. Streamwise ( $k_1$ ) and spanwise ( $k_2$ ) are non-dimensionalised by the height of the open channel, $h$ .

Two-dimensional spectral comparisons between TRIS and DNS at $Re_\tau = 395$ are also illustrated in figure 6, providing a holistic view on the resolved components of the velocity variances/covariances and resolved pressure. The black dashed line, $k_1 = k_2$ , separates predominantly streamwise-oriented modes (upper left corner) from predominantly spanwise-oriented modes (bottom right corner). Here, TRIS correctly reproduces the relative shape of the u-v co-spectrum with its bias toward streamwise-oriented structures, figure 6(a). It is noted, however, that the co-spectrum maximum is slightly shifted to higher spanwise wavenumber in the TRIS results, in agreement with the 1-D spectra shown above. Also, TRIS generally reproduces the shape of the wall-parallel (streamwise and spanwise) velocity spectra well, figure 6(b,c). The streamwise velocity is dominated by streamwise-oriented modes, while the spanwise velocity is more isotropic. As already observed, the magnitudes of these TRIS spectra are under-predicted. As for the resolved wall-normal variance, the tendency of TRIS to over-predict the most active wavenumbers is again observed. However, the shape of the wall-normal velocity spectrum from TRIS is not altogether unrealistic (although significantly shifted to higher wavenumbers). Lastly, the resolved pressure variance shows that pressure fluctuations occur mostly at low spanwise and intermediate streamwise wavenumbers, corresponding to short and wide structures as illustrated in figure 4(g,h). Also, TRIS presents a similar behaviour, but the overall magnitude is under-predicted, as previously observed.

5.4. Single-point statistics

While the model parameters in table 1 were selected specifically to cause TRIS to provide accurate statistics for the quantities shown in table 2, table 3 shows additional single-point statistics for TRIS and open-channel DNS to further probe the quantitative accuracy of the current TRIS implementation. First, the root-mean-square values for the zeroth moment of the three velocity components and pressure are given. As evidenced in the above spectra, the wall-parallel velocity fluctuation magnitudes are under-predicted while the wall-normal magnitude is over-predicted. This trend is consistent across all wavenumbers for all open-channel flow Reynolds numbers, $180 \leqslant Re_\tau \leqslant 590$ . The under-prediction of the zeroth moment of pressure fluctuation magnitude may be related to the over-prediction of the wall-normal velocity fluctuations. The root-mean-square values for the first moments (not shown) have similar discrepancies between TRIS and DNS.

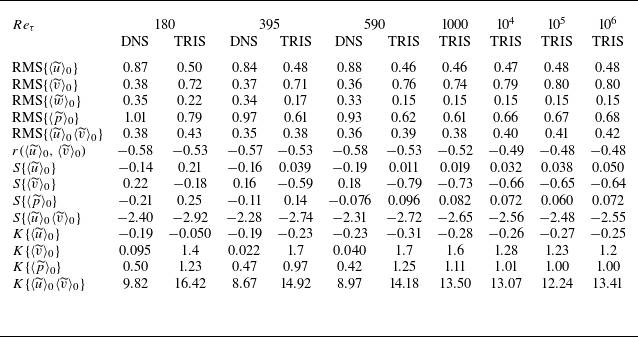

Table 3. Additional single-point statistics of TRIS and DNS at various $Re_\tau$ : root-mean-square ( $\text{RMS}\{\phi \}$ ), correlation coefficient ( $r(\phi , \psi )$ ), skewness ( $S\{\phi \}$ ) and excess kurtosis ( $K\{\phi \}$ ) are listed in descending order. Direct numerical simulation data are available up to $Re_\tau =590$ while TRIS data are up to $Re_\tau =10^6$ .

Direct numerical simulation shows that the zeroth moment of the streamwise and wall-normal velocities have slight negative and positive skewness, respectively. (The skewness of the spanwise velocity is zero due to symmetry.) Meanwhile, their excess kurtosis is also close to zero, indicating small departures from Gaussianity. The probability density function (PDF) of each of these velocity components is shown in figure 7(a). The TRIS results, meanwhile, show a very small positive skewness for streamwise velocity and a larger negative skewness and positive excess kurtosis for the wall-normal velocity. Nonetheless, the TRIS PDFs appear relatively close to the Gaussian shape, so the discrepancy with DNS is not strong. The zeroth moment of pressure in DNS has a slight negative skewness and mild positive excess kurtosis. Here, TRIS predicts a slight positive skewness with a larger excess kurtosis. The pressure PDFs are compared in figure 7(b).

The root mean square of the product $\langle \widetilde {u} \rangle _0\langle \widetilde {v} \rangle _0$ is relatively accurate in TRIS, while the negative correlation coefficient of $\langle \widetilde {u} \rangle _0$ and $\langle \widetilde {v} \rangle _0$ is relatively well represented but under-predicted in magnitude. The PDF of $\langle \widetilde {u} \rangle _0\langle \widetilde {v} \rangle _0$ is shown in figure 7(b). The skewness of $\langle \widetilde {u} \rangle _0\langle \widetilde {v} \rangle _0$ is strongly negative, which TRIS predicts quite well, though TRIS over-predicts its excess kurtosis.

The statistical results of these higher Reynolds number simulations ( $1000 \leq Re_\tau \leq 10^6$ ) are shown in the last four columns of table 3. The root mean squares of $\langle \widetilde {u} \rangle _0$ and $\langle \widetilde {v} \rangle _0$ display an increasing trend with respect to $Re_\tau$ . Beyond $Re_\tau \sim 1000$ , the TRIS predictions show little variation in the single-point statistics as Reynolds number increases.

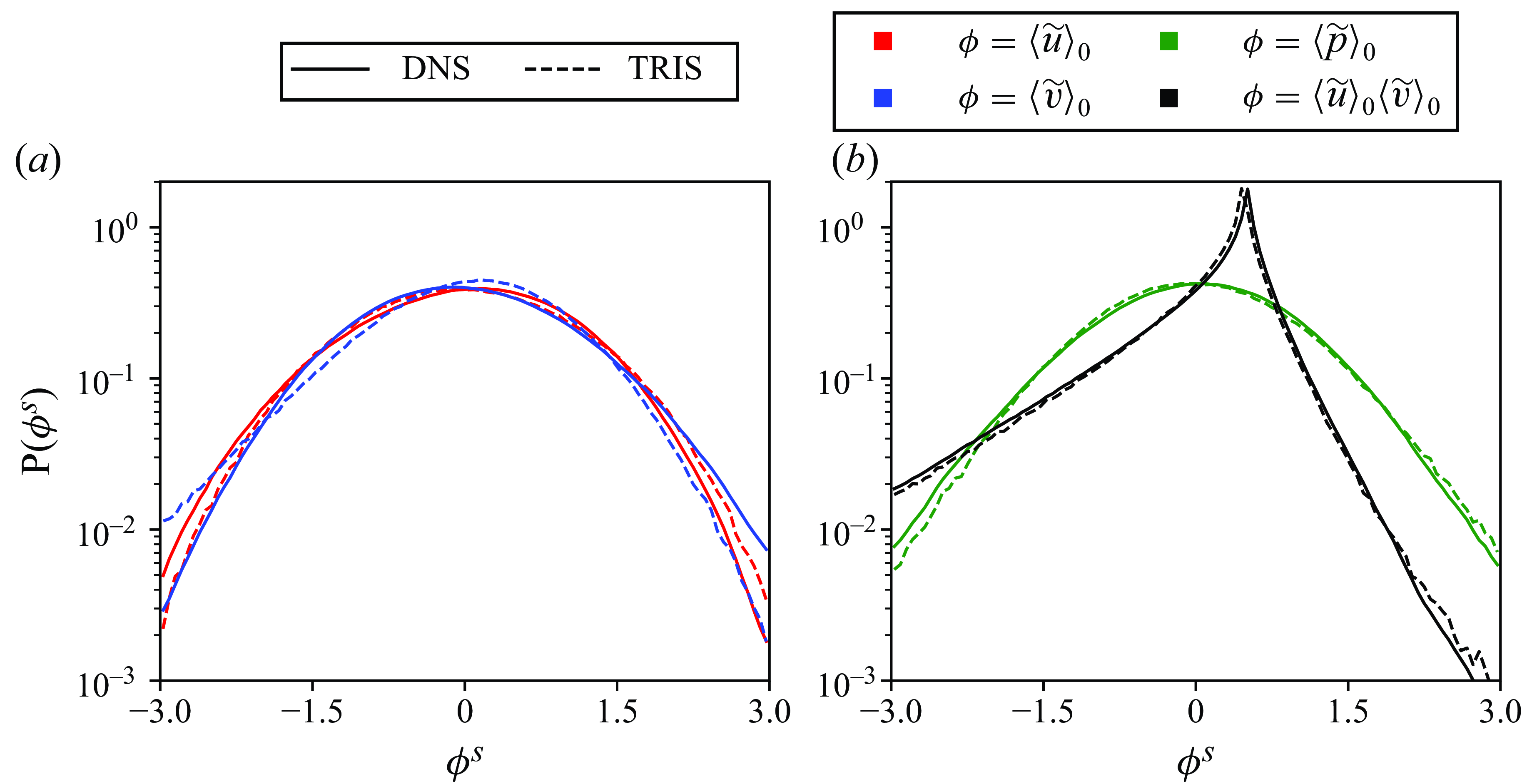

Figure 7. Standardised (denoted with superscript ‘s’) PDFs of the zeroth moments of the streamwise and wall-normal velocity (a) and zeroth moment of pressure and resolved shear stress (b). Solid lines correspond to DNS and the dashed lines correspond to TRIS and comparisons are made for $Re_\tau =395$ .

6. Concluding discussion

This paper introduces a framework for TRIS of wall-bounded flows. A proof-of-concept demonstration is shown for an open-channel configuration using instantaneous moment-of-momentum integral equations (derived from first principles) with closures based on an assumed profile. The use of zeroth- and first-moment integral equations in a 2-D (streamwise–spanwise) domain provides a sufficient basis for reproducing the self-sustaining process of large-scale streaks in wall-bounded turbulence. The resulting 2D/3C TRIS simulations yield a qualitatively realistic structure for the three velocity components and pressure fields. With a wall-parallel resolution of $h/5$ , DNS evidence suggests that the approach can directly resolve $35\,\%{-} 40\, \%$ of the Reynolds shear stress responsible for turbulent skin friction enhancement. This estimate is relatively constant across a wide range of Reynolds numbers in open-channel and full-channel DNS, $180 \leqslant Re_\tau \leqslant 5200$ , leading the authors to speculate that such resolution will hold for much larger Reynolds numbers. The cost of TRIS is very low compared with established turbulence-resolving techniques such as LES and DNS, with one flow-through time taking $\sim 1$ minute on a single processor for a channel flow, even at very large Reynolds number, using an unoptimised Python code.

The TRIS framework allows for apples-to-apples quantitative comparisons with DNS data (or experimental data, if available), allowing for a detailed analysis of model accuracy. Overall, the comparisons of spectra and single-point statistics underscore some areas of accuracy for the present TRIS closure model while also highlighting some deficiencies. In particular, the present closures allow for an unrealistically large magnitude of high wavenumber wall-normal velocity fluctuations. The authors speculate that more accurate closure models, e.g. for $\widetilde {p}_{{top}} - \widetilde {p}_{{bot}}$ , could help TRIS produce a more accurate spectra of wall-normal fluctuations with respect to spanwise wavenumber. This could in turn also help yield a more accurate distribution of kinetic energy between the three components. Further work developing physics-based models is deferred to future work.

A related quasi-2D/3C approach to reduced-order modelling of self-sustaining wall-bounded turbulence is the restricted nonlinear model (Thomas et al. 2014), which resolves the flow in the spanwise and wall-normal directions while severely restricting the representation of streamwise variations. In comparison, the TRIS approach is well suited for extension to a more general class of flows that are not periodic in the streamwise (or spanwise) direction.

A number of interesting extensions are possible. A multi-layer approach to TRIS could be developed based on performing wall-normal integrals with respect to the inner, log and outer layers, which can potentially capture more physics at the expense of higher computational cost. Of course, identification of the region boundaries and specifying appropriate interface conditions will require detailed study. Analysis by Kwon & Jiménez (2021) on DNS of an isolated logarithmic region could provide instrumental insight into modelling ideas for this approach. One potentially fruitful topic for future investigation is a more detailed analysis of the production and transport of turbulent kinetic energy from the perspective of instantaneous wall-normal integrals. This could provide more insight into the shortcomings of the present closures and potential pathways for developing closures with higher physical fidelity.

The ability of TRIS to resolve LSMs, which have important sensitivities to favourable and adverse pressure gradients, motivates future development targeting engineering-relevant flows. Future work will aim to formulate the TRIS equations for (external) boundary layer flows. The wall-normal integral of velocity diverges for a semi-infinite domain, so the formulation for boundary layers should be done in terms of velocity defect relative to an irrotational outer flow solution. The AMI equation for boundary layers is formulated this way (Elnahhas & Johnson 2022). The equations governing the instantaneous zeroth and first moments of the velocity defect can be formulated and the free-stream pressure gradient term would be formally closed. Lacking a no-penetration upper boundary, the boundary layer TRIS formulation will need to account for interaction with an irrotational free-stream flow with zero/non-zero pressure gradients and boundary layer induced fluctuations. Also, the streamwise growth of a boundary layer (i.e. lack of streamwise periodicity) will necessitate the development of realistic inflow boundary conditions, which could be based on recycling–rescaling concepts used in LES and DNS (Lund, Wu & Squires 1998; Spalart, Strelets & Travin 2006). We have avoided such complications in the present formulation in order to focus on the proof of concept for TRIS itself in terms of the self-sustaining dynamics. The $35\,\%{-}40\, \%$ resolution of the Reynolds shear stress integral by TRIS shown in figure 2 will also need to be reassessed using DNS of spatially developed boundary layers, although the authors expect any changes to be minor.

Importantly, a truly predictive approach (for engineering quantities of interest) requires more work to establish physics-based closure models to improve the accuracy and general applicability of TRIS compared with the present proof of concept.
